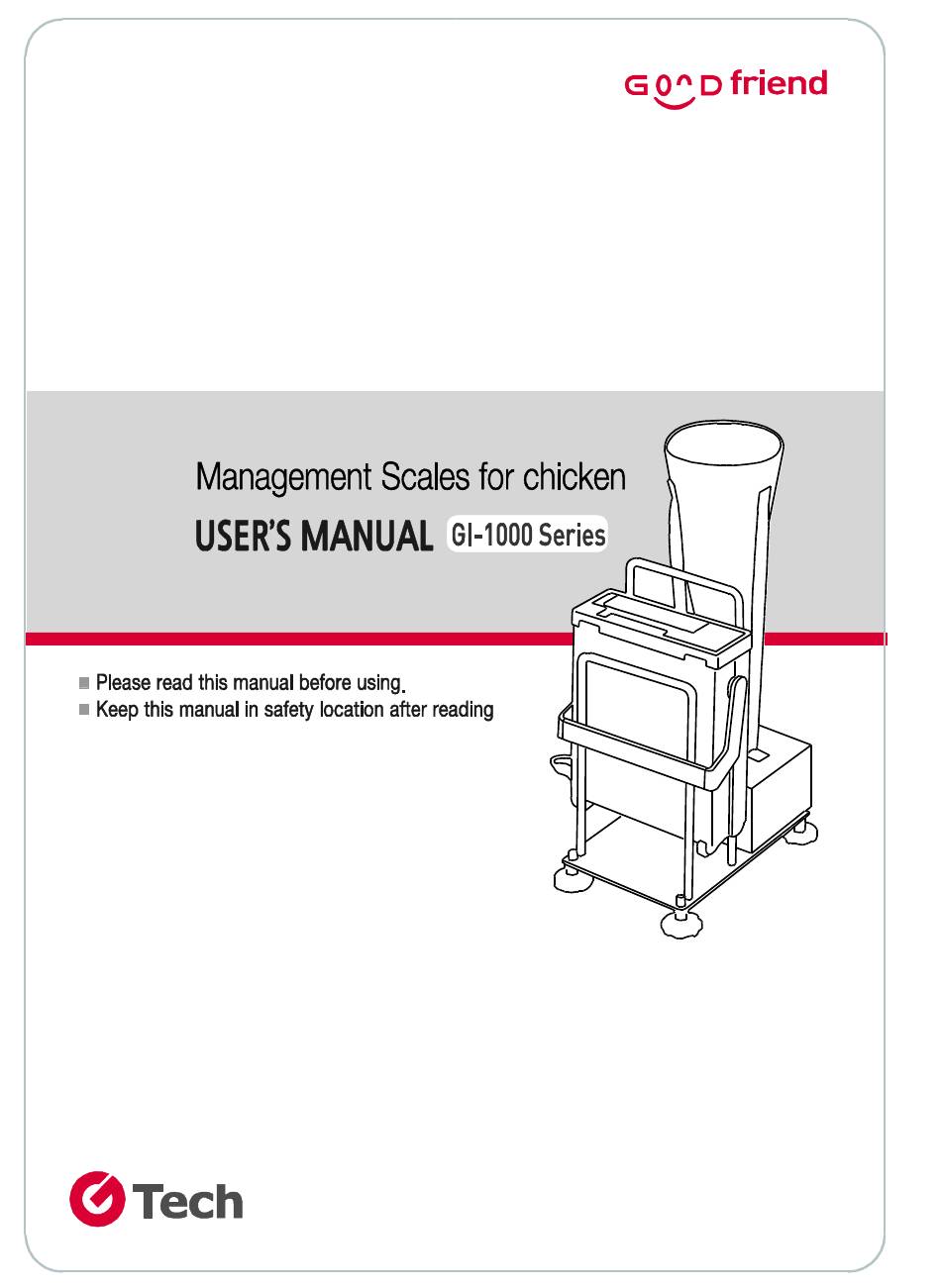

TECH Good friend GI-1000 Series User Manual

Management scales for chicken

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the Good friend GI-1000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for TECH Good friend GI-1000 Series

Page 3: Table Of Contents
Contents Introduction ..............4 Safety Precautions ............4 Product details ..............6 Product dimension ............7 Product Usage ..............12 PC program ..............24 Error message & Repair ..........27 Product Specifications............. 28...
Page 4: Introduction
Introduction Thank you for your purchasing the GI-1000 Series, This product is manufactured under high quality management. So, we guarantee the excellent performance of the product. User must read this manual carefully and know fully. Before operation it. 1. Safety Precautions ▶When handling the product, it is important to treat the right way.
Page 6: Product Details
2. Product details 2-1. Basic Package ⑦ ⑦ ⑥ ② ② ② ① ④ ③ ⑤ ② ② ② ② ① Weighing platform and indicator ------------ 1Set ② AC adapter ---------------------------------------- ③ Communication Cable -------------------------- ④ Management program CD -------------------- ⑤...
Page 7: Product Dimension
3. Product dimension 3-1. Chicken scale 3-2. Indicator...
Page 8 4. Product Usage 4-1. Indicator display - Key function ZERO KEY : Making the current state “0” kg. PRINT KEY : Printing the data collected by groups when printer is Connected. SAVE KEY : Memorizing the metered data if you want to use manually. PC KEY : Connect the computer and the data collected by the group are Transferred to your computer when you want to use.
Page 9 - Lamp ZERO LAMPS : Lights up when the current weight is “0” kg. STABLE LAMPS : Lights up when the weight is stable. AUTO LAMPS : lights up when data is memorized automatically. MAN LAMPS : Lights up when data is memorized manually. CHARGE LAMPS : Blinking when the BATTERY charging.
Page 10 4-3. How to use 1) Manual measurement Place the product on level flat. Indicator should be fixed to the indicator guide. Connect load cell connector with indicator.
Page 11 Power switch ON. Zero, Stable, Man Lamp is light up When the power On. Weight, Quantity, Group of current status are displayed. If Man Lamp is light up, press the Enter key, go to the Group and then you should insert the chicken to the funnel with head first.
Page 12: Product Usage
When you insert a chicken, Weight Zero Lamp indicator is displayed and the weight is shown when the weight is stable as STABLE LAMP light up. Make sure the lights Stable Lamp. Press the SAVE KEY. 'beep' Sound And weight displayed with Blinking data is memorized, QUANTITY Increases by one.
Page 13 2) Automatic Data Collection When The power ON and press AUTO / MAN KEY. Please Make Sure AUTO LAMP is light up. Insert chicken the funnel. STABLE LAMP Is light up when the weight is stable, and The 'beep' sound and Data is memorized With increasing by 1 at the QUANTITY.
Page 14 3) How to battery recharge After the power of indicator is turned OFF. Plug into the power on back Side. When you plug into the 220V, power is Recharged with LAMP is blinking. The power is completed when the light is constant. * Rechargeable battery (Charge, discharge precautions) 1, The BATTERY is a consumable 2.
Page 15 4) Data Analysis mode - Data print Connecting with printer and indicator (Power of indicator should be off) Pressing check key with Switch ON out is shown when switch ON. When press PRINT KEY, " Print" is shown On the WEIGHT and it is printed...
Page 16 When press PRINT KEY, Print is shown on The WEIGHT and it is printed. “End” is shown on the WEIGHT When printing is over. (Ex) Group1 ----> Group Show 001 1.50 kg -> Memorized weight value 002 1.75 kg 003 1.50 kg --------------------------------------------------------- Total 4.75 kg ------------->...
Page 17 - PC Data Connecting with RS-232 and PC (Power of indicator should be OFF) Switch ON with pressing check key "Out" is shown and the press the PC Key "PC" is shown when PC KEY press...
Page 18 "End" is shown when transfer is over Press the Enter key to send the group can be selected, when 'A' is displayed. You can transfer the entire group to PC. In order to send back again to the PC, Press the PC key.
Page 19 - Data check To check the memorized data at the Indicator Press the CHECK KEY with switch ON Press it once more when “out" is shown. Press the Check KEY, Memorized data is shown on the Quantity by one increasing After the weight is checked, Press the QUANTITY CHECK KEY and then "tot", "AVG", "dEG"...
Page 20 - Deletion: If you want to delete the data collected. The power OFF state. Press CHECK KEY with the power on. “Out" is displayed, press the Delete Key. "clear" is displayed. One more press the Delete key. If you want to delete all data, Press Enter Key to select the group you want to delete or keep the press on, GROUP "A"...
Page 21 - Stable range setting Stable range setting can be set within the range of weight. The input range is from 2 to 15. Press the DELETE KEY with Switch On Stable range is shown as picture on the weight. Press the SAVE KEY to select your desired input range.
Page 22 5) Test mode - If you want to test the product Switch ON, Press the ZERO KEY Test mode If you press ENTER KEY then next test (To exit the test mode, the power is OFF)
Page 23 * TEST 1 : KEY test-press the key as you want to test the code, number is displayed * TEST 2 : Display the test-sequence segments that all the lamps and lights (except ENTER KEY, press any KEY) * TEST 3 : load cell and A / D conversion test - A/D value is displayed (1000 ~ 8000 values normal) * TEST 4 : Testing Serial Communication (RS-232C) –...
Page 24: Pc Program
6. PC Program 6-1. Install the Program (b) GI-1000 Open the folder and (a) After install the program. Double click to run the setup. (c) Install window appears, (d) Then Press the NEXT. then press (Y) (f) Press the NEXT. (e) Press the NEXT.
Page 25 (h) Press the NEXT. (g) Press the NEXT. 6-2. Runing Before running the computer, the power should be OFF. Connect with the scale and computer and the power ON. Find to the program and then Use. (b) The program is opened. (a) c: /GI-1000 runs the folder.
Page 26 (f) Text file can be changed (e) Select the GROUP. to Excel file. (h) Graphical reports. (g) TEX. (i) Graphical reports 2...
Page 27: Error Message & Repair
7. Error message & Repair...
Page 28: Product Specifications
8. Product Specifications Weighing capacity 10Kg Graduation Resolution 1/3000 1/2000 Display Weight : 5Digit,Quantity : 3Digit,Group : 1Digit Temperature -5℃ ~ 40℃ Humidity Under 85% Power(AC Adapter) Input AC 220V/50~60Hz,Output : DC12V/1A Rechargeable battery 1.2V/1300mA x 6Pcs(built-in) Power consumption 0.1W Dimension Packed size Weight of Product...
