Satellite and TV reception equipment
User manual PSCD-02
Remote programmer via coaxial cable.
The PSCD-02 programmer enables the reading
and writing configurations for the MSP3-5G and
the MSA3-5G mast amplifiers with the LEM NFC
application.
Additionally, the MSA3-5G compact amplifier can
be programmed automatically using the SmartScan
function.
NOTE: Function enabled on MSA3-5G from rel. fw1.3
Function enabled on MSP3-5G from rel. fw1.2

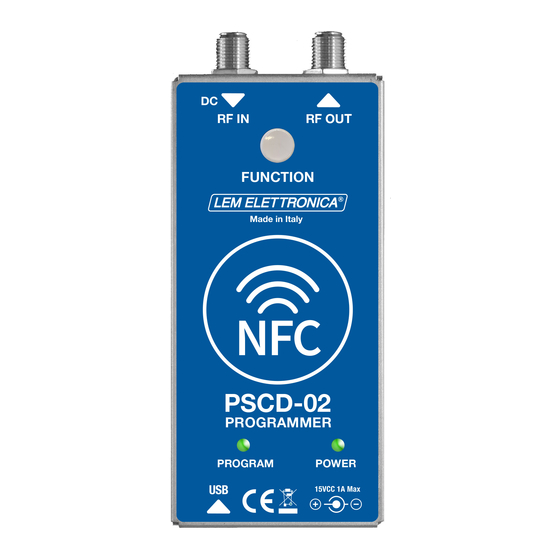

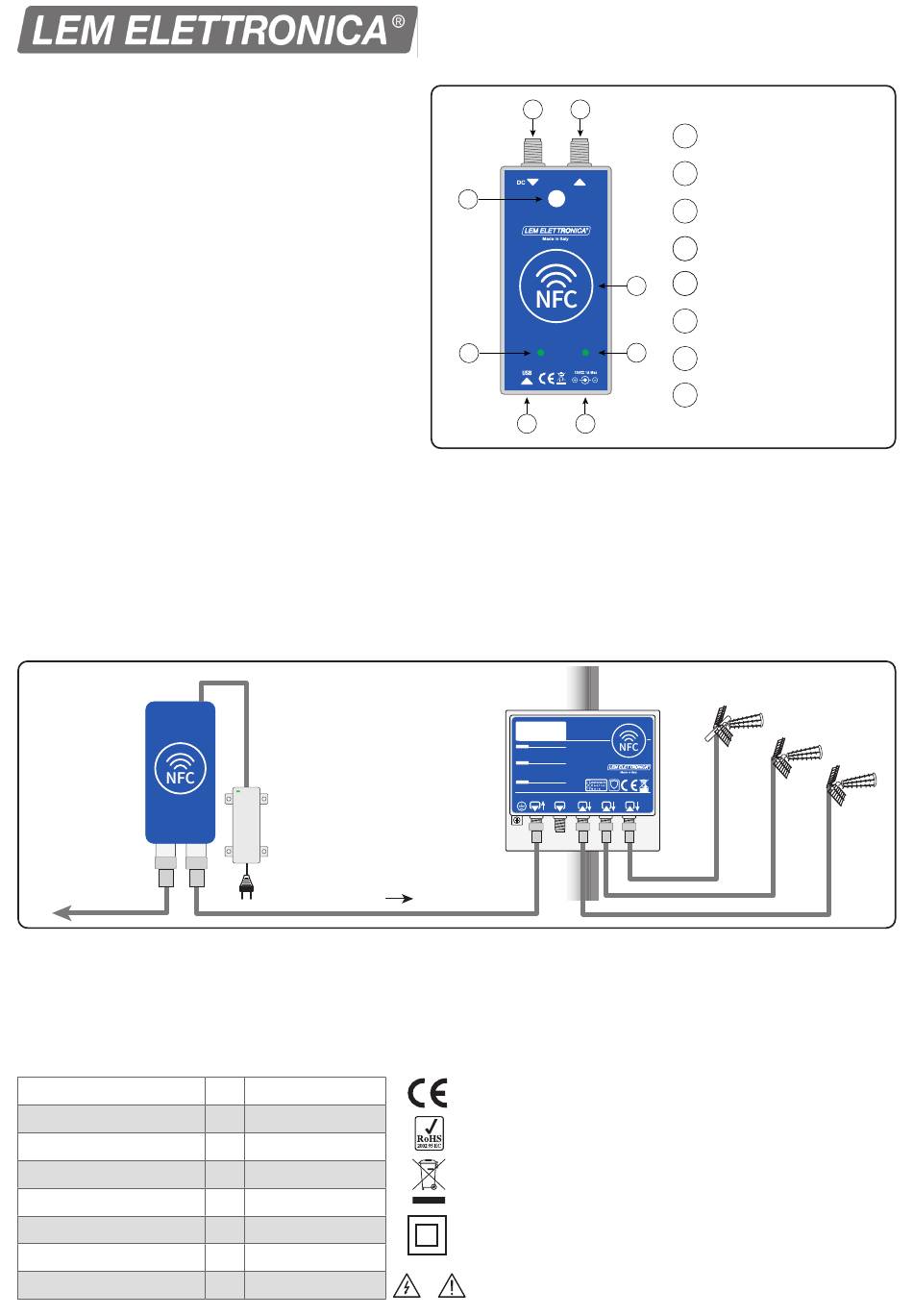

PSCD-02 programmer connection
1_ Use a coaxial cable to connect the RF input of the PSCD-02 controller with the device you wish to programme.
2_ Connect the supplied power adapter to the PSCD-02 controller and then plug it into the mains socket.
3_ Once switched on, the controller will start sending query messages via coaxial cable. When the programmer
detects an MSP3-5G or MSA3-5G compact amplifier, the PROGRAM LED changes to steady green colour.
4_ Since the PROGRAM LED is in a steady green state, you can proceed with programming the amplifier.
PSCD-02
RF
RF
OUT
MATV
Do not add another power source between the PSCD-02 controller and the amplifier.
TECHNICAL SPECIFICATIONS
INPUT / OUTPUT
TYPICAL TRUNK LOSS
SHORT CIRCUIT PROTECTION
OUTPUT VOLTAGE
MAX. OUTPUT CURRENT
SUPPLY VOLTAGE
COMMUNICATION STANDARD
PROGRAMMING PORT
IN
230VCA
12VCC
40... 2.200MHz
dB
1
YES
VCC
12
A
1
VCC
12... 15
NFC
micro USB
8
RF IN
7
FUNCTION
PSCD-02
PROGRAMMER
6
PROGRAM
5
MSP3-5G
NFC Prgrammable
Digital Signal Processor
INPUTS
(1) BIII/DAB/UHF:
174... 694MHz
(2) UHF:
470... 694MHz
(3) UHF:
470... 694MHz
OUTPUT
GAIN BIII/DAB:
30dB
GAIN UHF:
40dB
LEVEL x MUX:
90dBµV
MAX. TOTAL LEVEL:
105dBµV
POWER
VOLTAGE RANGE:
12... 15VDC
MAX. CONSUMPTION:
5,5W
TEST
OUT
-20dB
DC IN
WARNING!
The equipment complies with the CE requirements
The equipment is compliant with RoHS 2011/65EU
Dispose according to local authorities recycling processes
Symbol indicating that the supplied mains power supply complies
with the safety requirements for class II devices.
Risk of fire or electrocution.
CAUTION
1
RF OUTPUT
1
NFC ANTENNA
2
RF OUT
POWER LED
3
DC PLUG
4
1
MICRO USB PORT
1
5
2
PROGRAM LED
6
3
FUNCTION BUTTON
7
POWER
RF INPUT
8
4
DAB
UHF
POWER
SAW
FILTER
PROTECTED
UHF
UHF
BIII/DAB/UHF
DC
DC
DC
3
2
1
UHF
UHF
