Schiller Grounds Care STEINER RS350 Parts Manual

Rotary sweeper-54”
Hide thumbs Also See for STEINER RS350:
Table of Contents

Advertisement

Quick Links

Download this manual
75-70585A
"
ROTARY SWEEPER-54
RS350

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STEINER RS350 and is the answer not in the manual?

Questions and answers

Related Manuals for Schiller Grounds Care STEINER RS350

Summary of Contents for Schiller Grounds Care STEINER RS350

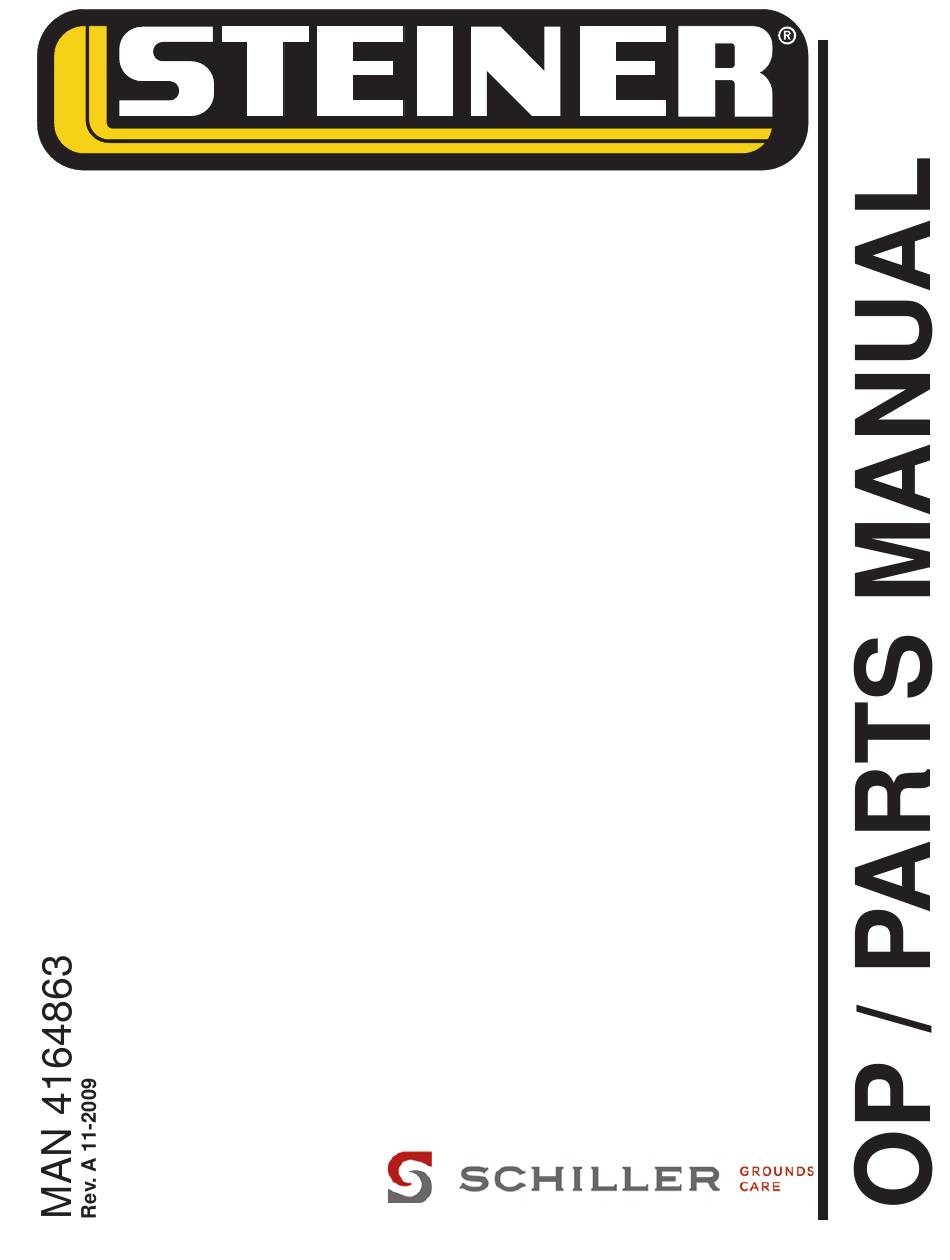

  • Page 1 75-70585A ” ROTARY SWEEPER-54 RS350...
  • Page 2 CALIFORNIA WARNING Proposition 65 Warning The engine exhaust from this product Diesel engine exhaust and some of contains chemicals known to the State its constituents are known to the State of California to cause cancer, birth of California to cause cancer, birth defects or other reproductive harm.

  • Page 3: Important Message

    Schiller Grounds Care, Inc.designs and builds its equipment to serve many years in a safe and productive man- ner. For longest life, use this product only as directed in the manual, keep it in good repair and follow safety warnings and instructions.

  • Page 4: Description / Specifications

    DESCRIPTION / SPECIFICATIONS ROTARY SWEEPER DESCRIPTION Clear away leaves and debris on pathways, parking lots, sidewalks, and driveways with this 54 inch wide rotary sweeper. Hardwearing nylon broom, driven by a bevel gearbox from the tractor PTO, has hydraulically controlled angling for left and right hand operation. Flotation springs (on older models) or caster wheels (on newer models) reduce ground pressure on the broom for longer life.
  • Page 5 Your safety and the safety of others is involved. Schiller Grounds Care, Inc. strongly warns against, Signal word definitions rejects and disclaims any modifications, add-on The signal words below are used to identify levels...

  • Page 6: General Safety

    SAFETY ROTARY SWEEPER GENERAL SAFETY 1. Read and understand the Owner’s Manual before attempting to operate this machine. 2. Operate all controls from the operator’s seat. NO RIDERS. 3. Keep all shields in place and safety switches adjusted properly. 4. Do not leave equipment unattended. STOP the engine and remove the key. 5.
  • Page 7 ASSEMBLY INSTRUCTIONS ROTARY SWEEPER MODEL RS350 ROTARY SWEEPER • Remove broom from the shipping crate. Remove shipping bracket. • Remove the bottom belt shield from the hitch frame. Remove hose clamp from top of hitch frame. • Loosen 3/8 locking nuts on square head set screws. Turn setscrews in. These setscrews are used to level the broom and must be adjusted after the sweeper is mounted on the power unit.

  • Page 8: Installation Instructions

    INSTALLATION INSTRUCTIONS ROTARY SWEEPER MOUNTING INSTRUCTIONS On Models Serial No. 1001 - 2246: • This sweeper is designed to fit MODEL 220, 230, 410. 420, 430, 425 and 525 Steiner power units. The MODEL 410 unit requires optional gauge wheels. •...

  • Page 9: Operation

    OPERATION ROTARY SWEEPER Observe all Safety Decals. Keep all Shields in Place. Before leaving tractor, move Forward - Reverse control to neutral position, disengage PTO, set parking brake and stop engine. OPERATING INSTRUCTIONS 1. Mount rotary sweeper according to instructions on page 6. 2.

  • Page 10: Maintenance

    SERVICE ROTARY SWEEPER MAINTENANCE DAILY (10 HOUR) MAINTENANCE: ANNUAL (100 HOUR) MAINTENANCE: 1. Check for signs of loose bolts etc. 1. In addition to daily maintenance: • • Replace or tighten. Grease all bearings. 2. Check oil level in gearbox. 2.
  • Page 11 SERVICE ROTARY SWEEPER BROOM DRIVE BELT REPLACEMENT 1. Remove the drive pulley shield and the bottom belt shield from the hitch frame. 2. Install the new belt and idler spring as shown in Photo 3. 3. Reinstall the bottom belt shield and the drive pulley shield.
  • Page 12 BROOM PARTS ROTARY SWEEPER FIGURE 1...
  • Page 13 BROOM PARTS ROTARY SWEEPER FIGURE 1 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4165138 SHIELD-TOP 64163-04 25/64X5/8X16GA WASHER 00-092 DECAL-KEEP HNDS & FT 64006-02 LCKWSHR-HEL 5/16 64139-08 BOLT-5/16-18X3/4 WLF 64123-68 BOLT-HEX 5/16-18X1 80-039 BROOM (15" X 54") 64139-24 BLT-WLF 3/8-16 X 1 4138878 2-BOLT FLANGE BRG 04-016...
  • Page 14 HITCH PARTS ROTARY SWEEPER FIGURE 2 OPTIONAL KIT 70-026...
  • Page 15 HITCH PARTS ROTARY SWEEPER FIGURE 2 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 41-012 SPRING 83-012 PULLEY, IDLER 56-018-07 CHAIN-7 LINKS 64123-235 BOLT, 1/2-13 x 1.3/4 64-585.7 FLOAT SPRING BRKT 64123-87 BOLT-HEX 3/8-16X1-3/4 64139-21 BLT-WLF 3/8-16X3/4 64163-67 WASHER-.516X1X12GA 64141-4 NUT-WLF 3/8-16 64123-31 BOLT-1/2-13X3 HEX...
  • Page 16 GEARBOX ROTARY SWEEPER FIGURE 3...
  • Page 17 GEARBOX ROTARY SWEEPER FIGURE 3 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 87-CM003582 HOUSING HALF 87-CM153437 BALL BEARING 87-CM301374 SEAL 87-CM226423 THRU SHAFT 87-CM108068 INTEGRAL SHAFT & PIN (LEFT HAND) 87-CM153429 BALL BEARING 87-CM620013 RETAINING RING 87-CM640110 EXPANSION PLUG 87-CM108514 GEAR (RIGHT HAND)

  • Page 18: Caster Wheels

    CASTER WHEELS ROTARY SWEEPER FIGURE 4 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 62-097.17 FRAME, ROTARY SWEEPER 1 03-017 CLIP, 5/16" 6112057 SPACER ENGINE PULLEY 35027N GREASE FITNG-1/4-28 90 64141-4 NUT-WLF 3/8-16 62-809.7 FRAME, CASTER SWIVEL 64123-171 BOLT-HEX 3/8-16X3-1/2 62-882.7 YOKE, CASTER W/A 90-0836...

  • Page 19: Belt Chart

    BELT CHART ROTARY SWEEPER FIGURE 5...
  • Page 20 SCHILLER GROUNDS CARE, INC. ONE BOB-CAT LANE P.O. BOX 469 JOHNSON CREEK, WI 53038 BOB-CAT BUNTON RYAN STEINER 920-699-2000 www.schillergc.com ©Schiller Grounds Care, Inc. 2010...
