Summary of Contents for ENcombi ECpvX

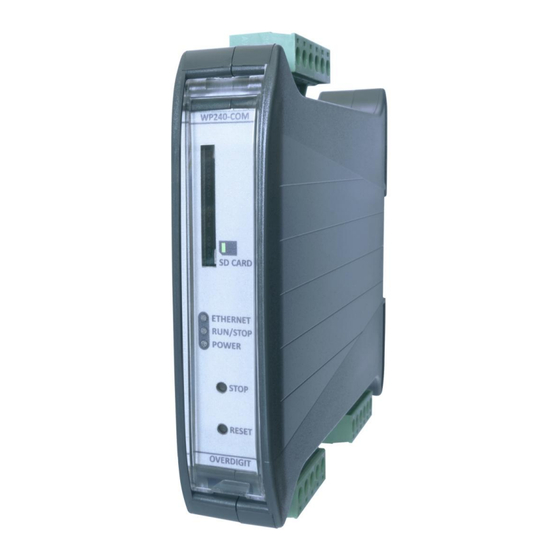

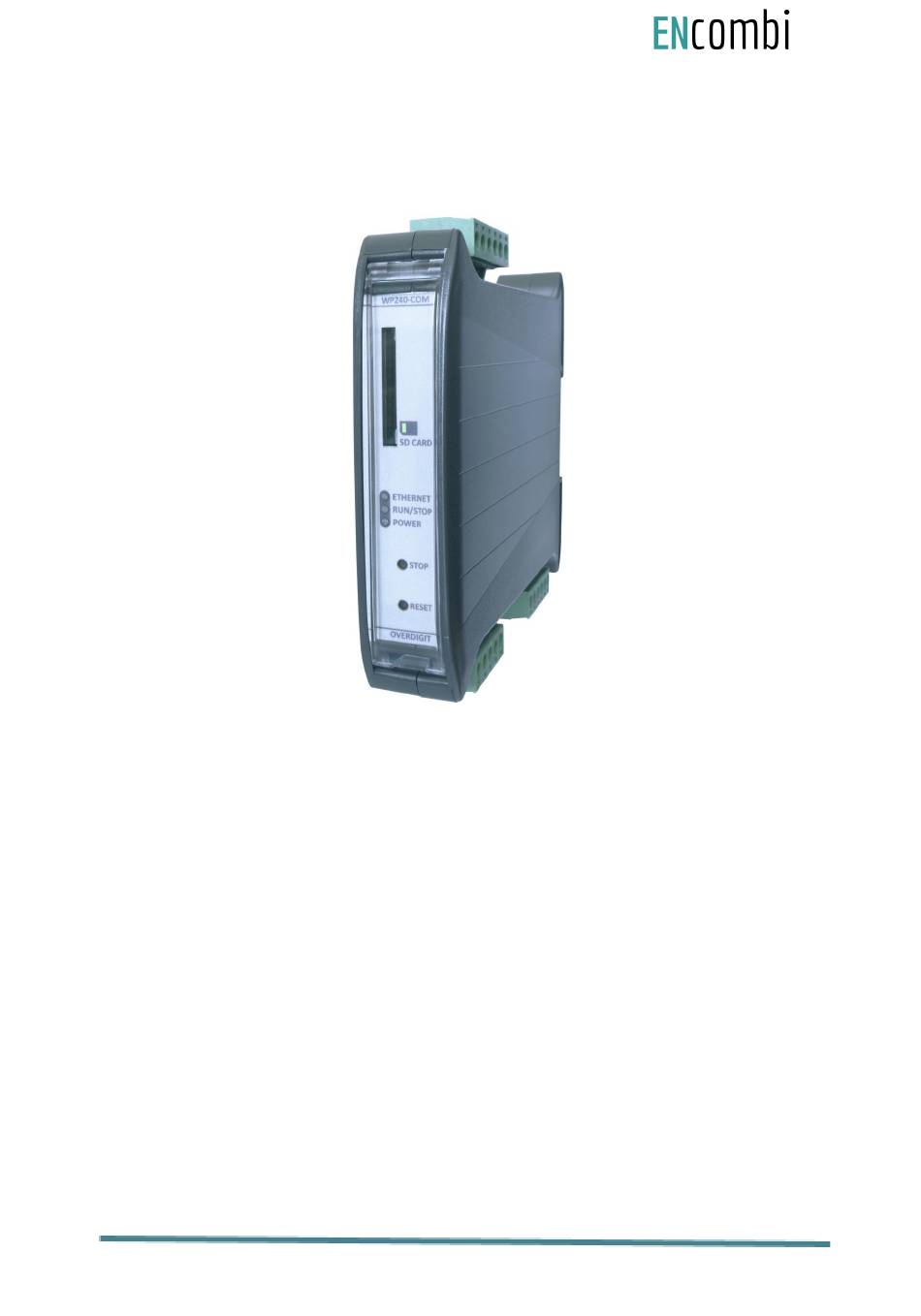

- Page 1 ECpvX Cluster Quick Start Guide...
-
Page 2: Table Of Contents
Document change log Introduction ECweb Connecting to ECweb with Internet Explorer on PC/laptop Connecting to ECweb using any other browser or mobile device Troubleshooting Connection to ECweb established... -
Page 3: Document Change Log
Document change log 2022-09-06 First version... -
Page 4: Introduction
ECpvX Cluster is in place. Note that it is not mandatory for the control and balancing of the system to work to have HMI or laptop connected to ECweb. It is required for commissioning of the ECpvX Cluster only. -
Page 5: Ecweb
ECweb ECweb is the built in webserver of the ECpvX Cluster. All configuration and real time monitoring of the ECpvX Cluster is done via ECweb. Connection to ECweb is done with a standard web browser Using a laptop/PC and Internet Explorer/Pale moon browser running on Java is the best option for connecting to ECweb. -
Page 6: Troubleshooting
[2;249] excluding “101” as this is used by the ECpvX Cluster itself. 3. Once the IP of your laptop is in place you must be able to ping the ECpvX Cluster. This can be done by opening a command prompt and writing the command “ping xxx.yyy.zzz.www”... -
Page 7: Connection To Ecweb Established
In the upper right corner you can see the current access login level. Find more information about this in chapter revolving password scheme. In the lower left corner ECpvX Cluster will display any info and warning messages it wants to communicate to the user. Some messages will clear themselves automatically. - Page 8 3. “Monitoring” provides a high level overview of the installation as well as detailed information about each individual inverter and power meter. 4. “Control” gives access to set up of ECpvX Cluster controller related parameters such as IP configuration, Internal clock handling etc.
