RioOutdoors 6F-WPH Installation Instructions Manual

6x6, floating deck, wall attached, open top, partial hexagon pergola kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
6x6, Floating Deck, Wall Attached, Open Top, Partial Hexagon Pergola Kit
WARNING: If the information in these instructions is not followed exactly, weakening or failure of the erected
structure may result causing property damage, personal injury, or loss of life.
All brackets designed and sold by RioOutdoors.com are to be used for building pergolas only and are not to be used for
other structure construction purposes.
Items not included in this kit: wood, tools, some hardware.
•
Thoughtfully engineered Brackets eliminate all wood-joinery skills requirements.
•
Skills required: leveling ground, drilling pilot holes, and driving lag screws into lumber.
•
Easy lift and place U-channels eliminate need for lifting equipment. Super-easy assembly work.
•
Self-aligning design squares up structure automatically.
•
Estimated Assembly Time is less than 2 hours (not including deck).
1 |
P a g e
Installation Instructions
6F-WPH
Pergola Kits

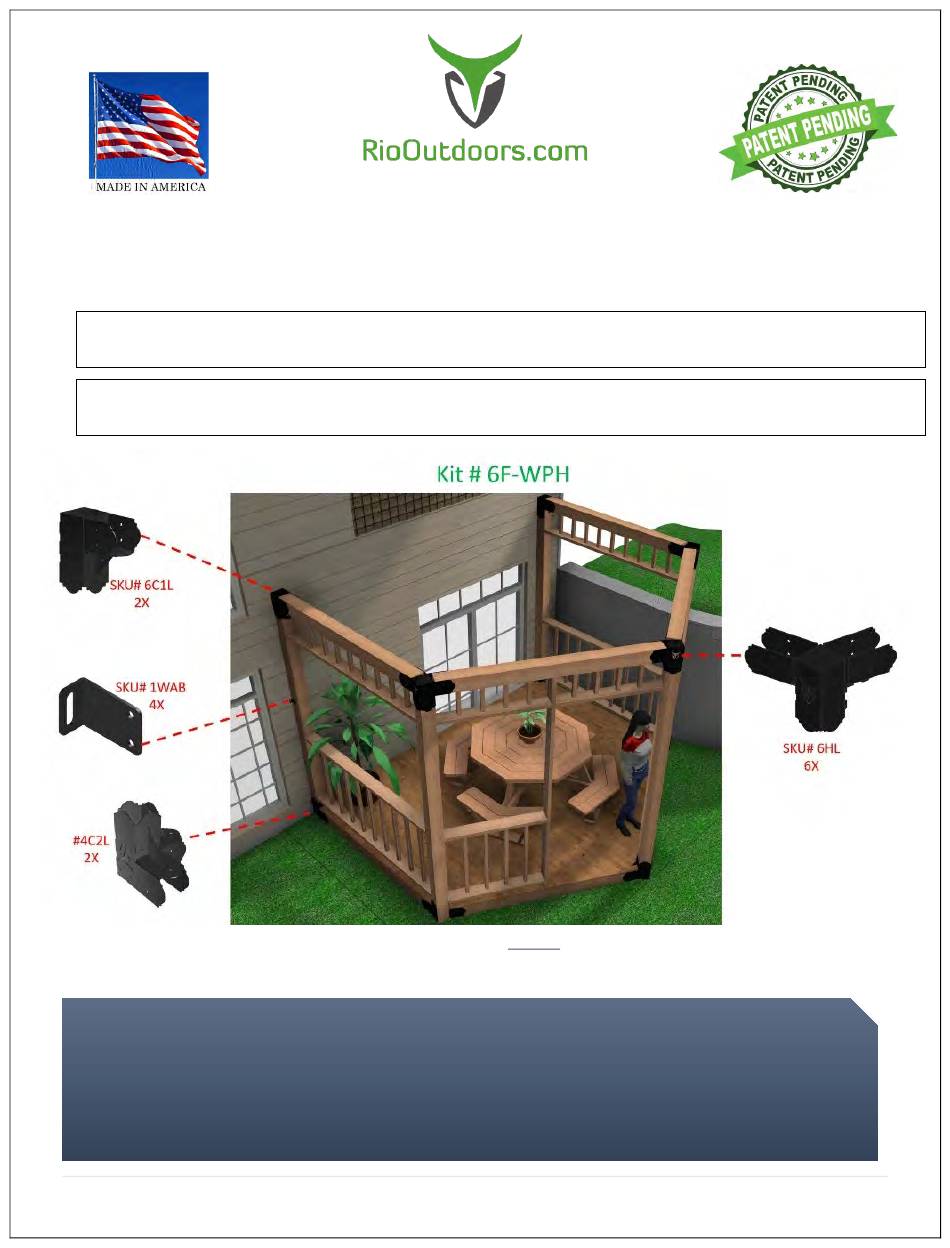

Figure 1: Items included in the kit, (
) .
������������ #
������������������������ ���� ����
