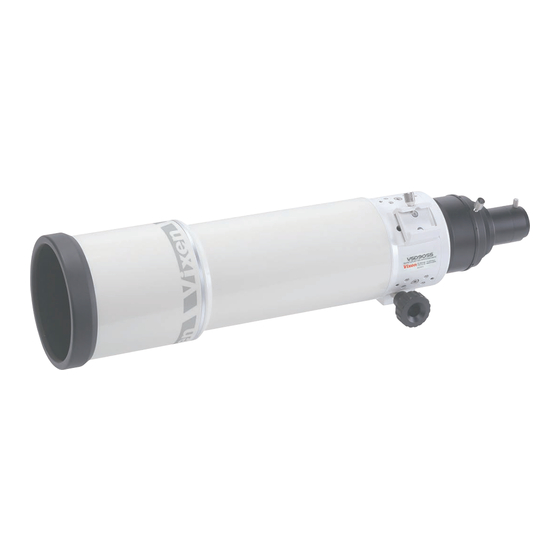

Vixen VSD90SS Instruction Manual

Refracting telescope
Hide thumbs

Advertisement

Table of Contents

Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSD90SS and is the answer not in the manual?

Questions and answers

Related Manuals for Vixen VSD90SS

Summary of Contents for Vixen VSD90SS

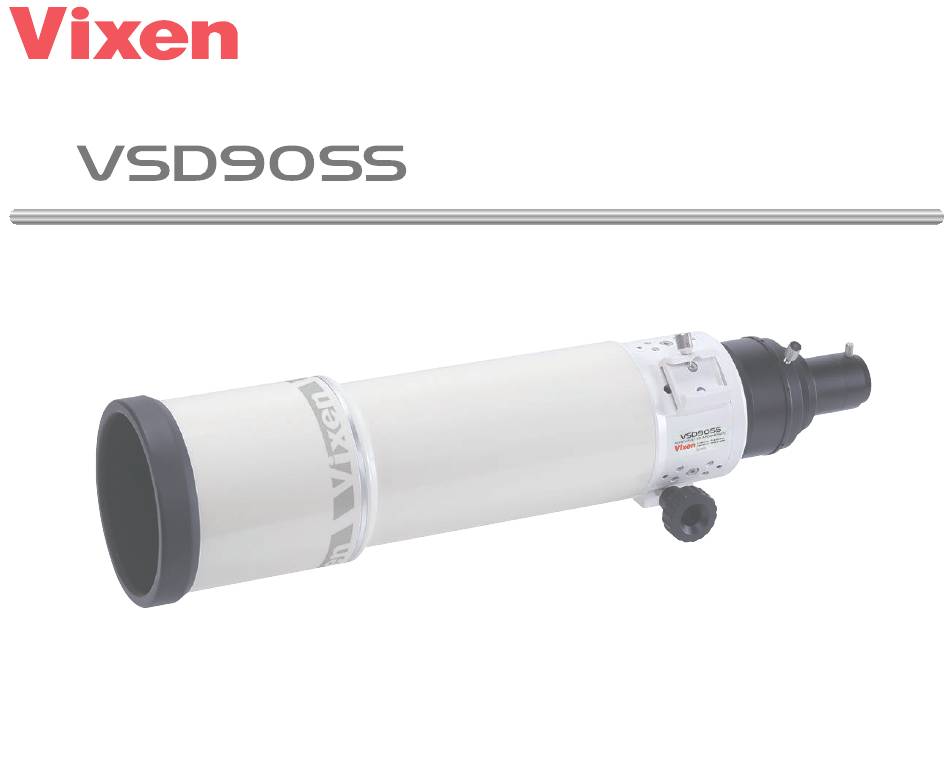

  • Page 1 Instruction Manual...

  • Page 2: Handling And Storage

    Avoid touching any lens surfaces directly with your hands. If the lens becomes dirty with fingerprints or general smears, gently wipe it using a commercially available lens cleaner and a lens cleaning paper or cloth, or consult your local Vixen dealer. Be sure to touch...

  • Page 3: Limited Warranty

    Terms of Product Repairs Vixen accepts repairs for Vixen products when such products do not function due to being out of order. We herewith set forth terms and conditions to accept repairs for free for malfunction during the warranty period according to the contents provided by Vixen if you have been using the product correctly in compilance with the instruction manual.
  • Page 4 Vixen Customer Support. The customer has to pay for repair fees at the Vixen dealer‘s site where he or she purchased the product. If you apply for repair directly to our customer service, you are requested to pay by bank transfer or cash on delivery. Please note that the customer is responsible for charges by bank transfer and shipping fee with cash on delivery.

  • Page 5: Checking The Package Contents

    Checking the Package Contents The VSD90SS package contains the items listed below. Be sure to check if all the items are included. he VSD90SS package contains the items listed below. Be sure to check if all the items are included.
  • Page 6 ③ e Finder Bracket Lock Screw M6 screw (P=1.0mm) M6 screw (P=1.0mm) ④ Finder Bracket Shoe r Finder Bracket Shoe Vixen standard finder bracket shoe Vixen standard finder bracket screw ⑪ ③ ⑤ M84 Extension Tube t M84 Extension Tube 84mm thread with pitch 1.0mm, 34mm optical path length...
  • Page 7 VSD tube ring 115S on the mount head of the SXP2 and Place the VSD90SS over the part of a cradle on the tube ring and install Place the VSD tube ring 115S on the mount head of the SXP2 and...
  • Page 8 VSD90SS in it. e VSD tube ring 115S bottom side up and put the dual slide bar Open the clamshell-type tube ring and install the VSD90SS in it. inch-9mm screws provided for the dual slide bar and an t tach the dual slide bar using t wo 1/4 -inch-9mm screws ce the VSD tube ring 115S bottom side up and put the dual slide bar Open the clamshell-type tube ring and install the VSD90SS in it.
  • Page 9 You attach a 50mm XY finder bracket II or a 50mm Low-profile finder bracket(S) to the optical tube to install the finder scope on the VSD90SS. You attach a 50mm XY finder bracket II or a 50mm Low-profile finder bracket(S) to the optical tube to install the finder scope on the VSD90...
  • Page 10 Begin with an eyepiece with long focal length (low magnification). If using an eyepiece with a shor t focal length (high Focusing the VSD90SS magnification), the image appears in a narrower field of view and the range of sharp focus gets narrower. As a result, you make it hard to find the target object.
  • Page 11 M84 Extension Tube Squaring (Ring C) (Ring B) Adjustment Ring (Combination of Ring D and Ring E) 31.7mm Eyepiece (optional) VSD90SS M60 to 42T Ring (Ring B) 31.7mm Prism Diagonal (optional) 42T to 31.7 Eyepiece Adapter 60.2 to M60 Ring...
  • Page 12 < Ring D T-Ring (optional, appropriate to your camera) Wide Photo Adapter 60DX M84 Extension Tube (optional, Canon EOS or Nikon) 50.8mm Camera Filter VSD90SS (comercially available) M56 Thread Filter Adapter for 48/52 Filter, reversible (optional) 35mm Full-frame Camera Body...
  • Page 13 M84 Extension Tube (Ring C) (Ring B) 58mm Camera Filter (commercially available) VSD90SS Ring E > < Ring D Attaching Accessories for Eyepiece Projection Photography / Afocal Photography Attaching Accessoires for Eyepiece Projection Photography / Afocal Photography Attaching Accessories for Eyepiece Projection Photography / Afocal Photography...
  • Page 14 Vixen does not support details of an adjusting method. If you do it yourself, you are responsible for your work on the adjustments. Why do you need the squaring adjustment on the focuser? Focuser squaring on this product has already been adjusted correctly at Vixen‘s factory, and usually, it does not require further ad-...
  • Page 15 Vixen’s factory. Loosen all the push screws and then tighten all the pull screws. After that, lightly tightening every push screw will bring the squaring adjustment ring to the initial setting position at Vixen‘s factory.
  • Page 16 You will enjoy coarse and fine focus adjustments (reduction speed of 1:7) by attaching an optional dual-speed focuser to a focus knob on the VSD90SS. - If you install a commercially available electric focuser in the VSD90SS, you are responsible for it. Read this instruction manual along with a manual for your electronic focuser.
  • Page 17 How to Install the Dual-Speed Focuser How to I nstall the D ual-Speed Focuser How to I nstall the D ual-Speed Focuser How to Install the Dual-Speed Focuser How to Install the Dual-Speed Focuser 1. Unfasten the drawtube clamp lever. Two grub screws are set in series in the screw hole on the 1.
  • Page 18 How to Install the Dual-Speed Focuser How to I n s tal l t he D u a l -S p e ed Foc u se r How to I n s tal l t he D u a l- Sp ee d Fo c u ser 4.
  • Page 19 How to Install the Dual-Speed Focuser How to I n s t al l the D u a l -S p e ed Fo c u se r How to I n s t al l the D u a l- Sp ee d Foc u ser 6.
  • Page 20 How to Install the Dual-Speed Focuser How to I nstall the D u al -Spe e d Focu se r How to I nsta ll t he D u al- Spe ed Focu ser 8. You see two round screw holes on one side of the focus knob 9.

  • Page 21: Specifications

    VSD60.2 to 50.8 Adapter, 2mm Allen wrench, 1.5mm Allen wrench Suggested optional VSD tube ring 115S, dual slide bar, storage case for VSD90SS, focal reducer V0.79x, accessoires wide photo adapter 60DX, 7x50mm finder scope II with illuminated reticle, 50mm XY...
  • Page 22 D i men sio n s Dimensions 157.5mm 230mm 83.5mm 150.6mm Out-of-cylinder focus M84P1 M60P0.75 M42P0.75 T Ring Screw M95P1 Filter screw M58P0.75 M85P0.75 Filter screw フィルターネジ M84 Extension Tube Squaring Adjustment Ring (Part D: push screws) Squaring Adjustment Ring (Part E: pull screws) 60.2 to M60 Ring (Ring C) M60 to 42T Ring (Ring B) 42T Extension Tube...
  • Page 23 Memo...
