NoTouch Button – Quick Guide
Mounting
The infrared sensor is located in the top right corner of the unit. Do not position the sensor in
direct sunlight, as this will negatively affect the performance of the unit.

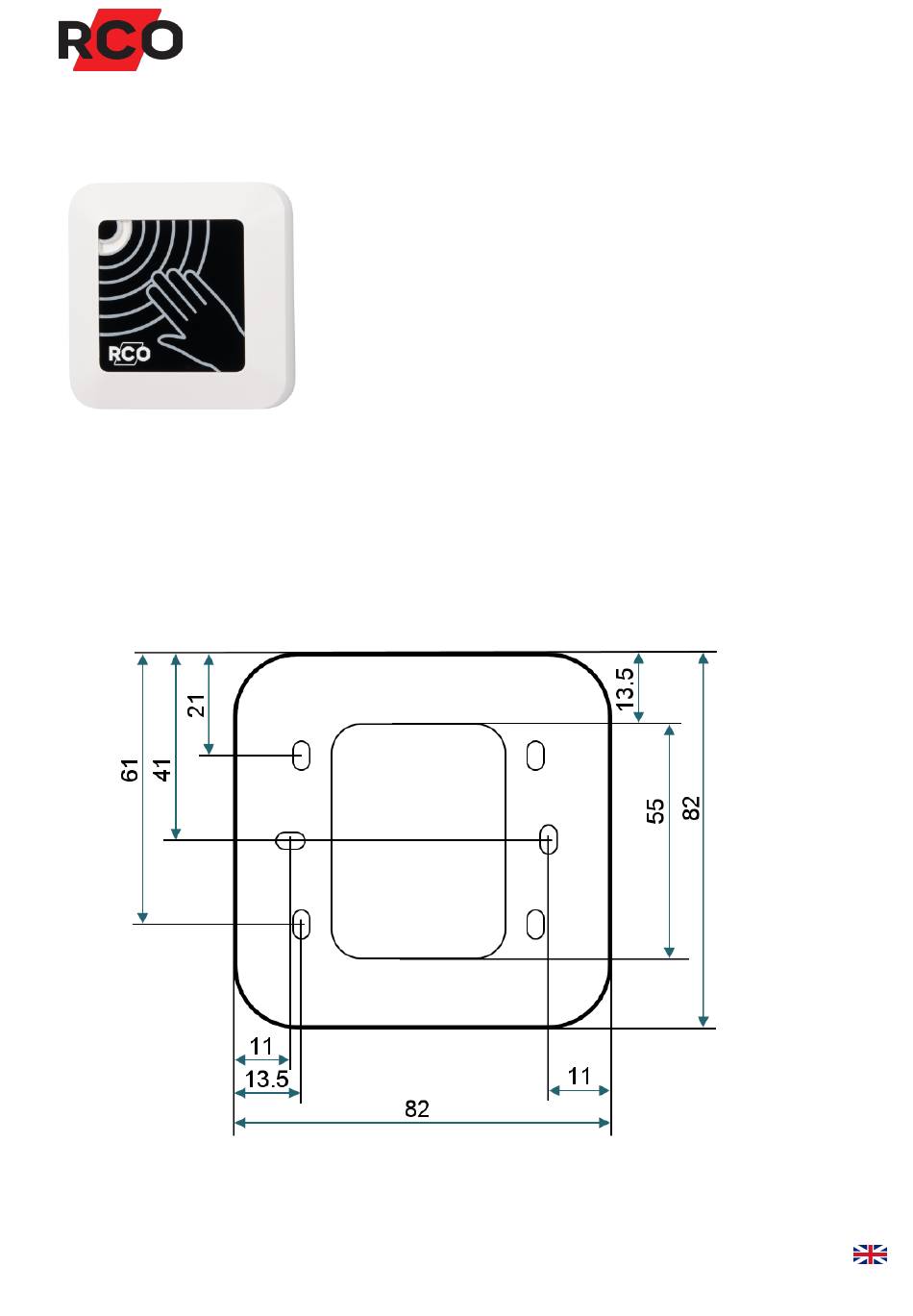

The drawing shows the back plate. The dimensions of the assembled unit are
86 x 86 x 20 mm.
RCO Security AB, Box 3130, 169 03 Solna, Sweden
Tel +46-8-546 560 00, info@rco.se, www.rco.se
© RCO Security AB. All rights reserved, December 2023.
Advertisement
Summary of Contents for RCO NoTouch Button
- Page 1 The drawing shows the back plate. The dimensions of the assembled unit are 86 x 86 x 20 mm. RCO Security AB, Box 3130, 169 03 Solna, Sweden Tel +46-8-546 560 00, info@rco.se, www.rco.se © RCO Security AB. All rights reserved, December 2023.
- Page 2 Connection Connect the permanent 12–24 VDC power supply that is to operate the unit. Connect the green and yellow wires to a button input on your unit from RCO Security. Adjusting the function The default delay is 0.3 seconds. User a screw driver to turn VR1 left to shorten the delay or right to lengthen it.
