e-Ink LNK-IMC010G Quick Start Manual

LNK-IMC010G
Mini Industrial 10/100/1000T Gigabit Ethernet Switch
This quick start guide describes how to install and use the Mini 10-Port 10/100/1000M Industrial Ethernet Switch. This is the Industrial Ethernet
Switch of choice for harsh environments constrained by space.
Overview
The probably smallest industrial 10-port Gigabit Switch LNK-IMC010G offers full Gigabit performance on
all 10 ports despite its extremely small outer dimensions. Thanks to the rugged metal housing and the
extended operating temperature range from -40°C to 80°C, it is suitable for a variety of applications even
in harsh environments. Power is supplied from the terminal block (12-48VDC) and can be redundant to
reduce operational downtime. The LNK-IMC010G supports Auto-MDI/MDI-X and Auto-Negotiation.
Included in delivery is a DIN rack kit (pre-assembled).
General
To ensure trouble free transportation and storage, all products must be thoroughly inspected, tested and
properly packed before delivery. Check the product upon receipt for any visible damage which may have
been caused during shipment.
Package Content
 Ethernet Switch x 1
LNK-IMC010G
 Quick Start Guide x 1
DIN-Rail mount bracket x 1


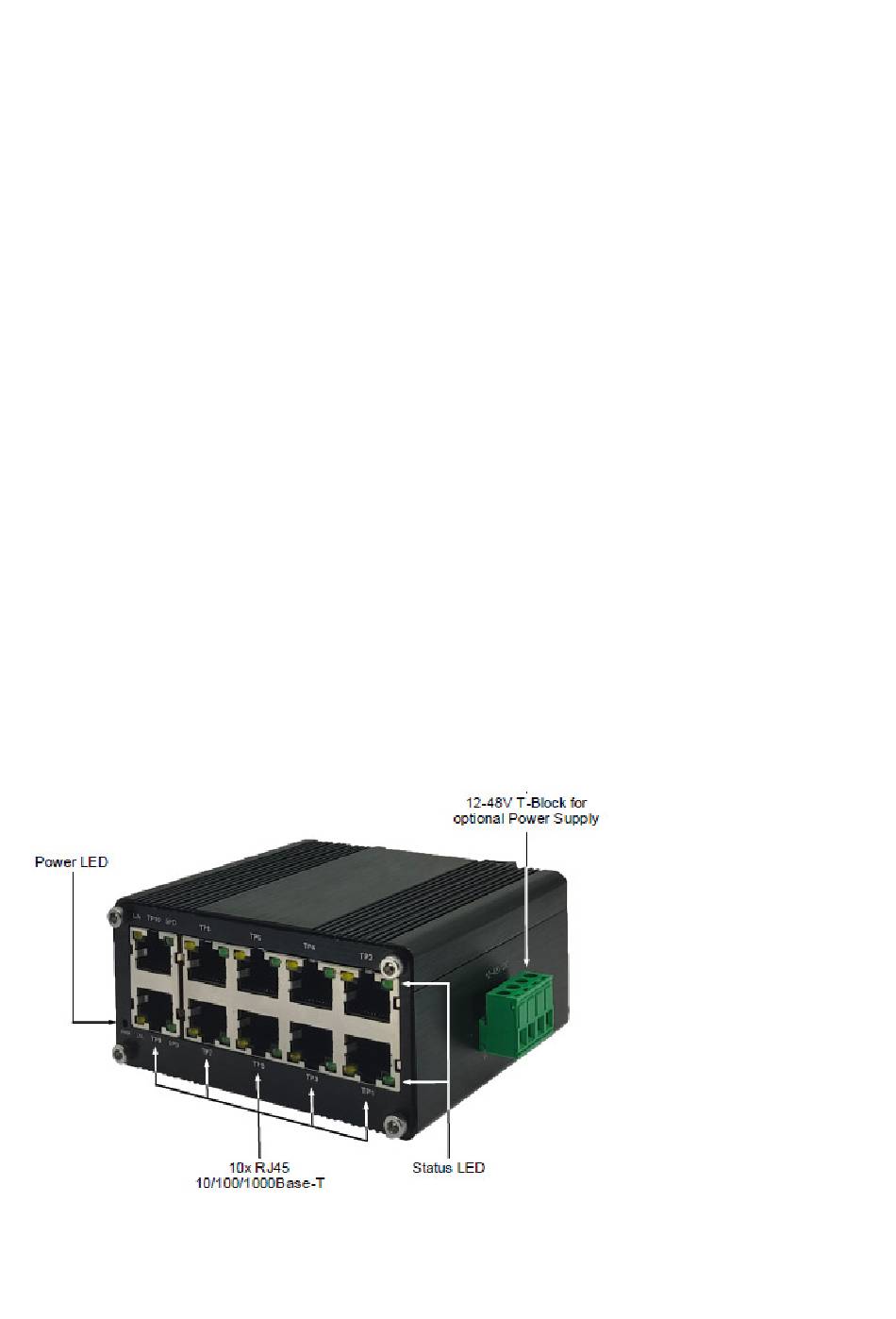

Physical Description (Layout)
