SunTech eFOLDi Lite User Manual

Hide thumbs Also See for eFOLDi Lite:
Table of Contents

Advertisement

Quick Links

Download this manual
eFOLDi User Manual
Model: Lite
SunTech UK Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eFOLDi Lite and is the answer not in the manual?

Questions and answers

Related Manuals for SunTech eFOLDi Lite

Summary of Contents for SunTech eFOLDi Lite

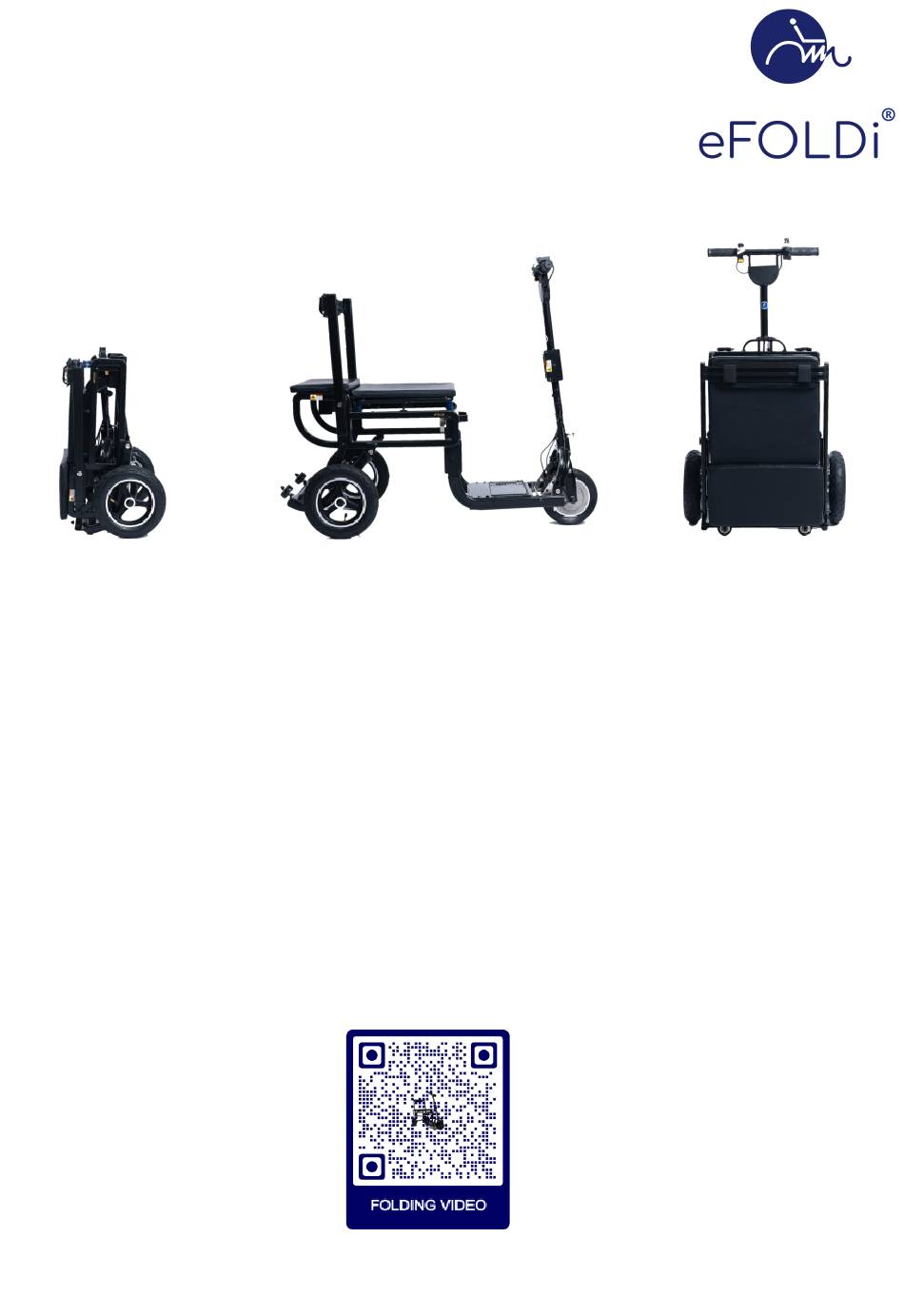

  • Page 1 User Manual Model: Lite SunTech UK Ltd...
  • Page 2 Purchased from: Date of purchase: Serial number: Please see image showing the location of the serial number.

  • Page 3: Table Of Contents

    Contents 1 Welcome 2 Terms, conditions and disclaimers 3 Product overview 4 Components 5 Safety guidance 6 (Un)/Folding instructions 7 Driving your scooter 8 Battery and Charging 9 Checks and maintenance 10 Technical specification/EMC declaration 11 Appendix Rev. B, English...

  • Page 4: Welcome

    Thank you for choosing an eFOLDi product as your mobility solu- tion. I’m Sumi Wang, the founder of SunTech UK and would like to wel- come you to the eFOLDi family of users. SunTech UK manufactures a range of assistive technologies to help you get the most from life.

  • Page 5: Terms, Conditions And Disclaimers

    Terms, conditions and disclaimers The terms ‘us’, ‘we’, ‘our’, ‘SunTech UK’ and ’SunTech UK Ltd’ mean SunTech UK Limited, which is a UK registered company, limited by guarantee, registered with Companies House, number 06906908. The terms ‘website’ means the website found online at www.efoldi.com.
  • Page 6 ing (but not limited to) battery pack(s) and controllers, unapproved modifications or alterations, failure to ensure correct folding and unfolding procedures are followed precisely and in full, damage or injury howsoever caused, failure to apply all reasonable and appropriate safety precautions at all times, improper use of the vehicle and/or parts and/or accessories being used by more than one person at any times, use in any competitive sport, racing, stunts, jumping or other similar activity.

  • Page 7: Product Compliance

    The scooter should NOT be used by: People who are unable to: • Fold or unfold it using both hands*; • Transfer themselves onto the seat* and remain in a seated up- right position at all times, without assistance while the vehicle is in motion;...

  • Page 8: Product Overview

    Expected device lifespan: Due to the inert nature of the device component, SunTech UK Ltd. does not have an expiration date to the device. Check the scooter regularly as you use it and make sure the battery is charged be- fore use.

  • Page 9: Components

    Components Backrest frame Backrest pad Accelerator/gradual brake lever Handle bar Steering column Steering stem folding lock Steering stem/frame latch Front motor Front brake lock lever * Stainless steel hinges Footrest and battery compartment Controller compartment Hinge to fold footrest 2 inch suitcase wheels 10 inch Rear wheels Main frame Main seat pad...

  • Page 10: Safety Guidance

    Safety guidance Do not operate your scooter for the first time without completely reading and understanding this user manual. Safety Instruction • Never operate the scooter while you are under the influence of alcohol; • Never use mobile phones or radio transmitters such as walkie-talkies while driving your scooter;...
  • Page 11 • Your eFOLDi Lite should only be stood on its main rear wheels and suitcase wheels when it is on level and stable ground;...
  • Page 12 • Never sit on your scooter when it is being used in connection with any type of lift or hoist. Your scooter is not designed with such use in mind and any damage or injury incurred from such use is not the responsibility of SunTech UK Ltd;...

  • Page 13: Weight Limitation

    • Check all electrical connections. Make sure they are secure and not corroded; • Check and test the brake system; • Check frequently for any loose fasteners, fixings and other components. When unfolding/folding your eFOLDi Lite ensure: • Do not rush when folding or unfolding the eFOLDi scooter;...
  • Page 14 AM/FM radios, TV sets and small appliances such as electric shavers and hair dryers are usually not likely to cause EMI problems. MR Safefy statement "The eFOLDi Lite scooter is MR Unsafe. The device presents a projectile haz- ard." Rev. B, English...

  • Page 15: Un)/Folding Instructions

    Position the eFOLDi Lite vertically and release the steering column (5), by pressing the frame latch (7) and release the steer- ing stem completely out while holding the steering column (5).
  • Page 16 Pull the knob on the side of the frame, this will release the footrest (11) and the front wheel (8). Firmly, hold the front steering column (5) and the top of back- rest (1), and then push the steering column (5) forward setting the front wheel (8) on the ground and the footrest (11 )on a horizontal position.
  • Page 17 Grab the backrest frame (1) and pull it all the way backwards until it is stable. Check the two latches of the hinge (10) at the front of footrest are fully engaged and locked. Rev. B, English...
  • Page 18 Folding steps: Scooter to Suitcase Push and fold the backrest frame (1) on top of the main seat pad (17). Push the lock (6) for steering column (5) on the middle rect- angular section and fold it in half, in a 180° degrees vertical rota- tion.
  • Page 19 Push the folded steering column (5) towards the footrest (11) while holding the lift handle or the frame using the other hand. Finally, with one foot placed befind rear wheel to stop it rolling back, bring it up into a vertical position, grab the handle or back frame and push the steering column into the main frame until it locks in and it clicks.

  • Page 20: Driving Your Scooter

    Driving your scooter Safety check before use When driving your eFOLDi, choose a route with good road conditions. The eFOLDi is designed to drive on smooth even surfaces. Unevenly paved roads or paths, potholes and other hazards, will reduce the life of any scooter and your safety.
  • Page 21 Power switch Drive (D) and reverse (R) switch Battery level indicator Accelerator/gradual brake lever Horn Tiller charging port ** Note: ** Not equipped in units manufactured before May 2024. Table 2: Control bar • Power switch ( ) works by pushing the button underneath the bat- tery level indicator and the battery indicator will illuminate.
  • Page 22 Operating the scooter: • To Start - Press the power switch (1) to turn on the scooter. • Choose a gear - Choose the right gear by pushing the Drive/Reverse (2) button up or down to drive or reverse. • To Drive/Reverse - Press the accelerator lever (4) to drive or re- verse.

  • Page 23: Battery And Charging

    The battery contains no user serviceable or replaceable components. The eFOLDi Lite battery is actually a battery pack, comprising a number of Lithium Ion cells, but merely termed ‘battery’ for ease throughout this manual.

  • Page 24: Battery Level Indicator

    • Red: Battery will soon need charging. Fitting the battery into the eFOLDi : The battery is positioned in the footrest of the eFOLDi Lite. To take out and charge the battery you have to lift the release lock and it will be in- stantly disengaged.

  • Page 25: Charger And Charging

    Precaution for use and handling charger Use only the charger originally supplied with your new eFOLDi or re- placement charger supplied by SunTech UK Ltd for the use with the eFOLDi. The use of a non-approved charger will invalidate any warranty and may cause serious damage to the battery and/or your eFOLDi.

  • Page 26: Checks And Maintenance

    Checks and maintenance Safety checks prior to using your eFOLDi. • Check the correct tyre inflation and maintain without exceed- ing the P.S.I./BAR/kPa air pressure rating indicated if your scooter has pneumatic tyres. • Check and test the brakes and make sure all the parts of the brakes are working properly.

  • Page 27: Technical Specification/Emc Declaration

    Technical specification/EMC declaration Frame material: Magnesium Alloy Dimension: Packaging size (L/W/H): 44x59x77cm (17x23x30inch) Folded size (L/W/H): 70x55x37cm (27.5x22x15inch) Unfolded size (L/W/H): 117x55x94cm (46x22x37inch) Seat height: 51cm (20inch) Footrest height: 12cm (4.7inch) Front wheel size: 20cm (8inch) Rear wheel size: 25cm (10inch) Ground clearance: 7cm (2.7inch) Weight:...

  • Page 28: Emc Guidance And Manufacturer's Declaration

    EMC Guidance and Manufacturer’s Declaration Below cable information are provided for EMC reference. Max. cable length, Cable Cable Number Shielded/unshielded classificatio AC Power Line 1.5m Unshielded 1 Set AC Power DC Power Line 1.5m Unshielded 1 Set DC Power Important information regarding Electro Magnetic Compatibility (EMC) This electrical medical equipment needs special precautions regarding EMC and put into service according to the EMC information provided in the user...
  • Page 29 WARNING If the use location is near (e.g. less than 1.5 km from) AM, FM or TV broadcast antennas, before using this equipment, it should be observed to verify that it is operating normally to assure that the equipment remains safe with regard to electromagnetic disturbances throughout the expected service life.
  • Page 30 IMMUNITY to conducted DISTURBANCES induced by RF fields (conducted RF DISTURBANCE AC 230V 50Hz Charger IMMUNITY) – a.c. mains IEC 61000-4-6 IMMUNITY to conducted DISTURBANCES induced by RF fields (conducted AC 230V 50Hz Charger Disturbance IMMUNITY) – SIP/SOP PORTS IEC 61000-4-6 Power frequency magnetic AC 230V 50/60Hz...
  • Page 31 EMS Compliance Table (Table 5-8): Immunity test levels Basic EMC Phenomenon standard Home healthcare environment Electrostatic ±2kV, ±4kV, ±6kV, ±8 kV contact ±2kV, ±4kV, IEC 61000-4-2 Discharge ±8kV, ±15kV air 20V/m Radiated RF EM 26MHz-2.7GHz IEC 61000-4-3 field 80% AM at 1kHz Proximity fields from RF wireless communications IEC 61000-4-3...
  • Page 32 Basic EMC Immunity test levels Phenomenon Home healthcare environment standard IEC 61000- ±2 kV Electrical fast 100kHz repetition frequency transients/burst IEC 61000- Surges ±0.5 kV, ±1 kV Line-to-line Conducted 3V, 0.15MHz-80MHz disturbances IEC 61000- 6V in ISM bands and amateur radio bands induced by RF between 0.15MHz and 80MHz fields...

  • Page 33: Appendix

    Appendix SunTech UK Ltd 25 Ormside Way, Holmethrope Industrial Estate, Redhill, Surrey, RH1 2LW, TEL: +44 (0) 2031435168 MedPath GmbH Mies-van-der-Rohe-Strasse 8, 80807 Munich, Germany ALBO-Healthcare GmbH Alte Steinhauserstrasse 19, CH-6330 Cham Symbols used on the label Rev. B, English...
  • Page 34 (eFOLDi accessories) www.efoldi.com/shop Official website address: www.efoldi.com Service email: services@efoldi.com Facebook: www.facebook.com/efoldi.co.uk Version: eFOLDi Lite user manual 01/05/2024...
