4056015COM

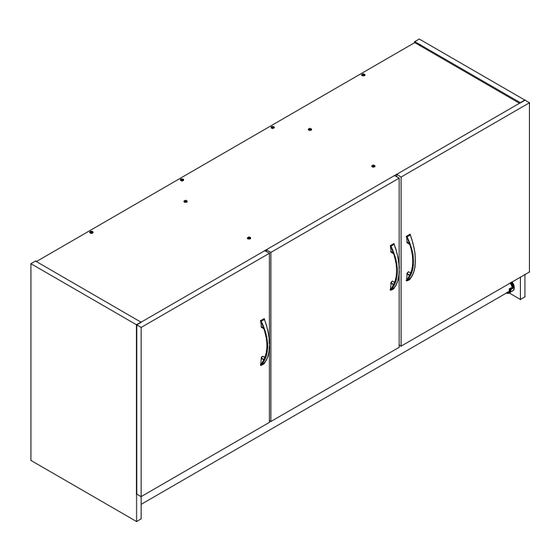

3 Door Wall Cabinet
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-866-452-4081 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.systembuild.com
WARNING
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
Easy
Assembly Difficulty Meter
For the latest information on SystemBuild products
follow us at Ameriwood Home
B344056015COM1
Tough
You
Tube
Advertisement
Related Manuals for System Build 4056015COM
Summary of Contents for System Build 4056015COM
- Page 1 4056015COM 3 Door Wall Cabinet B344056015COM1 Date of Purchase ___ / ___ / ___ Lot Number: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Do Not Return This Product! Contact our customer service team for help first.
-
Page 2: Helpful Hints
Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-866-452-4081 Monday-Friday 9am - 5pm CST Tube Visit systembuild.com to view the limited warranty valid in the U.S. and Canada. Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 - Open your item in the area you plan to keep it to avoid excessive heavy lifting. -
Page 3: Before You Start
Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Parts are labeled on the surface or edge of the part Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing,... - Page 4 Before You Start Please Note: You may need to lightly tap the wood dowels into the holes during your assembly process. systembuild.com Tube...
-
Page 5: Board Identification
Board Identification Not actual size Left Panel Right Partition Right Panel Left Partition 34056015010 34056015040 34056015020 34056015030 Side Adjustable Shelf (x2) 34056015070 Bottom 34056015060 34056015050 Center Adjustable Shelf 34056015080 Cabinet Hanger 34056000100 Door (x3) 34056015091 Wall Hanger 34056000120 Lower Rail 34056000110 systembuild.com Tube... - Page 6 Board Identification Not actual size This piece is paperboard construction. It is not made from wood, but is required for the assembly of your unit. Back Panel K405601500 systembuild.com Tube...
-
Page 7: Part List
Part List Actual Size (x12) #A23030 confirmat screw (x16) (x16) (x16) #A22620 #A22610 #A21670 cam lock cam bolt wood dowel (x4) #A13800 #8 x 2-1/4" screw (x12) (x2) (x6) (x6) #A80250 #A11080 #A89370 #A17400 shelf support 7/16" screw door bumper 7/8"... - Page 8 STEP 1 (x1) (x1) (x8) systembuild.com Tube...
- Page 9 STEP 2 (x1) (x1) (x8) systembuild.com Tube...
- Page 10 STEP 3 Quick Assembly Proper orientation of CAM LOCK (x4) systembuild.com Tube...
- Page 11 STEP 4 Quick Assembly Proper orientation of CAM LOCK (x4) systembuild.com Tube...
- Page 12 STEP 5 Quick Assembly (x8) Proper orientation of CAM LOCK systembuild.com Tube...
- Page 13 STEP 6 (x8) (x8) Dip dowels into water to active glue. Press the wood dowels into holes as shown. unfinished edges up systembuild.com Tube...
- Page 14 STEP 7 Dip dowels into water to active glue. Press the wood dowels into holes as shown. (x4) unfinished edges up systembuild.com Tube...
- Page 15 STEP 8 systembuild.com Tube...
- Page 16 STEP 9 surface systembuild.com Tube...
- Page 17 STEP 10 (x4) Dip dowels into water to active glue. Press the wood dowels into holes as shown. systembuild.com Tube...
- Page 18 STEP 11 (x4) systembuild.com Tube...
- Page 19 STEP 12 (x12) finished edges to front systembuild.com Tube...
- Page 20 STEP 13 (x6) (x6) (x3) (x6) systembuild.com Tube...
- Page 21 STEP 14 systembuild.com Tube...
- Page 22 STEP 15 (x4) Wall to be mounted to. With the assistance of another person, locate and mark the studs in the wall that the cabinet will be mounted to. Mark the location of the studs with a pencil. Position the wall hanger (L) on the wall and mark the locations of the studs on the back rail. Drill two 3/16"...
- Page 23 STEP 16 (x8) (x4) After the assembled component is placed onto the wall hanger, mark the location of the studs on the back panel (M). Fastening the cabinet to the studs by driving screws (5) through the cabinet hanger (J) and lower rail (K) as shown. (x4) Wall to be mounted to.
- Page 24 STEP 17 systembuild.com Tube...
- Page 25 STEP 18 Door Adjustment To adjust the vertical height: Loosen the screws "A" on both hinges. They are usually in slotted holes which allows you to adjust up or down by a few mm. Then tighten back up. To adjust side to side: Loosen the screw "C"...
- Page 26 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 30 lbs 13.6 kg (each adjustable shelf) 0 lbs 0.0 kg 35 lbs 15.9 kg (bottom shelf) 50 lbs 22.7 kg...
- Page 27 Register your product to receive the following: * New trend details - sneak peek on what's new * Surveys - have a voice within our community * Exclusive deals and discount codes * Quick and easy replacement part service To register your product, visit systembuild.com Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You"...
- Page 28 Español Cubierta Delantera Este libro de instrucciones contiene información IMPORTANTE de seguridad. Por favor lea y manténgalo para referencia en el futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda. Llamenos al: 1-866-452-4081 (Gratis) Lunes - Viernes 9am - 5pm CST Visitar: www.systembuild.com PRECAUCION Este mueble puede volcarse y causar graves heridas y/o muerte.
- Page 29 Español Página 22 Pared de la instalación. Con la ayuda de alguien más, localice y marque los travesaños de la pared donde se instalará el gabinete. Marque la ubicación de los travesaños con un lápiz. Coloque el soporte de pared (L) sobre la pared y marque la ubicación de los travesaños en el riel trasero. Taladre dos orificios de 3/16 de pulgada de diámetro en el soporte de pared (L) y sobre la ubicación de los travesaños.
- Page 30 Español Página 26 CARGA MAXIMA Esta unidad ha sido diseñada para soportar la carga máxima anotada. El exceder estos límites puede causar inestabilidad, colapsarse y/o causar serias lesiones. ADVERTENCIA: Riesgo de lesiones a las personas - no coloque un televisor sobre muebles. Este mueble no está...
- Page 31 Français Couverture Avant CE LIVRET D'INSTRUCTION CONTIENT DES INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ. VEUILLEZ LIRE ET GARDER POUR UNE RÉFÉRENCE FUTURE Ne retournez pas ce produit! Contactez notre équipe de service à la clientèle amicale d'abord pour obtenir de l'aide. Appelez-nous: 1-866-452-4081 (sans frais) du Lundi au Vendredi de 9h à...
- Page 32 Français Page 22 Mur à monter. Avec l'aide d'une autre personne, localisez et marquez les montants du mur sur lesquels l'armoire sera montée. Marquez l'emplacement des montants avec un crayon. Positionnez le support mural (L) sur le mur et marquez l'emplacement des montants sur le rail arrière. Percez deux trous de 3/16"...
- Page 33 Français Page 26 CHARGES MAXIMALES Ce meuble a été conçu pour supporter les charges maximales indiquées. En excédant ces limites de charge, le meuble pourrait devenir instable, s'effondrer, et/ou causer des blessures graves. AVERTISSEMENT : Risque de blessure corporelle - ne pas placer une télévision sur ce meuble. Ce meuble n'est pas approuvé...
