SaberTec Golden Harvest v4 Quick Setup Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Quick Setup Guide
This guide provides the most essential information for setting up your Golden Harvest v4, offering a
simpler overview than the full manual. For detailed instructions and advanced configurations, please
refer to the complete manual.
Wiring Diagrams

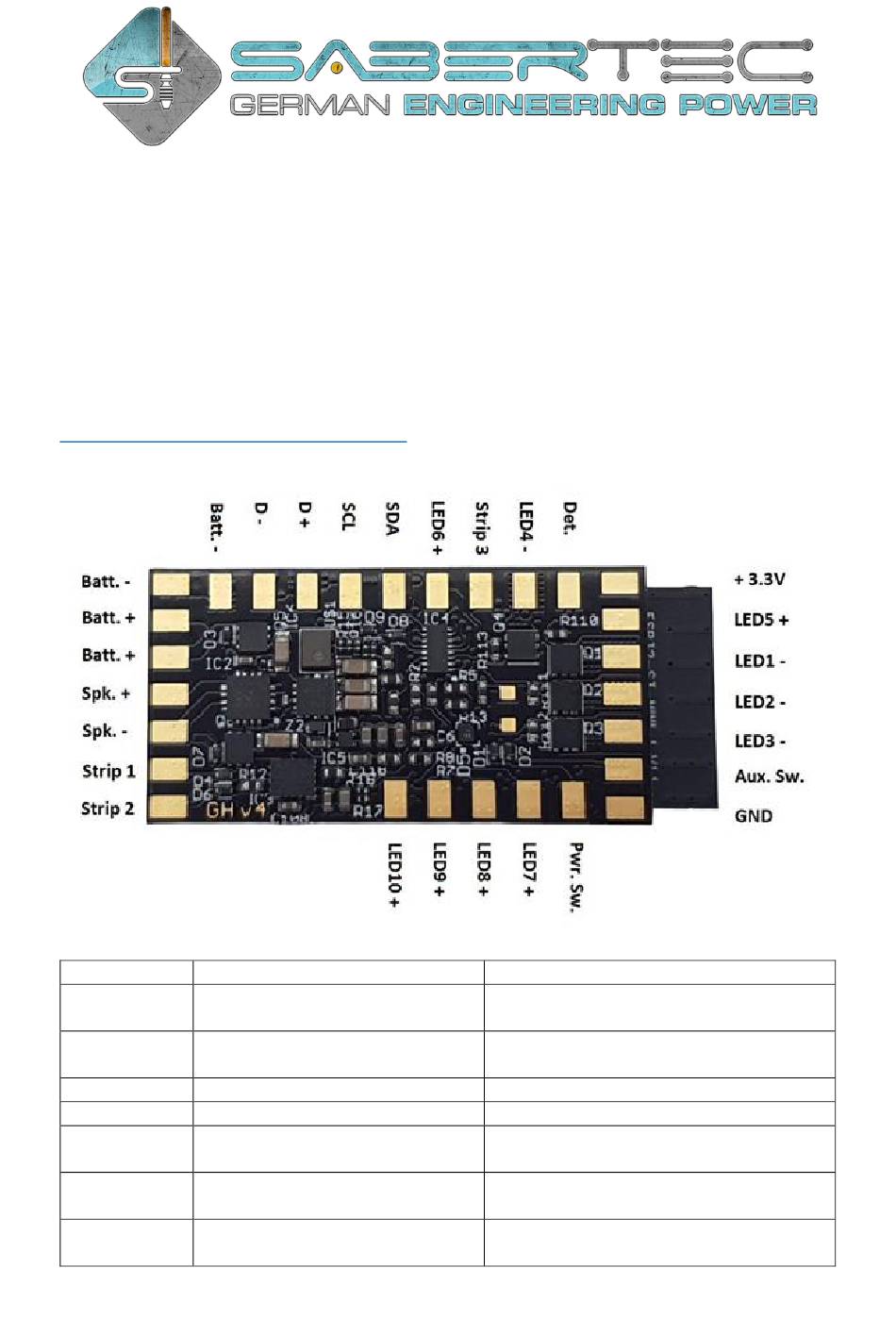

The picture below shows the pads of the GHv4, whose functions are specified in the table. To create
wiring diagrams tailored to your specific setup, you can use our online tool:
https://sabertec.net/wiring-diagram-creator/
Pad
Function
Batt. -
Connect to negative of battery
Batt. +
Connect to positive of battery
Spk. -
Connect to negative of speaker
Spk. +
Connect to positive of speaker
Strip 1
Connect to data line of the Neopixel
blade
Strip 2
Connect to data line of the Neopixel
accent LEDs
Strip 3
Connect to data line of the Neopixel
side blade
Remark
Two identical pads that are internally
connected
Two identical pads that are internally
connected
Resistor is already included on the board
Resistor is already included on the board
Resistor is already included on the board

Advertisement

loading
Need help?

Need help?

Do you have a question about the Golden Harvest v4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SaberTec Golden Harvest v4

Summary of Contents for SaberTec Golden Harvest v4

  • Page 1 Quick Setup Guide This guide provides the most essential information for setting up your Golden Harvest v4, offering a simpler overview than the full manual. For detailed instructions and advanced configurations, please refer to the complete manual. Wiring Diagrams The picture below shows the pads of the GHv4, whose functions are specified in the table. To create wiring diagrams tailored to your specific setup, you can use our online tool: https://sabertec.net/wiring-diagram-creator/...
  • Page 2 Accent LED output (3,3V and 20 mA) LED10 + Accent LED output (3,3V and 20 mA) To set up the Golden Harvest v4 for your saber, follow these instructions to choose your hardware setup and configure your light effects. Setting Up Your Board Choosing Your Hardware Setup Customize your hardware setup by editing the "general.txt"...
  • Page 3 While there are many other customizable parameters in the "general.txt" file, only these three are necessary to set up your Golden Harvest v4 for your hardware. The "button_mode" and "orientation" parameters must be edited directly in the "general.txt" and "override-general.txt" files. However, the "number_of_leds"...
  • Page 4 You can also change the effect font slot dynamically using the Saber Editor, providing a flexible way to experiment with and adjust light effects. Note: If you have a Neopixel saber but select an effect font slot intended for an in-hilt saber, the blade will not light up.
  • Page 5 the saber is ignited ∟ Calibrate Battery When your battery is fully charged, perform a stab while battery level is displayed Enter Volume Control Hold the auxiliary button before the blade is ignited. Point the saber downwards while doing this. ∟...
  • Page 6 Tap the power button ∟ Blaster Block Mode ∟ Button and Swinging Slowly twist the saber clockwise ∟ Button Slowly twist the saber counterclockwise Tap the power button ∟ Force Push Mode ∟ Button and Swinging Slowly twist the saber clockwise ∟...
  • Page 7 FUNCTION TRIGGERING WITH ONE MOMENTARY SWITCH Power On Tap the button Enter Effect Menu Hold the button, then hold it again. Point the saber upwards while doing this. ∟ Change Blade Profile* Slowly twist the saber ∟ Change On Top Effect* Tap the button ∟...
  • Page 8 is ignited. Point the saber downwards while doing this. ∟ Select Editor Mode Tap the button ∟ Color Profile ∟ Select Color Profile Slowly twist the saber ∟ Edit Color Slowly twist the saber ∟ Go To Next Saber State Tap the button ∟...

  • Page 9: Frequently Asked Questions

    ∟Turn stab ignition off Slowly twist the saber counterclockwise ∟ Twist Ignition ∟Turn twist ignition on Slowly twist the saber clockwise ∟Turn twist ignition off Slowly twist the saber counterclockwise ∟ Swing Ignition ∟Turn swing ignition on Slowly twist the saber clockwise ∟Turn swing ignition off Slowly twist the saber counterclockwise ∟...
  • Page 10 • The speaker is crackling. What should I do? Answer: Lower the volume, either in the "general.txt" file or using the Volume Control feature on the fly. • Some sound files are not played, or some sound fonts are not recognized. How can I fix this? Answer: Ensure that sound font folders and file names are numbered continuously and correctly.
