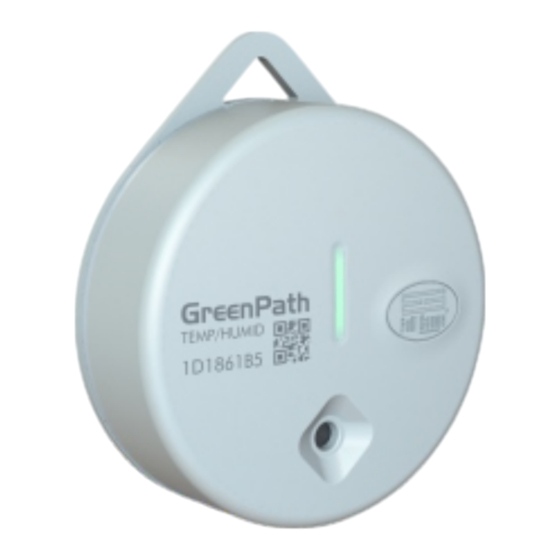

Full Gauge GreenPath TEMP/HUMID Quick Start Manual

Have this manual in the palm of
yout hand through the FG Finder
app.
BEFORE USING THE EQUIPMENT, WE RECOMMEND THAT YOU READ THE COMPLETE
INSTRUCTION MANUAL IN ORDER TO AVOID POSSIBLE DAMAGE TO THE PRODUCT.
AS IT IS CONSTANTLY EVOLVING, FULL GAUGE CONTROLS RESERVES THE RIGHT TO CHANGE
THE INFORMATION CONTAINED IN THE MANUAL AT ANY TIME WITHOUT PRIOR NOTICE.
This product is approved by Anatel in accordance with the regulated
procedures for assessing compliance of telecommunications products
and meets all technical requirements.
"This equipment is not entitled to protection against harmful interference
and may not cause interference to duly certified systems."
For more information, see the Anatel website:
06056-24-10796
GreenPath
APP
AVAILABLE ON
1. DESCRIPTION
GreenPath line's portable sensors are devices for measuring and recording
temperature, humidity, and CO2 concentration.
They communicate with an app with a friendly interface for reading sensor information. The
application shows temperature, humidity, or CO2 records in real time; creates detailed
reports in PDF or CSV format with statistics, graphs, alarms and accurate date and time
information. This information allows you to certify to inspection bodies that your goods are in
safe environments and in perfect storage conditions. Simplify your operations, maintain
complete control, and meet the highest quality standards.
Ensure compliance and safety of your products with portable GreenPath sensors.
1.1 Features
Ÿ The GreenPath line consists of 2 sensor models:
Ÿ GreenPath TEMP/HUMID - Temperature and Humidity Sensor;
Ÿ GreenPath CO2 - CO2 Sensor (carbon dioxide);
Ÿ Bluetooth Low Energy (BLE) communication;
Ÿ AAA type batteries (two units, replaceable);
Ÿ Reusable sensor – allows multiple reading cycles;
Ÿ Adjustable measurement interval;
Ÿ Adjustable alarm thresholds;
Ÿ Configurable delay for starting measurements;
Ÿ PDF report generation;
Ÿ Data extraction to Excel (.csv);
Ÿ Storage of more than 65,000 measurement records;
Ÿ Visual indication of sensor status;
Ÿ Periodic transmission of measured quantities;
Ÿ User management;
Ÿ Creation of access keys for guest users.
2. APPLICATIONS
GreenPath sensors are extremely versatile, in addition, to carrying out precise
measurements that guarantee the reliability of records. The sensors can be used in different
applications, such as:
Ÿ Pharmaceuticals and Health: Monitoring temperature and humidity-sensitive
medications during storage and transportation;
Ÿ Food and Beverage Industry: Monitoring environmental conditions in storage,
warehouse, and transportation facilities to maintain the quality and safety of food products;
Ÿ Cold Chain Logistics: Monitoring and recording environmental conditions of perishable
products during transport in cold chain;
Ÿ Transport of Sensitive Goods: Condition monitoring during transport of goods,
especially those sensitive to variations in temperature and humidity.
GreenPath
ENVIRONMENT METER AND RECORDER
TEMPERATURE, HUMIDITY AND CO2
www.gov.br/anatel
GreenPath
TEMP/HUMID
3. TECHNICAL SPECIFICATIONS
Power*
Communication protocol
Transmission power
Frequency
Memory capacity
Protection degree
Dimensions (W x H x D)
Weight
ANATEL: 06056-24-10796 / FCC ID: Y82-DA14531MOD
Certifications**
TIME TO FULLY OCCUPY THE SENSOR MEMORY
Time to reach
memory capacity 5 sec.
(without overwriting) 3,7 days 22,5 days
GreenPath
Temperature Measurement
TEMP/HUMID
Measuring range
Resolution
Precision
Adjustable alarm thresholds
Battery life***
Interval between measurements
Operating Temperature
GreenPath
CO2
Measuring range
Resolution
± (50 ppm + 2,5% of measurement) @ (400 to 1.000 ppm)
Precision ± (50 ppm + 3% of measurement) @ (1001 to 2.000 ppm)
± (40 ppm + 5% of measurement) @ (2001 to 5.000 ppm)
Adjustable alarm thresholds
Battery life***
Interval between measurements
Operating Temperature
* Batteries are included with the product.
** This product is certified to electromagnetic safety standards. To ensure compliance with
these regulations, it is recommended that the product is operated at a minimum distance of
20cm from a person.
*** Battery life is estimated. User settings, environmental conditions and battery quality can
affect the sensor's power consumption.
4. DIMENSIONS
TEMP/
CO2
HUMID
24 mm 26 mm
0,95" 1,02"
GreenPath
CO2
2 AAA 1.5V (3V) batteries
Bluetooth Low Energy (BLE) 5.1
2.4 GHz - BLE Channels
65024 datalogs
67 x 77,5 x 26mm / 2,63" x 3,05" x 1,02"
Measurement Range
30 sec. 1 min. 5 min. 15 min.
45,1 days 225,7 days 1,8 years
Humidity Measurement
-20 to 60 °C
0,01 °C
± 0,4°C Max.
-20 to 60 °C
5 seconds to 6 hours
0 to 20.000 ppm
0 to 20.000 ppm
5 minutes to 6 hours
67 mm
2,63"
+2,2 dBm
IP 65
63,7 g
1 hour
7,4 years
0 to 100 %
0,01%
± 4 % Max.
0 to 100 %
1200 days
-20 to 60 °C
1 ppm
100 days
-10 to 60 °C
