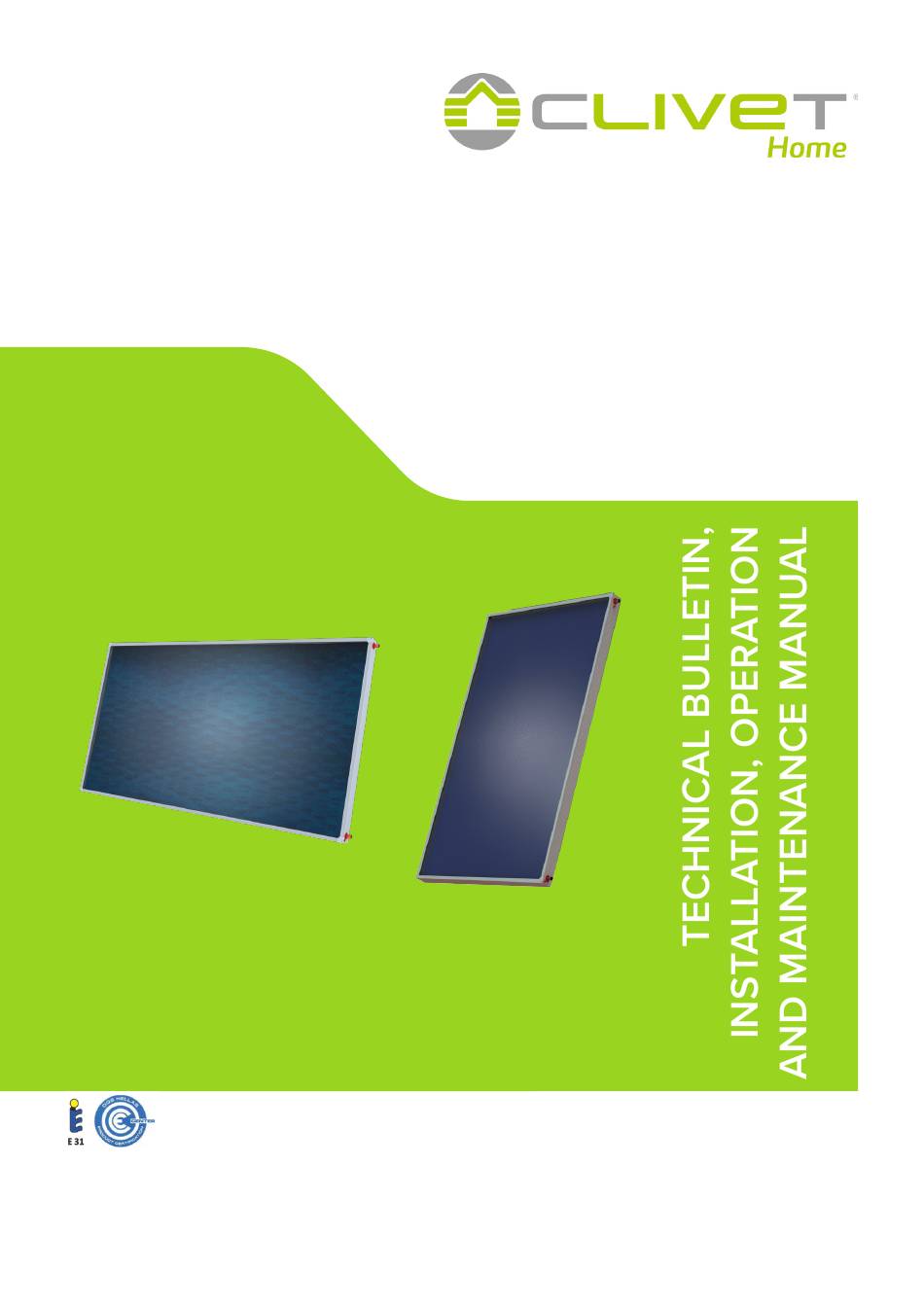

Page 1 ELFOSun FLAT SOLAR COLLECTORS M0S300002-00 / BT23B082GB-00 03-2023...
Page 2 Dear Customer, We congratulate you on choosing these product Clivet has been working for years to offer systems able to assure the maximum comfort for a long time with highly-reliable, efficient, high-quality and safe solutions. The target of the company is to offer advanced systems, that assure the best comfort and reduce energy consumption as well as the installation and maintenance costs for the entire life-cycle of the system.
Page 3: Table Of Contents
Summary Introduction and general operation ....................6 General operation ..........................6 Requirements and pre-installation .....................7 Orientation of collectors ........................7 Angle of collectors ..........................7 Positioning of collectors ........................8 Sizing of the system ..........................9 Description of kits ..........................10 Matchings ..............................12 Vertical flat solar collector........................13 Collection examples ..........................
Page 4 11.6 Thermosiphon effect ..........................64 11.7 Expansion tanks ............................. 65 11.8 Propylene glycol for flat glass panels ....................66 11.9 Thermostatic mixers for small systems .................... 67 11.10 Solar 1 solar controller .......................... 68 11.11 Controller data setting ......................... 69 11.12 Electrical device connection ......................
Page 5 Troubleshooting ............................101 Disposal of the system.........................102 General conditions ..........................103...
Page 6: Introduction And General Operation
Introduction And General Operation 1. Introduction and general operation The system with Clivet thermal solar collectors must be professionally installed by qualified installers in full compliance with the hydraulic and wiring diagrams. For correct operation of the system, the instructions enclosed with each individual element supplied (e.g.
Page 7: Requirements And Pre-Installation
Requirements And Pre-installation 2. Requirements and pre-installation 2.1 Orientation of collectors For optimal performance, the solar collector must face SOUTH. A deviation of 15-20° is acceptable; deviations over 20° require compensation by increasing the surface area of the solar park. Collectors do not catch the sun’s rays Increasing the surface area Surface area almost doubled compared to south-facing...
Page 8: Positioning Of Collectors
Requirements And Pre-installation 60° 90° 90° 90° 45° 30° Summer Solar panel Mid-season (excellent compromise) Winter 2.3 Positioning of collectors Solar collectors can be installed in various positions on the roof or around the house and in different configurations, following the instructions in the previous chapters. It is important to ensure that the collector receives the sun’s rays without interference from neighbouring trees and bu- ildings even in the worst conditions (winter), otherwise the lack of sunlight will have to be compensated for by increa- sing the surface area of the collectors.
Page 9: Sizing Of The System
Requirements And Pre-installation If there are several rows of solar collectors, make sure they do not shade each other and follow the design guidelines (see example below). Examples: Shade between rows with cr 120 mod. Vertical panel installed at 45° (calculation referring to the city of verona) Shade between rows with cr 120 mod.
Page 10: Description Of Kits
Requirements And Pre-installation 2.5 Description of kits Code Option description Kit composition 1 x 2 m high-efficiency selective flat solar panel, F-L model, vertical version ELFOSun - 2m vertical solar collector with harp circuit and selective Titanium Oxide treatment (F-L) 1 x 2.37 m high-efficiency selective flat solar panel, F-XL model, vertical F-XL...
Page 11 Requirements And Pre-installation 1 x solar expansion tank - 25 litres VE25X 25-litre expansion tank 1 x expansion tank mounting bracket 1 x solar expansion tank - 40 litres VE40X 40-litre expansion tank 1 x expansion tank mounting bracket VMTX 3/4"...
Page 12: Matchings
Matchings 3. Matchings ELFOSun recom- mended Unit accessory no. of Boiler Circula- Expan- Unit Series required for collectors DHW [l] tion kit sion tank connection F-XL Sloping Flat roofs Uncased roofs FH-XL KFSX / KFSX / SOLX VE18X/ SQKN-YEE 1 TC KFDX / KFDX / KFIN1X /...
Page 13: Vertical Flat Solar Collector
Vertical Flat Solar Collector 4. Vertical flat solar collector F Series Harp collectors internally comprise a circuit of intercon- nected copper pipes, within which the heat transfer fluid Description flows to convey the energy to the required place of use. High-efficiency selective solar collector F-L / F-XL mo- This circuit consists respectively of 9 (F-L) and 11 (F- XL) dels.
Page 14 Vertical Flat Solar Collector Model F-XL Dimensions and weights Dimensions (hxlxp) mm 1980x1010x86 1930x1230x86 Gross surface area 2,00 2,37 Absorbing surface area 1,89 2,23 Unladen weight Fluid content Litres 1,36 Technical specifications Casing profile Powder-coated aluminium Type of absorber Arpa No.
Page 15: Collection Examples
Vertical Flat Solar Collector 4.1 Collection examples Connection in parallel max 5 units for F-L/F-XL Connection in series/parallel Connection in series/parallel Connection in parallel on multiple rows...
Page 16: Performance Curves
Vertical Flat Solar Collector Performance curves Power produced by F-XL model collector Power produced by F-L model collector Pressure drops (water T=20 °C) Pressure drop (mm H Pressure drop Collectors F-L F-XL (mm H flow-rate (Litres/min) Collectors Series name Model ELFOSun F-L model ELFOSun...
Page 17: Installation
Vertical Flat Solar Collector 4.2 Installation It is advisable to keep the collectors covered until the system is put into operation so as to avoid possible da- mage to the insulation due to the high temperatures that can be reached (up to 200°C). To cover the solar panels, we recommend using the collector packaging boxes or garden shading covers.
Page 18: Solar Collector Fittings For F-L / F-Xl
Vertical Flat Solar Collector 4.3 Solar collector fittings for F-L / Fitting F-XL – male flat seat – smooth pipe for ogive Cu Ø Stainless steel corrugated pipe Ogive Ø 18 Solar panel Reinforcement bushing Ø 18-22 If a copper pipe is used: Solution for "1"...
Page 19 Vertical Flat Solar Collector Solar collector fittings for F-L / F-XL Dimensions Model A [mm] B [mm] C [mm] D [mm] E [mm] F [mm] 1980 1010 2100 3190 4280 5370 F-XL 1930 1230 2540 3850 5160 6470 To the central heating plant...
Page 20: Flat Horizontal Solar Collector
Flat Horizontal Solar Collector 5. Flat horizontal solar collector FH Series Harp collectors internally comprise a circuit of intercon- nected copper pipes, within which the heat transfer fluid Description flows to convey the energy to the required place of use. Flat collector with harp circuit available in sizes (XL), hori- This circuit consists respectively of 18 vertical pipes con- zontal version.
Page 21 Flat Horizontal Solar Collector Model FH-XL Dimensions and weights Dimensions (hxlxp) mm 1930x1230x86 Gross surface area 2,37 Absorbing surface area 2,23 Unladen weight Fluid content Litres 2.16 Technical specifications Casing profile Powder-coated aluminium Type of absorber Arpa No. Of rises Diameter of the rises Absorber material 0.4 mm aluminium...
Page 22: Collection Examples
Flat Horizontal Solar Collector 5.1 Collection examples Connection in parallel max 3 units Connection in series/parallel Connection in series/parallel Connection in parallel on multiple rows...
Page 23 Flat Horizontal Solar Collector Performance curves Power produced by FH-XL model collector Pressure drops (water T=20 °C) Pressure drop (mm H Pressure drop Collectors FH-XL (mm H flow-rate (Litres/min) Collectors Series name Model ELFOSun FH-XL F-XL model Connections kit Description Fittings kit for intermediate connection...
Page 24: Solar Collector Fittings For Fh-Xl
Flat Horizontal Solar Collector 5.2 Solar collector fittings for FH-XL If a copper pipe is used: Solution for "1" Solution for "2" Intermediate fittings kit already installed on the panel To the central heating plant Model A [mm] B [mm] C [mm] D [mm] FH-XL...
Page 25 Flat Horizontal Solar Collector Solar collector fittings for FH-XL Dimensions Model A [mm] B [mm] C [mm] D [mm] FH-XL 1230 1930 3930 5930 To the central heating plant...
Page 26: Assembly Guide
Assembly Guide 6. Assembly guide Universal collector mounts for forced circulation systems Valid for F-L, F-XL and FH-XL collectors 6.1 Validity This chapter describes how to assemble and install the galvanised steel supporting structures used to hold the 2.00 / 2.37 / 2.72 m .
Page 27: Installation Standards
Assembly Guide When using ladders, ensure they are not Before installing the solar water heater, it is damaged and stand them on safe surfaces with an extremely important for the customer and installer inclination ≈ 70°. For maximum protection of the to agree on all details regarding the correct installer, it is advisable to use safety belts.
Page 28 Assembly Guide 290 kg per m of collectors for an installation height of up to 20 m and a maximum average wind speed of 43 m/sec. 490 kg per m of collectors for an installation height of up to 20 m and a maximum average wind speed of 55 m/sec.
Page 29: Orientation And Spacing
Orientation And Spacing 7. Orientation and spacing 7.1 Orientation of collectors For the Northern Hemisphere, the ideal orientation is the geographic south. In many cases, especially for the pro- duction of domestic hot water, orientation is often preferred facing south-south-west (green band), as the energy is more useful for peak loads during the day.
Page 30 Orientation And Spacing Reciprocal shading Shading from an obstacle Minimum spacing Mount inclination (°) Minimum/optimal spacing (m) Lat. 25°-35° : X ≥ 1.50Y Projection of the collector over the horizontal plane (m) Lat. 36°-45° : X ≥ 2.00Y Collector height (m) Lat.
Page 31: Flat Roof Assembly
Flat Roof Assembly 8. Flat roof assembly 8.1 Flat roof 45° inclination Parts Description 1x 2.00-2.37 2x 2.00-2.37 2140mm L-shaped bar profile 1984mm L-shaped bar profile 1380mm L-shaped bar profile 960mm L-shaped bar profile 325mm L-shaped bar profile 1620mm crossbars 1000mm L-shaped bar profile 2000mm L-shaped bar profile 960mm split L-shaped bar profile...
Page 32: Important Dimensions Of Beams No.2
Flat Roof Assembly 8.2 Important dimensions of beams No.2 1x collector View from above 2x collector View from above View from above View from above...
Page 33: Mount Assembly
Flat Roof Assembly Mount assembly 8.3.1 PHASE A: Support frame Valid for all configurations Nr.3 Nr.4 Nr.1 Nr.2 A 2 support frames for 1 or 2 collectors For all connections described under point B, use bolts No.12 (M8x20) and relative flanged nuts No.14 (8mm). The beams in phase A are: Nr.1: 2140mm Nr.2: 1984mm...
Page 34 Flat Roof Assembly 8.3.2 PHASE B: Crossbars Valid for 1x collector or 2x2.00m collectors Nr.1 Nr.3 Nr.4 Nr.2 Nr.3 Nr.6 For all connections described under point B, use bolts No.12 (M8x20) and relative flanged nuts No.14 (8mm). The beams are: Nr.1: 2140mm Nr.2: 1984mm Nr.3: 1384mm...
Page 35 Flat Roof Assembly Valid for 2x2.37m collectors Nr.1 Nr.3 Nr.4 Nr.6 Nr.2 Nr.3 Nr.6 For all connections described under point B, use bolts No.12 (M8x20) and relative flanged nuts No.14 (8mm). The beams are: Nr.1: 2140mm Nr.2: 1984mm Nr.3: 1384mm Nr.4: 960mm Nr.6: 1620mm...
Page 36 Flat Roof Assembly 8.3.3 PHASE C: Attaching the collector beams Valid for 1X2.00/2.37m Valid for 1X collector For all connections described under point E, use bolts Nr.12 (M8x20) and relative flanged nuts Valid for 2x2.00m collectors Nr.8 Nr.8 Nr.1...
Page 37 Flat Roof Assembly Valid for 2x2.37m collectors Nr.8 Nr.1 Nr.8 For all connections described under phase E, use bolts Nr.12 (M8x20) and relative flanged nuts.
Page 38 Flat Roof Assembly 8.3.4 PHASE D: connecting the collectors Valid for 1X collector Connect the bottom part and then adjust the top part no. 7 and tighten all 4 M8 bolts and washers with the rivets on the collector. Similar procedure for all sizes.
Page 39 Flat Roof Assembly Valid for 2x collectors Per/for 2.37m Per/for 2.37m Per/for 2.00m Per/for 2.00m First position the left collector. Connect the bottom collector support frame no. 7 to the collector with the M8 rivets, using two M8x20 bolts and wa- shers, but do not tighten them yet.
Page 40 Flat Roof Assembly 8.3.5 FASE E: Installing the mount Fix both (yellow) beams to the flat roof or to the slabs as instructed above. The anchors must be at the front of the horizontal beam as indicated above and choose one of the 2 positions again indicated above on the rear side of the horizontal beam.
Page 41: Assembly On Sloping Roof
Assembly On Sloping Roof 9. Assembly on sloping roof Parts Description 1x 2.00-2.37 2x 2.00 2x2.37 2140mm L-shaped bar profile 1984mm L-shaped bar profile 1380mm L-shaped bar profile 960mm L-shaped bar profile 325mm L-shaped bar profile 1620mm crossbars 1000mm L-shaped bar profile 2000mm L-shaped bar profile 960mm split L-shaped bar profile 1000mm split L-shaped bar profile...
Page 42: Important Dimensions
Assembly On Sloping Roof 9.1 Important dimensions 1X 2.00/2.37m 2X 2.00/2.37m 2 collector 2 collectors View from above View from above...
Page 43: Mount Assembly Phases For 1 Or 2 Collectors
Assembly On Sloping Roof 9.2 Mount assembly phases for 1 or 2 collectors 1 x 2.00/2.37m Valid for 1X collector Top frame assembly 1x collector Connect beams No. 1 to beams No.7 for 1 2.00 / 2.37m Use M8x20 bolts and nuts...
Page 44 Assembly On Sloping Roof 2 x 2.00/2.37m Valid for 2x collectors Top frame assembly 2x collectors Connect beams No. 1 to beams No.8 for 2 2.00 / 2.37m Use M8x20 bolts and nuts...
Page 45: Bottom Frame Assembly
Assembly On Sloping Roof Valid for 1 or 2 collectors Bottom frame assembly Nr.3 o Nr.4 Nr.2 Nr.12 M8x20 M10x20 Nr.3 o Nr.4 For all connections described under point D, use bolts No.12 (M8x20) and flanged nuts No.14 (8mm). The beams are: For collectors 1 2.00/2.37m or 2 2.00m use beam No.4 (960mm)
Page 46 Assembly On Sloping Roof Valid for 1x or 2x collectors .Connect the top frame to the bottom frame M10x20 Nr.1 Nr.2 Connect using 3 M8x20 bolts and nuts on each side. Make sure you connect at the points illustrated...
Page 47: Fixed Mount On Sloping Roof
Assembly On Sloping Roof 9.3 Fixed mount on sloping roof For 1 or 2x collectors (the images below are for 1 collector but the procedure is exactly the same for 2 collectors) Nr.18 M10x20 Nr.18 Nr.18 A Find the most convenient points on track no. 12 according to the roof structure B 8x60mm anchor bolts and 8.5mm washer C Assemble as shown here.
Page 48 Assembly On Sloping Roof Connect the collector: for 1 collector Connect in the exact points indicated. Use M8x20 bolts, washers and M8 nuts. Connect the collector: for 2 collectors A Position for 2.37m B Position for 2.00m Connect in the exact points indicated. Use M8x20 bolts, washers and M8 nuts. Before tightening the bolts, put the Ø22xØ22 hydraulic fittings between the collectors.
Page 49: Uncased Installation Kit
Uncased Installation Kit 10. Uncased installation kit 10.1 For vertical solar thermal collectors 10.2 Assembly instructions Installation may only be carried out by specialised and suitably qualified personnel, in compliance with all the in- structions in this technical manual, with current legal provisions, with the requirements of national and local regulations and in accordance with the rules of good engineering.
Page 50 Uncased Installation Kit BASIC KIT (for first panel) M8X20 8/24 1400/1500 mm x 20 6x20 Pleated aluminium x 16 6x60 strip 100 mm 2500x H400 EXTENSION KIT (for subsequent panels) M8X20 8/24 1400/1500 mm x 20 6x20 Pleated aluminium x 16 6x60 strip 100 mm...
Page 51 Uncased Installation Kit 10.2.1 Remove the roof shingles/tiles to create the space needed for installation of the system. Consider the useful surface area of the collectors plus roof flashing (see diagram in figure A) Figure A 20 cm 25 cm = L + 40 cm BEFORE LAYING THE CORRUGATED SHEET, IT IS RECOMMENDED To install a breathable sheath to avoid the formation of condensate...
Page 52 Uncased Installation Kit 10.2.3 Slightly raise the sheets downstream and glue the aluminium strips under them on the side of the chosen colour. A Aluminium strip Corrugated sheet Bonding with butyl 10.2.4 Place the strip of corrugated sheet under the aluminium strip and align it with the section of the sheet above.
Page 53 Uncased Installation Kit 10.2.5 Using the 6x20 self-tapping screws with gasket provided, screw the corrugated sheets together to definitively secure the aluminium strip. Maintain a distance of about 30/40mm from the edge of the sheet 2.5 cm B Corrugated Aluminium strip Corrugated sheet L = 10 cm sheet 10.2.6 Fix all the sheets and try to evenly distribute the screws.
Page 54 Uncased Installation Kit 10.2.7 Fix the support profiles downstream respecting the distance of 50/60mm from the edge of the corrugated sheet (fig. B). fig. B fig. C 5/6 cm 5/6 cm Initially fix only the screws in the slots (fig. C). Check the linearity of the profiles.
Page 55 Uncased Installation Kit 10.2.8 Pre-mount the clamping brackets ON THE support profiles 10.2.9 Put the collectors in place. Check the positioning and linearity of the collectors. Permanently secure the support profiles downstream. 10.2.10 Slightly raise the collectors and position and then fix the profiles upstream as pre- viously done with the ones downstream.
Page 56 Uncased Installation Kit 10.2.11 Secure the panel by closing the clamps 10.2.12 Reposition the previously moved roof shingles/tiles. Shape the aluminium strip modelling it according to the type of roof. Avoid the stagnation of water. If necessary, smooth the roof shingles/tiles. Check the work The angle should be such as not to create possible points of water stagnation...
Page 57: Examples Of Installation
Uncased Installation Kit Examples of installation Use the aluminium strip to lead Make the corrugated metal Sheets Use a waterproof sheath to let the water directly reach the Gutter. The water back over the roof shingles/ flow from the sheets to the gutter under tiles.
Page 58: System Components
System Components 11. System components 11.1 Single-column solar unit Description GS1 single-column solar unit comprising: UPM3 SOLAR 15/75 high-efficiency pump with PWM input, ogive connections for copper Cu pipe Ø22, flow regulator 2÷12 l/min or alternatively 8÷28 l/min, thermometer 0÷160°C, pressure relief valve 6 bar, pressure gauge 0-10 bar, flanged ball valve on supply line (cold side) with integrated thermometer, ¾"M fil- ling and discharge hose with hose connector Ø15mm, ¾"FF corrugated stainless steel pipe, wall bracket for expansion tank, black EPP insulation with 40 kg/m...
Page 59: Bicolumn Solar Unit
System Components 11.2 Bicolumn solar unit Description GS2 bicolumn solar unit comprising: UPM3 SOLAR 15/75 high-efficiency pump with PWM input, ogive connections for copper Cu pipe Ø22, flow regulator 2÷12 l/min or alternatively 8÷28 I/min, thermometer 0÷160°C, pressure relief valve 6 bar, pressure gauge 0-10 bar, flanged ball valve on supply line and return with integrated thermometers, ¾"M filling and discharge hose with hose connector Ø15mm, spacer coupling with built-in degasser, ¾"FF corrugated stainless steel pipe, wall bracket for expansion tank, black EPP insulation with 40 kg/m...
Page 60: Upm3 Solar Circulation Unit
System Components 11.3 UPM3 solar circulation unit UPM3 solar 15/75 electronic pump The electronic pump is a high-efficiency pump that provides flexible solutions for solar systems. Possibility of operation with or without PWM control signal. PWM speed is controlled via a special quick-coupling cable supplied with the solar unit. The pump can be set to: 4 constant curves (operation without PWM signal) 4 C-profile curves with speed variation via PWM control (stops without PWM signal)
Page 61 System Components Head curve Pressure drop of the solar unit GS1 single-column 12 2-12 l/min (mm H GS2 single-column 12 2-12 l/min (mm H Pressure drop (mm H Pressure drop (mm H (with propylene glycol 40%) (with propylene glycol 40%) GS1 pressure drop 15/65 2-12 l/min (mm H GS2 pressure drop 15/65 2-12 l/min (mm H flow-rate (Litres/min)
Page 62: Operating Curve Setting
System Components 11.4 Operating curve setting The pump’s operating curves are set with a button on the pump. Each combination of lights on and off is a specific operating mode. As shown in the figure below. To change the curve: To change from one curve to another, simply press the button once to switch in sequence: •...
Page 63: Setting The Correct Flow-Rate Based On The System Installed
System Components 11.5 Setting the correct flow-rate based on the system installed For optimal performance, the circulating flow-rate will be varied automatically by the controller based on the thermal conditions occurring during operation. However, when starting up the system, the maximum flow-rate of the system must be set according to the surface area of the collectors installed.
Page 64: Thermosiphon Effect
System Components 11.6 Thermosiphon effect Installation • The pump and all the other accessories included To avoid the thermosiphon effect that can occur when with the solar unit must be installed in the return the fluid in the boiler’s exchanger is hotter than the fluid section of the solar collectors (coldest pipe), as in the solar collectors (e.g.
Page 65: Expansion Tanks
System Components 11.7 Expansion tanks Solar expansion tanks must have a nitrile diaphragm as the heat transfer fluid circulating in the primary circuit consists of water and non-toxic propylene antifreeze. Universal expansion tanks with butyl diaphragm and heating tanks with SBR diaphragm must never be used as the antifreeze would damage them (being an extremely aggressive substance).
Page 66: Propylene Glycol For Flat Glass Panels
System Components 11.8 Propylene glycol for flat glass panels Glycol is an antifreeze combined with rust inhibitor to protect heating, cooling and solar systems from frost damage, rust and corrosion. Furthermore, it is also suitable for heat pump systems and underfloor heating systems. Chemical-physical characteristics Form liquid...
Page 67: Thermostatic Mixers For Small Systems
System Components 11.9 Thermostatic mixers for small systems Thermostatic mixing valves for small thermostatically controlled systems are used wherever a constant mixed water temperature with high control accuracy is desired and required. The devices are particularly suitable for mixers in detached houses, semi-detached houses or where low simultaneous use is required.
Page 68: Solar 1 Solar Controller
System Components 11.10 Solar 1 solar controller The main function of solar controllers is to control the circulation in the primary circuit with the signal given by the pump, based on the Δt measured by the solar collectors and the bottom of the solar storage tank. Depending on the type of system, the controllers also control the integration of the secondary circuit.
Page 69: Examples Of Use
System Components Technical information SOLAR 1 – 1 collector probe (PT1000 silicone cable ≤280°C supplied) Inputs – 2 tank probes (NTC10K PVC cable ≤105°C supplied) Collector probe reading range -10 ÷ 220°C Tank probe reading range 0 ÷ 110°C – 1 semiconductor and PWM relay (switchable ON/OFF 0-10V) for solar pump, power: ≤ 600W Outputs –...
Page 70 System Components 1 Not to lay temperature probe cables in a pipe where a 220 Volt line is already laid; 2 To use shielded cables; 3 To extend the collector sensor cable using high temperature-resistant silicone cable (2-wire): 2 x 0.75 mm up to 50 m of cable and 2 x 1.5 mm up to 100 m.
Page 71: Solar Controller Solar1
Solar Controller Solar1 12. Solar controller Solar1 12.1 Installation, setting and start-up This manual describes the installation and start-up of a solar thermal system controller. The other components (e.g. solar collectors, solar pump, etc.) must be installed in accordance with the installation instructions provided by the respective manufacturer.
Page 72: Installation
Installation 13. Installation 13.1 Controller assembly Note: the controller can only be installed in a room with an adequate level of protection. Fixing the controller's structure ⊲ Choose a suitable position ⊲ Mark the position of the holes ⊲ Drill the hole and insert the expansion screw ⊲...
Page 73: Connection To The Terminals
Installation 13.3 Connection to the terminals Before opening the terminal block, make sure the controller is not powered. Terminal block layout 13.4 Power supply connection The power supply terminals are “N” and “L” (“Input Ports”); the earth terminal is GND. 13.5 Probe terminals Connect the PT1000 probe that reads the solar collector’s temperature to terminal T1.
Page 74: Reading And Changing The Parameters
Installation 13.8 Reading and changing the parameters The parameters can be scrolled through and changed with the buttons under the display. holiday button (see chapter 14.9) M.H. do not use this button used to enter menus to be changed exits and saves any settings changed ARROW or DOWN ARROW displays the 3 different probes or increases/decreases the parameter to be changed...
Page 75: Connection Of A High-Efficiency Solar Pump With Pwm / 0-10 V Input
Installation 13.11 Connection of a high-efficiency solar pump with pwm / 0-10 v input Connecting the PWM signal cable of the Sunwood solar units’ high-efficiency pump. Cable 1 (grey or blue) to GND terminal Cable 2 (brown) to PWM / 0-10 V terminal Cable 3 (black) do not connect Grey or blue Brown...
Page 76: Connections Based On The System
Connections Based On The System 14. Connections based on the system 14.1 Solar system with panels and boiler The controller manages the energy transfer between the solar collectors and the solar tank. Connect the solar con- nector’s probe (T1, black silicone cable) to terminals T1; the probe at the bottom of the solar tank (T2, grey cable) to terminals T2;...
Page 77: Solar System With Panels, Boiler And Integration With Heating-Only Boiler
Connections Based On The System 14.2 Solar system with panels, boiler and integration with heating-only boiler. The controller manages the energy transfer between the solar collectors and the solar tank. It also manages integra- tion from a traditional energy source (e.g. heating-only gas boiler), based on the temperature measured at the top of the solar tank.
Page 78: Solar System With Panels, Boiler And Integration With Instant Boiler
Connections Based On The System 14.3 Solar system with panels, boiler and integration with instant boiler The controller manages the energy transfer between the solar collectors and the solar tank. It also manages activation for integration from a traditional energy source (e.g. boiler with instant production), based on the temperature measu- red at the top of the solar tank.
Page 79: Solar System With Panels And Pool
Connections Based On The System 14.4 Solar system with panels and pool The controller only manages the energy transfer between the solar collector(s) and the pool by means of a plate heat exchanger, starting the solar pump based on the ΔT measured between the two points. Connect the solar connector’s probe (T1, black silicone cable) to terminals T1;...
Page 80: Electrical Connection Of The Motorised Valve
Connections Based On The System 14.5 Electrical connection of the motorised valve 14.5.1 Electrical connection of the ITAP motorised valve With an ITAP 982 valve, follow the instructions below for the correct water connection. Do not operate the valve body to couple it to the servo control!! Keeping the valve body so as to read the writing ¾"- DN20 - MADE IN ITALY (as shown in the image below), the NO way (normally open) is to the left and the NC way (normally closed) is to the right.
Page 81 Connections Based On The System To electrically connect the ITAP 982 servo control to the Solar 1 controller, follow the diagram below while strictly ob- serving the colours of the valve wires. Electrical connection SOLAR 1 CONTROLLER SERVOCOMANDO / SERVO CONTROL ITAP 982 CONTATTO A SCAMBIO DI FINE...
Page 82 Connections Based On The System 14.5.2 Electrical connection of the Siemens motorised valve With a SIEMENS I/XBZ valve, follow the instructions below for the correct water connection. Do not operate the valve body to couple it to the servo control!! With reference to the diagram opposite, the valve ways correspond to the following markings on the valve body Correspondence on valve Valve way (see diagram)
Page 83 Connections Based On The System To electrically connect the Siemens I/SBC servo control to the solar controller, follow the diagram below while strictly observing the colours of the valve wires. Electrical connection SOLAR 1 CONTROLLER SERVOCOMANDO / SERVO CONTROL SIEMENS I/SBC 28.2 CONTATTO NA DI FINE CORSA END OF STROKE...
Page 84: Parameter Setting (User)
Connections Based On The System 14.6 Parameter setting (user) Connect the probes, pumps or switching valves to the controller before supplying power! The parameters that can be set at user level are the time and the thermostat temperature for integration/dissipation (if integration is not managed by the boiler with its own probe).
Page 85 Connections Based On The System The settings of each submenu can be accessed and edited by pressing the SET button. Parameter Designation Default setting Recommended setting Range Notes Note: For integration of a boiler in the top boiler coil, Reference probe for S2/S3 change the reference probe of parameter AHS from integration...
Page 86: Parameter Setting (Expert)
Connections Based On The System 14.7 Parameter setting (expert) Connect the probes, pumps or switching valves to the controller before supplying power! The parameters to be set are the time, the password and the system parameters. As soon as the controller is switched on, it displays the time and the temperature read by probe T3. Press the +/- but- ton to scroll through the temperatures measured by the 3 connected probes (T1,T2,T3), the pump speed percentage (n1 %), the days elapsed since the first start-up (DAYS), and the version of the software implemented in the controller (SW).
Page 87 Connections Based On The System NOTE: to avoid errors, DTO and DTF cannot be set with a difference of less than 0.5°C Recommen- Parameter Designation Default setting Range Notes ded setting Temperature difference (T1-T2) at which the spe- 10,0 °C 10 °C 1,5÷50 °C ed control of the solar...
Page 88 Connections Based On The System Sub-parameter Temperature above 5 °C 5 °C -39÷9 °C which the pump swi- CFRF tches off in antifreeze mode OTCO Enabling the pipe ON / OFF If set to ON, sub-parameters TCST / TCEN / collector function TCRU / TCIN are displayed where the values can be set to control periodic switching on of...
Page 89 Connections Based On The System COOL In this menu, the parameters are set to activate 3 cooling functions: system cooling (OSYC), tank cooling (OSTC), heat dissipation on a heat sink. The system cooling function (OSYC) enables energy to continue to be stored in the tank beyond the maximum tem- perature value set in parameter SMX (and in any case not more than 95 °C), thus allowing overheating to be dissipated from the collectors until the limit temperature stored in parameter CEM has been reached on the panel or the limit temperature of 95 °C has been reached in the tank.
Page 90 Connections Based On The System OTDI In this menu, the thermal disinfection function is activated, which starts the additional heating (relay HR) on the boiler to help prevent Legionella in the domestic hot water tank. Activation of this function ensures that at the end of the monitoring period (PDIS), the disinfection temperature (TDIS) is reached continuously, without interruption, during the disinfection phase (DDIS).
Page 91: Manual Heating Function) Button
Connections Based On The System PASS In this menu, a new password can be set for the controller Parameter Designation Default setting Recommen- Range Notes ded setting PASS Press SET to display submenus PWDN and PWDG Sub-parameter 0000 PWDN: Press SET and the first digit will start flashing.
Page 92: Troubleshooting
Connections Based On The System 14.11 Troubleshooting Protection against problems When there is a break or short circuit to the temperature probes, the controller disables the outputs and the error sym- is displayed at the same time. If the controller does not work properly, carry out these checks: Press the +/- buttons to check the error code, the symbol is displayed.
Page 93 Connections Based On The System Meaning of the symbols The controller is a quality product, designed for continuous, problem-free use for many years. Very often the cause of problems does not lie within the controller but in external devices or events. The table below should help to identify and solve the problem as quickly as possible.
Page 94: Start-Up
Start-up 15. Start-up 15.1 Cleaning the solar circuit The two taps in the solar unit are used for cleaning and filling, one for filling and the other for draining, separated by a shut-off valve. For better operation, try to position the taps in the solar unit at the lowest point of the system. If neces- sary, add a 3rd tap at the lowest point of the system, which shall be used to completely drain the system.
Page 95: Checking The Tightness And Emptying
Start-up 15.2 Checking the tightness and emptying Checking the tightness Finish the rinsing phase by closing the tap (3). Raise the pressure inside the solar circuit to reach a high pressure, which should be higher than the operating pressure (see next page) and no more than 0.2 bar less than the pressure relief valve setting (e.g.
Page 96: Antifreeze And Charging Pressure
Start-up 15.3 Antifreeze and charging pressure % Before filling the circuit, check the pre-charging pressure of the expansion tank with a pressure gauge or with a bicycle pump, which must be about 0.3 bar less than the cold charging pressure of the system. If antifreeze is to be used, the water and glycol must be mixed in a container before being charged into the system.
Page 97: Filling The Solar Circuit
Start-up 15.4 Filling the solar circuit The operations must be carried out when the system is cold (early morning) or alternatively by covering the col- lectors (e.g. with its packaging box). • Open the taps (1) and (3) and close the shut-off valve (2).
Page 98: Controller Setting - Flow-Rate Setting
Start-up 1 Tap to close • After a few days and after the air has been completely discharged (no more noises can be heard inside the system), close the shut-off valves upstream of the vent valves to prevent any steam from coming out of the collector. A Automatic charging pump •...
Page 99: Maintenance
Maintenance 16. Maintenance Summary table The systems are highly reliable and require only minimal maintenance over the years. These instructions should be followed: When Operations to be performed EVERY YEAR Check that the percentage of glycol in the mixture is not below freezing point using the refractometer; top up if necessary.
Page 100 Maintenance Caution!!! Checking the magnesium anode For the warranty to be valid, the magnesium anode must be checked annually and replaced when worn. In areas with particularly hard water, it can happen that a layer of limescale forms on the anode, preventing it from wor- king normally and effectively rendering its protection useless.
Page 101 Troubleshooting 17. Troubleshooting Summary table 1 The system does not heat up or does not heat up well 2 The pump is noisy 3 Decreased system pressure 4 Pressure relief valve leak 5 Incorrect values displayed on the controller 6 High collector temperature at night 7 Extreme pressure fluctuations 8 Water in the boiler gets very cold at night 9 High temperature in the solar collectors...
Page 102: Disposal Of The System
Disposal Of The System 18. Disposal of the system Operating phases The system mainly consists of the following components: SOLAR UNIT Can be disposed of by separating it into its basic components: • Metal parts (aluminium casing, copper absorbing plate, brass connections); •...
Page 103: General Conditions
General Conditions 19. General conditions General aspects: This manual cancels and replaces all previous releases. Products: We reserve the right to make technical changes to products as a result of technical updates without prior notice. Subject to typing and printing. The figures and diagrams used are symbolic.
Page 104 AND THE ENVIRONMENT www.clivet.com sales and assistance CLIVET S.p.A. Via Camp Lonc 25, Z.I. Villapaiera 32032 - Feltre (BL) - Italy Tel. +39 0439 3131 - info@clivet.it Clivet South East Europe CLIVET GMBH CLIVET LLC Clivet Airconditioning Systems Pvt Ltd Jaruščica 9b...
