Halytech meterwatch Pulse NT Installation Manual

Non-urban water metering

Hide thumbs

Table Of Contents

HALYTECH

meterwatch Pulse NT User Manual

Non-urban Water Metering

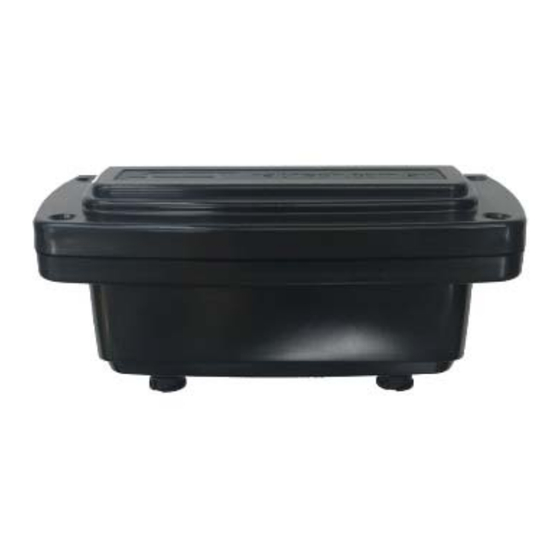

meterwatch Pulse NT

Installation Guide

meterwatch Pulse NT User Manual Version 4

Table of Contents

Need help?

Do you have a question about the meterwatch Pulse NT and is the answer not in the manual?

Questions and answers

Summary of Contents for Halytech meterwatch Pulse NT

Page 2: Revision History
Dec 2019 Initial Release This user manual is for the Halytech meterwatch Pulse NT version only. SOFTWARE LICENCE AND COPYRIGHT NOTICE All software that is supplied as part of this equipment is protected by copyright laws and international copyright treaties, as well as other intellectual property laws and treaties.
Page 3: System Overview
Recorded data is retrieved onsite through a browser running on a computer. The NT version can be upgraded to the standard version by Halytech for a nominal charge. This manual applies to meterwatch Pulse NT version only. System Overview Meterwatch Pulse NT is preconfigured for use with a single pulse water meter.
Page 4 Suitable Pulse Probe  HML-006 Australia Optional pipe mounting kit meterwatch Pulse NT HMW-012 Make your own Suitable Pulse Probe Flying Lead ORDERING CHECKLIST: In addition to the chosen meterwatch Pulse NT variant, you need to purchase items from each shaded column.
Page 5 You will need to source a pulse probe compatible with the relevant water meter. The meterwatch Pulse NT flying lead will be connected to the pulse probe lead onsite. Please refer to “Connecting to Water Meter” later in this document for instructions.
Page 6: Site Installation
If there are no suitable flat surfaces you can use the optional pipe mounting bracket to mount meterwatch Pulse NT on vertical or horizontal pipes, poles or the meter itself, as shown in the images below. The mounting bracket should be used with appropriate stainless-steel cable ties or hose clips.
Page 7 Pass the connector through the stainless-steel tamper bracket as shown here. (The tamper bracket will be fitted to meterwatch later.) Plug the connector into the meterwatch Pulse NT input (the one with no red ring) and tighten the ¼ turn locking nut.
Page 8 Pulse NT Units With Flying Lead Run the pulse probe cable from the meter to meterwatch Pulse NT. Use stainless cable ties to keep the cable in place or run the cable in a conduit. IMPORTANT: Ensure that you run the cable through the stainless-steel tamper bracket before doing your termination as shown here.
Page 9 Pulse NT units are shipped preconfigured for the site and meter so that they are easy to get up and going. Once you have mounted the meterwatch Pulse NT unit and connected it to the meter, you are ready to configure it.
Page 10 HALYTECH meterwatch Pulse NT User Manual Activation Process meterwatch Pulse NT is shipped in the activated state – no special Activation Process needs to be followed. You only need to confirm some settings. 1. Please ensure the following is displayed: ...
Page 11: Final Steps
Pulse NT is tracking the meter reading. Take a photo of the final activation screen that shows the reading: You need to secure meterwatch Pulse NT before leaving the site by fitting the following, as per the images below: 1.
Page 12: Appendix A - Meterwatch Pulse Nt Configuration
HALYTECH meterwatch Pulse NT User Manual Appendix A – meterwatch Pulse NT Configuration Time zone – Eastern Standard Time Local connection IP address - 192.168.0.177 Logging period – 1 hour Logged Channels: • Meter Reading • Cable Cut • Enclosure Tamper •...
Page 13: Appendix B - Support Information
HALYTECH meterwatch Pulse NT User Manual Appendix B – Support Information Halytech Contact Details Email: support@halytech.com.au Phone: 02 8814 5235 Maintenance Requirements No routine maintenance is required.
Page 14: Appendix C - Battery Handling Information
Pulse NT User Manual Appendix C – Battery Handling Information Halytech meterwatch Pulse NT is powered by non-rechargeable lithium batteries. Incorrect use or mishandling of batteries may result in fire or explosion. Battery contents are flammable, corrosive and extremely irritating to the lungs and respiratory system.
Page 15: Appendix D - Halytech Meterwatch Pulse Nt Manufacturer Warranty
Pulse NT unit is 7 years from the date of purchase; b) the meterwatch Pulse NT battery is 7 years, subject to the clauses below; 3. This warranty is valid only for meterwatch Pulse NT units that are purchased new in Australia;...
Page 16 12. If a warranty claim is not accepted: a) Halytech will inform the Customer; b) if requested to do so by the Customer, Halytech will repair the Product provided the customer pays the usual charges for such repair; c) if applicable the Customer will be responsible for all costs associated with collection of the Product from Halytech.
