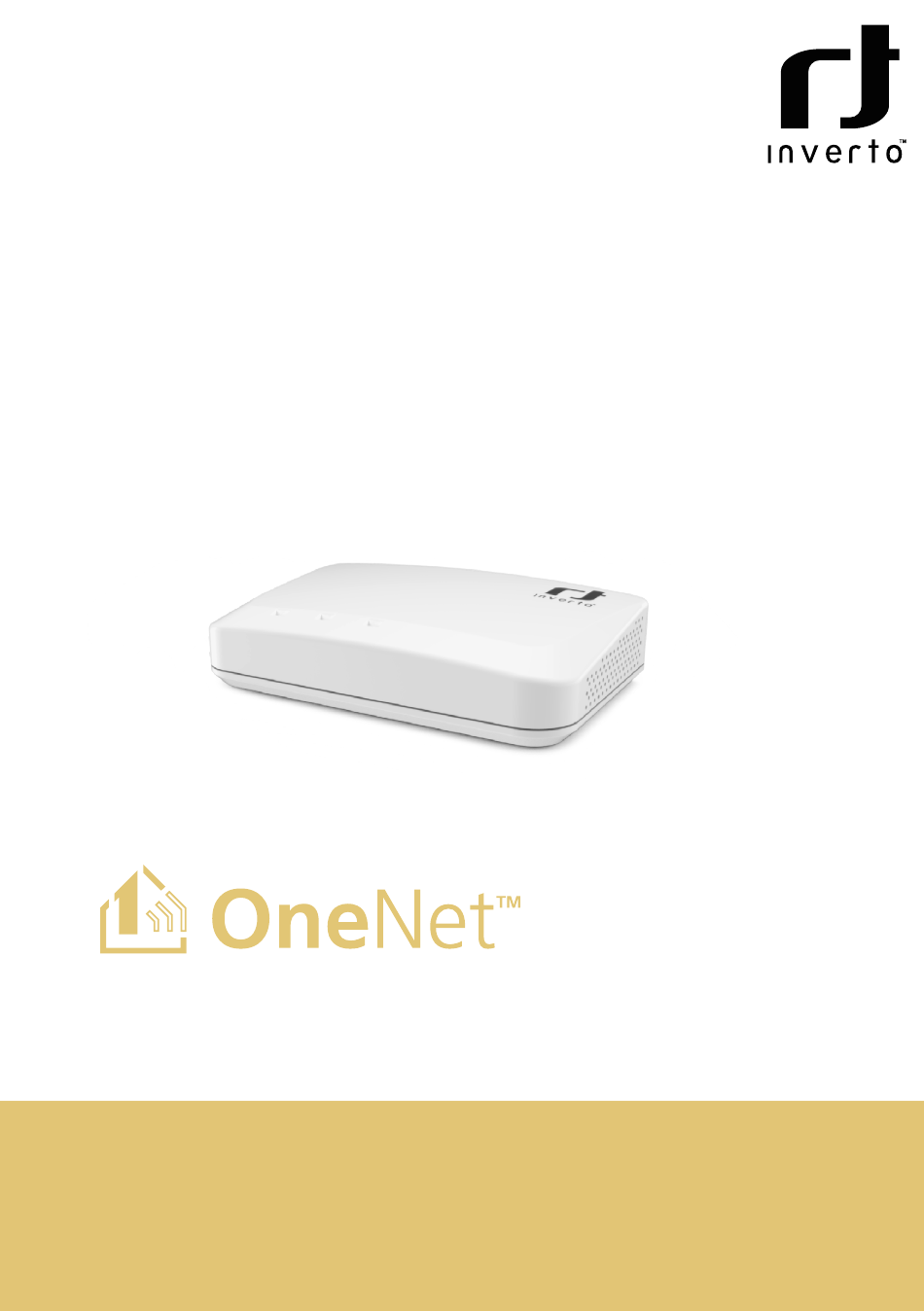

- Page 1 MoCA 2.5 CNU with 1x 1GbE port IONE-CNUOO1-1X1GO-OTM Item 6461 User manual...
-
Page 2: Table Of Contents
Content 1. CONTENT 2. GET STARTED 2.1 INTRODUCTION 2.2 PACKAGE CONTENT 2.3 REQUIREMENTS 2.4 FEATURES 3. CONNECTING THE ADAPTER 3.1 CONNECTING THE ADAPTER 4. SPECIFICATIONS 5. NOTICES 5.1 WARRANTY 5.2 LOCAL LAW 5.3 IMPORTANT SAFETY INSTRUCTIONS 5.4 COAXIAL CABLE 5.5 FCC 5.6 DECLARATION OF CONFORMITY FOR PRODUCTS MARKED WITH THE FCC LOGO (USA ONLY) -
Page 3: Get Started
2.1 INTRODUCTION Congratulations for purchasing Inverto®’s OneNet™ MoCA Access 1GbE CNU network adapt- er. The adapter is a simple and flexible solution for accessing internet through Inverto®’s OneNet™ MoCA Access broadband solution. By leveraging the ubiquity of coaxial cabling within the modern home, the adapter enables Internet connectivity over a coaxial connec- tion via its 1GbE Ethernet port. -
Page 4: Connecting The Adapter
3. Connecting the adapter Connecting the Adapter is a simple process (this assumes that a OneNet™ MoCA Access Control- ler was installed, connected to an internet link at its input port and to the coaxial network on its output ports). Connect the COM port of the CNU adapter to the coaxial connection available at your location and the Ethernet port to your PC or LAN/WLAN router to enable internet con- nectivity. - Page 5 4. Connect the other end of the coaxial cable installed in step 3 to the COM coaxial port on the side of the adapter 5. Connect one end of an Ethernet cable into the Ethernet port of your LAN/WLAN modem/router or directly to your PC.
- Page 6 6. Connect the other end of the Ethernet cable into the Ethernet port on the side of the CNU Adapter. 7. Plug the provided power adapter into the Power port on the side of the CNU Adapter. 8. Plug the other end of the power adapter (external, 12VDC, 1A) into an electrical outlet. When complete, the setup should look similar to the figure below: The device connected to the Ethernet port is now connected to the Internet via the coaxial network.
-
Page 7: Specifications
4. Specifications Chipset technology MoCA 2.5: MXL3710, MAC data rate @ 2.5Gbps PHY: 1.0G Network Interfaces 1 RF Output for CATV Female F-Type Connector 1 Ethernet Port 10/100/1000Mbps Supported protocols 10/100/1000BASE-T (IEEE802.3 Clause 40), Energy-Efficient Ethernet (IEEE 802.3az) MoCA specifications Operating Frequencies: OFDM 1024-QAM, TDD D-Band (1125~1675MHz) - Page 8 Dimensions 110 x 70 x 28 (mm) Housing Plastic casing: white color Wall mounting holes Environmental/ Storage Operating environmental temperature: 0°C - 40°C Relative humidity: 20% - 85%, non-condensing Altitude: < 2000m Storage (Non-operating) temperature: -20°C + 60°C Relative humidity: 5% - 95%, non-condensing Altitude: <...
-
Page 9: Notices
5. Notices 5.1 WARRANTY The CNU is supplied with one year warranty. 5.2 LOCAL LAW This Limited Warranty Statement gives the customer specific legal rights. The customer may also have other rights which vary from state to state in the United States, from province to province in Canada, and from country to country elsewhere in the world. -
Page 10: Declaration Of Conformity
3. Modifications: The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Inverto may void the user’s authority to operate the equipment. - Page 12 For purpose of brevity, some product descriptions in this sheet remain at platform level and may not be referred to as detailed datasheets of the products. Inverto Digital Labs reserves the right to amend, omit or add products, product-lines, and / or features without notice. As product specifications may change without notice, always contact Inverto to obtain the latest product specification sheets.
