Siro SL-NTS24CV36W-CA Operating Instructions

Operating instructions for 24 Volt DC power supply SL-NTS24CV36W-CA
Important! Please read this before use!
Read these instructions carefully. Any damage caused by failure to follow these instructions will void the warranty. We accept no liability for any consequential damage that results from this!
WARNING:
Failure to observe the following points may result in electric shock, fire, serious accidents or death.
•
All service and maintenance work may only be carried out by qualified personnel.
•
The suitability of the assembly device must finally be tested on the final product.
•
There are dangerous voltages inside the LED power supply. Therefore, the housing may only be opened by qualified personnel.
•
Always ensure that the switching power supply is adequately ventilated and do not place any objects on it.
•
This model is only suitable for use in dry locations.
•
The corresponding IP protection class is printed on the device.
•
Do not operate on easily flammable surfaces!
•
The device must not be used in conjunction with easily flammable or combustible liquids.
•
Do not operate the device in an environment containing flammable gases, vapors or dust.
Product description:
The SL-NTS24CV36W-CA is a power supply that may only be used to supply power to LEDs.
•
Output-Spannung: 24V DC bei maximal 1,5 A (36 Watt @24V DC).
•
Input voltage range: 200V AC to 240V AC.
Safety features: short circuit protection and overload protection.
•
Housing: plastic with protection class IP20.
•
•
Supply cable: Decoupleable, length 2 m with Euro plug.
•
Outputs: 4 pre-installed slots for SIRO LED receivers or SIRO MONO LED lights.
Each connection can be loaded with a maximum of 3A, but the maximum output power of 36 watts or 1.5 A must not be exceeded!
•
Sensor connections: Two connections on the housing for wired sensors:
•
1 x for use with SIRO Touch, PIR, door, double door,... sensors
•
1 x for sensors from common manufacturers
Intended Use:
The power supply is used to generate a direct voltage of 24V from the mains voltage of 200 – 240V AC.
It is to be used exclusively for LED lighting and 24V DC receivers. Any other use is not permitted.
Input:
The Euro plug is connected to a 200 - 240V AC socket.
Output:
The LED lighting is connected to the 4 pre-installed slots on the SIRO receiver or directly.
Wired sensors must not be used together with connected SIRO receivers (on the power supply output)!
Work on the mains connection may only be carried out by an authorized electrician in accordance with the ÖVE (VDE) regulations. Liability for the mains connection is excluded.

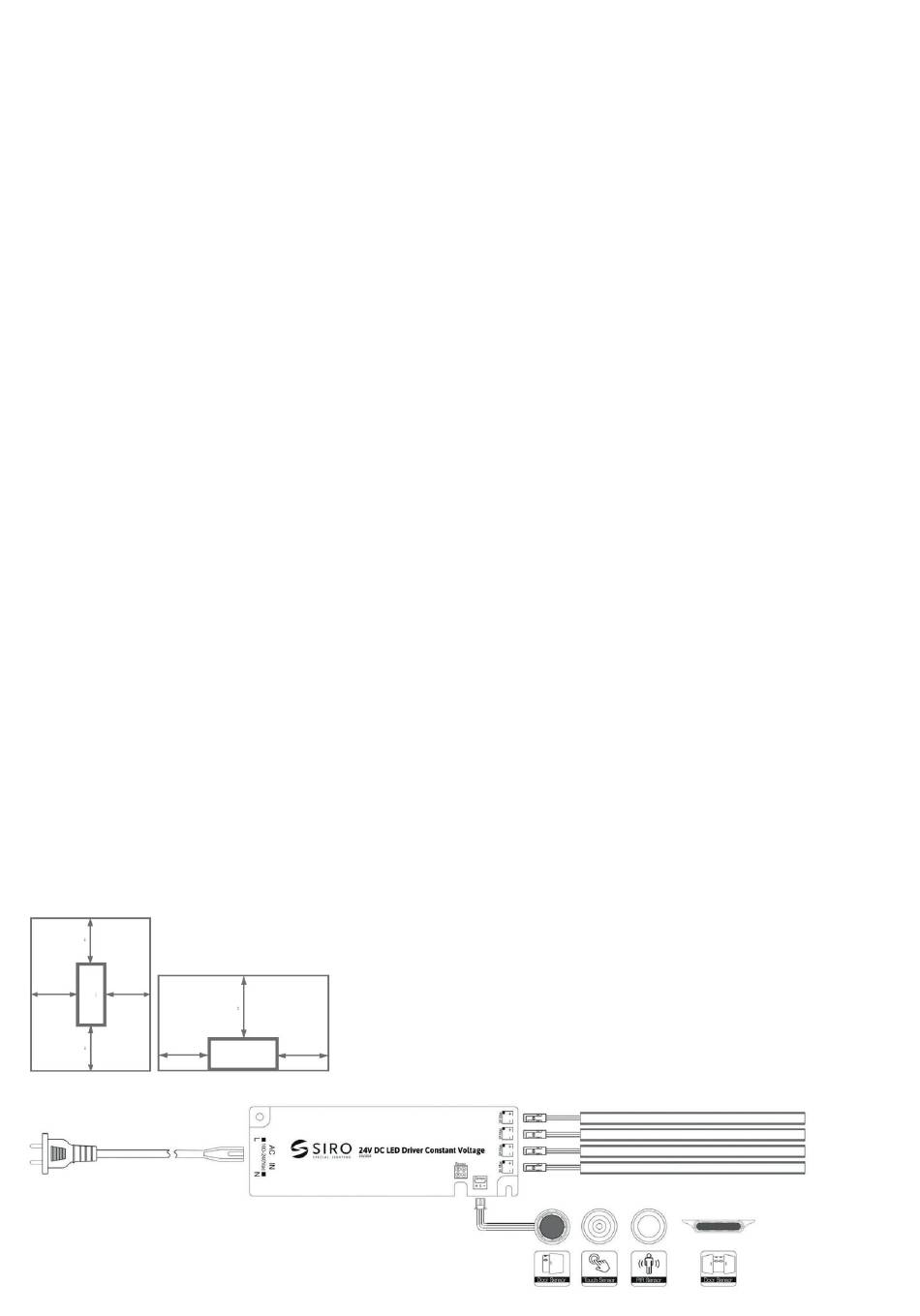

Assembly instructions:
This power supply is designed for installation in or on furniture. The installation distances must be observed!
top view
front view
50 mm 50 mm
50 mm
Connection diagram:
Version 06V1024
50 mm
power supply
Page 1/2
