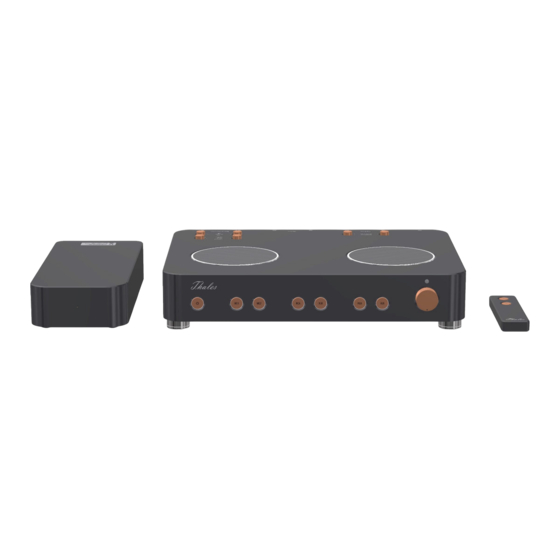

THALES MAGNIFIER Operating Instructions
Valued customer
Thank you for choosing the THALES MAGNIFIER. This preamplifier is designed for outstanding analogue performance. The device benefits from
our years of experience in vinyl-technology and it impresses by its unique technology and modern functionality.
Take your time to install and adjust the product properly. Please remember to work carefully and to follow the instruction manual step by step.
You will find actual information about our products on thales.swiss.
Page 1/13
Version 1.2
