75 75
×
10kg
17"-30"
100×100
STEP1
Fitting the bottom support on the desk
1
3
C
4
F
STEP2
Install TV plate
M odel: SPA-111
Installation guide
-85°~15°
2
Please select the appropriate
mounting holes according to
the thickness of desk
1
M4x12MM
M5x12MM
A(4PCS)
B(4PCS)
4X4MM
¢6.5x¢13x2
F(1PCS)
E(8PCS)
1.Tube Cover (2PCS)
2.TV plate (1PCS)
3.Tube (1PCS)
4.Bottom support (1PCS)
5.Knob (1PCS)
6.Anti-Slip rubber (1PCS)
6
D
5
F
2
2
Make sure the handle here
is tightly locked before hang
Cable cover
3
up the screen
Cable cover
(2PCS)
M6x20MM
M6x10MM
C(3PCS)
D(2PCS)
2
5X5MM
G(1PCS)
6
D
3
For desk thickness
！
warning
1
3
C
4
5
4x4mm
F
20-100mm
Advertisement
Related Manuals for Spacetronik SPA-111
Summary of Contents for Spacetronik SPA-111

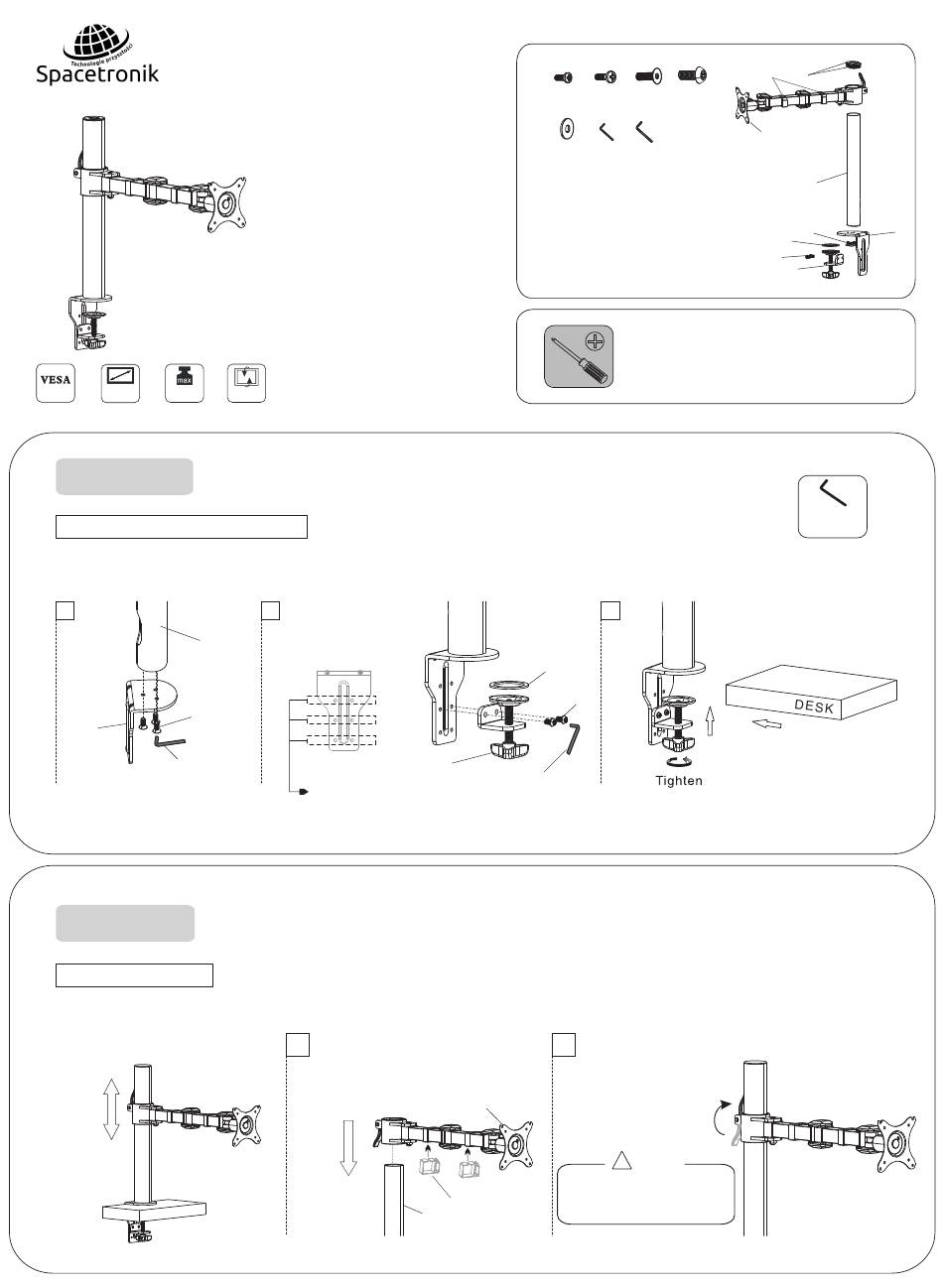

- Page 1 Cable cover (2PCS) M odel: SPA-111 M4x12MM M5x12MM M6x20MM M6x10MM A(4PCS) B(4PCS) C(3PCS) D(2PCS) Installation guide 4X4MM 5X5MM ¢6.5x¢13x2 F(1PCS) G(1PCS) E(8PCS) 1.Tube Cover (2PCS) 2.TV plate (1PCS) 3.Tube (1PCS) 4.Bottom support (1PCS) 5.Knob (1PCS) 6.Anti-Slip rubber (1PCS) 75 75 ×...
- Page 2 STEP3 Attaching screen to TV plate D E S K D E S K Increase washer(E) based on actual situation STEP4 5x5mm Adjusting screen ±180° -85°~15° Cable Cable Cable Cover D E S K To adjust the monitor with the supplied 5x5 allen key(G) CAUTION This product contains small items that could be a choking hazard if swallowed.Keep these items away from young children.
