- Page 1 CETW645 Active Noise Cancelling TWS Earbuds Auriculares TWS con cancelación activa de ruido With Hi-Res LCD Touchscreen Case Con Funda de Pantalla Táctil LCD de Alta Resolución User Manual Manual De Usuario...
- Page 2 User Manual Earbud Tips (S/M size)

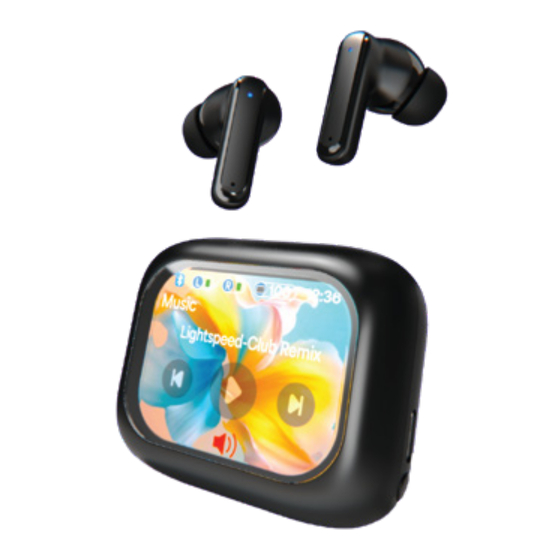

- Page 3 Overview CETW645 True Wireless Stereo Earbuds Left Earbud Right Earbud Eartip Eartip Status LED indicator Touch Sensor CETW645 LCD Touchscreen Case Touch display screen Type C charging port Screen on/off button EN 1...
-
Page 4: Turning On The Display
Turning on the display Press the Screen On/Off button once to turn on the display. The Coby Logo will appear. Select the language, then tap the icon < > to choose your desired wallpaper. Tap on the selected wallpaper to confirm. It will then take you to the home screen. -
Page 5: Turning Off The Display
‘Settings’ app. Then, swipe up and down to select ‘Shutdown’ to turn off the display. Turning on the earbuds Your CETW645 earbuds will power on automatically when taken out of the Touchscreen case. You can also power them on manually by pressing and holding the Touch Sensor on both earbuds for 7 seconds. - Page 6 To power them off manually, press and hold the Touch Sensor on a single earbud for 5 seconds. Charging Charging the Touchscreen Case USB Power Source Type C charging port The charging status and the power level for the Touchs- ceen case will be shown on the display screen.
- Page 7 Charging your earbuds When your earbuds’ battery runs low, the earbud status indicators will slowly flash white, and a notification tone will play. Open the Touchscreen case’s lid, then place the earbuds into the Touchscreen case and close the lid to start recharging.
- Page 8 After a successful True Wireless stereo connection, your CETW645 will automatically enter Bluetooth pairing mode to connect to your device. Turn on Bluetooth in your device’s settings and search for “CETW645”, then tap “CETW645” to connect. EN 6...
- Page 9 (Successfully paired) Connected tone notification Status bar on the touchscreen The CETW645 earbuds and touchscreen case will automatically be paired with your last sucessfully connected media device the next time they are turned on. EN 7...
-
Page 10: Button Control
Controls • Button Control 1. Music mode Press the Touch Sensor once on Play/Pause either earbud. Next track Quickly press the Touch Sensor twice on the right earbud. Previous Quickly press the Touch Sensor twice on the left earbud. track Quickly press the Touch Sensor three Volume up times on the right earbud. - Page 11 2. Phone call mode Answer Quickly press the Touch Sensor twice on /End a call either earbud. Press and hold the Touch Sensor for 2 Reject a seconds on either earbud. call 3. Voice Assistant mode Activiate voice Press and hold the Touch Sensor assistant for 2 seconds on either earbud.
-
Page 12: Music Playback Control
• Touch Control The CETW645 earbuds features with a display screen built-in the case for touch controls, allowing you to get more controls for the earbuds (Note: Make sure the CETW645 is connected to your phone.). • Swipe left and right on the display screen to toggle the app list. - Page 13 2. Ambient Control ANC Off mode ANC On mode (Normal mode). Transparent mode 3. Spatial Sound Control Video mode Game mode Music mode 4. Sound Equalizer Control Tap to customize the sound equalizer set- tings for the earbuds EN 11...
- Page 14 5. Voice Assistant Make sure the CETW645 is connected to your phone. From the App list, select and open the voice assistant App, ta[ once on the icon to activate the voice assistant, then you speak to the voice assistant in the Touchscreen case by a simple voice command.
- Page 15 Note: To use the Bluetooth camera, ensure that the CETW645 has been successfully paired with your phone. Also, make sure the earbuds are not in music playback mode. Keep your phone on the camera app screen, then tap to take photos.
- Page 16 9. Stopwatch Recorded timing list Reset Record Start/Pause 10. Countdown timer Countdown time Set countdown time EN 14...
- Page 17 11. Flashlight Repeatedly tap on the screen to switch among white, red, yellow and green flashlight. 12. Find your earbuds Tap to send the alert to your earbuds. Your earbud will play a ringtone to alert you of its location. 13.
-
Page 18: Troubleshooting
If they are earbuds aren’t not, open Bluetooth settings in your device connected. The and tap “Forget device” on “CETW645”, LED indicators then turn off Bluetooth in your device to on both earbuds manually initiate the True Wire stereo are alternating connection. -
Page 19: Specifications
Specifications Model Number CETW645 ANC TWS Earbuds With Hi- Model Name Res Touchscreen Case Power Input 5 V/1A(Touchscreen case ) Charging time (Earbuds) 1 hour Charging time 1.5 hours (Touchscreen case ) Playtime (Earbuds) Up to 5 hours Playtime (With... - Page 20 FCC Statement FCC ID: 2AMSOETW004 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 21 The contents of this manual are subject to change without prior notice, and COBY will not be liable for any errors contained herein or for incidental or consequential damages in connection with the furnishing performance or use of this manual.
- Page 22 Warranty Period encompasses, as listed below, separate “Coverage Peri- ods” for Parts and Labor, each Coverage Period for one year, to begin from the original date of Customer purchase. If Customer returns a defective Product (or any component thereof) during the applicable Warranty Pe- riod, SUMMIT ELECTRONICS LLC will, at its option, dur ing the specified Coverage Periods for Parts and Labor (as applicable) either: (i) repair the Product (or, as applicable, any component thereof) or (ii) replace the...
- Page 23 applications. SUMMIT ELECTRONICS LLC disclaims any Warranty for any of the foregoing uses to the fullest extent permitted by law. Cus- tomer assumes any and all risks associated with such uses of Product and agrees to indemnify SUMMIT ELECTRONICS LLC for any damages claimed against SUMMIT ELECTRONICS LLC for such uses.
- Page 24 freight-prepaid in its original packaging, or packaging that affords an equal measure of protection. Please allow 4 to 6 weeks for the processing of your claim (6 to 8 weeks from November to February). Product Category Shipping Adapters, Converters, Chargers, Headphones, Microphones, $7.99 Cellular Accessories Alarm Clocks, Portable CD Players, Radios, Corded Tele-...
-
Page 25: Customer Service
Customer Service Servicio al Cliente To get the best after-sales service, access the Contact webpage from the link: https://summitcegroup.com/pages/contact. Or email us at support@cobyaudio.com for return information and customer support! Para obtener el mejor servicio postventa, acceda a la página web de contacto desde el enlace: https://summitcegroup.com/pages/ contact.
