Summary of Contents for MEE Connect Air Pro

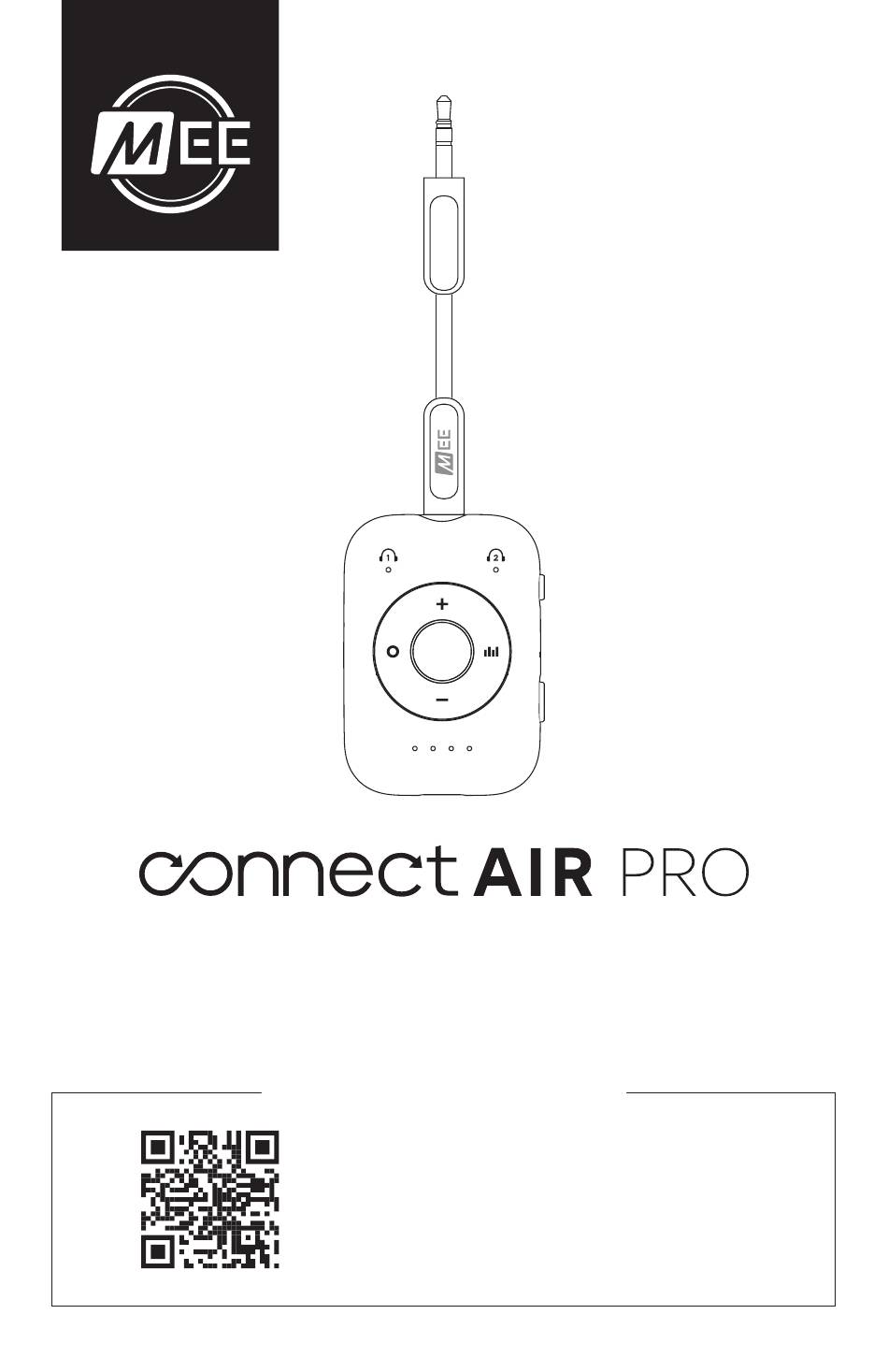

- Page 1 BLUETOOTH AUDIO TRANSMITTER & RECEIVER ® Model: AF-CA2 SETUP GUIDE Scan QR code or enter the URL below into your web browser: MEEaudio.com/CA2vid...
-
Page 2: Quick Reference
How do I adjust the volume? First raise the volume on the device you are plugging your Connect Air Pro into, then press the + and - buttons to raise and lower the volume. Press the buttons multiple times for greater adjustment. -
Page 3: Product Overview
PRODUCT OVERVIEW 3.5 mm connector Headphone #1 Headphone #2 Pairing / Connection Light Pairing / Connection Light Volume Up Button Multifunction / Pairing Button / CinemaEAR Button Volume Down Button Battery Indicator Lights USB-C Charging Port Power On / Off Switch Pinhole Reset Button Receiver Mode Indicator Light... - Page 4 CHARGING BATTERY INDICATOR LIGHTS 100% CHARGING Plug the charging cable into the Connect Air Pro and a USB charging port Charging time: 2 hours...
-
Page 5: Mode Selection
AirPods or other Bluetooth headphones or speakers. BLUETOOTH RECEIVER (RX) MODE Use the Connect Air Pro in RX mode to stream audio from your phone or tablet to your car/home stereo, wired headphones, or any other audio device 3.5mm/aux audio input. -
Page 6: Bluetooth Transmitter
BLUETOOTH TRANSMITTER TX Mode Setup 1) Check that the TX/RX mode switch is in the TX position and power on the Connect Air Pro 2) Put your headphones/speakers into pairing mode AirPods Place AirPods in their charging case Open the charging case lid... - Page 7 After connecting the first device, repeat the pairing steps to connect a second. Both headphone lights on the Connect Air Pro will be solid blue once the second device is connected. 4) Connect to an audio source...
- Page 8 Volume Up Tap + button once Volume Down Tap — button once Change Press button CinemaEAR Mode Check battery Press any button while the Connect Air Pro is status powered on HEADPHONE INDICATOR LIGHTS Blue & Red Bluetooth Alternating Pairing Mode...
-
Page 9: Bluetooth Receiver
BLUETOOTH RECEIVER RX Mode Setup... - Page 10 1) Check that the TX/RX mode switch is in the RX position and power on the Connect Air Pro 2) Connect to an audio input Connect the audio jack of the Connect Air Pro to your car stereo, home theater receiver, wired headphones, speaker, or other device. Device with 3.5 mm aux input Use the included 3.5 mm audio cable.
- Page 11 BLUETOOTH RECEIVER RX Mode Setup (Continued) 3) Pair with phone or tablet Press and hold the button to put the Connect Air Pro into pairing mode. Pairing mode is indicated by an alternating red and green “RX” indicator light. Open the Bluetooth menu on your phone, tablet, or other device you wish to pair (usually located in Settings->Bluetooth).
- Page 12 Tap + button once Volume Down Tap — button once Change Press button CinemaEAR Mode Check battery Press any button while the Connect Air Pro is status powered on RECEIVER (RX) INDICATOR LIGHTS Green & Red Bluetooth Alternating Pairing Mode...
- Page 13 CinemaEAR CinemaEAR is an advanced audio enhancement feature that allows for on-the-fly audio adjustment with four different hearing and sound enhancement modes: Balanced Default mode with balanced audio performance Bass Boost Mode Enhances bass response and depth to create more impact and immersion with movies and music Vocal Boost Boosts speech and vocals for more clarity and intelligibility...
-
Page 14: Troubleshooting
RX light will flash yellow momentarily, after which the Connect Air Pro will enter Bluetooth pairing mode. If you are unable to power on your Connect Air Pro or the device is unresponsive, you can perform a hardware reset by inserting a pin or paperclip into the reset pinhole on the left side of the device. - Page 15 Monday ~ Friday 9am to 5:00pm PST Email Support: support@MEEaudio.com All emails are responded to within 2 business days WARRANTY MEE audio products purchased from authorized resellers are covered by a 1-year manufacturer warranty. For more information, contact your local MEE audio dealer or visit MEEaudio.com/support...
- Page 16 There are no user replaceable/reparable parts in the device. Disassembling it will void your warranty and may cause personal injury. Changes or modifications to this unit not expressly approved by MEE audio could void the user’s authority to operate the equipment.
- Page 17 COMPLIANCE INFORMATION FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 18 Potencia máxima de transmisión: <20 dBm DÉCLARATION DE CONFORMITÉ UE / ROYAUME-UNI: S2E, Inc. dba MEE audio déclare par la présente que cet appareil sans fil est conforme à la directive 2014/53/EU et à la réglementation 2017 relative aux équipements radioélectriques. Le texte intégral de la déclaration de conformité...
- Page 19 The Bluetooth word mark and logos are registered trademarks owned by ® Bluetooth SIG, Inc. and any use of such marks by MEE audio is under license. Other trademarks and trade names are those of their respective owners. Apple, AirPods, and Siri are registered trademarks of Apple Inc.
- Page 20 HOW TO CHOOSE TRANSMITTER RECEIVER I HAVE A AirPods Phone Bluetooth headphones Tablet Bluetooth speaker Other Bluetooth audio devices Transmitter Receiver thank you Car Stereo Home Stereo In-Flight Entertainment without Bluetooth Treadmill Wired Headphone Gaming Controller, etc Wired Speaker...
