Stream Video Recorder (ADC-SVR210) - Installation Guide
English
English
https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/Stream_Video_Recorder_(SVR)/Stream...
Updated: Mon, 23 Sep 2024 18:54:52 GMT
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADC-SVR210 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alarm System ADC-SVR210

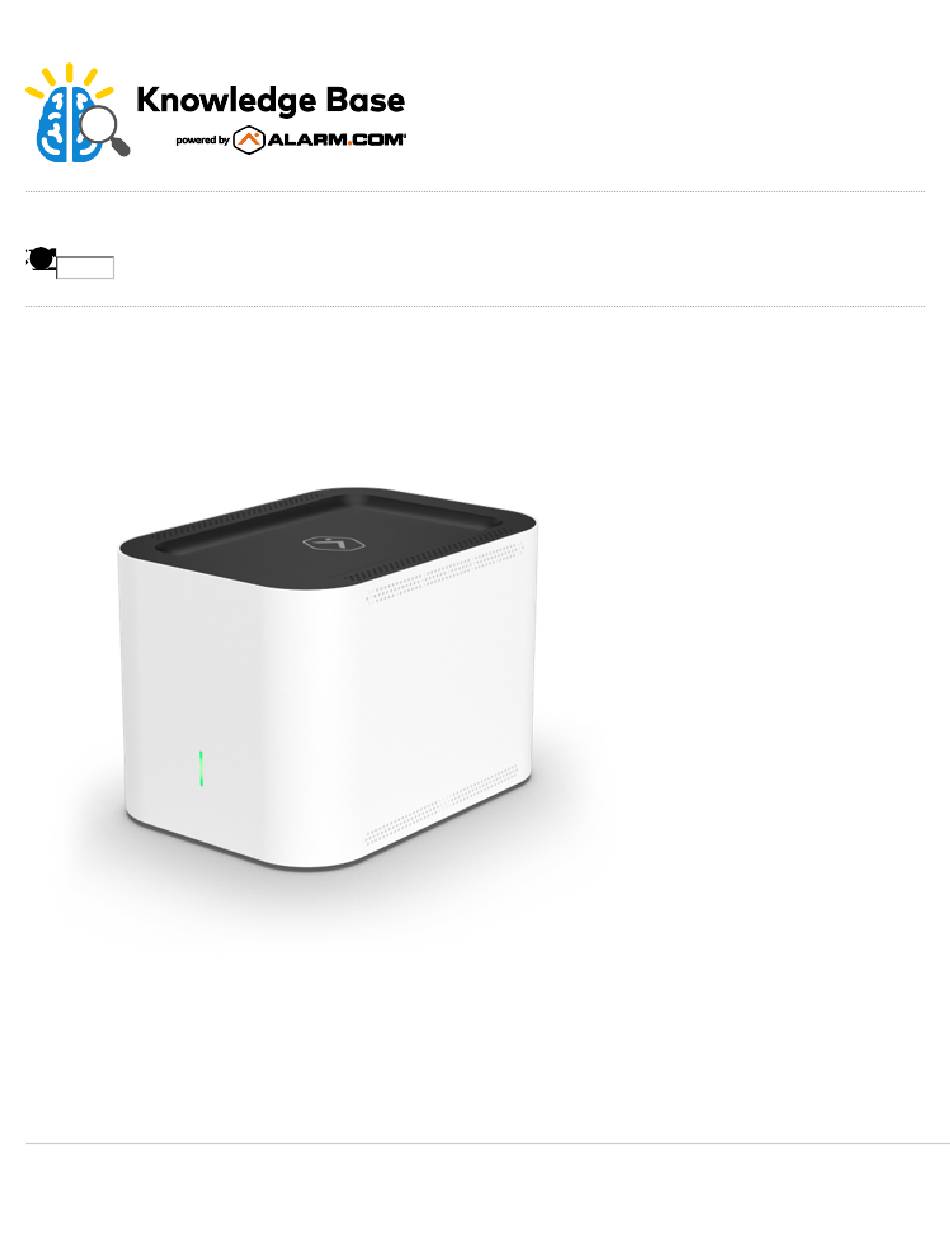

  • Page 1 Stream Video Recorder (ADC-SVR210) - Installation Guide English English https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/Stream_Video_Recorder_(SVR)/Stream… Updated: Mon, 23 Sep 2024 18:54:52 GMT...
  • Page 2 • Ethernet cable • QR card with code that links to this digital installation guide Pre-installation checklist • Stream Video Recorder (ADC-SVR210) • AC power adapter (DSA-42PFH-12L FCA 120350) • An Ethernet cable • A display with an HDMI input (optional) •...
  • Page 3 • USB keyboard and mouse • Ethernet connection to broadband (Cable, DSL, or Fiber Optic) • Login and password for the customer account to which you will add the ADC-SVR210 Important: The customer account must have an ADC-SVR210 compatible service package, and an ADC-SVR210 supported camera.
  • Page 4 Recommended networking diagram for SVR210 https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/Stream_Video_Recorder_(SVR)/Stream… Updated: Mon, 23 Sep 2024 18:54:52 GMT...
  • Page 5 Connect the ADC-SVR210 to a local network The ADC-SVR210 must first connect to the customer's local network before it can be added to a customer account. 1. Using an Ethernet cable, connect SVR210’s uplink port to the network router. 2. Connect the device’s AC power adapter and plug it into a non-switched, grounded power outlet.
  • Page 6 2. Select the ADC-SVR210 from the video device list or enter its MAC address to begin adding the device. The device’s MAC address is located on the bottom of the device or on the packaging.
  • Page 7 To associate a video device to an SVR using the MobileTech app: Note: When using the MobileTech app, video devices can only be associated during the SVR installation or hard drive configuration. 1. Log into the MobileTech app. 2. Find the customer account. 3.
  • Page 8 a. In Record from this camera, click to select the camera to record to the Streaming Video Recorder. b. Using the Resolution dropdown menu, select the resolution if the camera supports it. c. Using the Frame Rate dropdown menu, select the frame rate. d.

  • Page 9: Led Guide

    to the day limit. iv. Tap Save. 11. Tap Save Schedule. For more information about associating cameras to an SVR, see Associate a video device to an SVR. LED guide LED status Description Solid green Connected to Alarm.com Blinking green Local network connection Solid red No network connection...

  • Page 10: Troubleshooting

    To view live and recorded video using a local display, you will need to: • Ensure that you have followed the set-up instructions in this guide. • Using an HDMI cable, connect the ADC-SVR210 to a television or computer monitor. • Connect a computer mouse using the USB port on the ADC-SVR210.
  • Page 11 Rated: • ADC-SVR210 – DC 12V, 3.5A, 42W • The NVR is only to be connected to PoE networks without routing to outside plants. • Ensure that all maintenance and repair work is handled by qualified personnel such as electrical engineers or network specialists.
  • Page 12 Incluido en la caja • Grabadora de transmisión de video ADC-SVR210 • Adaptador de corriente • Cable Ethernet • Tarjeta con código QR para acceder a esta guía de instalación en versión digital Lista de verificación previa a la instalación •...

  • Page 13: Descripción General

    3. Espere a que el dispositivo se inicie. Un LED de estado verde continuo indica que el dispositivo está listo para agregarse a la cuenta. Una vez que la grabadora de transmisión de video ADC-SVR210 esté conectada a la red del cliente y muestre un LED verde continuo, agregue la ADC-SVR210 a la cuenta customer account.
  • Page 14 MAC de la ADC-SVR210 para comenzar a agregarla. La dirección MAC del dispositivo se indica en la parte inferior del mismo o en el empaque. 3. Sigua las instrucciones en pantalla para terminar de agregar la ADC-SVR210. Para agregar la ADC-SVR210 a una customer account utilizando la customer app: 1.

  • Page 15: Resolución De Problemas

    • Asegurarse de haber seguido las instrucciones de configuración de esta guía. • Usar un cable HDMI para conectar la ADC-SVR210 a un televisor o a un monitor de computadora. • Conectar un mouse de computadora al puerto USB de la ADC-SVR210.
  • Page 16 Especificaciones: • ADC-SVR210 – 12 VCD, 3.5 A, 42 W • La NVR sólo debe conectarse a redes PoE sin enrutamiento a plantas exteriores. • Asegúrese de que todo el trabajo de mantenimiento y reparación sea realizado por personal calificado, como ingenieros eléctricos o especialistas en redes.
  • Page 17 Português https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/Stream_Video_Recorder_(SVR)/Stream… Updated: Mon, 23 Sep 2024 18:54:52 GMT...
  • Page 18 • Cabo Ethernet • Código QR para acesso a este guia de instalação digital Lista de verificação pré-instalação • Gravador de vídeo (ADC-SVR210) • Adaptador de alimentação CA (DSA-42PFH-12L FCA 120350) • Cabo Ethernet • Monitor com entrada HDMI (opcional) •...

  • Page 19: Visão Geral

    Importante: a conta customer account deve ter um pacote de serviços e uma câmera compatíveis com o ADC- SVR210. Visão geral O ADC-SVR210 deve primeiro se conectar à rede local do cliente para que seja possível adicioná-lo a uma customer account. Conecte o ADC-SVR210 à uma rede local 1.
  • Page 20 2. Selecione ADC-SVR210 na lista de dispositivos de vídeo ou informe o endereço MAC do gravador para dar início ao processo de adição. O endereço MAC encontra-se na parte inferior do dispositivo ou na embalagem.

  • Page 21: Resolução De Problemas

    Para assistir a vídeos ao vivo e gravados por meio de uma tela instalada localmente: • Certifique-se de ter seguido as instruções de configuração presentes neste guia. • Use um cabo HDMI para conectar o ADC-SVR210 a uma televisão ou a um monitor de computador. • Conecte um mouse à porta USB do ADC-SVR210.
  • Page 22 Tomadas com fiação incorreta podem gerar tensões perigosas nas peças metálicas expostas. Classificação: • ADC-SVR210 – 12V CC, 3,5 A, 42 W • O NVR deve ser conectado apenas a redes PoE sem roteamento para instalações externas. • Certifique-se de que todos os trabalhos de manutenção e reparo sejam executados por pessoal qualificado, como engenheiros eletricistas ou especialistas em rede.
