Operational Manual
Asta Eye
User Manual
Main Features
100% Wire-free
Super wide view angle
operation
Clear Night-vision
IP65 Waterproof
Two-way full-duplex
1080P HD Video
communication
Fast Response time
Support TF card
less than 3 seconds
upto 128 GB
What's in the box
Video doorbell
1 x USB cable
1 x 3M sticker
1 x User manual
1 x Screw package

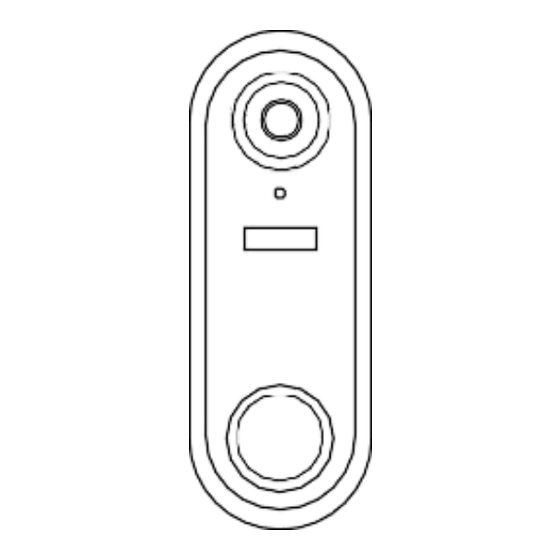

Product Diagram
Microphone
Lens
Light sensor
Motion sensor(PIR)
Ring button
Power Switch
Reset
12V DC -Ve
12V DC +Ve
QR code
Component
Description
Audio channel
Speaker
Capture videos
Lens
Additional light in
Infrared LED
Low-light conditions
Infrared light Adjustment
Light sensor
Status indicator LED
Indicator LED
Rings indoor chime and App
Doorbell button
Allows for 2Way voice through App
Mircrophone
QR Code Label
Product information
Reset(Factory)
Press the reset button on the back of the
doorbell for more than 3 seconds. You will
hear a sound and see the indicator LED blink red
USB Port
Connect to charge the unit
Power switch
ON/OFF switch
TF Card
Micro SD Card Slot for recordings
(Supports up to 128GB)
Preparation
You will need the following items to install your unit:
Smartphone or tablet with IOS 9.0 or Android 7.0 operating system
higher ( This model does not work with a Mac or Windows PC)
Android
Ipad
Iphone
Wifi Router
This doorbell doesnot support
5.0Ghz and will only connect
2.4 GHz
to a 2.4Ghz wifi router
During initial configuration,
wifi router
this doorbell should be within
3 meters from the wifi router
Advertisement
Summary of Contents for Medha Asta Eye
- Page 1 Operational Manual Asta Eye What’s in the box User Manual QR Code Label Product information Reset(Factory) Press the reset button on the back of the doorbell for more than 3 seconds. You will Power Switch hear a sound and see the indicator LED blink red...
- Page 2 Install the app Indicator LED Status Scan the QR code avilable on the back of Search for Asta Eye app in the play store or App store, then downlaoad the Doorbell and install it. Device status LED status Fast blinking blue...
- Page 3 If the video displayed is stuck or slow, please re-start the Warranty If configuration Fails app, if it is still stuck or slow, please re-start your wifi router and move doorbell closer to router or add a Wi-Fi repeater Make sure you have given the correct Wi-Fi 1.
