NVC PUMA Instructions

THANK YOU for buying this product. To help ensure it gives complete satisfaction please install it according to these
instructions and then pass the instructions to the appropriate person for retention and future reference.
SAFETY This is a mains powered product. It is designed to be installed by suitably qualified personnel only and in
accordance with the applicable building and electrical regulations. Before installation or maintenance the electrical
supply to the product must be isolated.
INSTALLATION SUPPORT If installation advice or accessories are required please contact us at the above address. We
will do our best to help. When reporting a suspected fault or seeking installation support the problem is likely to be resolved
most quickly if you have full product details to-hand, as well as details of when and where it was purchased.
LUMINAIRE INSTALLATION
Standard Versions

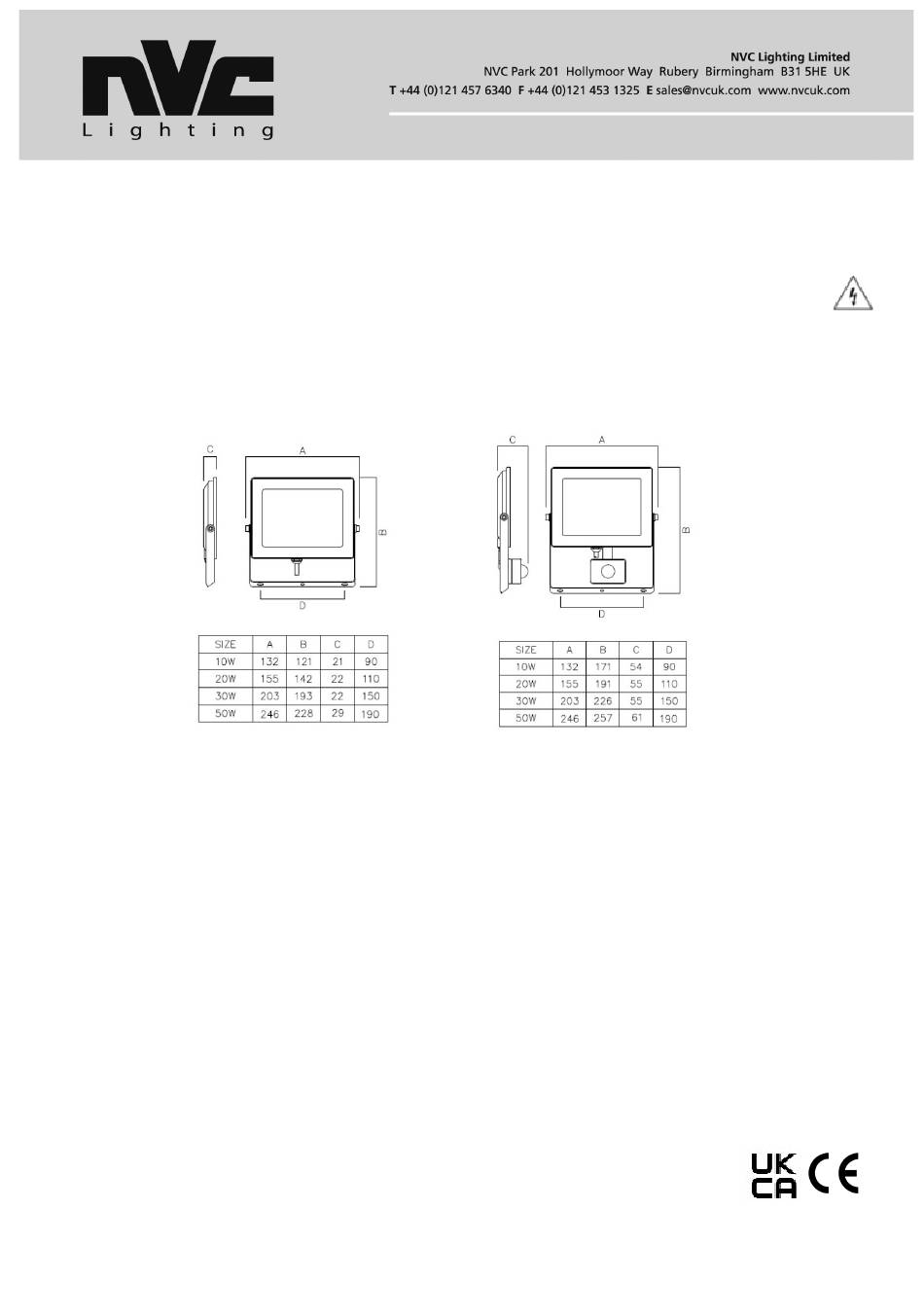

1. Secure the luminaire into its required fixing position using the fixing holes/slots provided in the stirrup mounting
bracket (see diagrams above), ensuring the chosen method is sufficient to support the luminaire weight.
2. To rotate the luminaire to the required angle, loosen the two hinge screws where the stirrup bracket joins the main
fitting with an allen key, rotate to required position, then retighten to secure.
3. The luminaire is supplied with a power supply lead already attached. Route the free end to a suitably IP rated
connection point (minimum IP65) & terminate ensuring correct polarity is observed.
WARNING: THIS LUMINAIRE MUST BE EARTHED
4. Reconnect power supply & check for correct operation.
MAINTENANCE
The luminaire should be switched off & allowed to cool before any maintenance is carried out.
1. Cleaning of the glass front cover should be carried out at regular intervals so as not impair photometric
performance.
2.
Dust should not be allowed to accumulate on the rear of the product as this will affect the thermal performance of
.
the heat sink
PUMA LED FLOODLIGHT INSTRUCTIONS
th
Issue 01 on 24 May 2023
PIR Versions
