Front A-Arms guards

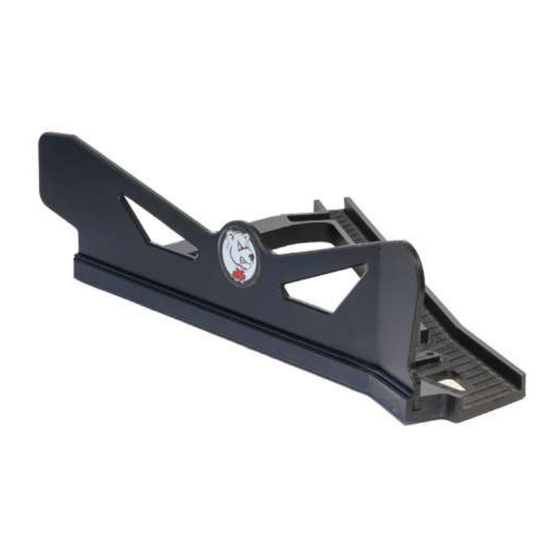

Polaris RZR XP1000 Sport
What's in the box ?
8 NE01-04-003 - EM6F bolts
8 NE01-03-006 - Large M6 washers
4 NE01-02-005 - TFHC 6x35mm screws
4 NE01-02-006 - TFHC 6x40mm screws
4 PM01-04-271 - HDPE brackets
2 NE04-01-009 - Round stickers
The paper instructions may be limitless, scan
the QR code to watch the tutorial video online.
Approximate time of assembly: 30 minutes.
Front A-Arms guards are made to protect the vital components of your SSV and do
not have a « life warranty ». If you notice a defect on your front A-Arms guards at
reception, please write to contact@axpracing.com
1
Seperate the screws and bolts:
The HDPE brackets + TBHC6x40mm screws, bolts and washers
go on the engine's side. The TBHC 6x35mm screws, bolts +
washers go on the tyre's side.
AX1719
Follow the steps
2
Assembling
instructions
3
Place the guard on the arm.
Advertisement
Summary of Contents for aXp RACING AX1719

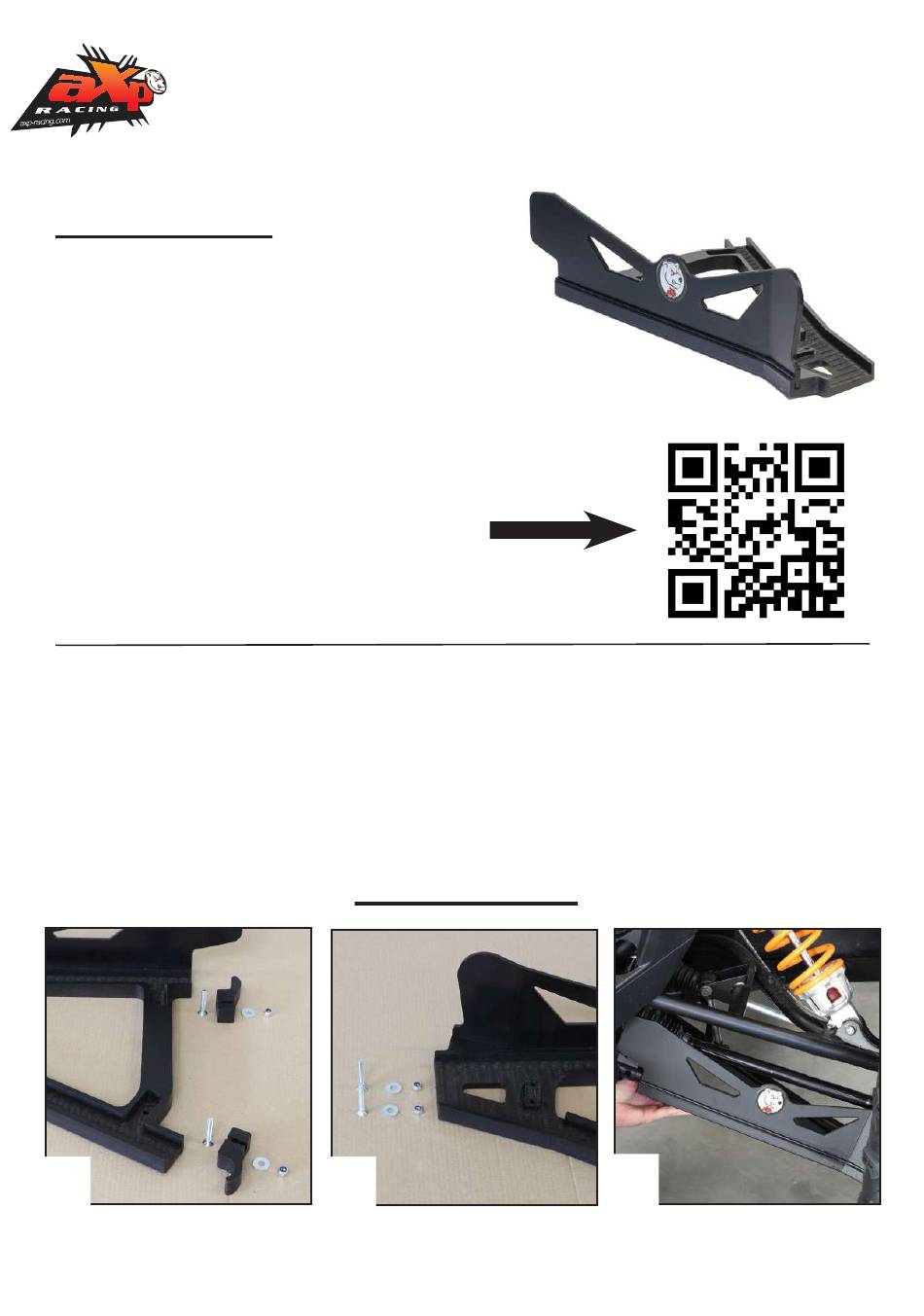

- Page 1 Assembling AX1719 Front A-Arms guards instructions Polaris RZR XP1000 Sport What’s in the box ? 8 NE01-04-003 - EM6F bolts 8 NE01-03-006 - Large M6 washers 4 NE01-02-005 - TFHC 6x35mm screws 4 NE01-02-006 - TFHC 6x40mm screws 4 PM01-04-271 - HDPE brackets...
- Page 2 Place the TBHC 6x35mm Place the plastic bracket on the Tighten the screws. screws + bolts and washers. back tube. The bracket must be in the Use the TBHC 6x40mm screws, bolts and washers to fix the machined face. guard on the larger side. You’re all ready to ride !
