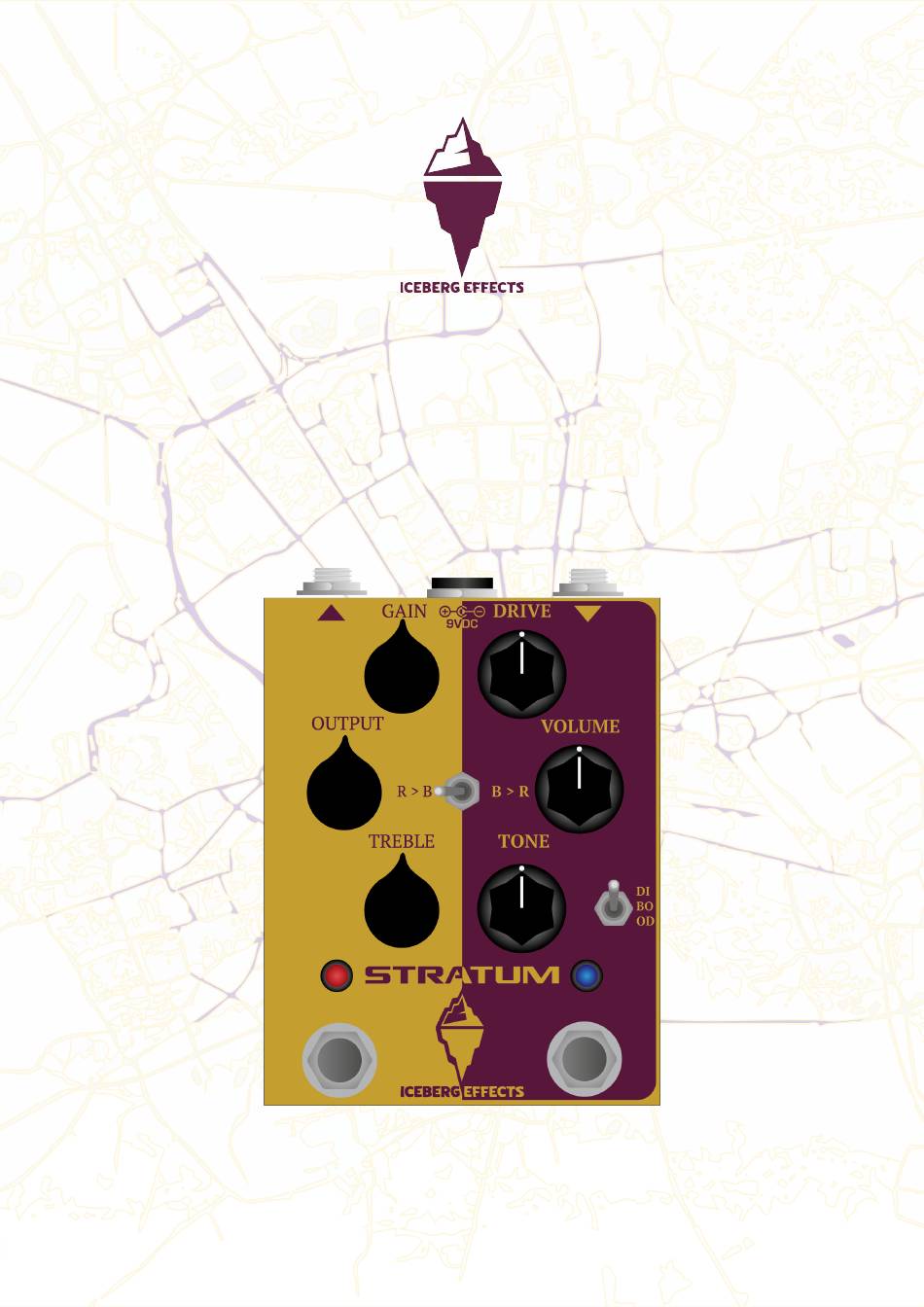

- Page 1 STRATUM DUAL CLASSIC OVERDRIVE V2 USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents Stratum Controls...........................3 Stratum Relay Bypass System......................5 Bypass modes..........................5 Switching Between Bypass Modes....................6 Footswitch Momentary Mode......................6 External Footswitch Bypass: Linking pedals..................7 Setting External Bypass Mode Footswitch A..................7 Setting External Bypass Mode Footswitch B..................8 Examples of linking pedals......................8 Toggle between two effects (default)..................8 Double Toggle..........................9... -
Page 3: Stratum Controls
Stratum Controls The Stratum pedal is a dual overdrive, meaning it has two overdrive effects in one enclosure. The right side is based on the Analogman Prince of Tone (side A), the left side on the Klon Centaur (side B). Both sides can be enabled individually or work together when both engaged. This allows for a wide variety of tones. - Page 4 Footswitch A This footswitch engages and disengages the Bluesbreaker side (side A) of the pedal. When disengaged, the effect is completely bypassed and will not have an influence on the sound (True Bypass). When engaged, the blue LED will light up, when disengaged the blue LED will be off.
-
Page 5: Stratum Relay Bypass System
One-at-a-time Mode. Always-on Mode You are enjoying your Stratum pedal so much that you never want to switch it off? We understand. In always-on mode, at least one side of the pedal is enabled. Disabling the effect that is switched on will automatically engage the effect that is off. -
Page 6: Switching Between Bypass Modes
Footswitch Momentary Mode The Stratum relay bypass system makes use of a momentary function. If one of the footswitches is held for more than 400 miliseconds, the momentary function is enabled and when releasing the footswitch, the footswitch state will go back to the state that was enabled before holding the footswitch. -
Page 7: External Footswitch Bypass: Linking Pedals
The Stratum effects pedal is equiped with two ports for externally triggering the footswitches; there is one port for each footswitch. These ports allow you two link two Iceberg Effects pedals together and have the footswitches of the two pedals work together! This for example allows you to automatically enable one effect when disabling another. -
Page 8: Setting External Bypass Mode Footswitch B
Toggle between two effects (default) When leaving the Stratum pedal in its default settings and connecting it to another Iceberg effects pedal (the Strijp in this example), pressing the connected footswitch (footswitch A of the Stratum... -
Page 9: Double Toggle
Stratum Footswitch A state =/= Strijp Footswitch B state before linking via 3.5mm cable: • either of the two footswitches will toggle between the two effects In this example, Stratum footswitch B and Strijp Footswitch A are not linked and work individually like on any other pedal. Double Toggle You want to take the toggling experience one step further? Why not use two 3.5mm cables and... - Page 10 Connect the pedals with a 3.5 mm TS or TRS cable. It doesn’t matter which of the two • external switch ports is used.
-
Page 11: Bypass Mode Cheat Sheet
Bypass Mode Cheat Sheet...
