LVD OASIS Instructions Manual

Universal outdoor filter kit
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
INSTRUCTIONS TO RETROFIT OASIS OUTDOOR COOLERS AND OUTDOOR BOTTLE FILLERS
Do not use with water that is microbiologically unsafe or of unknown quality without adequate
disinfection before or after the system.
Refer to Performance Data Sheet for conditions of use and contaminant reduction claims.
SECTION A: Outdoor P*8AC Install - Pages 1, 2, & 3
SECTION B: Outdoor Vandal Resistant Bottle Filler with an Oasis Cooler Install – Pages 4 & 5
SECTION C: Proper Filter Head Orientation – Page 6
Installation should comply with all state and local laws and regulations.

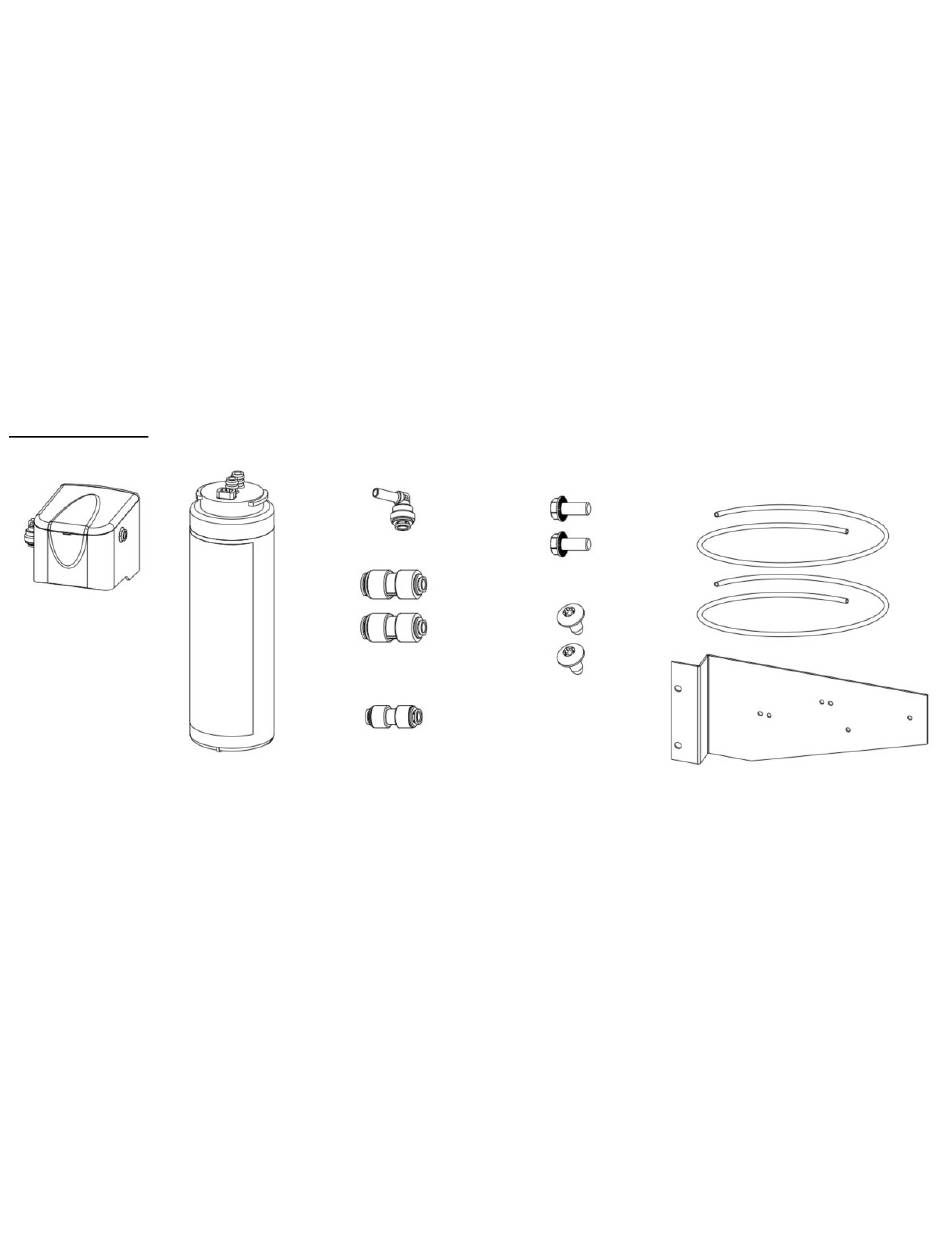

Parts Included:
2. Filter Cartridge
1. Filter Head
Assembly
with one Quick-
Connect Elbow
Fitting
OASIS® Universal Outdoor Filter Kit
3. ¼" OD Quick-
Connect Elbow Fitting
4. 3/8" OD x ¼" OD
Quick-Connect
Reducing Union (Qty. 2)
(If applicable)
5. ¼" OD Quick-Connect
(If applicable)
6. #8 x 3/8" Long
Hex Head Tapping
Blunt Screw
(Qty. 2)
7. #8 x 3/8" Long
T15 Torx Truss
Head Tapping
Screw (Qty. 2)
(used on P8AC
install only)
8. ¼" OD x 38" Long White
Plastic Tubing (Qty. 2)
9. Filter Mounting Bracket
(used on P8AC install only)
10. Instructions (not shown)
Page 1 of 6

Advertisement

loading
Need help?

Need help?

Do you have a question about the OASIS and is the answer not in the manual?

Questions and answers

Summary of Contents for LVD OASIS

  • Page 1 Refer to Performance Data Sheet for conditions of use and contaminant reduction claims. SECTION A: Outdoor P*8AC Install - Pages 1, 2, & 3 SECTION B: Outdoor Vandal Resistant Bottle Filler with an Oasis Cooler Install – Pages 4 & 5 SECTION C: Proper Filter Head Orientation – Page 6 Installation should comply with all state and local laws and regulations.

  • Page 2: Section A: Outdoor P8Ac Series

    SECTION A: Outdoor P8AC series. 1. Remove front and left side panels (when facing the front of the unit). In case of a split-level model, the filter will be placed in the non-cooling unit (left unit). Save screws. 2. Turn off the water supply to cooler. 3.
  • Page 3 Diagram A1- Filter Head and Bracket Assembly Diagram A2 - Installed Filter Head Assembly and Filter Cartridge Page 3 of 6...

  • Page 4: Section B: For Outdoor Vandal Resistant Bottle Fillers

    4. Installing the Filter Cartridge to Filter Head 4.1. Install Filter Cartridge per the directions noted on the filter cartridge. Replacement cartridges should be obtained by contacting an Oasis distributor. 5. Bottle Filler & Water Cooler 5.1. Remove the white ¼” OD tube connected at the 3/8” OD x ¼” OD quick-connect reducing union fitting at the cooler water supply shut-off valve and at the quick-connect elbow fitting on the left side (inlet) of the insulated cooling tank and discard.
  • Page 5 8.2. Actuate bubbler valve on the cooler and actuate the bottle filler pushbutton to remove air bubbles in water lines. Check for leaks. 9. Bottle Filler 9.1. Re-install four (4) T15 drive Torx head screws securing Bottle Filler Cabinet to Frame (two on each side of the bottle filler cabinet).

  • Page 6: Section C: Proper Filter Head Orientation

    SECTION C: PROPER FILTER HEAD ORIENTATION Filter Dimensions 222 East Campus View Blvd. • Columbus, OH 43235 U.S.A. 1-800-646-2747 www.oasiscoolers.com OASIS is a registered trademark of LVD Acquisition, LLC dba Oasis International © 2024 LVD Acquisition, LLC 030099-732 9/2024 Page 6 of 6...
