Machine Translated by Google
Guide d'installation
Orange
Telephone support:
3900
(The service is free and the call is at the price of a
normal call according to the offer held.
The waiting time before connecting with your advisor is free
from Orange networks.)
Online support:
assistance.orange.fr
Vegetable
inks
Advertisement

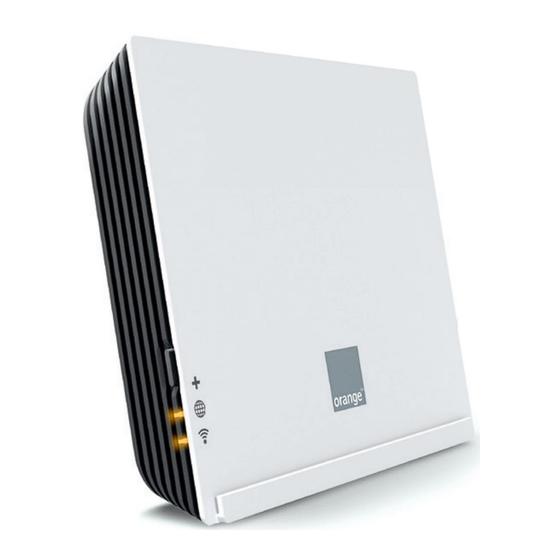

Summary of Contents for ORANGE Wifi Repeater 6
- Page 1 Telephone support: 3900 (The service is free and the call is at the price of a normal call according to the offer held. The waiting time before connecting with your advisor is free from Orange networks.) Online support: assistance.orange.fr Vegetable inks...
- Page 2 Machine Translated by Google Welcome Summary Contents of the pack This guide Commissioning the Wifi Repeater 6 3 assists you in the Extend Wi-Fi coverage installation Information Replace the Livebox's Wi-Fi with the of the Wifi Repeater Repeater's Wi-Fi 6...
-
Page 3: Contents Of The Pack
Machine Translated by Google Commissioning of the Wifi repeater 6 Contents of the pack Power cable Wifi repeater 6 Power supply Guide d’installation Can be used with or without the Ethernet cable (RJ45) power cable. - Page 4 Machine Translated by Google Place yourself at least then plug the repeater 2 meters from the into an electrical outlet. Livebox, 2 meters...
- Page 5 Machine Translated by Google Turn on the repeater. in orange. 3The indicator flashes This step can take up to 2 minutes.
- Page 6 Machine Translated by Google Wait Press the button the indicator light flashes until the light flashes white. orange.
- Page 7 Machine Translated by Google Press the WPS button on the Livebox. Wait until the Livebox 5 light: either solid orange and flashes white. If the LEDs are in any other state, turn off the repeater and Livebox 4 start again from step 1.
- Page 8 Machine Translated by Google The repeater is now ready to be Is your Livebox connected positioned wherever you need it! to a network of Ethernet wall sockets? Turn off, then unplug the extender to proceed to the next step. Non, Yes, continue to page 14.
- Page 9 Machine Translated by Google Extend Look for a wall Wi-Fi coverage Ethernet jack in (with Ethernet wall sockets) area where you want to extend Wi-Fi coverage. Prise Ethernet Electrical outlet Livebox Make sure an electrical outlet is available nearby.
-
Page 10: Ethernet Cable
Machine Translated by Google then connect Ethernet cable. power supply, 11Plug in the block The repeater can also be plugged directly into an electrical outlet (see page 32). - Page 11 Ethernet speed (1Gb/s). lights are solid orange. The orange light is on : the repeater is correctly connected but your Ethernet network limits the speed to 10 or 100 Mb/s. Both lights are off : the connection between the repeater and the Livebox is...
- Page 12 Machine Translated by Google The installation Extend Wi- is complete. Fi coverage (without wall Ethernet jacks) • Download the My Livebox application and check that your equipment has better Wi-Fi coverage. • You can further extend your Wi-Fi coverage by installing an additional Wifi 6 Repeater.
- Page 13 Machine Translated by Google Search repeater in the ideal location 11Plug in the that location, to plug in the then turn it on. repeater. It must be positioned in a place where you receive already have Wi-Fi (that of the Livebox or another repeater already installed), so that it can be repeated in the area where you receive poor or no Wi-Fi.
- Page 14 Wait for time flashes slowly (1 time startup, then every 4 seconds) The Wifi Repeater 6 is too far from the Livebox look at the lights. or another Wifi Repeater already installed, move closer and look for another electrical outlet.
- Page 15 Information is complete. • Download the My Livebox application and check that your equipment has better Description of the Wifi Repeater 6 28 Wi-Fi coverage. Description of indicator lights 30 Ethernet socket indicators 31 Wall electrical connection • You can further extend your...
- Page 16 Description Power button Prises Ethernet Power supply socket Support Allows you to turn the Wifi Repeater 6 Allows you to install the repeater. Allows you to connect equipment (TV decoder, on or off. computer, game console, etc.) Used to connect the power supply Reset button cable.
- Page 17 Machine Translated by Google Description of Wi-Fi disabled the indicator Wi-Fi enabled/functional lights Wifi 6 repeater too close to Wi-Fi source (Livebox or other Wifi Repeater) Wifi 6 repeater too far from Wi-Fi source (Livebox or other Wifi Repeater) Wifi 6 repeater turned off Association in progress Association in progress Wifi 6 repeater configured, and connected to a...
- Page 18 Machine Translated by Google Wall electrical connection Remove the bracket, then store it in the Insert the repeater into slots on the back of the repeater. the power supply, then plug it into an electrical outlet.
- Page 19 Machine Translated by Google Plug the Ethernet Replace the cable into one of the Livebox’s Wi-Fi with Ethernet sockets on the Wi-Fi 6 Livebox. Complete steps 1 through 7, then continue to step 8 on the next page. Livebox 5 Livebox 4...
- Page 20 Machine Translated by Google Plug the other end Turn off the Wi-Fi into one of the from the Livebox. repeater's Ethernet jacks, then check If you have a Livebox 5, press the Wi-Fi button, the Wi-Fi light turns off. that the green light is on. If you have a Livebox 4, press the button then follow the...
- Page 21 Machine Translated by Google is finished, the 11L’installation Repeater transmits now Wi-Fi 6 in your home • Download the My Livebox application and check that your equipment benefits from better Wi-Fi performance. • You can further extend your Wi-Fi coverage by installing an additional Wifi 6 Repeater.
- Page 22 Machine Translated by Google Notes...
