RFM-ADAFF62-A105/P500MH

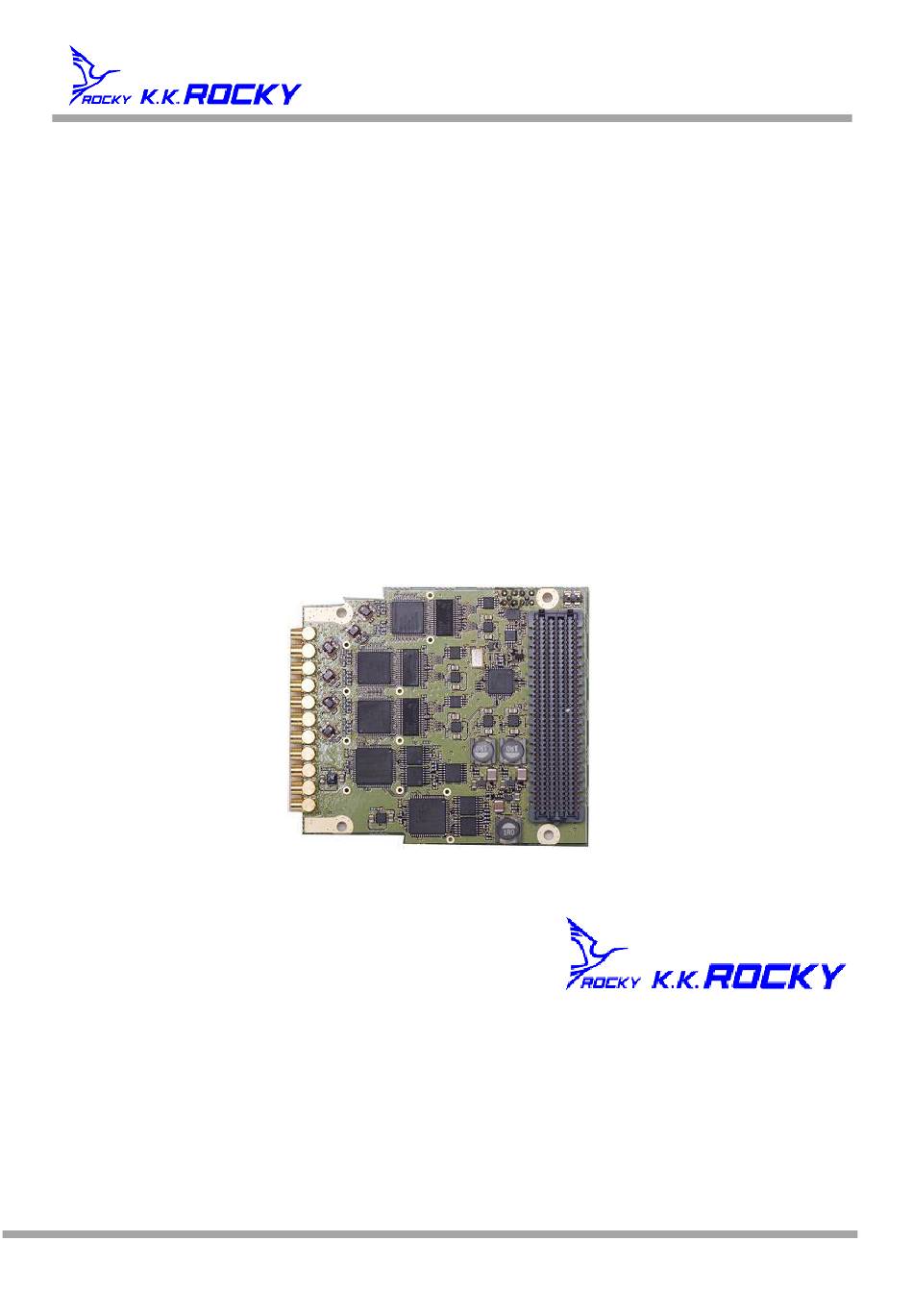

(FMC AD/DA Board)
Hardware Referential Manual
RFM-ADAFF62-A105/P500MH Hardware Referential Manual
Ver. 1.0
<Headquarters>
1-16-7 Kamiochiai Shinjuku Tokyo Japan
ZIP: 161-0034
TEL ：+81-3-6804-1411
FAX ：+81-3-5338-7841
HP ： http:/www.kkrocky.com/
Mail ： info@kkrocky.com
Ver.1.0
- 1 -
Advertisement
Table of Contents
Summary of Contents for K.K. Rocky RFM-ADAFF62-A105/P500MH
- Page 1 RFM-ADAFF62-A105/P500MH Hardware Referential Manual Ver.1.0 RFM-ADAFF62-A105/P500MH (FMC AD/DA Board) Hardware Referential Manual Ver. 1.0 <Headquarters> 1-16-7 Kamiochiai Shinjuku Tokyo Japan ZIP: 161-0034 TEL ：+81-3-6804-1411 FAX ：+81-3-5338-7841 HP ： http:/www.kkrocky.com/ Mail ： info@kkrocky.com - 1 -...
-
Page 2: Table Of Contents
RFM-ADAFF62-A105/P500MH Hardware Referential Manual Ver.1.0 Revision History Revision Date Changes ver1.0 2013/05/23 First Revision. Table of Contents Revision History ................2 Table of Contents ................2 Preface ..................3 Safety Instructions ................3 Overview ................4 Hardware Overview ..............4 Block Diagram ................ -
Page 3: Preface
Preface Thank you for choosing our products. This user manual provides function and specification of RFM-ADAFF62-A105/P500MH. This manual describes the features and specifications of the board. Read and understand the contents of this manual before operating this board. K.K Rocky reserves the right to revise this document and to make changes without notice. -
Page 4: Overview
RFM-ADAFF62-A105/P500MH Hardware Referential Manual Ver.1.0 1. Overview This is FMC Mezzanine board which has 6 channel A/D and 2 channel D/A ports. 2. Hardware Overview Table 2-1 shows main parts of the board. Table 2-1 Main Parts Subjects Description Remarks FMC Connector（HPC）... -
Page 5: Board Layout
RFM-ADAFF62-A105/P500MH Hardware Referential Manual Ver.1.0 Board Layout Figure 4-1 shows the Layout of the board and Table 4-1 shows connectors of the board. CN_DA1_N CN_DA1_P CN_DA0_N FMC(HPC) CN_DA0_P CN_AD 5 Connector CN_AD 4 CN_AD 3 CN_AD 2 CN_AD 1 CN_AD 0... -
Page 6: A/D Sampling Clock
RFM-ADAFF62-A105/P500MH Hardware Referential Manual Ver.1.0 A/D Sampling Clock Table 5-2 shows the specification of the A/D Sampling Clock and Figure 5-1 shows the Clock Diagram. Table 5-2 Specification of the A/D Sampling Clock Subjects Remarks Capacitor coupled Differential External Input... -
Page 7: Analog Output Specification
RFM-ADAFF62-A105/P500MH Hardware Referential Manual Ver.1.0 5-3 Analog Output Specification Table 5-3 shows the Analog output specification. Table 5-3 the Analog output specification. Subjects Description Channel Number 2 CH Resolution 16 bit Coupling Differential Output Impedance 50Ω（Differential） Output Voltage Range 0 ～1V (Differential ±1Vpp max) Output voltage range can be changed by replacing reference resister. -
Page 8: Fmc Connector
RFM-ADAFF62-A105/P500MH Hardware Referential Manual Ver.1.0 6. FMC Connector FMC HPC PIN Assignment is based on ANSI/VITA57.1 standard. Figure 6-1 shows HPC PIN Assignment and Table 6-1 shows HPC Signal Assignment. Figure 6-1 HPC PIN Assignment. VREF_B_M2C VREF_A_M2C AD_PGOOD PG_C2M PRSNT_M2C... - Page 9 RFM-ADAFF62-A105/P500MH Hardware Referential Manual Ver.1.0 Table 6-1 HPC Signal Assignment Remarks Pin# Signal Name FMC_LOC _AD_SCK HA20_P _AD_SDIO HA20_N _AD0_NCS HA17_P_CC _AD1_NCS HA17_N_CC _AD2_NCS HA18_P AD_INCLK_OUT LA33_P AD_PGOOD PG_M2C AD_SYNC HA19_N AD_SYSCLKN CLK0_M2C_N AD_SYSCLKP CLK0_M2C_P AD0_D0 HB10_N AD0_D1 HB11_P AD0_D2...
- Page 10 RFM-ADAFF62-A105/P500MH Hardware Referential Manual Ver.1.0 Remarks Pin# Signal Name FMC_LOC AD1_D14 HB08_P AD1_D15 HB08_N AD1_DCO HB00_P_CC Data Clock AD1_OR HB09_P Over Range AD2_D0 LA19_P AD2_D1 LA19_N AD2_D2 LA20_P AD2_D3 LA20_N AD2_D4 LA21_P AD2_D5 LA21_N AD2_D6 LA22_P AD2_D7 LA22_N AD2_D8 LA23_P...
- Page 11 RFM-ADAFF62-A105/P500MH Hardware Referential Manual Ver.1.0 Remarks Pin# Signal Name FMC_LOC DA1_B2 HA03_P DA1_B3 HA03_N DA1_B4 HA04_P DA1_B5 HA04_N DA1_B6 HA05_P DA1_B7 HA05_N DA1_B8 HA06_P DA1_B9 HA06_N DA1_B10 HA07_P DA1_B11 HA07_N DA1_B12 HA08_P DA1_B13 HA08_N DA1_B14 HA09_P DA1_B15 HA09_N DA1_CLK HA00_P_CC...
-
Page 12: Environment
RFM-ADAFF62-A105/P500MH Hardware Referential Manual Ver.1.0 7. Environment Subjects Specifications Description Power Supply Voltage FMC HPC Connector 2.5V, 3.3V 3P3V, 3.3V ±5% VADJ 2.5V, 3.3V ±5% 12P OV Not Used 3P3V AUX 3.3V ±5% Temperature, Humidity Temperature 0℃～50℃（32℉～122℉） Humidity 20-90%RH Non-Condensation...
