VMIC VMIPMC-5790-000 Product Manual

Pmc dual-channel ultra160 scsi host adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

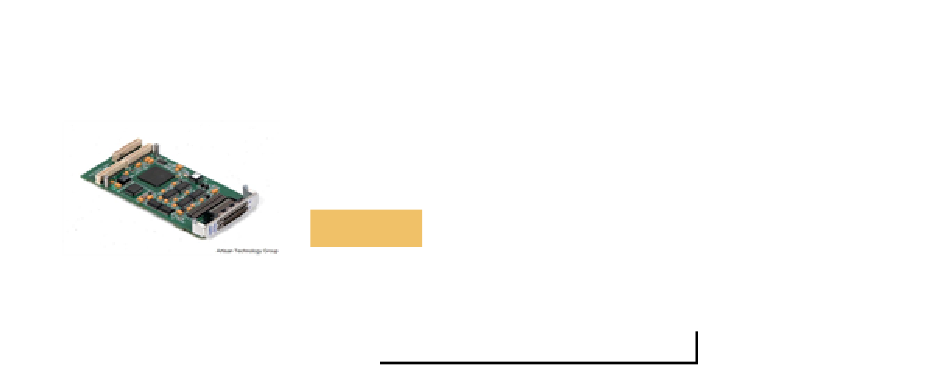

VMIC VMIPMC-5790-000
PMC Dual-Channel Ultra160 SCSI Adapter
A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
• C r i t i c a l a n d e x p e d i t e d s e r v i c e s
• I n s t o c k / R e a d y - t o - s h i p
Artisan Scientific Corporation dba Artisan Technology Group is not an affiliate, representative, or authorized distributor for any manufacturer listed herein.
In Stock
Used and in Excellent Condition
Buy Today!
https://www.artisantg.com/61976-1
• We b u y y o u r e x c e s s , u n d e r u t i l i z e d , a n d i d l e e q u i p me n t
• F u l l - s e r v i c e , i n d e p e n d e n t r e p a i r c e n t e r

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VMIPMC-5790-000 and is the answer not in the manual?

Questions and answers

Related Manuals for VMIC VMIPMC-5790-000

Summary of Contents for VMIC VMIPMC-5790-000

  • Page 1 VMIC VMIPMC-5790-000 PMC Dual-Channel Ultra160 SCSI Adapter In Stock Used and in Excellent Condition Buy Today! https://www.artisantg.com/61976-1 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .

  • Page 2: Product Manual

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter Product Manual 12090 South Memorial Parkway Huntsville, Alabama 35803-3308, USA (256) 880-0444 (800) 322-3616 Fax: (256) 882-0859 500-755790-000 Rev. B Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 3 12090 South Memorial Parkway Huntsville, Alabama 35803-3308, USA (256) 880-0444 (800) 322-3616 Fax: (256) 882-0859 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 4 VMIC reserves the right to make any changes, without notice, to this or any of VMIC’s products to improve reliability, performance, function, or design. VMIC does not assume any liability arising out of the application or use of any product or circuit described herein; nor does VMIC convey any license under its patent rights or the rights of others.
  • Page 5 12090 South Memorial Parkway Huntsville, Alabama 35803-3308, USA (256) 880-0444 (800) 322-3616 Fax: (256) 882-0859 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 6: Table Of Contents

    Table of Contents List of Figures ..............9 List of Tables .
  • Page 7 VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter PCI Bus Commands Supported ..........24 PCI Bus Configuration Registers .
  • Page 8 Table of Contents Header Area ............. 59 Menu Area .
  • Page 9 VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 10: List Of Figures

    List of Figures Figure 1 SYM53C1010 Functional Block Diagram .................. 16 Figure 2-1 Installing the VMIPMC-5790 ....................Figure 2-2 Securing the VMIPMC-5790 to the motherboard ..............50 Figure 2-3 VMIPMC-5790 Front Panel and Internal Connections .............. 51 Figure 2-4 SCSI Connectivity ........................52 Figure 2-5 SCSI Single-Ended and Differential Schematic ................
  • Page 11 VMIPMC-5790 PMC Dual-Channel Ultra160 Host Adapter Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 12: List Of Tables

    List of Tables Table 1-1 PCI bus Commands and Encoding Types........... . 25 Table 1-2 PCI Configuration Register Map .
  • Page 13 VMIPMC-5790 PMC Dual-Channel Ultra160 Host Adapter Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 14: Overview

    Overview Contents Functional Description ........... 15 Reference Material List .

  • Page 15: Os Support Ultra160 Scsi

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter • CRC protects data • Covers all non-data, including command, status and messages • High-performance PCI multifunction device • Represents one electrical load to the PCI bus • Two independent wide Ultra160 SCSI channels •...

  • Page 16: Functional Description

    Overview Functional Description The VMIPMC-5790 Dual-Channel Ultra160 SCSI Host Adapter incorporates the Symbios® SYM53C1010, which is a highly integrated PCI Dual-Channel Ultra160 SCSI controller. The SYM53C1010 is 100 percent compatible with the Ultra160 SCSI initiative and provides additional features that ensure robust Ultra160 system operation.

  • Page 17: Figure 1 Sym53C1010 Functional Block Diagram

    Host PCI Bus (64-bit, 33/66 MHz) PCI Master and Slave Control Block, PCI Configuration Registers (2 sets), and SCSI Arbitration Ultra160 SCSI Ultra160 SCSI Controller Controller 8 Dwords 8 Dwords 8 Kbyte 8 Kbyte SCRIPTS SCRIPTS SCRIPTS RAM SCRIPTS RAM Prefetch Buffer ROM/Flash Prefetch Buffer...

  • Page 18: Pci Interface

    Overview PCI Interface The Ultra160 SCSI PCI Interface complies with PCI Local Bus Specification Revision 2.2, and implements a 64-bit/66 MHz PCI bus. It is backward compatible with 32-bit/33 MHz buses. The SYM53C1010 is a true PCI multifunction device in that it presents one electrical load to the PCI bus.

  • Page 19: Media Connection

    (see web address below). After downloading the driver of choice, go to the readme.txt file for instructions on how to load the driver. VMIC website: www.vmicnet.com For drivers that are not available on the website, contact VMIC Customer Service. VMIC Customer Service is available at: 1-800-240-7782. Or E-mail VMIC at customer.service@vmic.com...

  • Page 20: Reference Material List

    UNITRODE Corporation 7 Continental Blvd. Merrimack, NH 03054 (603) 424-2410 FAX (603) 424-3460 Physical Description and Specifications Refer to Product Specification, 800-855790-000 available from: VMIC 12090 South Memorial Pkwy. Huntsville, AL 35803-3308, USA (256) 880-0444 (800) 322-3616 FAX: (256) 882-0859 www.vmic.com...

  • Page 21: Safety Summary

    Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture and intended use of this product. VMIC assumes no liability for the customer’s failure to comply with these requirements. Ground the System To minimize shock hazard, the chassis and system cabinet must be connected to an electrical ground.

  • Page 22: Safety Symbols Used In This Manual

    Overview Safety Symbols Used in This Manual Indicates dangerous voltage (terminals fed from the interior by voltage exceeding 1000 V are so marked). Protective conductor terminal. For protection against electrical shock in case of a fault. Used with field wiring terminals to indicate the terminal which must be connected to ground before operating equipment.
  • Page 23 VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 24: Chapter 1 - Theory Of Operation

    CHAPTER Theory of Operation Contents PCI Addressing ............24 PCI Bus Configuration Registers .

  • Page 25: Pci Addressing

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter PCI Addressing There are three types of PCI-defined address spaces: • Configuration space • Memory space • I/O space Configuration space is a contiguous 256 x 8-bit set of addresses dedicated to each “slot”...

  • Page 26: Table 1-1 Pci Bus Commands And Encoding Types

    PCI Addressing Table 1-1 PCI bus Commands and Encoding Types C_BE[3:0] Command Type Supported as Master Supported as Slave 0000 Special Interrupt Acknowledge 0001 Special Cycle 0010 I/O Read Cycle 0011 I/O Write Cycle 0100 and 0101 Reserved 0110 Memory Read 0111 Memory Write 1000 and 1001...

  • Page 27: Pci Bus Configuration Registers

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter PCI Bus Configuration Registers The Configuration registers are accessible only by the system BIOS during PCI configuration cycles, and are not available to the user at any time. No other cycles can access these registers. NOTE: The Configuration register descriptions, which provide general information only, indicate which PCI configuration addresses are supported in the SYM53C1010 controller.

  • Page 28: Pci Vendor Id Register

    PCI Bus Configuration Registers PCI Vendor ID Register This 16-bit register identifies the manufacturer of the SCSI chip, and also contains the hardwired value of $1000 for SCSI. This register is accessed by the system software to identify the SYM53C1010 on the PCI bus. The register bits are shown in Table 1-3. Table 1-3 PCI SCSI Vendor ID (VID) Register Bit Map Ultra160 SCSI: Configuration Address Space $00 (R) Name...

  • Page 29: Pci Status/Command Register

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter PCI Status/Command Register The most significant half of the Status/Command register is used to record status information for PCI bus-related events. Reads to this register behave normally. Writes are slightly different in that bits can be cleared, but not set. A bit is reset whenever the register is written, and the data in the corresponding bit location is a one (1).
  • Page 30 PCI Bus Configuration Registers PCI Status/Command Register Bit Definitions (Continued) Bits 26 and 25: DevSel/Timing (DevSel/Tim) - These read/write bits encode the timing of DevSel/. They are encoded as follows: 0b00 Fast 0b01 Medium 0b10 Slow 0b11 Reserved Bit 24: Data Parity Reported (DPR) - This read/write bit is set when the following conditions are met: The bus agent asserted PERR itself or...
  • Page 31 VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter PCI Status/Command Register Bit Definitions (Continued) Bit 01: Enable Memory Space - This read/write bit controls the VMIPMC-5790 response to Memory Space accesses. A value of zero (0) disables the device response. A value of one (1) allows the VMIPMC-5790 to respond to Memory Space accesses at the address specified by Base Address One.

  • Page 32: Pci Class Code/Revision Id Register ($08)

    PCI Bus Configuration Registers PCI Class Code/Revision ID Register ($08) Table 1-6 PCI Class Code/Revision ID Register Bit Map Class Code/Revision ID: Offset $08, Read/Write Bit 31 Bit 30 Bit 29 Bit 28 Bit 27 Bit 26 Bit 25 Bit 24 CLCode (Most Significant) Bit 23 Bit 22...

  • Page 33: Pci Bist/Header/Latency/Cache Line Size Register ($0C)

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter PCI BIST/Header/Latency/Cache Line Size Register ($0C) Table 1-7 PCI BIST/Header/Latency/Cache Line Size Register Bit Map BIST/Header/Latency/Cache Line Size: Offset $0C, Read/Write Bit 31 Bit 30 Bit 29 Bit 28 Bit 27 Bit 26 Bit 25 Bit 24 BIST...

  • Page 34: Pci I/O Base Address Register ($10)

    PCI Bus Configuration Registers PCI I/O Base Address Register ($10) Table 1-8 I/O Base Address Register Bit Map I/O Base Address Register: Offset $10, Read/Write Bit 31 Bit 30 Bit 29 Bit 28 Bit 27 Bit 26 Bit 25 Bit 24 IOBAdd (Most Significant) Bit 23 Bit 22...

  • Page 35: Pci Mem0 Base Address Low Register ($14)

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter PCI Mem0 Base Address Low Register ($14) Table 1-9 Mem0 Base Address Low Register Bit Map Mem0 Base Address Low: Offset $14, Read/Write Bit 31 Bit 30 Bit 29 Bit 28 Bit 27 Bit 26 Bit 25 Bit 24...

  • Page 36: Pci Mem0 Base Address High Register ($18)

    PCI Bus Configuration Registers PCI Mem0 Base Address High Register ($18) Table 1-10 Mem0 Base Address High Register Bit Map Mem0 Base Address High: Offset $18, Read/Write Bit 31 Bit 30 Bit 29 Bit 28 Bit 27 Bit 26 Bit 25 Bit 24 Mem0BAddH (Most Significant) Bit 23...

  • Page 37: Pci Subsystem Vendor Id (Svid: $2C And $2D)

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter PCI Subsystem Vendor ID (SVID: $2C and $2D) Table 1-11 Subsystem Vendor ID Register Bit Map Subsystem Vendor ID Register: Offsets $2C and $2D, Read-Only Bit 15 Bit 14 Bit 13 Bit 12 Bit 11 Bit 10 Bit 09...

  • Page 38: Pci Subsystem Id (Sid: $2E And $2F)

    PCI Bus Configuration Registers PCI Subsystem ID (SID: $2E and $2F) Table 1-12 Subsystem ID Register Bit Map Subsystem ID Register: Offsets $2E and $2F, Read-Only Bit 15 Bit 14 Bit 13 Bit 12 Bit 11 Bit 10 Bit 09 Bit 08 SID (If MAD7 is HIGH) Bit 07...

  • Page 39: Pci Expansion Rom Base Address ($30)

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter PCI Expansion ROM Base Address ($30) Table 1-13 Expansion ROM Base Address Register Bit Map Expansion ROM Base Address: Offset $30, Read/Write Bit 31 Bit 30 Bit 29 Bit 28 Bit 27 Bit 26 Bit 25 Bit 24 ExpROMBAdd (Most Significant)

  • Page 40: Pci Capability Pointer Register ($34)

    PCI Bus Configuration Registers PCI Capability Pointer Register ($34) Table 1-14 Capability Pointer Register Bit Map Capability Pointer: Offset $34, Read-Only Bit 31 Bit 30 Bit 29 Bit 28 Bit 27 Bit 26 Bit 25 Bit 24 Reserved Bit 23 Bit 22 Bit 21 Bit 20...

  • Page 41: Pci Interrupt Line Register (Il: $3C)

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter PCI Interrupt Line Register (IL: $3C) Table 1-15 Interrupt Line Register Bit Map Latency/Interrupt Register: Offset $3C, Read/Write Bit 07 Bit 06 Bit 05 Bit 04 Bit 03 Bit 02 Bit 01 Bit 00 PCI Interrupt Line Register Bit Definitions Bits 07 through 00: Interrupt Line - This register is used to communicate...

  • Page 42: Pci Capability Id Register ($40)

    PCI Bus Configuration Registers PCI Capability ID Register ($40) Table 1-17 Capability ID Register Bit Map Capability ID Register: Offset $40, Read-Only Bit 07 Bit 06 Bit 05 Bit 04 Bit 03 Bit 02 Bit 01 Bit 00 PCI Capability ID Register Bit Definitions Bits 07 through 00: Capability ID (CID) - This register indicates the type of data structure currently being used.

  • Page 43: Pci Power Management Control/Status Register ($44 And $45)

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter PCI Power Management Capabilities Register Bit Definitions (Continued) Bit 09: D1_Support (D1S) - The VMIPMC-5790 sets this bit to indicate support for power management state D1. Bits 9 and 10 are set to one (1), indicating support for the D2 and D1 power states.
  • Page 44 PCI Bus Configuration Registers PCI Power Management Control/Status Register Bit Definitions (Continued) Bit 08: PME_Enable (PEN) - The VMIPMC-5790 always returns a zero (0) for this bit to indicate that PME assertion is disabled. Bits 07 through 02: Reserved - These bits are reserved for future use. Bits 01 and 00: Power State (PWS[1:0]) - Bits[1:0] are used to determine the current power state of the VMIPMC-5790.

  • Page 45: Scsi Interface Registers

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter SCSI Interface Registers The control registers for the SCSI core are directly accessible from the PCI bus using Memory or I/O mapping. SCSI Function A and SCSI Function B contain the same register set with identical default values, except the Interrupt Pin registers. The address map of the SCSI registers is shown in Table 1-21 starting below.
  • Page 46 SCSI Interface Registers Table 1-21 SCSI Register Map (Continued) 16 15 Address $2C - $2F DSPS $30 - $33 SCRATCH A $34 - $37 DCNTL DIEN DMODE ADDER $3C - $3F SIST1 SIST0 SIEN1 SIEN0 GPCNTL Reserved SWIDE Reserved RESPID1 RESPID0 STIME1 STIME0...
  • Page 47 VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 48: Chapter 2 - Configuration And Installation

    CHAPTER Configuration and Installation Contents Unpacking Procedures ........... 48 Physical Installation.

  • Page 49: Unpacking Procedures

    All claims arising from shipping damage should be filed with the carrier and a complete report sent to VMIC together with a request for advice concerning the disposition of the damaged item(s).

  • Page 50: Physical Installation

    CAUTION: Do not install or remove the board while power is applied. Host systems containing PMC sites vary widely in appearance and board installation procedures. VMIC recommends examining the host system installation procedures prior to installing this board. The following procedure outlines the installation of the VMIPMC-5790 onto a suitable PCI bus motherboard with an available PMC site.

  • Page 51: Figure 2-2 Securing The Vmipmc-5790 To The Motherboard

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter Figure 2-2 Securing the VMIPMC-5790 to the motherboard Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 52: Cable Configuration

    EXTERNAL SCSI CONNECTORS: CHANNEL B Figure 2-3 VMIPMC-5790 Front Panel and Internal Connections External SCSI (Front Panel): • VMIC Part Number - 321-000370-068 • AMP - 787962-1 • CHAMP 0.8mm High Density Interconnection System • 68-Position, Right-angle, Stacked Receptacle • Housing and Pin Spacer - UL 94V-0 rated thermoplastic, black, SMT compatible •...

  • Page 53: Scsi Connectivity

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter SCSI Connectivity The VMIPMC-5790 allows you to connect up to 16 SCSI devices per channel without any degradation of signal. The front panel SCSI connector is two 68-position VHDCI (very high density connectors), right-angle, stacked receptacles representing Channels A and B.

  • Page 54: Ultra160

    SCSI Connectivity Ultra160 When Ultra160 SCSI is used with low-voltage differential (LVD) signalling, cable lengths of 12 meters are maintained to provide full backward compatibility. Ultra160 SCSI can connect up to 16 devices on a single channel. Table 2-1 is a comparative matrix comparing Ultra160 SCSI against other connectivity technologies Table 2-1 Comparative Matrix Maximum Transfer...
  • Page 55 VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 56: Maintenance

    • Quality of cables and I/O connections If the product must be returned, contact VMIC for a Return Material Authorization (RMA) Number. This RMA Number must be obtained prior to any return. Contact VMIC customer Service at 1-800-240-7782, or E-mail: customer.service@vmic.com .

  • Page 57: Maintenance Prints

    VMIPMC-5790 PMC Dual-Channel Ultra160 Host Adapter Maintenance Prints User level repairs are not recommended. The drawings and tables in this manual are for reference purposes only. Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 58: Appendix A - Scsi Bios And Configuration Utility

    Appendix SCSI BIOS and Configuration Utility Introduction This section presents general information about the SCSI BIOS and Configuration Utility. The following SCSI information is divided into these sections: SCSI BIOS • Starting the SCSI BIOS Configuration Utility • Using the Configuration Utility •...

  • Page 59: Scsi Bios

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter SCSI BIOS A SCSI BIOS is the bootable ROM code that manages SCSI hardware resources. The SCSI BIOS integrates with a standard system BIOS, extending the standard disk service routine provided through INT13h. During the boot time initialization, the SCSI BIOS determines if there are other hard disks, such as an IDE drive, already installed by the system BIOS.

  • Page 60: Using The Configuration Utility

    SCSI BIOS Using the Configuration Utility * * * Screen Format * * * All SCSI BIOS Configuration Utility screens are partitioned into fixed areas as shown below. Header Area Menu Area Main Area Footer Area Header Area This area provides static information text, which is typically the product title and version.

  • Page 61: F1 = Help

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter * * * User Input * * * Throughout the GUI, selections that are not permissible are grayed out. F1 = Help Context sensitive help for the cursor-resident field. F2 = Menu Sets cursor context to the menu selection area. Select a menu item and press Enter. Arrow Keys = Select Item Home/End = Select Item Up, down, left, right movement to position the cursor.
  • Page 62 SCSI BIOS To execute an item, select it and press Enter. The following is an example of the Main Menu: |-----------------------------------------------------------------| | Symbios SDMS PCI SCSI Configuration Utility Version PCI -x.xx | <Boot Adapter List> <Global Properties> | Symbios Host Bus Adapters | Adapter Dev/ Port...

  • Page 63: Boot Adapter List

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter Boot Adapter List The adapter boot order specifies the order in which adapters will boot when more than one OS adapter is in a system. Up to four of the total adapters in a system may be selected as bootable. To add an adapter to the boot list, press Insert while on the Boot Adapter List.

  • Page 64: Global Properties

    SCSI BIOS Boot Order: Specifies the relative boot order (0 to 3) of an adapter. - : decreases an adapter’s relative boot order. + : increases an adapter’s relative boot order. Current Status: Indicates whether an adapter in the boot list was enabled during the most recent boot.

  • Page 65: Adapter Properties

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter Negotiate with devices: This option sets the default value for synchronous and wide negotiations with specified devices. Options are: All, None, or Supported. Video Mode: This option specifies the default video mode for the Configuration Utility.
  • Page 66 SCSI BIOS SCSI Parity: This field indicates whether SCSI parity is enabled for an adapter. When disabled, it is also necessary to disable disconnects for all devices, as parity checking for the reselection phase is NOT disabled. If a non-parity generating device disconnects, its operation will never complete because the reselection fails due to parity error.

  • Page 67: Device Properties

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter Spinup Delay (Secs): This field indicates the number of seconds to wait between spinups of devices attached to an adapter. Staggered spinups will balance the total electrical current load on the system during boot. The default value is 2 seconds, with choices between 1 and 10 seconds.
  • Page 68 SCSI BIOS Symbios SDMS PCI SCSI Configuration Utility Version PCI- x.xx SCSI ID Device Identifier MB/sec MT/sec Data Scan Scan Dis- Width LUNs>0 connect [80] [16] [Yes] [Yes] [160] [On] [160] [80] [16] [Yes] [Yes] [On] [160] [80] [16] [Yes] [Yes] [On] SEAGATE ST31055N...
  • Page 69 VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter SCSI Device Identifier SCSI Queue Boot Format Timeout Tags Choice <10> [On] [No] <Format> <10> [On] [No] <Format> <10> [On] [No] <Format> SEAGATE ST31055N <10> [On] [No] <Format> <10> [On] [No] <Format> <10> [On] [No] <Format>...
  • Page 70 SCSI BIOS * * * Field Descriptions * * * SCSI ID: This field indicates the device’s SCSI Identifier. Device Identifier: This field indicates the ASCII device identifier string extracted from the device’s Inquiry Data. Sync Rate: This field indicates the maximum synchronous data transfer rate, in Mega Transfers per second.

  • Page 71: Quitting The Scsi Bios Configuration Utility

    VMIPMC-5790 PMC Dual-Channel Ultra160 SCSI Host Adapter Queue Tags: This field indicates whether to allow the use of queue tags for a device. Currently the BIOS does not use queue tags. This item specifies queue tag control to higher level device drivers. Boot Choice: This field indicates whether this device may possibly be selected as the boot device.
