Mego Afek Ballancer Gold 1212 User Manual

Massage system
Hide thumbs

Advertisement

Quick Links

Download this manual
Model 1212
Massage System
User Manual
Original instructions
L981048G_EU-A

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ballancer Gold 1212 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mego Afek Ballancer Gold 1212

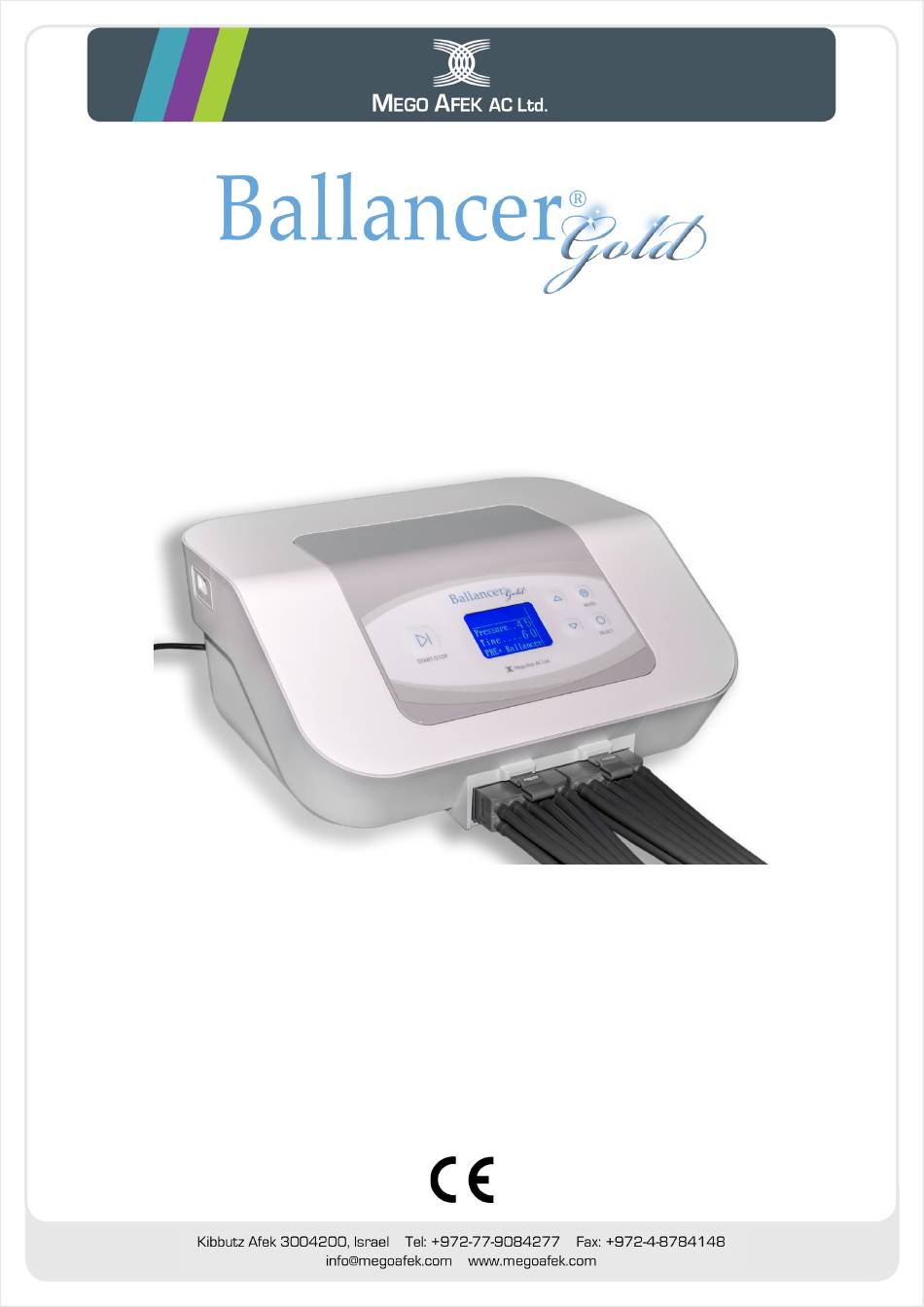

  • Page 1 Model 1212 Massage System User Manual Original instructions L981048G_EU-A...

  • Page 3: Table Of Contents

    User Manual: Ballancer ® Gold 1212 Table of Contents Important - Before you Start .................. iii Important Safety Information ................iv Indications ......................v Symbols used in this Manual ................... v Safety Warnings and Precautions ................vi Labels and Symbols on the Console, Garments, and/or Packaging ......vii 1.
  • Page 4 ® Client Information Sheet & Aesthetician Questionnaire .. 35 Copyright © 2019 by Mego Afek AC Ltd. All rights reserved. No part of this manual may be reproduced or copied in any form by any means including graphic, electronic or mechanical media, photocopying, typing, or other information retrieval systems, without the written permission of Mego Afek AC Ltd.

  • Page 5: Important - Before You Start

    User Manual: Ballancer ® Gold 1212 Important - Before you Start Read this entire manual before setting up and operating the Ballancer® Gold system for the first time. Keep this manual for future reference. Keep all packing materials in case you ever need to transport the console. The packing materials have been specially designed to protect the system from damage during shipment.

  • Page 6: Important Safety Information

    User Manual: Ballancer ® Gold 1212 Important Safety Information Read all instructions before using the Ballancer® Gold system for the first time. Warning:  The Ballancer® Gold system is intended for use by people in good health. This system is not recommended for people who have heart problems, vascular problems, condition requiring the use of any medical device, or any condition that may affect their normal well-being.

  • Page 7: Indications

    User Manual: Ballancer ® Gold 1212 Indications Ballancer® Gold is a pneumatic massage system intended to provide gradient pressure in areas to which the inflatable garment is applied. Ballancer® Gold is intended for the following uses: Reduction of the appearance of cellulite •...

  • Page 8: Safety Warnings And Precautions

     Do not service or maintain any part of the Ballancer® Gold system during use.  Use only cables and accessories approved by Mego Afek AC Ltd.  Choking Hazard! The Ballancer® Gold system includes small parts. Keep away from children.

  • Page 9: Labels And Symbols On The Console, Garments, And/Or Packaging

    User Manual: Ballancer ® Gold 1212 Labels and Symbols on the Console, Garments, and/or Packaging Label Description Location IP21 Degree of protection against ingress of water On base of console Read instructions before use On base of console Read instructions before use (for China only) On base of console Read instructions before use On garment label...
  • Page 10 User Manual: Ballancer ® Gold 1212 Label Description Location This side Up On package Keep away from sunlight On package Transportation & storage humidity limitation On package Transportation & storage atmospheric pressure limitation On package Transportation & storage temperature limitation On package "ON"...

  • Page 11: About Ballancer® Gold

    User Manual: Ballancer ® Gold 1212 1. About Ballancer Gold ® Ballancer® Gold is a massage system intended for use by people in good health. As noted above, Ballancer® Gold simulates the kneading and stroking action of manual massage by use of an inflatable garment that fills and deflates, applying a directional compress-and-release massage.

  • Page 12: Modes Of Operation

    User Manual: Ballancer ® Gold 1212 2. Modes of Operation 2.1. The Ballancer Cycle The Ballancer cycle (see Figure 1) applies a massage from the bottom of the hand or foot, up and over the body. The sequence is wavelike, and moves up the body, as the chambers over the hand or foot release as the massage moves upwards.

  • Page 13: The Pretreatment Cycle

    User Manual: Ballancer ® Gold 1212 2.3. The Pretreatment Cycle Pretreatment can be added to the beginning of the Intense or Ballancer cycles. Based on the Ballancer® cycle, the Pretreatment cycle (see Figure 3) is a primer for the main treatment, with a fixed, moderate pressure setting of 40 mmHg.

  • Page 14: Components Of The Ballancer® Gold System

    User Manual: Ballancer ® Gold 1212 3. Components of the Ballancer Gold System ® The system consists of a console that supplies compressed air in cycles to inflatable garments that are worn over the body. The Console is used with Ballancer Pro® Jacket or Ballancer Pro® Pants. Each garment has 24 individual air chambers that apply the massage.

  • Page 15: Compression Garments

    User Manual: Ballancer ® Gold 1212 3.2. Compression Garments The Ballancer Pro® garments apply the massage action. The garment types and areas treated are listed below. Table 2 - Compression Garments Garment Area Treated Pressure Limit Figure  Arms - can be used at full Upper body (shoulders, range of pressure Ballancer®...

  • Page 16: Setting Up The System

    User Manual: Ballancer ® Gold 1212 4. Setting up the System Proper setup is essential for safe and comfortable treatment. Before using the system for the first time, take care to arrange the treatment area so that you can reach the console at any time during treatment.

  • Page 17: Putting On The Compression Garments

    User Manual: Ballancer ® Gold 1212 4.2. Putting on the Compression Garments Note: Always wear clothing under the compression garments, to prevent irritation and for hygienic reasons. They are not to be worn over bare skin. Wear clean cotton socks and light cotton unrestrictive pants under Ballancer Pro Pants. Wear a long-sleeve cotton T-shirt under Ballancer Pro Jacket.

  • Page 18: Connecting The Hose Bundles To The Console

    User Manual: Ballancer ® Gold 1212 4.3. Connecting the Hose Bundles to the Console Insert each Hose Bundle connector (with the red arrow pointing up and the snap tooth at the top) securely into each console outlet. Make sure to hear the "click" when the snap tooth gets into its place (see Figure 4).

  • Page 19: Operating The Console

    User Manual: Ballancer ® Gold 1212 5. Operating the Console Following is a description of the console operating panel. Read this section before operating the console for the first time. Up button Mode button START/STOP button Select button Display screen Down button Figure 6 - The Console Operating Panel 5.1.
  • Page 20 User Manual: Ballancer ® Gold 1212 USB socket Power Switch DC adapter socket Figure 7 - Power Switch, DC Adapter Socket & USB Socket L981048G_EU-A...

  • Page 21: The Console Display Screen

    User Manual: Ballancer ® Gold 1212 5.2. The Console Display Screen 5.2.1. Home Screen Table 4 - Home and Treatment Screen Displayed Screen Function  Pressure - Displays pressure setting at the most distal pressure zone. Pressure may be increased or decreased from the HOME screen (see instructions below).

  • Page 22: Treatment Parameters Screens

    User Manual: Ballancer ® Gold 1212 5.2.3. Treatment Parameters Screens Table 6 - Treatment Parameters Screens Displayed Screen Function Welcome screen. Displaying the installed Firmware revision. Displayed for 2 seconds when turning On the power switch. Treatment Time screen. The selected time is displayed. Cycle Mode settings screen.

  • Page 23: Advanced Settings Screens

    User Manual: Ballancer ® Gold 1212 5.2.4. Advanced Settings Screens Table 7 - Advanced Settings Screens Displayed Screen Function Advanced Settings screen Gradient screen (appears only when treatment with Intense mode is selected) Default: Disabled Reset to Default - This display enables reverting to factory default settings Default: Cancel If user selects OK, console reverts to factory default settings...

  • Page 24: Setting Treatment Parameters

    User Manual: Ballancer ® Gold 1212 6. Setting Treatment Parameters • To access the treatment parameters selection screens, press • To return to the HOME screen at any time, press To proceed to the next parameter selection screen, press • Some screens require pressing to access a secondary menu.
  • Page 25 User Manual: Ballancer ® Gold 1212 To proceed to Advanced Settings, press The Advanced Settings screen is displayed. Press The Gradient screen is displayed (only when treatment with Intense mode is selected). The currently selected option is highlighted. To select an option (with or without Gradient), press To revert to factory default settings, press The Reset to Default screen is displayed: To cancel and proceed to the next data for setting, press...
  • Page 26 User Manual: Ballancer ® Gold 1212 To set the date and time in the console memory, press The Set Time screen is displayed, and the hour field is highlighted: Press The highlighted field blinks. To change the hour, press To confirm the change, press To proceed to the next data for setting, press Repeat Step 13 through Step 16 until you have completed setting time and date.

  • Page 27: Starting The Massage Session

    User Manual: Ballancer ® Gold 1212 7. Starting the Massage Session Now you are ready to operate the console and begin your treatment. Ensure that all hoses are properly connected to the garment and that the hose bundle is securely attached to the console. Verify that the Power Switch at the left side of the console is in the OFF position (see Figure 7).

  • Page 28: User-Initiated Deflation Of Garment

    User Manual: Ballancer ® Gold 1212 8.2. User-initiated Deflation of Garment To deflate and quickly empty the connected garment for easy storage, press and hold 3 seconds. Deflation runs for 3 minutes. To stop deflation, press To repeat deflation, press and hold for 3 seconds again.

  • Page 29: Presetting Console Configuration Using The Pc Application

    User Manual: Ballancer ® Gold 1212 9. Presetting Console Configuration Using the PC Application Install the Ballancer® Gold Helper PC application on your PC. Double-click the shortcut to access the application. The programming window opens (see Figure 8). Figure 8 - Programming Window Note: Add a password to protect client privacy.

  • Page 30: Menu

    User Manual: Ballancer ® Gold 1212 To enter your password, click on the toolbar (see Figure 8). The Set New Password dialog box opens (see Figure 9). Figure 9 - Set New Password Dialog Box When you set a new password for the first time, leave the Old password field blank and type your password in the New password and the Retype new password fields.

  • Page 31: Setting Pressure And Deactivating Chambers

    User Manual: Ballancer ® Gold 1212 9.2. Setting Pressure and Deactivating Chambers Figure 11 - Setting Pressure and Deactivating Chambers (middle screen area) Set the pressure for any chamber using one of the following methods: Drag the ◄ on the ...

  • Page 32: Setting Gradient, Treatment Mode, And Pretreatment

    User Manual: Ballancer ® Gold 1212 9.3. Setting Gradient, Treatment Mode, and Pretreatment Ballancer® Gold enables setting the pressure gradient in each of the 12 chambers individually (see Figure 11). This allows you to "fine tune" the compression and gradient to each user's individual needs.

  • Page 33: Opening A Program In The Pc Application

    User Manual: Ballancer ® Gold 1212 The Reading Settings screen is displayed for a split second: Then, the selected program is downloaded to the console. 9.5. Opening a Program in the PC Application Click The Open window opens: Select a program from the list, and then click Open. The selected program opens on the PC application.

  • Page 34: Saving A Program Created In Pc Application To Pc Or Usb Drive

    User Manual: Ballancer ® Gold 1212 9.7. Saving a Program Created in PC Application to PC or USB Drive Double-click the shortcut to access the application. The programming window opens: Create a program on the programming window (see Sections 8.2 and 8.3). Click The following Save As window opens: Select where to save the file and assign a file name.

  • Page 35: Maintenance & Storage

    User Manual: Ballancer ® Gold 1212 10. Maintenance & Storage The expected service life of Ballancer® Gold is two (2) years. 10.1. Cleaning the Console Ensure the power cord is unplugged before cleaning the console. Wipe clean using a slightly damp cloth. Do not allow any moisture or liquids to enter the console! 10.2.

  • Page 36: Travel

    User Manual: Ballancer ® Gold 1212 10.4. Travel  Make sure to obtain the proper power adapter plug for the location you visit.  Follow all storage guidelines when packing the console or garment. Caution: Do not operate the system during transit. 10.5.

  • Page 37: Troubleshooting

    User Manual: Ballancer ® Gold 1212 11. Troubleshooting 11.1. Troubleshooting List Table 10 - Troubleshooting Symptom Possible Cause Corrective Action No electricity Inspect the electrical wall outlet. Verify that the DC power adapter cable is connected to the DC adapter socket on the console, and the The console is not working.

  • Page 38: Repairs And Technical Support

    11.4. Manufacturer's Warranty Mego Afek AC Ltd. warrants the Ballancer® Gold console and Ballancer® Pro garments to be free of defects in materials and workmanship for a 12-month period from the date of purchase. During this period, if properly handled and maintained, a defective console, hoses and/or garment(s) shall be repaired free of charge.

  • Page 39: Appendix I - Specifications

    User Manual: Ballancer ® Gold 1212 Appendix I - Specifications Model: 1212, appliance coupler, transportable, rated: 100–240 VAC, 50–60 Hz Type of protection against electric shock Class II Degree of protection against electric shock Type BF Degree of protection against ingress of water IP21 Degree of safety of application in the presence Equipment not suitable for use in the presence...

  • Page 40: Appendix Ii - Emc Manufacturer's Declarations

    User Manual: Ballancer ® Gold 1212 Appendix II - EMC Manufacturer's Declarations Warning:  Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation. If such use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally.
  • Page 41 User Manual: Ballancer ® Gold 1212 Table 2: Declaration - Electromagnetic Immunity 1212 (Ballancer Gold) is intended for use in the electromagnetic environment specified below. The customer or the user of 1212 (Ballancer Gold) should assure that it is used in such an environment. Electromagnetic Environment - Immunity Test IEC 60601 Test Level...
  • Page 42 User Manual: Ballancer ® Gold 1212 Table 3: Declaration - Electromagnetic Immunity 1212 (Ballancer Gold) is intended for use in the electromagnetic environment specified below. The customer or the user of 1212 (Ballancer Gold) should assure that it is used in such an environment. Immunity Compliance IEC 60601 Test Level...
  • Page 43 User Manual: Ballancer ® Gold 1212 Table 4: Recommended Separation Distances between Portable and Mobile RF Communication Equipment and 1212 (Ballancer Gold) 1212 (Ballancer Gold) is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of 1212 (Ballancer Gold) can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communication equipment (transmitters) and 1212 (Ballancer Gold), as recommended below, according to the maximum output power of the communication equipment.
  • Page 44 User Manual: Ballancer ® Gold 1212 Table 5: declaration - IMMUNITY to Proximity Fields from RF Wireless Communication Equipment 1212 (Ballancer Gold) is intended for use in an electromagnetic environment in which RF wireless communication equipment are controlled. IEC60601 Test Level Electromagnetic Compliance Immunity Test...

  • Page 45: Attachment - Ballancer Client Information Sheet & Aesthetician Questionnaire

    User Manual: Ballancer ® Gold 1212 Attachment - Ballancer Client Information Sheet & Aesthetician Questionnaire ® To the Aesthetician: This form is for your use, to inform clients of the important warnings and cautions in use of the system, and to assist you in determining whether a client may be treated. L981048G_EU-A...
  • Page 46 User Manual: Ballancer ® Gold 1212 Ballancer Client Information Sheet ® Warning: Contraindications for use  The Ballancer® Gold system is intended for use by people in good health. This system is not recommended for people who have heart problems, vascular problems, condition requiring the use of any medical device, or any condition that may affect their normal well-being.
