Summary of Contents for IRONRIDGE QuickMount JAYBOX QM-JBX-RF02-B1

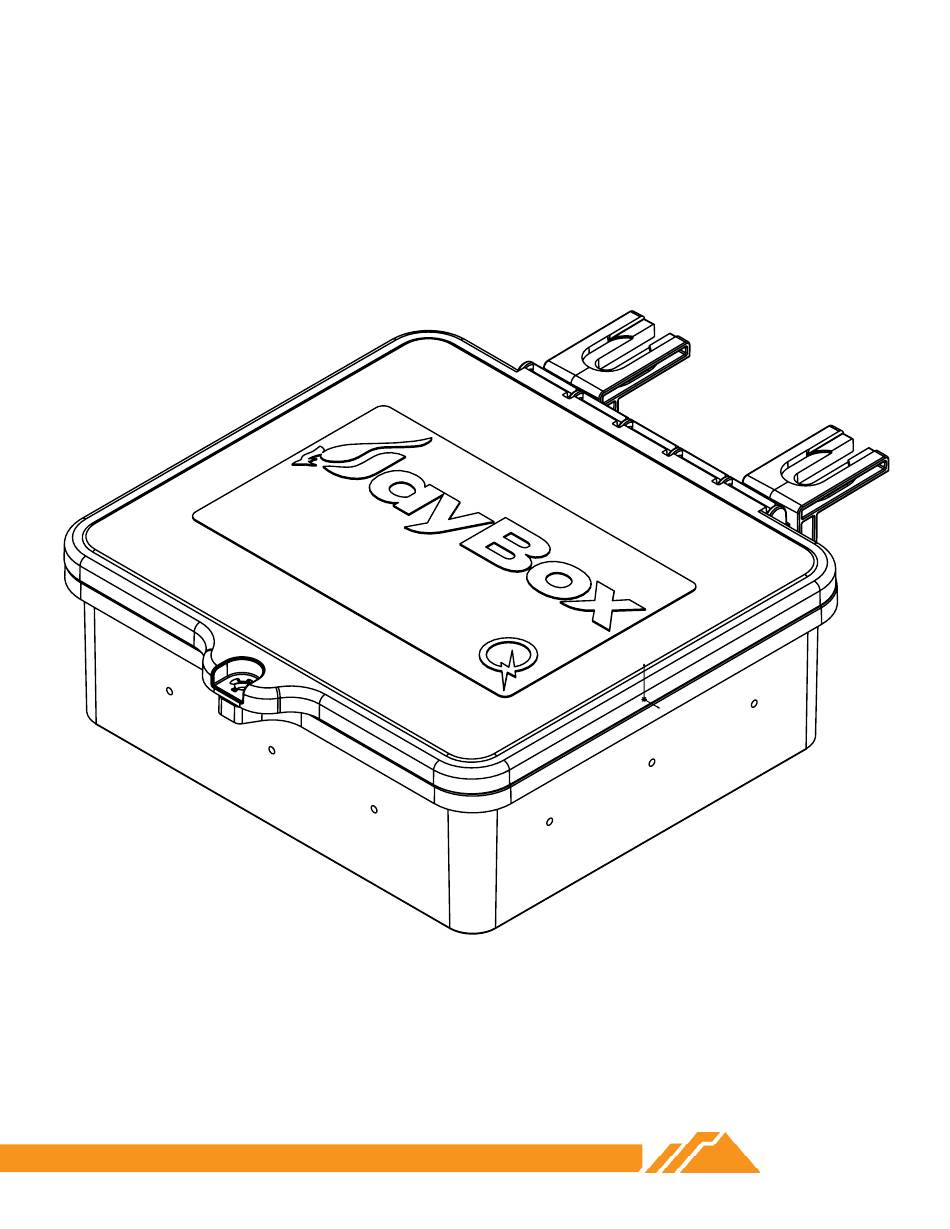

- Page 1 QuickMount ® JAYBOX INSTALLATION MANUAL INSTALLATION MANUAL © 2023 IRONRIDGE, INC. VERSION 1.4 JAYBOX INSTALLATION MANUAL - I...
-
Page 2: Table Of Contents
Ensure the electrical installation is in accordance with the National Electrical Code (NEC), ANSI, NFPA 70, all local electrical codes, and with the authority having jurisdiction. If there are any contradictions between the NEC and this document, follow the NEC requirements. © 2023 IRONRIDGE, INC. VERSION 1.4 JAYBOX INSTALLATION MANUAL - 1... -
Page 3: Warnings
➢ If loose components or loose fasteners are found during periodic inspection, re-tighten immediately. Any components showing signs of corrosion or damage that compromise safety shall be replaced immediately. © 2023 IRONRIDGE, INC. VERSION 1.4 JAYBOX INSTALLATION MANUAL - 2... -
Page 4: Ratings
Approved Conduit Fittings: UL514B Listed rain tight or wet location conduit connectors or fittings for entry into the enclosure. MARKINGS Product Markings are located on the inside of the Jaybox Lid. © 2023 IRONRIDGE, INC. VERSION 1.4 JAYBOX INSTALLATION MANUAL - 3... -
Page 5: Product Overview
#12 - #8 AWG, min 90° C copper wire as required by NEC. ➢ ➢ #10 - #6 AWG equipment grounding conductor as required by NEC. ➢ UL486C or 486D Listed Wire Connectors for Wire Gauge #12 AWG to #6 AWG. © 2023 IRONRIDGE, INC. VERSION 1.4 JAYBOX INSTALLATION MANUAL - 4... -
Page 6: Installation Preparation
#8 x 3/4” Phillips head screws. • Torque Grounding Bar set screws to 25 in-lbs Grounding Bar can be installed in any orientation that the mounting holes allow © 2023 IRONRIDGE, INC. VERSION 1.4 JAYBOX INSTALLATION MANUAL - 5... -
Page 7: Rail Installation
When installing the JayBox on the uproof side of the rail, two 1/8" field drilled weep holes must be installed in the down slope corners of the box. Two holes 1/8 inch in diameter © 2023 IRONRIDGE, INC. VERSION 1.4 JAYBOX INSTALLATION MANUAL - 6... -
Page 8: Install Flashing
V alignment marks. The flashing should not overhang the shingle, and the marking for UPSLOPE on the flashing should be under the second shingle course © 2023 IRONRIDGE, INC. VERSION 1.4 JAYBOX INSTALLATION MANUAL - 7... -
Page 9: Deck Installation(Cont)
Install wiring, conduit and fittings per NEC requirements and following local AHJ guidance. Close lid and fasten with Philips Head Screw Driver, tighten screw 50 in-lbs. Do not overtighten lid screw. © 2023 IRONRIDGE, INC. VERSION 1.4 JAYBOX INSTALLATION MANUAL - 8...
