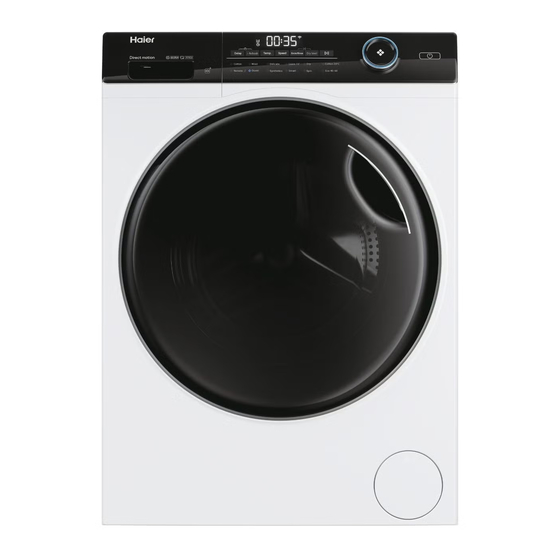

User manual
Washer-dryer
HWD80-B14959EU1
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HWD80-B14959EU1 and is the answer not in the manual?

Questions and answers

Related Manuals for Haier HWD80-B14959EU1

Summary of Contents for Haier HWD80-B14959EU1

  • Page 1 User manual Washer-dryer HWD80-B14959EU1...
  • Page 2 Thank you Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions con- tain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

  • Page 3: Table Of Contents

    Content 1-Safety information ......................... 4 2-Product description ........................8 3-Control panel ..........................9 4-Programmes ..........................14 5-Consumption ..........................15 6-Daily use ............................16 7-hOn..............................21 7-Eco friendly use..........................24 8-Care and cleaning ........................25 9-Troubleshooting ...........................28 10-Installation ...........................32 11-Technical data..........................36 12-Customer service ........................37...

  • Page 4: 1-Safety Information

    1-Safety information Before switching on the appliance for the fi rst time read the follow- ing safety hints!: WARNING! Before fi rst use Make sure there is no transport damage. Make sure all transport bolts are removed. Remove all packaging and keep out of children´s reach. Handle the appliance always with at least two persons because it is heavy.
  • Page 5 1-Safety information WARNING! Daily use Do not hot wash foam rubber or sponge-like materials. Do not wash any laundry which is polluted with fl our. Do not open detergent drawer during any wash cycle. Do not touch the door during the washing process, it gets hot. Do not open the door if the water level is visibly over the porthole.
  • Page 6 1-Safety information WARNING Daily use Do not dry following items in the appliance: Items which are unwashed. Items which have been contaminated with infl ammable sub- stances such as cooking oil, acetone, alcohol, benzine, petrol, kerosene, spot removers, turpentine, waxes, wax removers or other chemicals.
  • Page 7 1-Safety information WARNING The appliance should be placed in a well-ventilated place. Ensure a location which allows opening the door fully. Never install the appliance outdoors in a damp place, or in an area which may be prone to water leaks such as under or near a sink unit.

  • Page 8: 2-Product Description

    3 Control panel 3 Drain hose 4 Washer door 4 Water inlet valve 5 Filter cover 6 Adjustable feet 2.2 Accessories Check the accessories and literature in accordance with this list (Fig. 2-3) Haier HW110-B14979U1 11,0 3:58 CDEFG Noise Energy User manual...

  • Page 9: 3-Control Panel

    3-Control panel Dry level I-refresh Cotton Wool Delicate Quick 15’ Cotton 20°C Duvet Eco 40-60 Remote Synthetics Smart Spin 1 “Power” button 3 Display 5 Function buttons 2 Programme selector 4 Detergent/ 6 “Start/Pause” button Softenener drawer Note: Acoustic signal In following cases, an acoustic signal is no sounds by default: when pressing the button when turning the programme selector...
  • Page 10 3-Control panel Symbols Meaning Symbols Meaning Drum door is locked Alarm Control panel is locked Pre-wash i-refresh Delay Appliance is connected to WiFi 3.4 Function buttons The function buttons (Fig. 3-5) enables additional options in the selected programme before programme starts. The related indicators are displayed.
  • Page 11 3-Control panel 3.4.4 Function button“Speed“ Press this button (Fig. 3-9) to change or deselect the spin of the programme. If no value is illuminated (the display“ “) the laundry will not spin. 3.4.5 Function button “Extra Rinse” 3-10 Press this button (Fig. 3-10) to rinse the laundry more intense with fresh water.
  • Page 12 3-Control panel 3.5 “Start/Pause“ button 3-12 Touch this button (Fig. 3-12) gently to start or inter- rupt the currently displayed programme. During pro- gramme setting and during programme run the LED above the button is shining, or if interrupted blinking. 3.6 “Child lock“...
  • Page 13 3-Control panel 3.8 Detergent drawer 3-16 Open dispenser drawer, the following components can be seen (Fig. 3-16): 1: The main washing compartment for powder or liquid detergent. 2: Detergent flap slector, lift it up for powder deter- gent, keep it down for liquid detergent. 3: Compartment for softener.

  • Page 14: 4-Programmes

    4-Programmes Detergent compartment for: Detergent Softener or care product Detergent • Yes, Optional, º Max. load Tempera- Preset Function in kg ture spin speed washing in °C drying in kg in kg in rpm select able Programme range 1 2 3 Fabrics type •...

  • Page 15: 5-Consumption

    5-Consumption Scan QR code on energy label for energy consumption information. The actual energy consumption may diff er from the declared one according to local conditions. Enter the European standard test procedure: 1. Select “Eco 40-60”, then touch the “Start” button, enter the washing performance programme.

  • Page 16: 6-Daily Use

    6-Daily use 6.1 Power supply Connect the washing machine to a power supply (220V to 240V~/50Hz; Fig. 6-1). Please refer also to section INSTALLATION (see P28). 6.2 Water connection Before connecting check the cleanliness and clar- ity of the water inlet. Tun on the tap (Fig.6-2).
  • Page 17 6-Daily use 6.4 Care chart Washing Washable up to 95°C Washable up to 60°C Washable up to 60°C normal process normal process mild process Washable up to 40°C Washable up to 40°C Washable up to 40°C normal process mild process very mild process Washable up to 30°C Washable up to 30°C...
  • Page 18 6-Daily use 6.6 Selecting detergent Washing effi ciency and performance is determined by used detergent quality. Use only machine wash approved detergent. If needed use specifi c detergents, e.g. for synthetic and woolen fabric. Mind always detergent manufacturer recommendations. Do not use dry cleaning agents such as trichloroethylene and similar products. Kind of detergent Universal Colour...
  • Page 19 6-Daily use Note: Remove detergent residues before next wash cycle from the detergent drawer. Do not overuse detergent or softener. Please follow the instruction on the detergent package. Always fi ll the detergent just before the beginning of the wash cycle. Concentrated liquid detergent should be diluted before adding.
  • Page 20 6-Daily use 6.12 Interrupt / cancel wash programme To interrupt a running programme press gently “Start/Pause“. The LED above the button is fl ashing. Press it again to resume operation. To cancel a running programme and all its individual settings 1.

  • Page 21: 7-Hon

    7.3 Download and installation of hOn APP: Download the hOn App on your device by framing the following QR code: Download the hOn App on your device go.haier-europe.com/download-app or by the link: go.haier-europe.com/download-app Frequency rate (OFR) 2400 MHz - 2483,5 MHz Max. power (ERP)
  • Page 22 7-hOn 7.4 Registration and App Pairing Connect the smartphone to the home Wi-Fi network you want to connect the product to. 2. Open the App. 3. Create the user profi le (or log-in if it is already created previously) Close the door 5.
  • Page 23 7-hOn Note: Network credentials cancellation/reset Follow this procedure only if you are going to sell your washer. 7.8 Network credentials cancellation 1. Select “Remote” programme; 2. “”/”” displayed; 3. Long press “Delay” button for 5 seconds till “” displayed. 4. Confi guration information is deleted and reset confi guration. Rotate the knob to select other programme or shut down to exit.

  • Page 24: 7-Eco Friendly Use

    8-Eco-friendly use Environmentally responsible use Washing To achieve best use of energy, water, detergent and time you should use the recom- mended maximum load size. Do not overload (hand width clearance above laundry). For slightly soiled laundry select the Quick 15’ programme. Apply exact dosages of each washing agent.

  • Page 25: 8-Care And Cleaning

    9-Care and Cleaning 9.1 Cleaning the detergent drawer Take always care there are no detergent residues. Clean the drawer regularly (Fig. 9-1): 1. Pull out the drawer until it stops. 2. Press the release button and remove the drawer. 3. Flush the drawer with water until it is clean and insert the drawer back in the appliance.
  • Page 26 9-Care and Cleaning 9.5 Long periods of disuse If the appliance is left idle for a longer period: 1. Pull out the electrical plug (Fig. 9-6). 2. Turn off water supply (Fig. 9-7). 3. Open the door to prevent formation of moisture and odours.
  • Page 27 9-Care and Cleaning 9. Clean carefully pump fi lter, e.g. using running water 9-14 9-15 (Fig. 9-14). 10. Refi x it thoroughly (Fig. 9-15). 11. Close service fl ap. CAUTION! Pump fi lter sealing has to be clean and unhurt. If the lid is not full tightened, water can escape.

  • Page 28: 9-Troubleshooting

    10-Troubleshooting Many occuring problems could be solved by yourself without specifi c expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE. WARNING! Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
  • Page 29 10-Troubleshooting Problem Cause Solution  • Temperature sensor error. • Contact the After sales service.  • Heating error. • Contact the After sales service.  • Motor error • Contact the After sales service  • Dry temperature sensor error. •...
  • Page 30 10-Troubleshooting Problem Cause Solution Strong vibration while • Not all transportation bolts have • Remove all transportation bolts. spinning. been removed. • Appliance has no solid position. • Ensure solid ground and a levelled position. • Machine load is not correct. •...
  • Page 31 10-Troubleshooting 10.4 In case of power failure 10-1 The current programme and its setting will be saved. When power supply is restored operation will be re- sumed. If a power failure cuts an operating wash programme door opening is mechanically blocked. To get out any laundry water level should not be seen in the glassy porthole of the door - Danger of burns! Water level has to be lowered as described in “Pump fi...

  • Page 32: 10-Installation

    11-Installation 11.1 Preparation Take the appliance out of the packaging. Remove all packaging material including polystyrene base, keep them out of childrens reach. While opening the package, water drops may be seen on plastic bag and port- hole. This normal phenomenon results from water tests in the factory. Note: Packaging disposal Keep all packaging materials out of children´s reach and dispose them in an environ- mentally friendly manner.
  • Page 33 11-Installation 2. Fill the 5 left holes with blanking plugs (Fig. 11-4). 11-4 Note: Keep in safe place Keep the transportation bolts in a safe place for later use. Whenever the appliance is to be moved at fi rst reinstall the bolts. 11.4 Moving the appliance If the machine is to be moved to a distant location, re- place the transportation bolts removed before instal-...
  • Page 34 11-Installation 11.6 Drain Water Connection Fix the water drain hose properly to the piping. The hose has to reach at one point a height between 80 and 100 cm above the appliance bottom line! If possible keep always drain hose fi xed to the clip at the appliance back. WARNING! Use only the supplied hose set for the connection.
  • Page 35 11-Installation 11.7 Fresh Water Connection 11-10 11-9 Make sure that the gaskets are inserted. 1. Connect the water inlet hose with the angled end to the appliance (Fig. 11-9. Tighten the screw joint by hand. 2. The other end connect to a water tap with a 3/4“...

  • Page 36: 11-Technical Data

    This product meets the requirements of all applicable EC directives with the correspon- ding harmonised standards, which provide for CE marking. Hereby, Haier declares that the radio equipment type is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available at the following...

  • Page 37: 12-Customer Service

    13-Customer service We recommend our Haier Customer Service and the use of original spare parts, and the minimum period during which the spare parts for the household washing machine is 10 years. If you have a problem with your appliance, please fi rst check section TROUBLESHOOTING.
