- Page 1 VISUAL EXPERIENCE SERIES VX62LCR | VX66LCR INS TAL L AT ION A ND S UPPOR T MANUAL...
-
Page 2: Installation

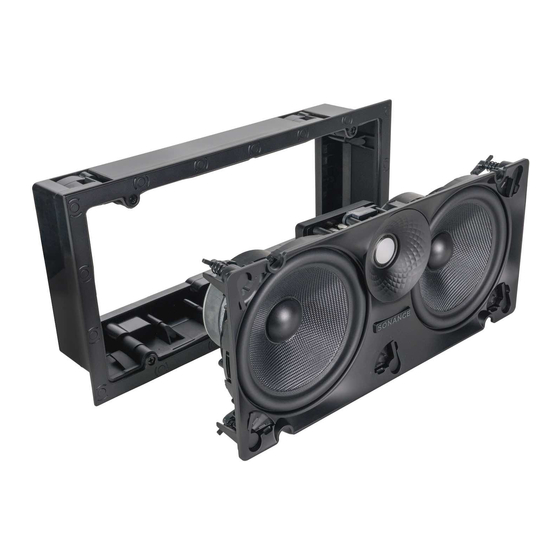

ONE-STAGE INSTALLATION (1) Paintable Micro Trim Grille Leave the Sonance VX LCR speaker module Flex Frame latches in the LOCKED position as supplied out of the box. This will ensure that your VX speaker remains a single piece for the one-stage installation process. The... - Page 3 After making all connections, double-check that you connected amplifier “+” to speaker “+” and amplifier “–” to speaker “–”. Sonance Visual Experience Series Speakers feature an Figure 4: Tightening the Roto-Lock Screws exclusive integral RotoLock® mounting system for quick mounting directly into existing walls and ceilings.
- Page 4 Use a small touch-up gun or cap-spray gun with a #3 tip for painting. • Set the nozzle with a medium to wide fan. • Set the pressure regulator to 60psi. • Lightly spray the front of the grille in three quick strokes from approximately 10”...
-
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS VX66 LCR 93656 Each Tweeter 1” (25mm) ceramic dome, Ferrofluid-cooled, acoustic back chamber Woofer Two 6.5” (165mm) Kevlar/Nomex cones, rubber surrounds Dispersion Technology - Sinusoidal textured waveguide Frequency Response 43Hz - 20kHz +/-3dB Impedance 8 ohms nominal; 6 ohms minimum Power Handling 5 watts minimum;... - Page 6 AND IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED. No one is authorized to make or modify any warranties on behalf of Sonance. The warranty stated above is the sole and exclusive remedy and Sonance’s performance shall constitute full and final satisfaction of all obligations, liabilities and claims with respect to the Product.
