Summary of Contents for Prolife FR200

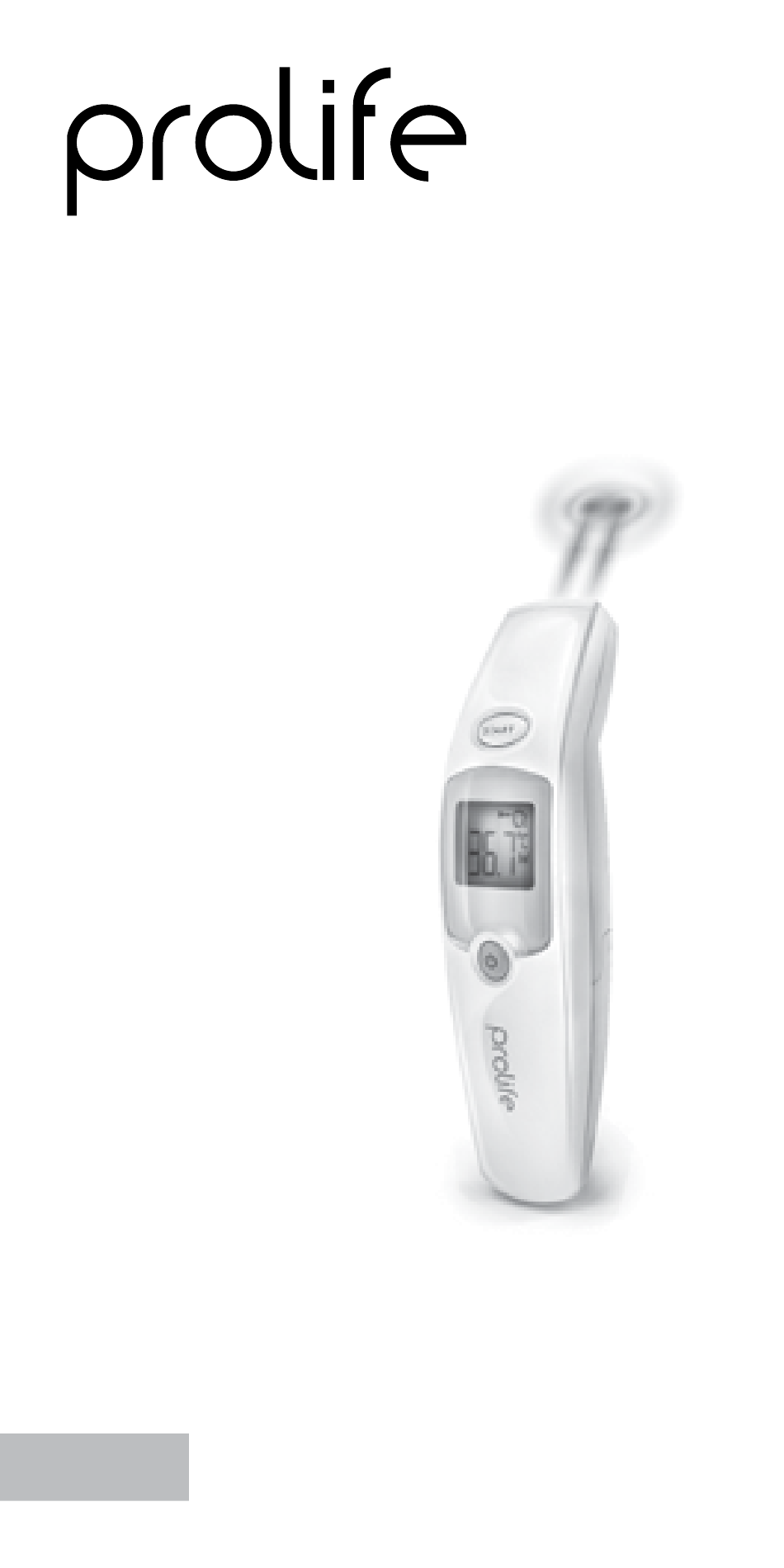

- Page 1 THERMOMETER NON-CONTACT PROLIFE FR200 Instruction Manual...
-
Page 2: Table Of Contents
NON-CONTACT THERMOMETER PROLIFE FR200 CONTENT Introduction ................3 2 List of symbols ..............3 3 Scope of application ............4 4 Completeness ...............4 5 Specifications .................5 Device description .............6 7 Safe operation instructions ...........7 8 Preparation for work ............9 9 Operating principles and procedures ....9 10 Device cleaning ..............12... -
Page 3: Introduction
INTRODUCTION Dear friends, thank you for choosing our products! Non-contact thermometer Prolife FR200 has a wide measurement range, which allows it to be used as a thermometer for measuring body tem- perature, as well as: • milk surface temperature in a baby bottle;... -
Page 4: Scope Of Application
Authorized representative of the manufacturer in the European Union. SCOPE OF APPLICATION Non-contact thermometer Prolife FR200 allows measuring body temperature on forehead and any surfaces. The device is designed for clinical and home use. Do not use the device for other purposes. The device is designed to measure temperature, both in children and adults. -
Page 5: Specifications
1. Non-contact thermometer Prolife FR200 – 1 pc. 2. AAA batteries – 2 pcs. 3. Plastic case* – 1 pc. 4. Instruction manual – 1 pc. *Optional, not included in the basic kit. SPECIFICATIONS Infrared digital non-contact Type electronic thermometer... -
Page 6: Device Description
System error or malfunction 3 short beeps DEVICE DESCRIPTION The features of Non-contact thermometer Prolife FR200: • non-contact measurement method; • temperature measurement in a few seconds; • high accuracy of measurements; • color and sound indication. -
Page 7: Safe Operation Instructions
Tracking light Sensor Antislip matted SAFE OPERATION INSTRUCTIONS The device must be used for its intended purpose, in accordance with this manual. • Any modification of the device is prohibited. • Do not expose the thermometer to mechan- ical influences and do not use it if damaged. •... - Page 8 • Do not allow children to play with the ther- mometer. • Do not expose the thermometer to direct sunlight, heat, moisture, or dirt. • Replace the batteries when needed. • The environmental temperature in the apart- ment may differ in various rooms. Before measuring temperature, the user and the thermometer should stay in the same room (premises) with constant environmental...
-
Page 9: Preparation For Work
PREPARATION FOR WORK 1. Open the batteries cover. 2. Install the batteries according to the instruc- tions on the case. 3. Close the batteries cover. OPERATING PRINCIPLES AND PROCEDURES BATTERIES INDICATION Low batteries BODY TEMPERATURE MEASUREMENT 1. To measure body temperature, switch on the device by pressing the button once. - Page 10 Put the thermometer to the center of the forehead, maintaining a distance of 3–4 cm between the sensor and the skin. 3–4 cm 3. Press the START button, 2 blue tracking lights will appear. The tracking lights will help to position the thermometer in relation to the forehead correctly.
- Page 11 OBJECT TEMPERATURE MEASUREMENT Slide switch here to measure body temperature To switch from the body temperature measuring mode to the object temperature measuring mode, move the mode switch located on the side of the thermometer to the side of the icon.
-
Page 12: Device Cleaning
Then press and hold the START button for 5 sec- onds. The thermometer will enter the measurement units setting mode. Press the START button to select the desired measurement mode °C or °F. Wait for 5 seconds after selecting the desired mode. The thermometer will save the parameters and turn off automatically. -
Page 13: Troubleshooting
with the measurement (usually the readings are too low). To delete the contamination, it is enough to wipe the sensor with a soft lint-free cloth (or cotton swab) moistened with disinfectant solution. Then it is neces- sary to wipe the lens with a dry soft lint-free cloth. -
Page 14: And Operation Terms
Clean the lens ac- Wrong (low) read- The IR sensor lens cording to item 10 ings is dirty of this instructions manual 12 STORAGE, TRANSPORTATION AND OPERATION TERMS • The device should be transported at –10°C to +40°C with a maximum relative humidity of 75% or less. -
Page 15: Certification
If you have any questions, please contact the local utility responsible for waste disposal. 14 CERTIFICATION Non-contact thermometer Prolife FR200 complies with Directive 93/42/EEC on medical equipment. 15 MANUFACTURER’S WARRANTY The warranty period is indicated in the warranty cer- tificate. - Page 16 Manufacturer: Shenzhen Combei Technology Co., Ltd. 11-5B, No. 105, Huan Guan South Road, Dahe Community, GuanLan, Long Hua New District ShenZhen, People’s Republic of China. Authorized Representative in the EU: MedNet GmbH, Borkstrasse 10, 48163 Münster, Germany.
- Page 17 Prolife® is the registered trademark by Montex Swiss AG, Tramstrasse 16, CH–9442, Berneck, Switzerland...
