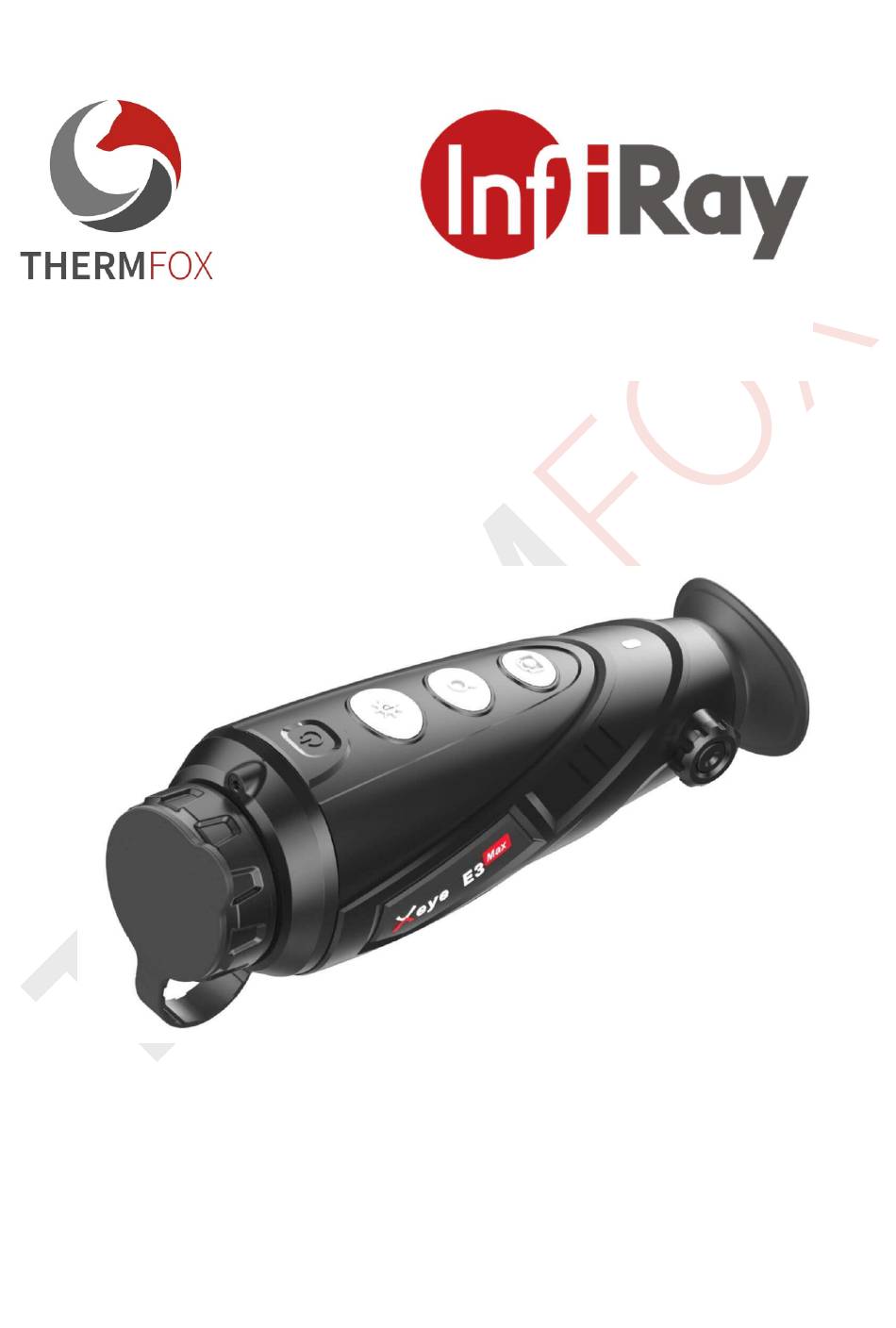

- Page 1 Thermal imaging Xeye E3...
- Page 2 Thermal imaging monocular...
-
Page 3: Basic Specifications
Enlarge 2.5x optical, 2x, 4x digital Resolution, kernel 384x288 px, VOx 17 µm type Lens lens diameter 35 mm Lens focusing Manual Field of view 10,7° x 8° Lens system F1:0 Image refresh rate 50 Hz (PAL) / 60 Hz (NTSC) Display type LCD, 1280x960 px Colour palette... - Page 4 Basic procedure for using the instrument 1. Switching on the device 2. Correction of diopters 3. Manual image sharpening 4. Magnification/Mode selection 5. Switching off the device ON/OFF button, STANDBY STANDBY • ON/OFF: Press the power button for 3 seconds to turn on the camera. The indicator light will illuminate and the trigger screen will be displayed in the inner eyepiece •...
- Page 5 • The menu allows you to set WI-FI, picture brightness, video output, calibration mode, power saving mode, PIP FUNCTION and factory settings. • To save the settings and exit the menu, long-press the button to select zoom. • PIP - picture in picture Video output (for displaying the image on an external monitor) •...
- Page 6 Transferring data to your mobile phone To download captured photos/videos from your device to your smartphone the Xeye app is designed for online monitoring of the camera image Pro. This app also allows you to create photos or videos via your mobile phone.
- Page 7 Important information Disposal of electrical equipment This product is labelled in accordance w i t h t h e European Directive on the disposal of electrical and electronic equipment. This symbol on the product or in the accompanying documentation indicates that the used product must not be disposed of with municipal waste as it may contain substances hazardous to environment.
