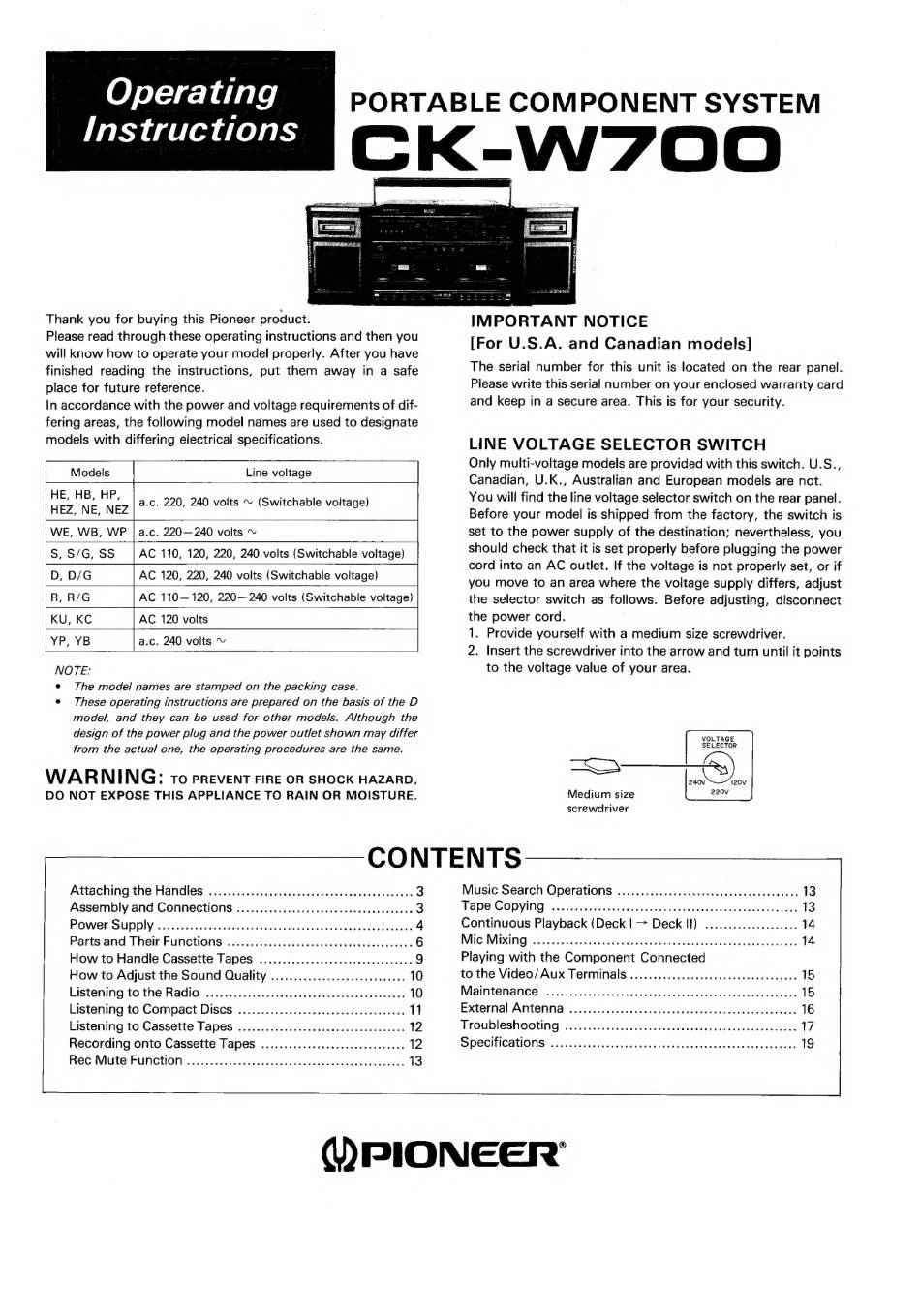

Pioneer CK-W700 Operating Instructions Manual

Operating
Instructions
Thank you for buying this Pioneer product.
Please read through these operating instructions and then you
will know how to operate your model properly. After you have
finished reading the instructions, put them away in a safe
place for future reference.
In accordance with the power and voltage requirements of dif-
fering areas, the following model names are used to designate
models with differing electrical specifications.
Models
HE, HB, HP,
HEZ, NE, NEZ
WE, WB, WP | a.c. 220-240 volts ~
S$, $/G, SS AC 110, 120, 220, 240 volts (Switchable voltage)
D, D/G AC 120, 220, 240 volts (Switchable voltage)
R, R/G AC 110-120, 220-240 volts (Switchable voltage)
Line voltage |
a.c, 220, 240 volts ~ (Switchable voitage)
KU, KC AC 120 volts
YP, YB a.c. 240 volts ~
NOTE:
e The model names are stamped on the packing case.
e These operating instructions are prepared on the basis of the D
model, and they can be used for other models. Although the
design of the power plug and the power outlet shown may differ
from the actual one, the operating procedures are the same.
WARNING: to prevent FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Attaching the Handles ............:..ceceeeeeeeeeeeseeseesuneesens 3
Assembly and Connections ...............cccecceeeeeueeeeeeeeees 3
POWEF SUDDIV ciarin Se seeseusis reali uecot eee ceca eee sees 4
Parts and Their Functions ..............cccccceeesseeeeeucceeeeees 6
How to Handle Cassette Tapes .............cccccecceeeeneeeeees 9
How to Adjust the Sound Quality ...................ceceee sees 10
Listening to the Radio ..............csceceennecsecessraccessasess 10
Listening to Compact DISCS ..............cceceeseeeeeseeeeeeace 11
Listening to Cassette Tapes .............cccceeseceseeeseeeuees 12
Recording onto Cassette Tapes ............cccccceeceeeeeseees 12
Rec Mute Function ..........:.ccecesvocseseessssccssnccevaveceees 13
CONTENTS
| } PORTABLE COMPONENT SYSTEM
IMPORTANT NOTICE
[For U.S.A. and Canadian models]
The serial number for this unit is located on the rear panel.
Please write this serial number on your enclosed warranty card
and keep in a secure area. This is for your security.
LINE VOLTAGE SELECTOR SWITCH
Only multi-voltage models are provided with this switch. U.S.,
Canadian, U.K., Australian and European models are not.
You will find the line voltage selector switch on the rear panel.
Before your model is shipped from the factory, the switch is
set to the power supply of the destination; nevertheless, you
should check that it is set properly before plugging the power
cord into an AC outlet. If the voltage is not properly set, or if
you move to an area where the voltage supply differs, adjust
the selector switch as follows. Before adjusting, disconnect
the power cord.
1. Provide yourself with a medium size screwdriver.
2. Insert the screwdriver into the arrow and turn until it points
to the voltage value of your area.
VOLTAGE
SELECTOR
>)
Medium size
screwdriver
Music Search Operations ...............ececceceseceesaeeeeeaees 13
TAPS COPYING) ccxaceraneeaadarac<iavoreekes doesuatehevsrretteet 13
Continuous Playback (Deck | > Deck II) .................... 14
IVINS IVIIRIIG: oc tesie casi cces 022252505) wee lea bn onanbohiieuneaseets 14
Playing with the Component Connected
to the Video/Aux Terminals ...............cccceccceseeeeeeeees 15
MAINTENANCE Sic oor ster eopccataw Sidon eocumomemtynaietehereeadsaace 15
External ANtenna ............csccsceccscusccscscneccvereccereecees 16
PROUDIGSNOOUING" iittitdwiasinecetandedecaemequas idagaddelatens 17
SPCCINCATONS +21. sees etincdwcncatersdsmdvecae Sameseestiteaeecndcs 19
() PIONEER'
