Summary of Contents for AirTech AHD-100DW-DC

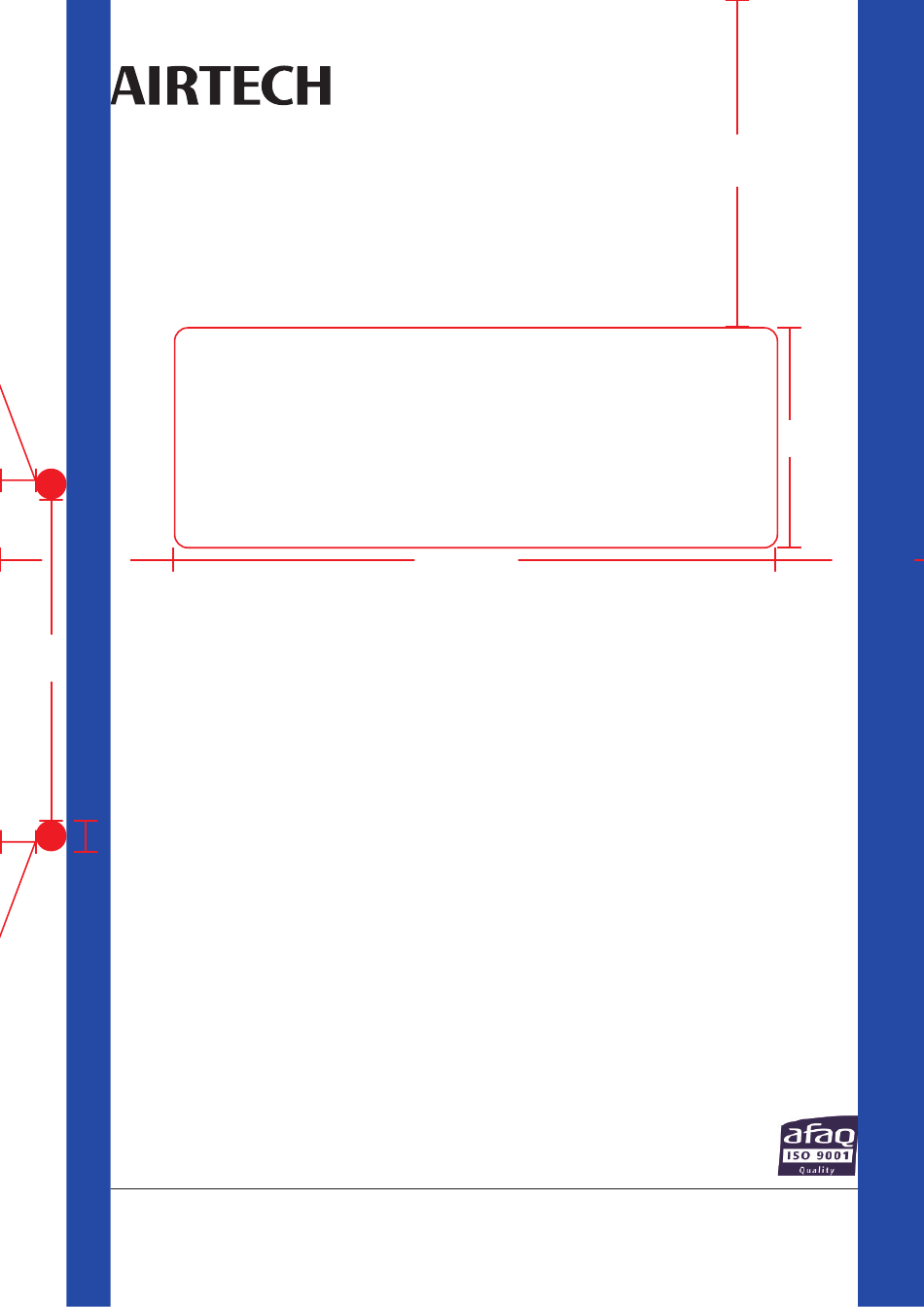

- Page 1 73mm HAND DRYER WASHER 50mm 50mm 38mm 38mm 44mm 44mm 137mm 137mm 73mm Ø7mm Equipment installation manual The content of this manual is written for standard equipment, but it is also applicable to related equipment.
-
Page 2: Table Of Contents
Table of Contents Preface Receiving notice Safety instructions Marking description Precautions during installation Precautions when using Precautions when abnormal Functions and specifications 4-1 Function 4-2 Specialty 4-3 Specification Installation method 5-1 Device installation 5-2 Power supply 5-3 Pipeline connection Operation method 6-1 Power transmission 6-2 Instructions 73mm... -
Page 3: Preface
Preface Thank you for purchasing our company’s HAND DRYER W/WASHER. Please read the manual carefully and use the product correctly. Improper operation will cause serious accidents. Please make sure to appoint the operation and management personnel of this equip- ment. If any abnormal accident occurs, please report to the manager immediately. Do not tear off... -
Page 4: Marking Description
Marking Description If you do not comply, there is a high possibility of serious Danger harm to life or body and mind. If you do not comply, it may cause minor injuries or mal- Cautions function of the machine. Forbidden Prohibited matters Follow Indicates to matters that need to be enforced. -
Page 5: Precautions When Using
Install the device in a stable position. If the device is installed in an unstable position and tilted, it may cause problems with the operation of the fan. Do not block the return air vent. Blocking will reduce the return air volume, and thus reduce the performance of the equipment. -
Page 6: Precautions When Abnormal
Do not damage the power cord. Do not place heavy objects on the power cord or arbitrarily place it. Damage to the power cord may cause accidents such as fire or electric shock. Do not modify the equipment. It may cause electric shock, fire, and equipment performance degradation. It is forbidden to use volatile oil or thinner to clean the equipment. -
Page 7: Functions And Specifications
Functions and specifications 4-1 Functions Make sure to read the details provided in this manual very carefully to ensure good utilization of this product. If some of the instructions are unclear, please feel free to contact our customer service department. This Hand dryer-washer combo is dotted with a water valve for the washing process and a high-speed blower that sends out dust-free air through nozzles to facilitate the rapid drying process using HEPA filters. -
Page 8: Specification
4-3 Specification Specification Model AHD-100DW-DC Main Baking enamel steel plate Construction Internal Stainless (SUS 304) Electromagnetic valve Queen,MD-15-DC24V Electrical AC 110V Frequency 60 Hz Main filter：HEPA FILTER Dust Collection Elements Pre-filter：Non-woven filter Operation Switch PLC (programmable logic controller) Air Velocity... - Page 9 Circuit diagram POWER 1Φ 110V 60Hz 2P30A Driver ( YAMAMOTO ) Blower DCBL BLC-1510N-4 100Vac / 141Vdc FUSE FUSE (3A) (3A) Wave filter ( YUNPEN ) SHIHLIN YK03T1 AX1S-14MR-ES/UL 110V-L COM0 COM0 Blower start 110V-N COM1 COM1 73mm Blower high speed COM2 X3/2C Germicidal lamp...
-
Page 10: Installation Method
Installation method 5-1 Device installation After the installation position is determined, adjust the level with the adjuster (ADJUSTER) and fix it. If the floor is covered with soft carpet (such as PVC), please put the adjuster (ADJUSTER) seat on top of it. 5-2 Power supply For the connection of the power supply, please open the motor maintenance door at the bottom and use the power junction box to connect the power supply after confirming... -
Page 11: Operation Method
Operation method 6-1 Power transmission Press “On” for “BREAKER” on the control panel. 6-2 Instruction Hand washing and drying are continuous actions. Put your hand under the automatic water valve, and water will automatically flow out. After the set time stops, the drying action will follow. -
Page 12: Precautions
Germicidal lamp warning Danger Do not look directly at the germicidal lamp. 6-4 Precautions Please use it within the recommended range of power supply 1Φ110V±10%, 60Hz. Do not allow conductors such as metal sheets to fall or remain in the electronic control circuit of the main switchboard to prevent short circuits. -
Page 13: Maintenance
Operation method If any abnormality occur, please refer to the following table to carry out inspection. If the cause of the failure is unknown, or there is any problem, please contact our company. Possible issues Possible causes Processing method Insert the plug into the socket The main power supply has by leakage BREAKER. - Page 14 Main filter The update period can be based on the air velocity value detected by the anemometer (in this case, the air velocity value is halved) or the pressure difference measured by the differential pressure meter (the differential pressure value is doubled) to decide whether to replace the device.
-
Page 15: Contact Information
Contact information If there are any questions to AIRTECH, please contact us through our website, or call the customer service line for professional service for you. 73mm Ø7mm... - Page 16 73mm Contact information TEL｜ +886-3-610-5668 FAX｜ +886-3-597-2734 E-Mail｜ info@air-tech.com Website｜ www.air-tech.com.tw No.58-1, Guangfu Road, Hsinchu Industrial Park. Hsinchu County 303036, TAIWAN.
