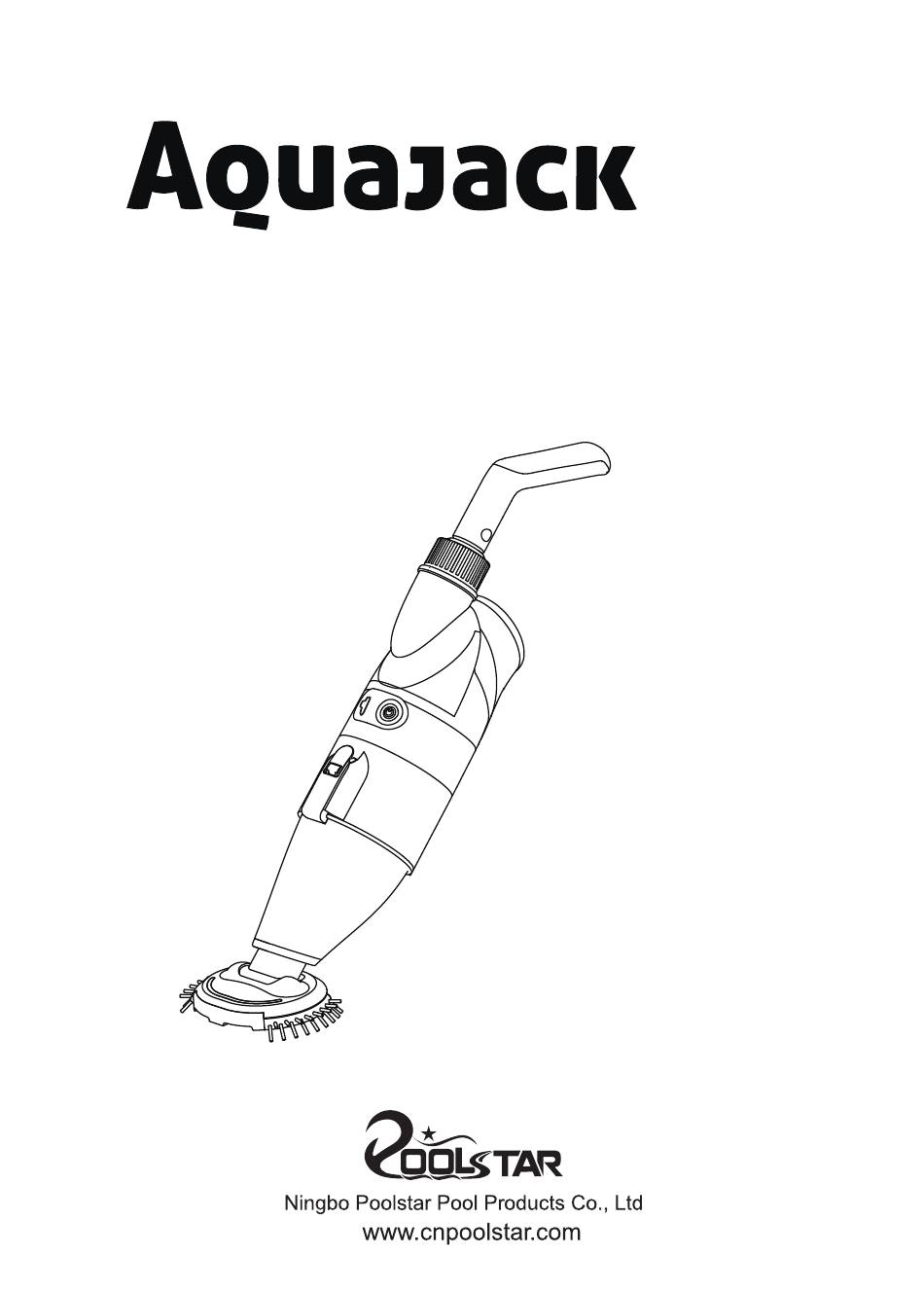

- Page 1 Electric cordless rechargeable pool and spa vacuum cleaner Instruction manual Battery: 7.4V /2000mAh Charging power: 8.4V DC, 1.0A Motor voltage: 7.4V DC Waterproof grade: IPX8...
-
Page 2: Safety Warning
SAFETY WARNING When installing and using this electrical equipment, you should always follow the basic safety precautions. Please read the following carefully Warning! The cleaner is not a toy, and is operated by people older than 8 years age. Any people who operates the cleaner, has to read the manual carefully before work it. -
Page 3: Battery Disposal
(5)Do not handle the cleaner and charger with wet hands and bare feet， when charging the cleaner. (6)Disconnect the charger from power when not in use. (7)If the wire is damaged, it must be replaced by a new charger to avoid danger. - Page 4 How to use it Assembly A: Vacuum head B: Front filter C: Motor body D: Portable handle E: Back filter F: Charger 1. Charger connection (1) Plug one end of the charger into the power socket, and then plug the other end of the Pin cover charger into the charging port of the cleaner.
-
Page 5: Installation
2. Installation 2.1 ody parts assembly Assemble the body parts in the direction of the arrow. 2.2 Assembly of suction head 2.3 Handle assembly Insert the entire suction head directly (1) Handle assembly. (2) Assembly of telescopic rod into the Cover the garbage. This handle is used to clean (not included) walls, steps, seats and... - Page 6 4. How to use vacuum head ? To use the cleaner without vac head for corners of the pool, it can be used at same to cleans angles of pools and steps of the pool. 5. Garbage cleaning 5.1 cleaning of front transparent garbage cover (1) For example, the buttons on the two sides of the transparent garbage cover under the drawing board remove the transparent garbage cover from the body;...
-
Page 7: Maintenance And Storage
5.3 Battery replacement NOTE: User must consult dealer before any battery replacement. Open the screw, loosen the handle, take out the battery pack, gently press the battery power cord to separate and replace the battery. Maintenance and storage 1. The battery discharges itself during storage. Make sure the robot is fully charged before storage. 2. -
Page 8: Troubleshooting
Troubleshooting If you have problems with your cleaner, follow the troubleshooting steps below to restore performance. Note: turn off the power before making any repairs. Problem Possible causes Solution If only one green LED is lighting Please to recharge again totally the device till the 3 The battery is low Green LED are totally lighting.
