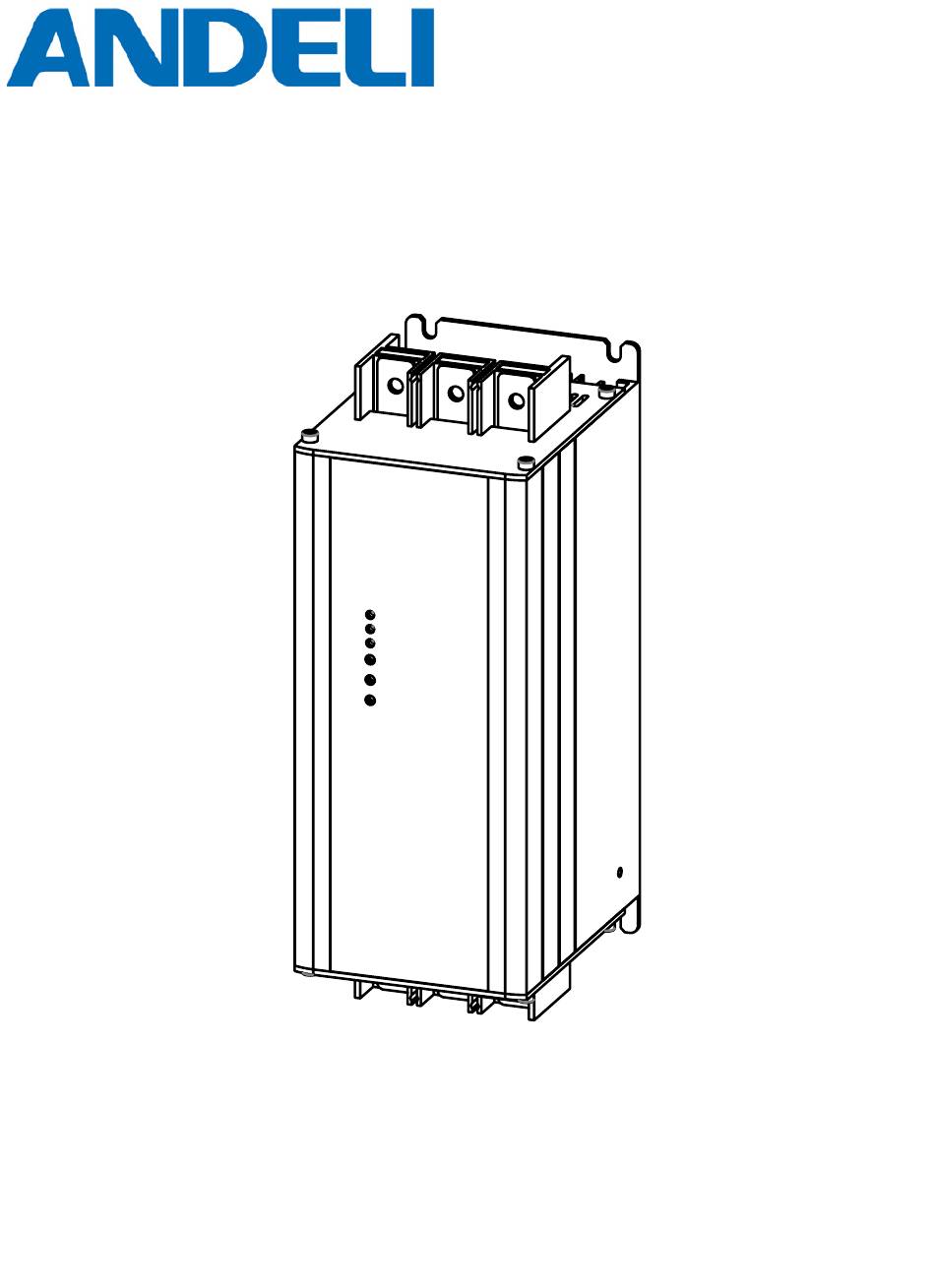

- Page 1 User Manual of AJR3- Nx Soft Starter ANDELI GROUP Co.,ltd...
-
Page 3: Warning Message
Warning Message The product should be operated by qualified electricians as per safety specifications, including installation, pilot run and maintenance, etc; The voltage used by the product is dangerous, which may cause serious injury or death of others. Prohibit touching terminal after electrifying the device or during operation. - Page 4 Product Dimensions Install Sketch 10° 10° >25...
-
Page 5: Terminal Description
Terminal Description For external panel only Major Loop Terminal Marking Terminal Name Function L1/L2/L3 Mains input of major loop Connect three-phase source T1/T2/T3 Output connection of soft start Connect three-phase motor Control Loop Terminal Terminal Function Marking Name When RUN and COM are closed, the motor starts to run; when Enable input disconnected, the motor decelerates and stops (only two-wire control (default);... -
Page 6: Parameter Settings
Parameter Settings Panel Parameters Knob of soft start time: used to adjust the soft start time. The range is 1~20s. The longer the time is set, the smoother the soft start process will be, which is beneficial to reduce the impact on the power grid. -
Page 7: Indicator Light
Operation sequence diagram Power Start/Stop signal Motor voltage Run output Start command Bypss Stop command Apply main voltage operation Restart after Finish starting stalling midway Indicator light Indicator light Steady lighting Flashing Input or output phase loss / Steady Bypass operation Hardware malfunction hardware malfunction lighting... -
Page 8: Power Diagram
Power Diagram Model 230V/kW 440V/kW Rated current(A) AJR3-Nx5R5 AJR3-Nx7R5 AJR3-Nx11 AJR3-Nx15 AJR3-Nx18 18.5 AJR3-Nx22 AJR3-Nx30 AJR3-Nx37 18.5 AJR3-Nx45 AJR3-Nx55 Wiring parameters Main Main circuit Control Tightening Rated Circuit tightening circuit Torque control Power Diameter torque Diameter circuit Model GB Copper Lbf/inch Lbf/inch Core(mm... -
Page 9: Wiring Diagram
Wiring Diagram L1 L2 L3 A601 C601 T1 T2 B401 N401 This drawing is for reference only... -
Page 10: Two-Wire Control
Two-wire control COM STOP Start input Work status indicator Knob/switch (self-locking type) Three-wire control COM STOP Start input Stop input Work status indicator Button Start and stop mode This drawing is for reference only... - Page 11 Two-wire control KA-2 KA-1 COM STOP Start input Work status indicator Button Start and stop mode This drawing is for reference only...
- Page 12 Setting-up process Satrt setting up. First, connect the main power supply of L1 - L3, and check Power-on Reset for the soft starter. For the first time use, a power- on reset must be carried out, in case there is uncompleted commands. At this stage, output terminal T2 is electriferous, so please pay attention to safe operation.
- Page 13 Pre start the motor by terminals RUN and COM. A. Raise the starting voltage if the motor has a delaying rotation. B. Lower the starting voltage or extend start-up time if the rotation of the motor is too fast. Adjust starting voltage, starting time and soft stopping time to obtain optimum effect, after which step the setting-up process is completed.
-
Page 14: Keyboard Setting
Keyboard setting This is an optional accessory (not included in the standard product) and is connected through the RJ45 interface (network cable required). If need it, please contact the manufacturer. 59.4 Panel Size 28.7... -
Page 15: Button Description
Button Description Button Name Function Programming DATA Enter or exit the first level menu Button Jog Button Jog running motor (for testing only) Increment Increment of data or function code Decrement Decrement of data or function code In the stop and running display interface, the display SHIFT Shift parameters can be selected cyclically;... - Page 16 Code Setting Instructions Code Name Setting Default Description The soft-start process is based on the Overload multiple overload multiple of the rated load current, PA-03 1.0-5.0 during soft start and the value of it is set according to the weight of the load. Based on the rated power current normal Rated power operation overload multiple, the size of the...
-
Page 17: Error Code Description
Error Code Error code description Error code Fault name Err01 Overcurrent fault Err02 Overload fault Err03 Overheating fault Err04 Output three-phase unbalanced Err05 A-Phase current sensor failure Err06 C-Phase current sensor failure Err07 Host failure Err08 Underload fault Err09 Arrears (exceeding the set number of runs) - Page 18 Customer A: Reduce starting frequency or replace it with a soft starter of bigger capacity. Andeli Q2. How to solve the problem that a big noise will be made when the motor starts? Customer A:The starting voltage is too low or the starting load is too big, so the problem will be improved by increasing the starting voltage properly.
-
Page 19: Warranty Card
Warranty Card Related information Username Phone number Address Product model Serial No. Purchasing way Purchasing time Maintenance site Invoice No. Terms of no maintenance, return & exchange Within warranty period, the situations caused by below reasons are beyond warranty: (1) Product fault caused by users of violating the operation in User Manual; (2) Product damage during transportation or caused by external forces;... - Page 20 Please give this user’s manual to the end user and keep it properly.
