Summary of Contents for ACDC SMART WIFI ROBVACUUM-8

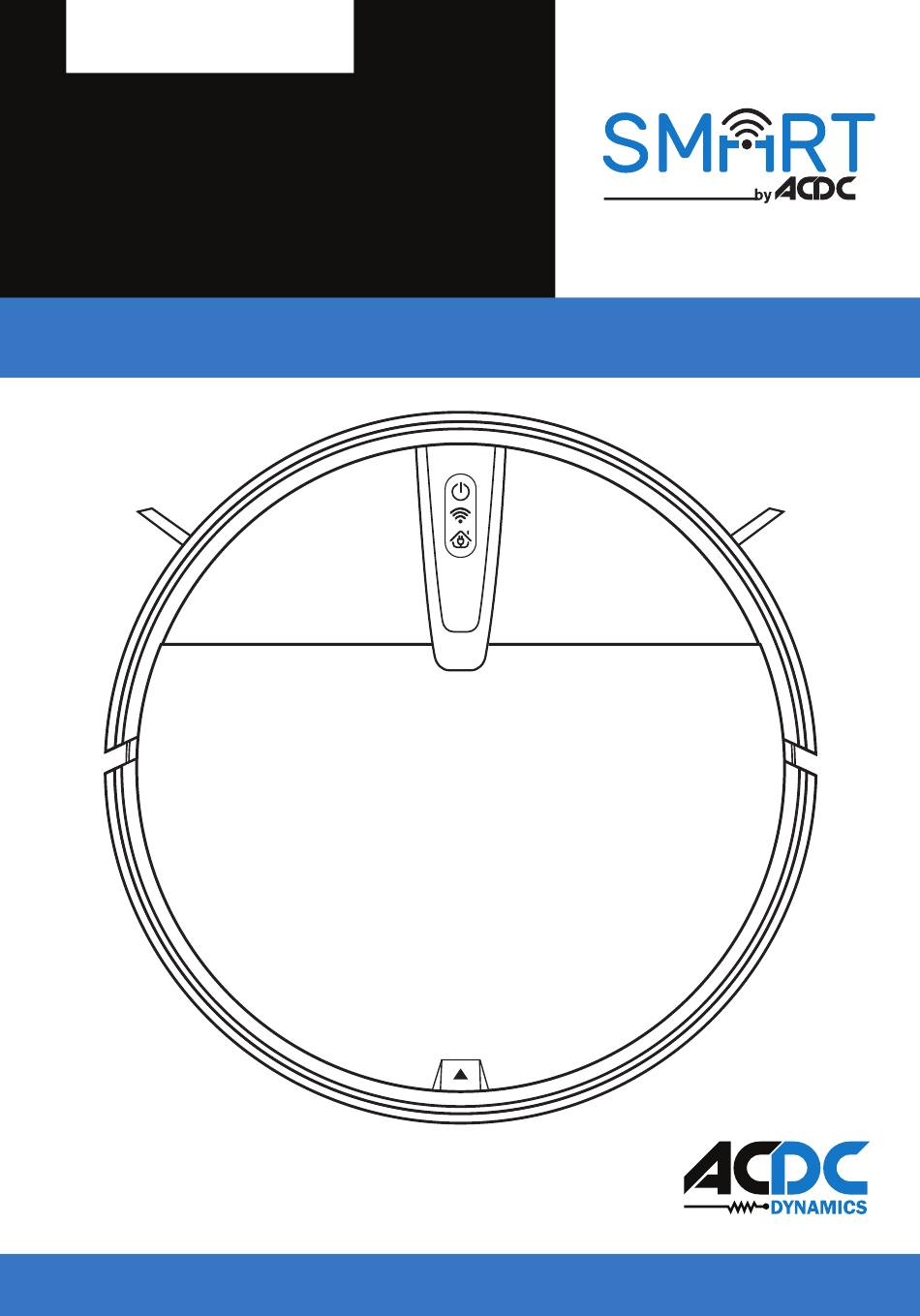

- Page 1 USER MANUAL Thank you for choosing our smart vacuum cleaner! Please read this manual carefully before use. www.acdc.co.za T H I N K E L E C T R I C A L National Sales Centre - 010 202 3400 | Technical - 010 202 3500...
-
Page 2: Table Of Contents
ROBVACUUM-8 SMART WIFI ROBOT VACUUM CLEANER CONTENTS 1.Safety Instructions 2.Precautions 3.Product Introduction 3.1 Cleaner Part Diagram 3.2 Specifications 4.Operation Instructions 4.1 Charging method and quick start guide 4.2 Remote controller 4.3 Set reservation 5.Maintenance 5.1 Dust collector and filter screen cleaning 5.2 Clean the side brush and universal caster 5.3 Clean the cliff sensor 5.4 Clean the charging electrode... -
Page 3: Safety Instructions
ROBVACUUM-8 SMART WIFI ROBOT VACUUM CLEANER 1.SAFETY INSTRUCTIONS Please follow the following safety precautions before using the product: Please read this manual carefully before using the product and use the product according to the instructions in this manual. Keep it properly. If you need to transfer the product to a third party, please attach the manual together with the product. -
Page 4: Precautions
ROBVACUUM-8 SMART WIFI ROBOT VACUUM CLEANER 2.PRECAUTIONS Please read the following guidelines before using the Cleaner. The power cord and other sundries scattered Please roll up the fringe of the carpet or make on the ground may entangle or wrap the the product work on the short-wool carpet. -
Page 5: Product Introduction
ROBVACUUM-8 SMART WIFI ROBOT VACUUM CLEANER 3.PRODUCT INTRODUCTION 3.1 Cleaner Part Diagram Infrared bumper Cover On/Off key WIFI indicator Automatic recharge Middle cover 1.On/Off key 2.WIFI indicator 3.Automatic recharge Main Machine Cliff sensor Charging electrode Universal caster Side brush Side brush Battery cover Cliff sensor Suction port... - Page 6 ROBVACUUM-8 SMART WIFI ROBOT VACUUM CLEANER 3.PRODUCT INTRODUCTION Function keys Indicator status: On/Off key 1.Power on: Green light constantly on 2.Abnormal: Red light flashing WIFI indicator 3.Changing: Red light breathe Automatic recharge 4.Charging finish: Green light constantly on Dust collector cover Dust collector Fine filter cotton Filter HEPA...
-
Page 7: Specifications
ROBVACUUM-8 SMART WIFI ROBOT VACUUM CLEANER 3.PRODUCT INTRODUCTION 3.2 Specifications Parameters Item 320mm Diameter 78mm Height Net weight Voltage 7.4V Power Dust collector volume 600ml Water tank capacity 200ml Charging type Automatic charging / manual charging Automatic cleaning, fixed-point cleaning Cleaning mode Edge cleaning, Full charge time... -
Page 8: Operation Instructions
ROBVACUUM-8 SMART WIFI ROBOT VACUUM CLEANER 4.OPERATION INSTRUCTIONS 4.1 Charging method and quick start guide 1.How to use the charging base Place the charging base on the flat ground, then connect the power adapter. The power indicator will be constantly on. *Notes Place the charging base on a flat ground, with the back against the wall, and remove all obstacles around the charging base... -
Page 9: Remote Controller
ROBVACUUM-8 SMART WIFI ROBOT VACUUM CLEANER 4.OPERATION INSTRUCTIONS 4.2 Remote controller Standby Press this key to enter the sleep mode; press key for restarting the machine; If the machine is not operated within 3 minutes, the machine will automatically enter the sleep mode. Auto cleaning Press this key to start cleaning automatically;... -
Page 10: Dust Collector And Filter Screen Cleaning
ROBVACUUM-8 SMART WIFI ROBOT VACUUM CLEANER 5.MAINTENANCE 5.1 Dust collector and filter screen cleaning Take out the dust collector. Open the dust collector lock and pour the dust and garbage. Remove the filter elements. Please gently pat the HEPA to remove dust instead of washing. Wash the dust collector and the first filter element, dry the dust collector and filter elements, and keep them dry to ensure a longer service life BRANCHES - Johannesburg: 010 202 3300 | Germiston: 011 418 9600 | Cape Town: 021 492 2000 | Riverhorse: 031 492 4800 | Pinetown: 031 700 4215... -
Page 11: Clean The Side Brush And Universal Caster
ROBVACUUM-8 SMART WIFI ROBOT VACUUM CLEANER 5.MAINTENANCE 5.2 Clean the side brush and universal caster Clean universal caster Clean the side brush Clean the universal caster to remove hair Remove the side brush and wipe it with a clean cloth. entanglement. -
Page 12: Installation Of The Water Tank
ROBVACUUM-8 SMART WIFI ROBOT VACUUM CLEANER 5.MAINTENANCE 5.7 Installation of the water tank 1. Insert the front end of the water tank into the mop, align as shown in the figure, and paste the mop on the magic tape of the water tank. 2. -
Page 13: Trouble Shooting
ROBVACUUM-8 SMART WIFI ROBOT VACUUM CLEANER 6.TROUBLE SHOOTING Indicator description Robot will emit a series of beeps when it is in trouble, and the red light will flash or keep on. red light Beep once and the stays Wheel is stuck Beep once and the red light keeps flashing Front bumper is stuck Side brush abnormal... -
Page 14: Packing List
ROBVACUUM-8 SMART WIFI ROBOT VACUUM CLEANER 7.PACKING LIST Serial number Description Quantity Host (include battery) Charging base Remote controller Power adapter User manual Side brush 1 pair HEPA filter Mopping Pad Water tank BRANCHES - Johannesburg: 010 202 3300 | Germiston: 011 418 9600 | Cape Town: 021 492 2000 | Riverhorse: 031 492 4800 | Pinetown: 031 700 4215...
