HME SP10 Quick Reference Installation Manual

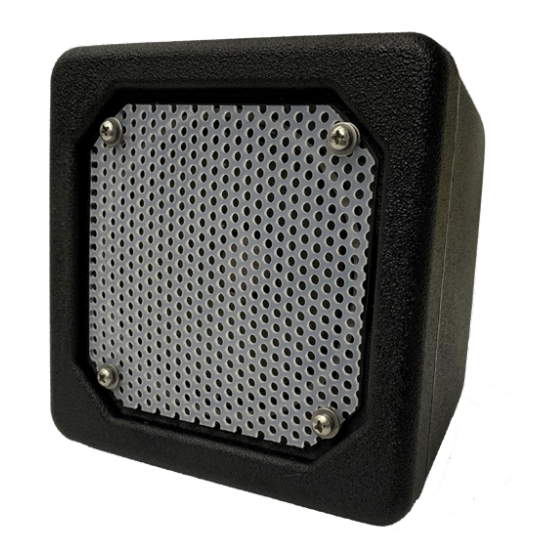

The SP10 speaker (Figure 1) is designed for use
in Quick Service Restaurant (QSR) menu boards,
speaker posts, and enclosures. The instructions
below are for a typical installation of the SP10.
Tools/Equipment Required
• General hand tools: screwdrivers, cutters,
pliers, wire strippers, etc.
• Soldering iron and solder
• Crimp caps or shrink tubing with heat gun
• Serrated knife
• Audio Cable (not included)
• Acoustic Foam (not included)
1. Strip approximately 1 inch (25.4 mm) of insu-
lation from the end of the speaker cable and
¼ inch (6.35 mm) of insulation from each of
the two cable wires, but do not tin the wires.
Connect the speaker cable wires to the con-
nector plug, as shown in Figure 2.
2. Insert the connector plug into the connector on
the speaker, as shown in Figure 2.
3. Peel the paper off the self-adhesive gasket,
and press the adhesive side of the gasket
against the front of the speaker in the position
shown in Figure 2.
4. Position the speaker inside the speaker post or
menu board, with the gasket centered against
the inside of the speaker grill as shown in
Figure 3. The cable connector can be on the
bottom or on either side. Align the opening in
the gasket with the grill opening.
5. Remove both inserts from the molded foam
enclosure and place the foam enclosure
around the speaker. Trim foam with a serrated
knife if necessary. Place removed foam inserts
behind speaker to provide pressure to speak-
er, to ensure a good gasket seal against the
speaker grill opening.
HM ELECTRONICS, INC.
2848 Whiptail Loop, Carlsbad, CA 92010 USA
Phone: 1-800-848-4468 Fax: 858-552-0172
Website: www.hme.com Email: support@hme.com

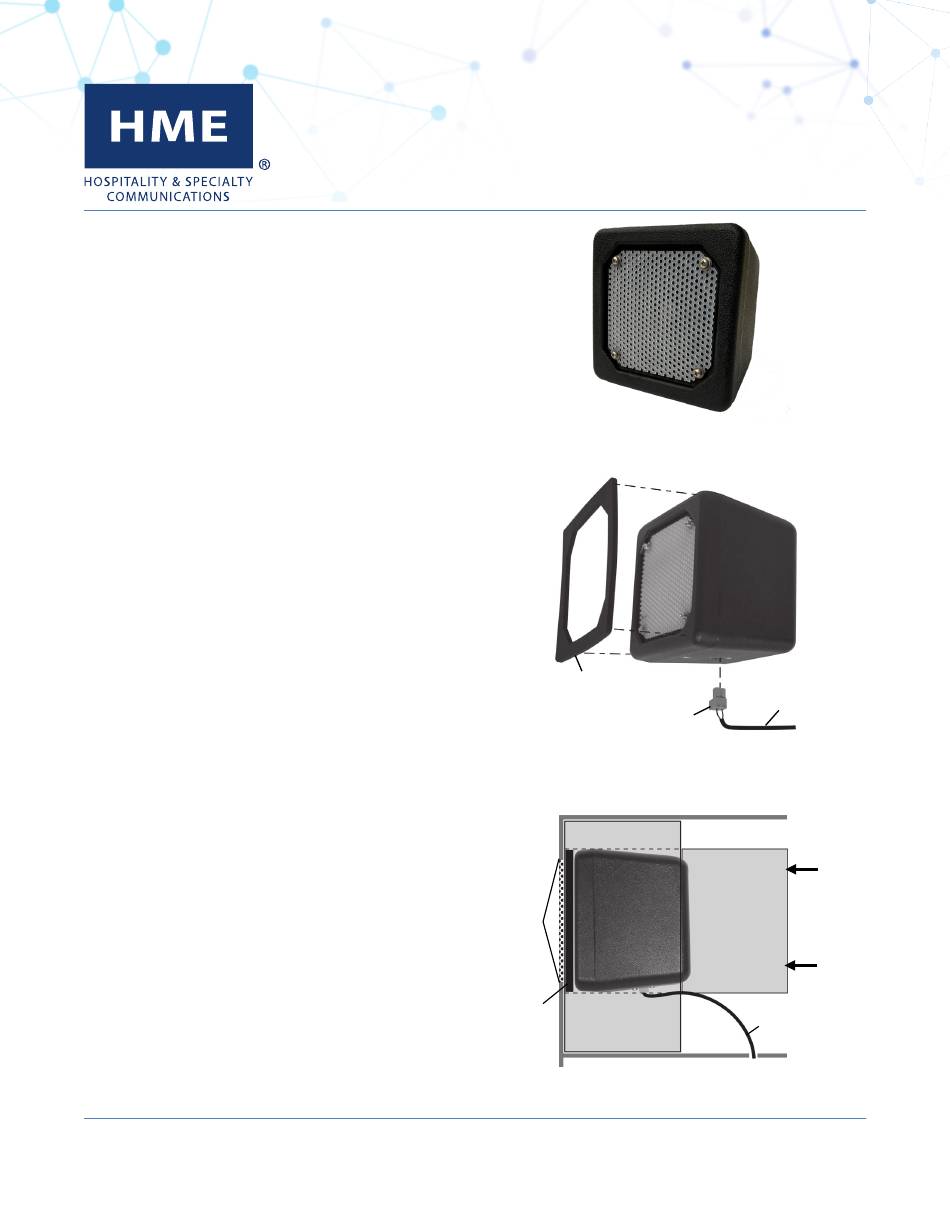

Quick Reference Installation Guide
SP10 with gasket and cable connector plug
Speaker
grill
opening
Gasket
SP10 in speaker post, menu board, or enclosure
SP10 OUTSIDE SPEAKER
Figure 1
Gasket
Connector
plug
Figure 2
Foam
Foam
Figure 3
Speaker
cable
Pressure
Pressure
Speaker
cable
HME# 400G598
Rev H 03/07/22
