Sealey STW901B Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
1. SAFETY
Ensure all workshop safety rules, regulations, and conditions are complied with when using torque wrench.
9
Maintain the wrench in good condition and replace any damaged or worn parts. Use genuine parts only. Non-authorised parts may be
9
dangerous and will invalidate the warranty.
The wrench is a precision tool, DO NOT abuse it.
9
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9
Keep children and unauthorised persons away from the working area.
9
WARNING! DO NOT use the wrench if damaged or thought to be faulty. (Contact Service Agent).
‰
DO NOT drop or throw the wrench.
8
DO NOT use wrench unless you have been instructed in its use by a qualified person.
8
DO NOT use any cleaner which might affect the high pressure grease with which the wrench is packed.
8
After use adjust to lowest torque setting (but not below), clean and store in a safe, dry, childproof location.
9
2. INTRODUCTION
Flip reverse Chrome Vanadium steel ratchet heads with smooth action mechanism. Scale graduated in Nm and lb.ft. Calibration
tolerance in accordance with BS EN ISO 6789-1:2017. Wrenches are individually tested to standards with ±4% accuracy and each
wrench is issued with an individually numbered test certificate. Aluminium knurled handles for comfort and control. Supplied in an EVA
tray.
3. SPECIFICATION
Model STW901B
Drive 1/4"
Length 245mm
Nett Weight: 0.340kg
Range 5-25Nm (3.7-18.5lb.ft)
4. OPERATION

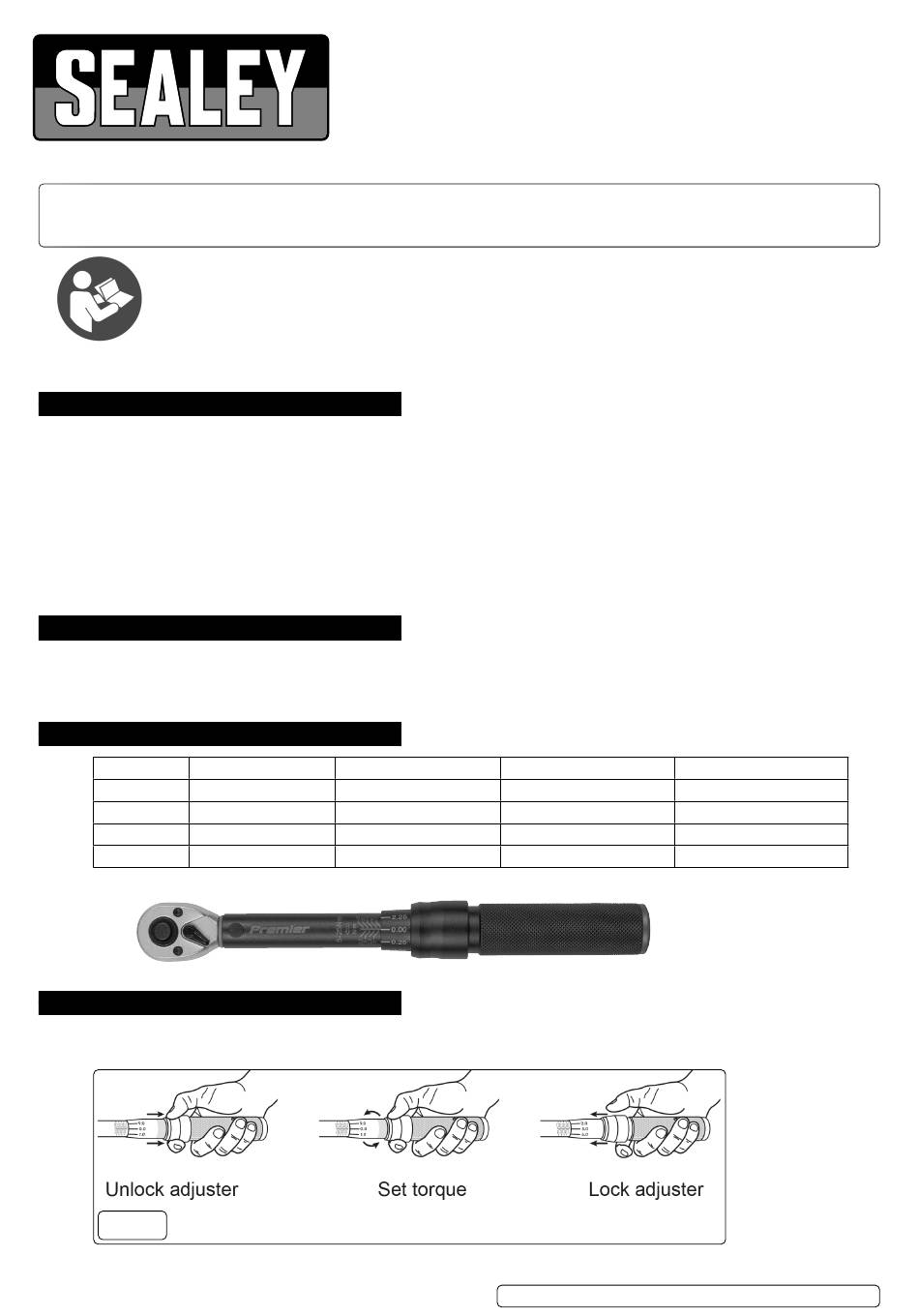

4.1. PREPARING TO SET TORQUE (fig.1)
4.1.1. Release torque adjuster by sliding the collar backwards. Set torque (see 4.2) and then lock in place by sliding the collar forwards.
fig.1
© Jack Sealey Limited
SQ DRIVE CALIBRATED MICROMETER
STYLE TORQUE WRENCH 5-25NM 20-120NM
40-220NM 60-330NM - PREMIER BLACK
STW901B STW903B STW904B STW905B
MODEL NO:
STW903B
3/8"
420mm
0.925kg
20-120Nm (14.8-88.6lb.ft)
Original Language Version
STW905B
1/2"
520mm
1.29kg
40-220Nm (29.5-162.4lb.ft)
STW901B STW903B STW904B STW905B Issue 1
STW905B
1/2"
575mm
1.38kg
60-330Nm (44.3-243.5lb.ft)
06/08/24
