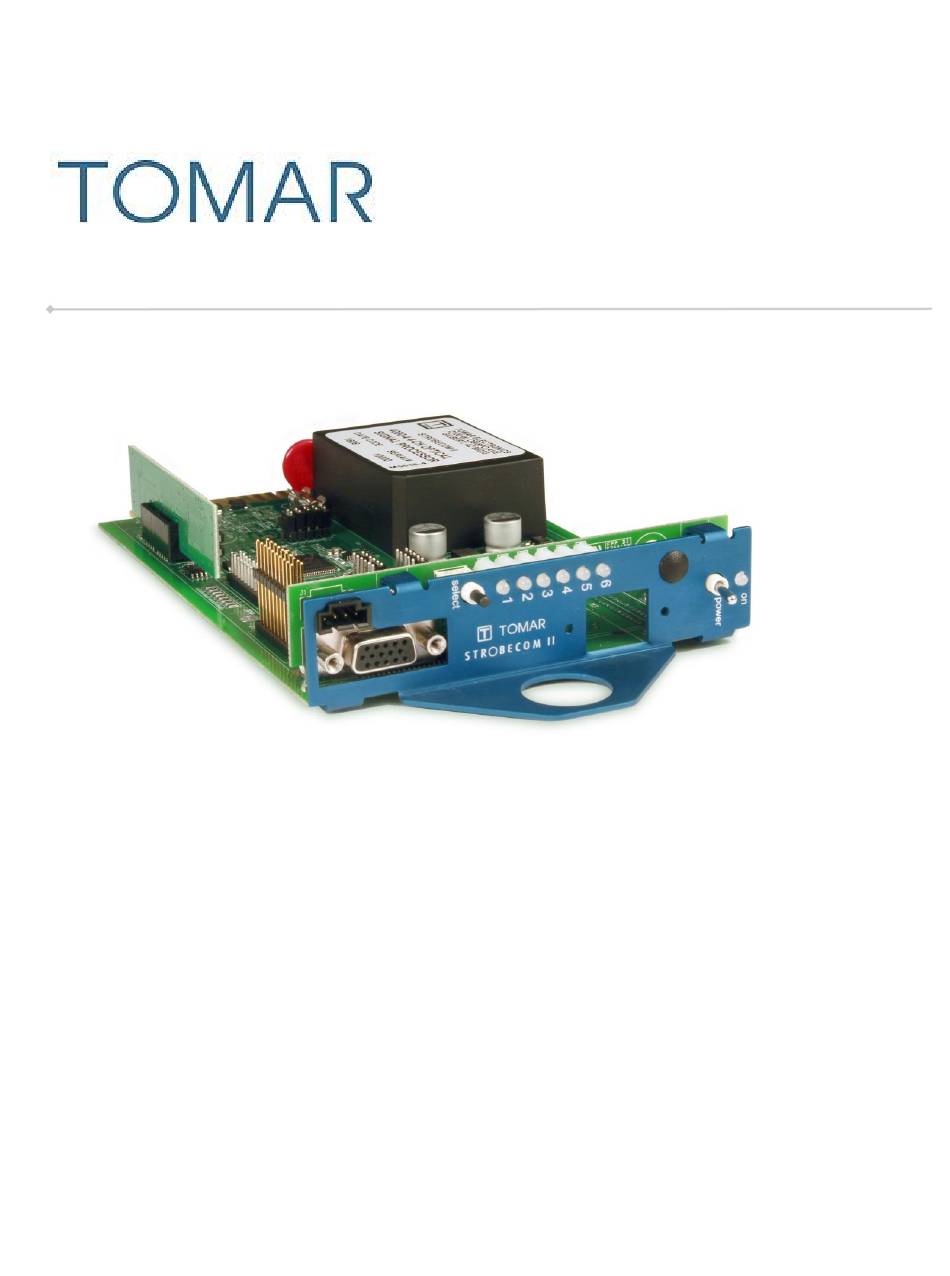

Tomar Strobecom II 4080V2 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction
Strobecom II 4080V2
and OSPOC8V2 series
with Integrated
Communications:
Configuration and
Front Panel User
Guide
The front panel of the 4080V2 and OSPOC8V2 series
provide feedback on system status and allow user
access to a command set. Unit configuration is
TOMAR Electronics, Inc.
performed via jumpers. This document will focus on
2100 W. Obispo Ave.
system configuration and the front panel command
Gilbert, AZ 85233 USA
set.
800.338.3133 ph
800.688.6627 fax
IS0882-00
10/31/2019
www.tomar.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Strobecom II 4080V2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tomar Strobecom II 4080V2 Series

Summary of Contents for Tomar Strobecom II 4080V2 Series

  • Page 1 The front panel of the 4080V2 and OSPOC8V2 series provide feedback on system status and allow user access to a command set. Unit configuration is TOMAR Electronics, Inc. performed via jumpers. This document will focus on 2100 W. Obispo Ave.
  • Page 2 REGARDLESS OF THE OPERATION OR NON-OPERATION OF THE STROBECOM II SYSTEM. TOMAR Electronics, Inc. makes every endeavor to ensure the accuracy of its documentation. However, TOMAR Electronics, Inc. is not liable for any inaccuracies contained herein. TOMAR reserves the right to make changes to its products without prior notice.

  • Page 3: Table Of Contents

    Table of Contents Front Panel Overview ..........................4 Components ..........................4 1.1.1 On Indicator LED ........................4 1.1.2 Power Switch......................... 4 1.1.3 Channel LED Display ......................4 1.1.4 Select Pushbutton ......................... 4 1.1.5 Power-up Display ........................5 Front Panel Command Menu ........................ 6 Entering the Front Panel Menu.....................

  • Page 4: Front Panel Overview

    Strobecom II 4080V2 and OSPOC8V2 Series Overview The front panel of the Strobecom 4080V2 and OSPOC8V2 series provides feedback on the system status. A single pushbutton on the front panel is also provided to select actions specific to on-site installation and verification operations.

  • Page 5: Power-Up Display

    1.1.5 Power-up Display Upon power-up, the front panel will first cycle through each LED color for all channels. Afterwards, the front panel will display the number of channels supported by the installed SPM. Each supported channel that is supported will display solid green. Note: During the power-up display period, the heartbeat will be red.

  • Page 6: Front Panel Command Menu

    2 Front Panel Command Menu The front panel menu allows access to a set of commands. Once the menu is active, each channel provides a single command as illustrated in the figure below. LED Off Menu Active Indicator LED Green ...

  • Page 7: Entering The Front Panel Menu

    Entering the Front Panel Menu By default after a power-up, the front panel menu is inactive. To active the front panel menu, press and hold the pushbutton for at least 6 seconds. The channel 6 LED will slowly blink amber when the menu becomes active.

  • Page 8: Emergency Band Test

    2.2.1 Emergency Band Test Emergency band test is associated with LED channel 1. It is solid green at this level. This will issue an emergency band test on the selected channel. During channel selection, the LED will be a solid green color.

  • Page 9: Resetting The System To Defaults

    Resetting the System to Defaults To reset the system to defaults, simply press and hold the pushbutton for at least 12 seconds. Note: After 6 seconds, the menu system will become active and display channel status. Remain holding the pushbutton to continue on with the reset to defaults command. Note: When the reset to defaults command has been activated, the front panel will display a pattern indicated the command is being applied to the system.

  • Page 10: 4080V2 And Ospoc8V2 Series Configuration Jumpers

    4 4080V2 and OSPOC8V2 Series Configuration Jumpers The behavior of the 4080V2 and OSPOC8V2 series can be modified via jumper settings on the 4080V2 and OSPOC8V2 motherboard. This allows general acceptance of certain emitter types as well as configuration of confirmation light patterns and behavior. The picture below shows the jumper locations and labels for each jumper position.

  • Page 11: Competitive Coded Emitter - Jumper Pc12

    Competitive Coded Emitter – Jumper PC12 Install this jumper to disable competitively coded emitters. PC10 When installed, any detected competitively PC12 coded emitters will display amber on the front panel, but will not be allowed to preempt. PC11 Emergency Band – Jumper PD1 Install this jumper to disable all emergency band emitters.

  • Page 12: Band Independent Priority - Jumper Pc11

    Band Independent Priority – Jumper PC11 Install this jumper to enable band independent priority. PC10 When installed, priority is given independent of PC12 the band. Transit band and emergency band are given identical priority. PC11 Replicate Pending Confirmation on Idle Channels – Jumper LTX Install this jumper to set the confirmation light for all non-preempting channels to the pattern as configured.

  • Page 13: Confirmation Light Pattern Selections - Jumpers Pd3/Pd5/Pd7

    Confirmation Light Pattern Selections – Jumpers PD3/PD5/PD7 Set these jumpers to select the desired behavior of the confirmation lights. Jumper Preempting Pending Jumper Preempting Pending Channel Channel Channel Channel Settings Settings Pattern Pattern Pattern Pattern Steady Flashing at 0.5 Steady Steady second rate Steady...
