TN840 Extender Cards and Kits
To facilitate testing, alignment and maintenance for the MT-4 radio systems, extender cards and kits can be used to
extend the individual modules out from the subrack.
Extender cards plug directly into the MT-4 SR-39-1 or MT-5 MT5-SR-00-01 subracks, and are shown in Figure 1.

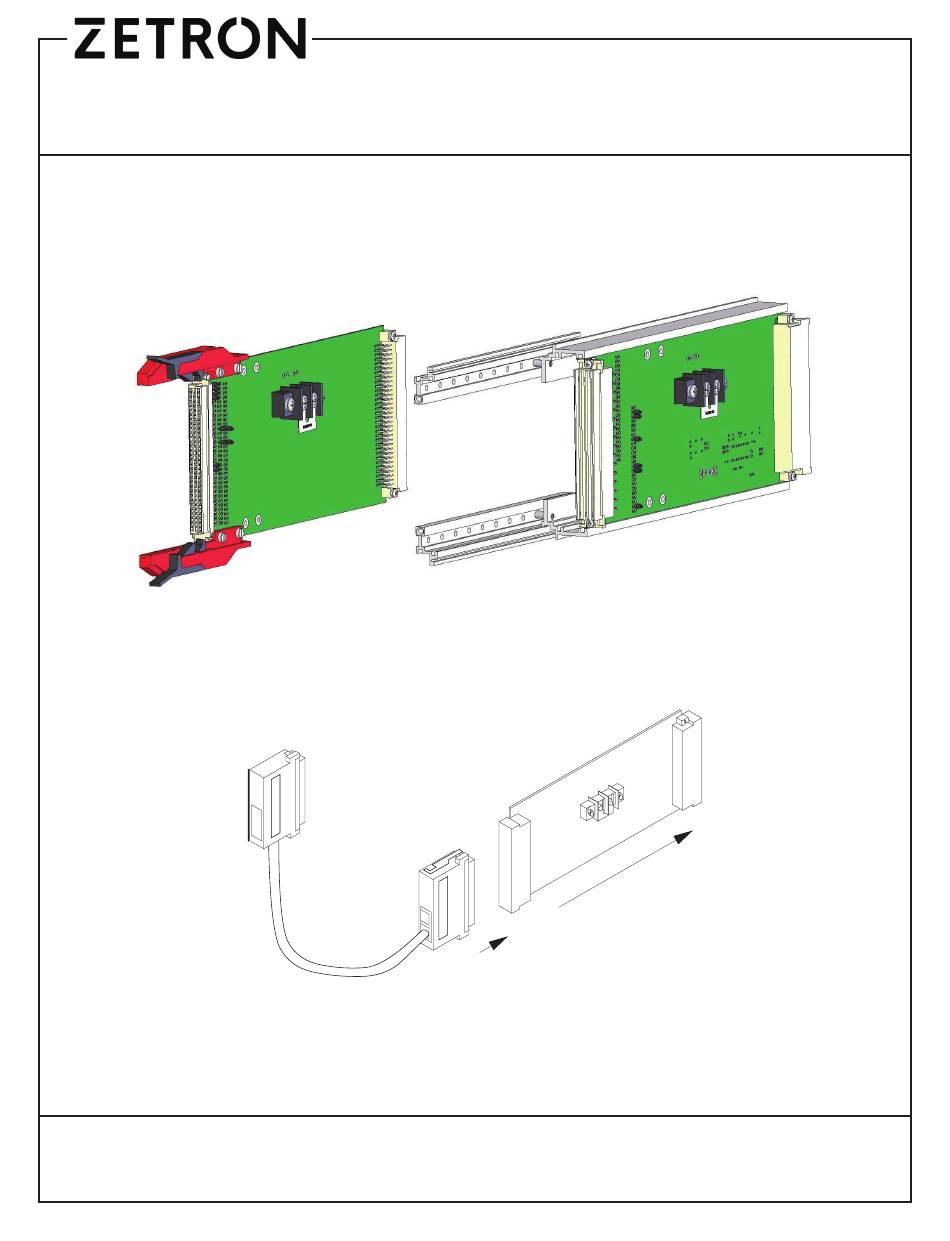

Figure 1: EC-96D1 and EC-48RD Extender Cards
Extender kits (extender card and a four foot cable) allow the modules to be extended out to a bench for servicing
as shown in Figure 2.
Figure 2: Extender Kit
TECHNICAL NOTE:
TN840, REV 5-0-0, © Jul 2024
CANADA/US
+1 250 382 8268
CONNECT TO
MODULE
EXTENDER
CARD
CABLE
| TOLL FREE
+1 800 664 4066
TECHNICAL NOTES
MT-4 Radio Systems
EXTENDER
CARD
TO SUBRACK
ZETRON.COM
LMRSALES@ZETRON.COM
Page 1 of 2
Advertisement
Related Manuals for ZETRON MT-4
Summary of Contents for ZETRON MT-4
- Page 1 MT-4 Radio Systems TN840 Extender Cards and Kits To facilitate testing, alignment and maintenance for the MT-4 radio systems, extender cards and kits can be used to extend the individual modules out from the subrack. Extender cards plug directly into the MT-4 SR-39-1 or MT-5 MT5-SR-00-01 subracks, and are shown in Figure 1.
- Page 2 TECHNICAL NOTES MT-4 Radio Systems TN840 Extender Cards and Kits The following extender cards and kits are available: EC-48RD Extender Card Used for all transmitter, receiver, amplifi er, and system regulator modules. Direct connect (no cables). Extender card and adapter panel extrusion are mounted in the subrack in TX, RX , AMP or SM-3 slot.
