PPA ALCANCE Instructions

ALCANCE
RECEIVER
433,92 MHz
Positive power supply:
Continuous Current: 12Vdc
Alternating Current: 12Vac to 18Vac
Maximum capacity:
Fixed Code: 328 remote controls
Rolling Code: 164 remote controls
Output configuration:
Terminal "A": Normally Open
Terminal "C": Common
Terminal "F": Normally Closed
Jumper configuration:
- RET - CF/CR
Open: pulse Open: Fixed Code
Closed: retention Closed: Rolling Code
Start / Erase remote controls' memory:
1st) Choose the type of code (Fixed / Rolling);
2nd) Keep the button of the remote control pressed;
3rd) Keep the GRV button pressed;
4th) Release the button of the remote control;
5th) After 10 seconds, the LED will blink three times;
6th) Release the GRV button.
Add buttons from the remote control:
1st) Keep the button of the remote control pressed;
2nd) Press and release the GRV button;
3rd) Release the button of the remote control.

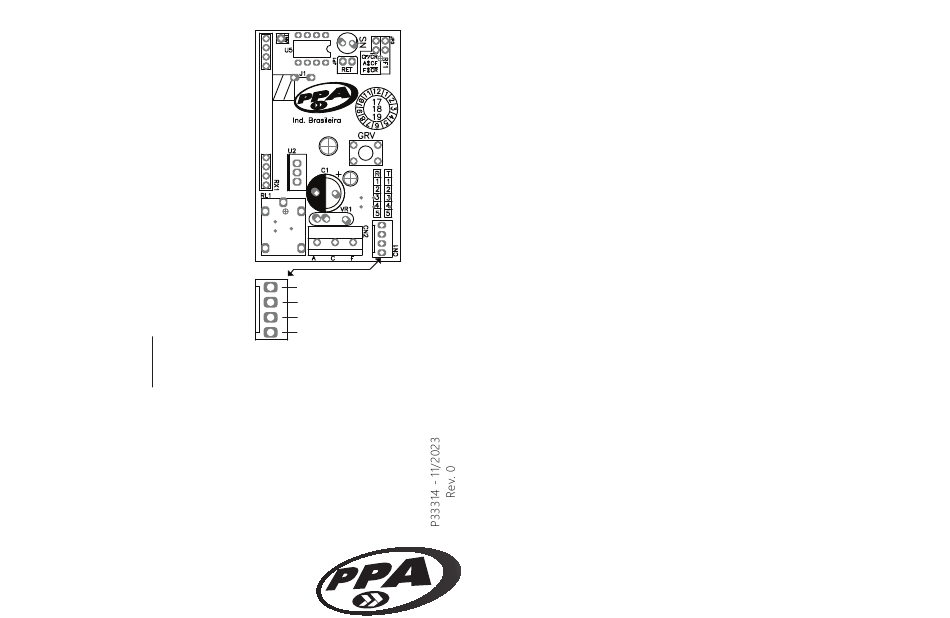

1
Pin 1 = VCC (positive)
2
Pin 2 = VCC (positive)
3
Pin 3 = GND (negative)
4
Pin 4 = CMD (command)
GENERAL TERMS AND CONDITIONS OF WARRANTY
MOTOPPAR, Industry and Commerce of Automatic Gate Operators Ltd., registered with the
CNPJ (National Registry of Legal Entities) under Number 52.605.821/0001-55, located at 3526
Dr. Labieno da Costa Machado Avenue, Industrial District, Garça – SP – Brazil, Zip Code
17406-200, manufacturer of PPA Products, hereby guarantees this product against design,
manufacturing or assembly defects and/or supportively as a result of material quality flaws that
could make its intended use improper or inadequate, within a legal period of ninety days from
time of acquisition, provided that the installation instructions described in the instruction
manual are observed.
Due to the credibility and trust placed on PPA products, we will add 275 more days to the
period mentioned above, reaching a warranty period of one year, likewise counted from the
time of acquisition proven by consumer through proof of purchase (Customer Receipt).
In case of defect, within the warranty period, PPA responsibilities are restricted to the repair
or substitution of the product manufactured by the company, under the following conditions:
1. Repair and readjustment of equipment may only be carried out by PPA Technical Assistance,
which is qualified to open, remove, and substitute parts or components, as well as repair
defects covered by this warranty; thus, failure on observing this guideline and the verified use
of any non-original parts will cause the resignation of this warranty on the part of the user;
2. The warranty will not extend to accessories such as cables, screw kit, fixing brackets, power
supplies etc.;
3. Expenses for packaging, transportation and product reinstallation will be sole responsibility of
the consumer;
4. The equipment must be sent directly to the Company responsible for the sale (manufacturer's
representative), through the address contained in the purchase invoice, properly packed, thus
avoiding loss of the warranty;
5. Within the additional period of 275 days, visits and transportation in places where authorized
technical assistance is not available will be charged. The cost of transportation of the product
and/or technician will be sole responsibility of the consumer and
6. The substitution or repair of the product does not prolong the warranty time.
This warranty will be terminated if the product:
1. Is damaged by natural agents, such as atmospheric discharges, floods, wildfires, landslides
etc.;
2. Is installed in an improper electric power supply or if it is not according to any of the
installation instructions displayed on the manual;
3. Shows defects caused by droppings, collisions or any other physical accident;
4. Shows signs of product violation or attempted repair by unauthorized personnel;
5. Is not used for its intended purpose;
6. Is not used under normal conditions;
7. Is damaged by accessories or equipment connected to it.
Recommendation:
We recommend that both the installation and the maintenance of the operator to be
performed by an authorized PPA technical service. If the product fails or has an improper
operation, seek an Authorized Technical Service to fix it.
Motoppar Indústria e Comércio de Automatizadores Ltda
Av. Dr. Labieno da Costa Machado, 3526 - Distrito Industrial
Garça - SP - CEP 17406-200 - Brasil
CNPJ: 52.605.821/0001-55
www.ppa.com.br | +55 14 3407 1000
Made by:
