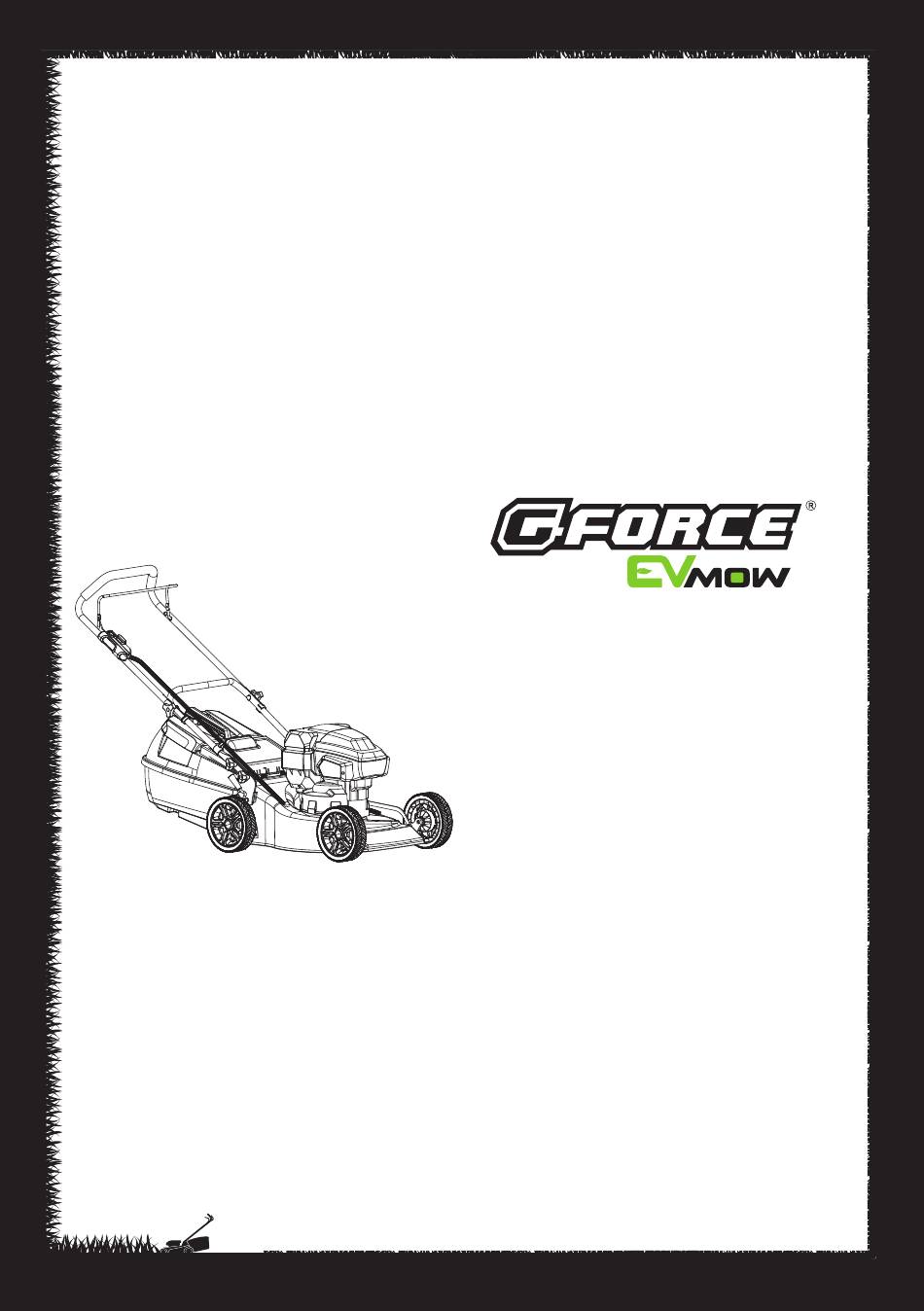

- Page 1 OPERATION MANUAL GARDEN PRODUCTS LAWN MOWER EV LM1-18...
- Page 2 WARNING! Read this manual carefully before using your lawn mower and keep it in a safe place for future reference.
-
Page 3: Table Of Contents
TABLE OF CONTENTS DESCRIPTION OF PRODUCT PARTS PACKAGE CONTENT LIST TECHNICAL SPECIFICATIONS INTENDED USE SAFETY INFORMATION GENERAL SAFETY WARNINGS ASSEMBLY OPERATION CLEANING, MAINTENANCE AND STORAGE TROUBLESHOOTING WARRANTY... -
Page 4: Description Of Product Parts
DESCRIPTION OF PRODUCT PARTS... - Page 6 Insulating sleeve...
-
Page 8: Package Content List
PACKAGE CONTENT LIST Parts description (Fig. A) Start/stop lever Safety button Switch box Handle knob Grass catcher Cutting height adjustment lever Rear wheel Upper handle Lower handle 10. Battery compartment 11. Front wheel 12. Safety key PACKAGE CONTENT LIST a. Mower b. -
Page 9: Technical Specifications
Your power tool should only be passed on together with this instruction manual. WARNING! To reduce the risk of injury, only use G-FORCE battery packs. Other types of battery packs may burst causing personal injury and damage. -
Page 10: Safety Information
SAFETY INFORMATION SAFETY INFORMATION The following symbols are used in this manual and/or on the Mower. Read the instruction manual Warning before using the appliance Wear ear protection Wear eye protection Wear protective footwear Wear protective mask Wear protective gloves Sound power level label WARNING - Keep hands and WARNING - Beware of... -
Page 11: General Safety Warnings
GENERAL SAFETY WARNINGS GENERAL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 12 GENERAL SAFETY WARNINGS Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
- Page 13 GENERAL SAFETY WARNINGS work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
- Page 14 Unexpected operation of the lawnmower may result in serious personal injury. 8) Safety instructions of the charger Use the charger only to charge a compatible G-FORCE battery. Never attempt to charge non-rechargeable batteries. Do not expose the charger to water.
- Page 15 GENERAL SAFETY WARNINGS charger. The charger is for indoor use only. If the supply cord of the charger is damaged, it must be replaced by the manufacturer, its service agent or a similarity qualified person to avoid a hazard. 9) Safety instructions of the battery Do not dismantle, open or shred secondary cells or batteries.
- Page 16 GENERAL SAFETY WARNINGS Dispose of properly. w) The charging temperature is between the range of 5 °C to 50 °C. 10) Residual risks Additional residual risks may arise when using the mower which may not be included in the safety warnings. These risks can arise from misuse, prolonged use etc.
-
Page 17: Assembly
ASSEMBLY ASSEMBLY 6.1 Assembling the handles(Fig. C and D) a) Attach the lower handle to the bracket with the handle knobs and nuts provided. b) Attach the upper handle to the lower handle using the handle knobs and nuts provided. Make sure the nuts pass through the insulating sleeve and the insulating sleeve is between the upper handle and the lower handle. -
Page 18: Operation
OPERATION OPERATION WARNING: The mower has a safety key in its battery compartment. The safety key is designed to prevent the mower from accidental start up. It will disable the mower if it is removed. WARNING: After the mower is switched off, the blade will continue to run for several seconds. -
Page 19: Cleaning, Maintenance And Storage
MAINTENANCE AND STORAGE mower's battery compartment and push the battery pack into the battery compartment until it clicks into position. c) To remove the battery pack, press the battery pack's release button and pull the battery pack out at the same time. d) Insert the safety key. -
Page 20: Maintenance
MAINTENANCE AND STORAGE Maintenance a) Keep all the nuts, bolts and screws tight. b) Check the mower for any worn or damaged parts before operation. c) Removing and installing the blade (Fig. N) To remove the blade, hold the blade firmly and loosen the blade bolt nut by turning it clockwise. -
Page 21: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Problem Possible cause Possible solution Safety key is not inserted Insert the safety key Battey pack is not inserted Reinsall the battey pack Cannot start properly Battery pack is not Charge the battery pack charged Clear the debris from the Mower is overloaded blade and do not cut grass that's too high... -
Page 22: Warranty
WARRANTY WARRANTY This product is covered by a 2 year parts and labour warranty against manufacturing defects. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
