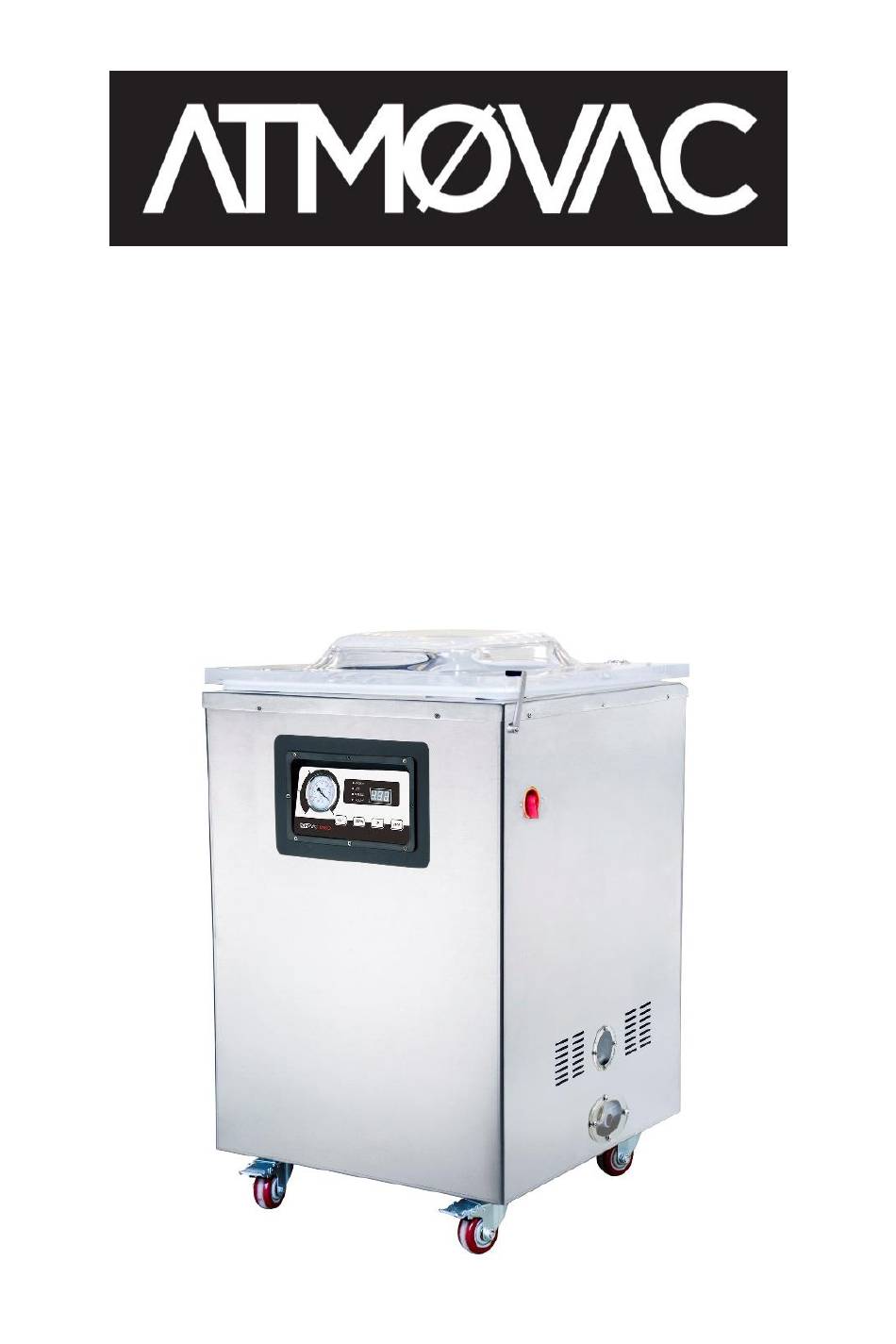

Page 1 User Manual Chamber Vacuum Sealer Diablo20D...
Page 2: Table Of Contents
Contents Introduction .................... 3 Safety Notice ..................5 Day-to-Day Operation ................ 19 Technical Specifications ..............23 Operating Instructions ................ 24 Maintenance ..................26 Error Codes and Troubleshooting ............ 33...
Page 3: Introduction
Introduction Thank you for choosing the Diablo20D Vacuum Packaging Unit. We are confident that you will enjoy the convenience of this high-quality, high-performance appliance. To ensure that you operate the chamber vacuum sealer correctly, please read this user manual carefully before using the unit.
Page 4 Responsibilities: • This manual contains detailed information on how to properly operate the vacuum sealer. The supplier will not be held responsible for any damage or harm caused by the incorrect operation of the unit. • The supplier will not be held responsible for damage to, or malfunction of the unit caused by the use of incorrect spare parts.
Page 5: Safety Notice
Safety Notice Warning Summary This product conforms to the latest technical and safety standards. Incorrect use of the unit is dangerous and may cause harm to the operator or bystanders. Please see below for the description of the various warnings: DANGER, WARNING, CAUTION.
Page 6 Operation This unit is intended to be used indoors under normal conditions. If the unit must be used in extreme conditions (e.g., in a caustic environment or in temperatures higher than 40 ˚C or lower than 5 ˚C), please contact the supplier. When the unit is operating, the oil in the pump will be separated to the maximum extent;...
Page 7 Transportation and Storage Wooden Case Packing If a lifting device is used when setting up the unit, please pay particular attention to the position of the center of gravity of the unit. • Ensure that the straps can be safely attached to the unit.
Page 8 CAUTION! May cause damage to the unit. Tipping over the unit when there is oil in the pump will cause oil to enter the pump chamber. If there is too much oil in the chamber when the pump is started, the pump will be damaged.
Page 9 Storing the Unit Long Term The inside of the unit has received an anticorrosive treatment in the factory; therefore, it is not necessary to use protective oil. However, in extreme storage conditions (e.g., in a caustic environment or where temperatures are very high or fluctuate frequently), it is necessary to reapply oil in order to keep the unit in good condition.
Page 10 Set-up CAUTION! May cause damage to the unit. Please follow all instructions below when setting up the machine. Below conditions must be met during set-up of the unit in order to avoid damage. Be careful not to get hurt. Please ensure to use the appliance in an environment conforming to the safety indications.
Page 11 • Ensure that the appliance is in a horizontal position when in use. • Keep a distance of 10 cm between the unit and walls or other objects to ensure adequate ventilation. • Keep the appliance away from sources of heat or steam (such as steaming pot, dishwashers or stoves) •...
Page 12 Filling and Draining the Oil CAUTION! May cause damage to the unit. Note that there is no oil in a new machine. Operating the vacuum sealer without oil will damage the appliance. Before operating the machine, ensure that the pump has been filled with oil. Only fill the pump with oil via the filling port.
Page 13 When the pump is operating, the inside of the pump chamber will be full of oil mist; both the temperature and pressure are very high. If the oil-filling port is open, harm may be caused by the hot oil mist. The oil plug can only be opened when the pump stops working.
Page 14 • Screw the cap back on tightly and reinstall the cover of oil window #1. Draining the Oil • Use a screw driver to open oil window #2. • Place a container directly under the oil-draining port. • Use the spanner provided by the supplier to unscrew the cap which will allow the oil to drain.
Page 15 Oil window #1 Oil window #2...
Page 16 Oil fill port screw cap Oil pump Max level Oil drain port screw cap Min level Oil indicator...
Page 17 Gas Inflation System (if applicable) WARNING! Risk of explosion! Do not use explosive gas, or any mixed gas containing 20% or more oxygen; otherwise, it will cause an explosion. CAUTION! May cause damage to the unit. The pressure of the gas source must not be higher than standard atmospheric pressure.
Page 18 • The pressure setting valve on the gas bottle must not be higher than 0.1MPa; otherwise it will damage the unit. • The diameter of the gas-filled tube is 8 mm. This connector will be located at the side or at the back of the unit.
Page 19: Day-To-Day Operation
Day-to-Day Operation Unit Lid lock Power switch Vacuum gauge Control panel Castor...
Page 20 Chamber Gasket Chamber Seal strip Seal bar...
Page 21: Control Panel
Control Panel A. Vacuum gauge Shows pressure in the vacuum chamber B．Indicator light • When the light is on, the corresponding operation mode is ready to be set.
Page 22 • When the light is flashing, the unit is functioning in the corresponding operation mode. C. LED Display • “OFF” indicates the unit is in standby. • “ON” or “CLO” indicates the unit is ready. • When the mode is ready to be set, the display shows the duration of the setting.
Page 23: Technical Specifications
Technical Specifications 110–120 Vac 60 Hz/220–240 Vac 50 Hz Voltage: 1180W/1180W Power: Oil pump Pump type: -29.9″ Hg (-1012 mbar) - directly in pump Pressure: -29.8″ Hg (-1009 mbar) - in vacuum chamber 3.5 mm × 2+3.5mm × 2 Seal wire width: 508 mm ×...
Page 24: Operating Instructions
Operating Instructions 1. Select the appropriate size vacuum bag. Be sure to allow at least one to two inches of extra space at the top of the bag to ensure an airtight seal 2. Check that the electrical cord is plugged into a grounded electrical socket;...
Page 25 skipped. The Diablo20D model does not offer the gas inflation option; press the Set button to leave it at 0s.) 5. Close the lid; the process will start. The indicator light shows the mode that is in progress, and the time remaining for that mode is displayed.
Page 26: Maintenance
Maintenance Maintenance of your chamber vacuum sealer is necessary in order to extend the service life of the unit. If the unit is used frequently (more than four hours per day), professional maintenance should be carried out every six months. If used less than four hours per day, professional maintenance should be carried out once per year (may vary based on the performance of the unit).
Page 27 • Only a qualified specialist should carry out full maintenance on the unit. • When moving the unit, ensure to keep it in an upright position. Tipping the unit will damage the pump. • The unit can operate up to a maximum of eight hours per day.
Page 28 • Do not use a solvent-based detergent to clean the lid as the solvent may damage it. • Check the lid for damage at least once a week. If the lid is damaged, stop using the unit immediately until the lid has been replaced.
Page 29 advice, please contact the supplier. • New units do not have oil in the pump. Before using your unit for the first time, please fill the pump with oil. • Please check the color of oil; it should be clear and bright.
Page 30 immediately. • The seal strip is located in the groove of the lid and can be removed easily. • To replace the seal strip, remove the used seal strip from the groove of the lid. • Install the replacement seal strip into the groove. •...
Page 31 which will cause leakage when the unit is running.
Page 32 • Install the replacement gasket into the groove. • The gasket must be installed evenly but not too tightly. Both ends of the gasket must perfectly straight and even in order to prevent any leakage.
Page 33: Error Codes And Troubleshooting
Error Codes and Troubleshooting Error Cause Troubleshooting code 1) Check if the lid is closed The unit has tightly. been 2) Check if the gate control vacuuming for switch system is working some time, the normally or not (gate control pressure switch ASSY, GASI switch doesn’t...
