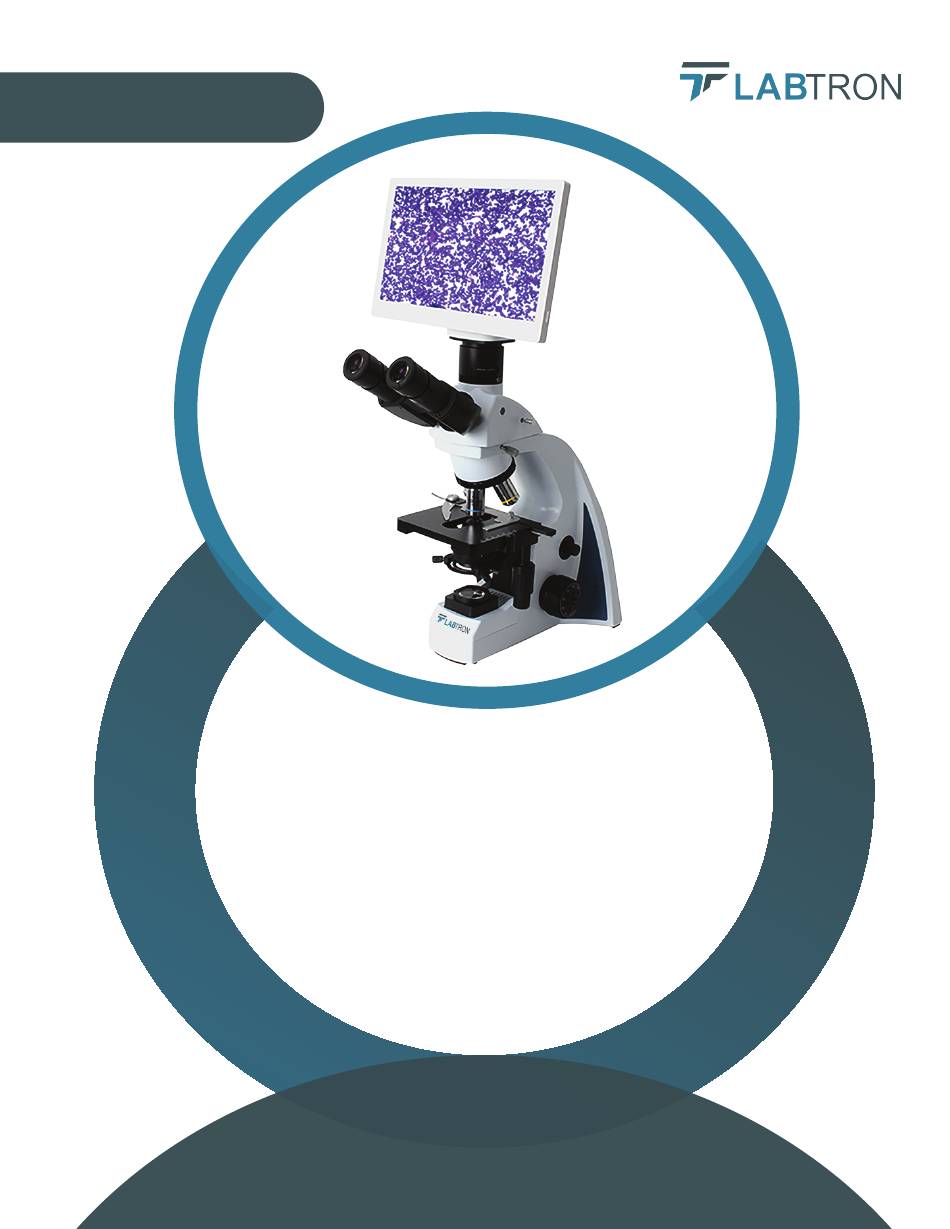

- Page 1 Operation Manual Digital Digital Microscope Microscope LDM-D10 LDM-D10 www.labtron.com info@labtron.com...
-
Page 2: Table Of Contents
Digital Microscope LDM-D10 Index Sr.no Title Page no Introduction Features Speci�ications Applications Instrument Introduction Installation Operations Software operations Maintenance Replacement... -
Page 3: Title Page No
Digital Microscope LDM-D10 1. Introduction Digital microscope LDM-D10 is an advanced microscope with in�inite optical system, compensation free 30° inclined Trinocular viewing head with 9.7 inch TFT touch screen display attachment to view and study high resolution image of the specimen. It allows person to view the sample without straining the eyes because of which quantitative analysis of samples at microscopic level is possible. -
Page 4: Speci�Ications
Digital Microscope LDM-D10 3. Speci�ications In�inite optical system Model No. LDM-D10 Compensation free trinocular viewing Optical system head, 30° inclined, interpupillary distance 48 to 75 mm Viewing head Wide �ield Eyepiece WF 10 X/ 22 mm In�inite plan achromatic objectives 4X,... -
Page 5: Instrument Introduction
Digital Microscope LDM-D10 5. Instrument Introduction Figure-1 Structure of the microscope... - Page 6 Digital Microscope LDM-D10 Figure-2 Tablet Figure-3 Six-segment structure of the tablet...
-
Page 7: Installation
Digital Microscope LDM-D10 6. Installation 1) Remove the microscope with both hands hold the stand and bottom from the box and Styrofoam packing and put it on a stable worktable carefully. 2) Remove plastic bags and dustproof cover of each adapter. -
Page 8: Operations
Digital Microscope LDM-D10 7. Operations 7.1 Using the instrument 1) Turn on the power switch, adjust the brightness knob to make the brightness 70% of the full load. 2) Place the specimen (slide) to be viewed smoothly onto the stage, and cover slip to face the objective. - Page 9 Digital Microscope LDM-D10 11) Removed dustproof cover in using the trinocular head, and the CMOS electronic eyepiece. Photo and CCD attachments are put conveniently into the trinocular tube. You may be ready to begin working after shifting the light path by moving the light path shifting rod into the working position.
-
Page 10: Software Operations
Digital Microscope LDM-D10 8. Software operations 8.1 Main interface mode Figure-3 The camera enters this interface directly after powering on, and you can make shortcut settings for the camera in the status bar as needed. 1) The icons are for image setting, photo, Video, Preview, Measurement and other functions. - Page 11 Digital Microscope LDM-D10 3) The icons are for black and white mode, image freeze mode, center scale switch, image parameter reset, color and size adjustment of the scale line setting. Figure-6 4) The icons will set the time, WIFI, and other parameters.
- Page 12 Digital Microscope LDM-D10 1) After the camera is turned on directly into the screen as shown. 2) Click the button to pop up the menu as shown. 3) you can set the image parameters according to demand (1) Auto exposure: Provide two modes of manual setting and auto setting, and the system defaults to auto mode.
- Page 13 Digital Microscope LDM-D10 Click to choose the button to enter the measurement 1) Mode: Providing calibration mode, line calibration and circle calibration are available to be selected. After clicking the line calibration icon, the preview interface will directly display the line segment, according to the location and length of the calibration scale, the mouse will move the line segment to the top of the calibration scale to overlap with the corresponding scale.
- Page 14 Digital Microscope LDM-D10 Click to enter the following interface, and then you can measure the objects and take the corresponding screenshot or report export. 1) Icons are for point coordinates, straight lines, dashes (end of right mouse button), drawing circles etc.
-
Page 15: Maintenance
Digital Microscope LDM-D10 9. Maintenance 1) The microscope should be placed in a cool, dry, and clean area, away from any acid, alkali, or steam. Avoid exposing it directly to sunlight. 2) Working environment: a. Indoor temperature: 0℃～40℃. b. Maximum relative humidity: 85%. -
Page 16: Replacement
Digital Microscope LDM-D10 Replacement 10.1 Bulb replacement Slide the frontal undrawing type light collector framework out, to expose the bulb. Remove the old bulb after it becomes cool. (The bulb will become very hot when using or after using.) Don’t touch the new bulb with the �inger, if there is a �ingerprint and dirt, that will decrease the brightness and shorten the life of the bulb, wipe it with a clean and soft cloth.
