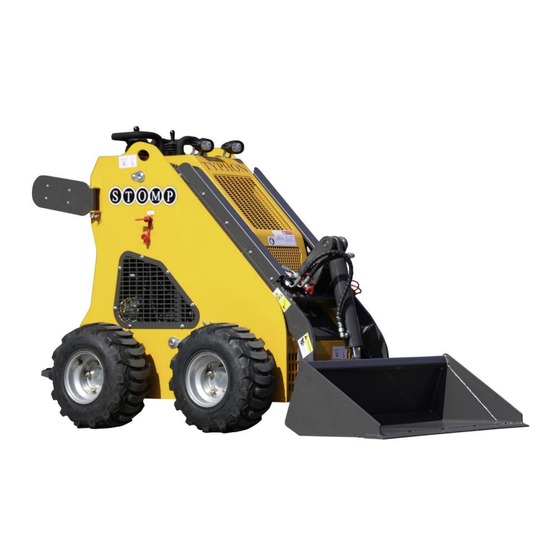

TYPH-0506 Skid Steer Loader

Operation Manual

Table of Contents

Need help?

Do you have a question about the STOMP TYPH-0506 and is the answer not in the manual?

Questions and answers

Summary of Contents for TYPHOON STOMP TYPH-0506

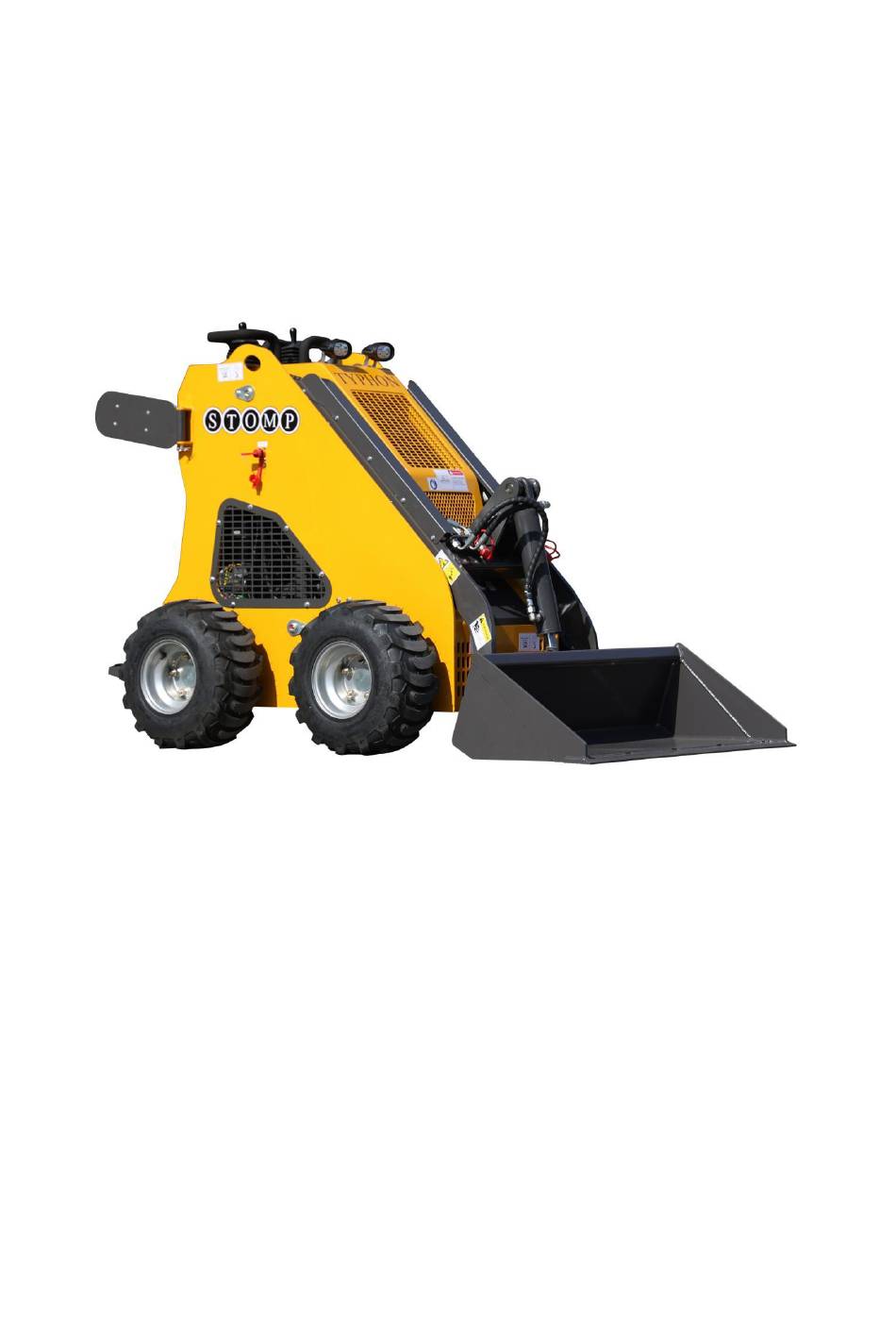

Page 1 TYPH-0506 Skid Steer Loader Operation Manual...
Page 2 Instructions for use and maintenance guide for the sliding loader Machine Serial Number: Engine Serial Number:...
Page 3: Customer Instructions
Customer instructions Please read the use instructions in this manual carefully to ensure the efficient operation of the machine. The manual describes how to operate and maintain the slip loader. All instructions are for reference only. See the words "caution", "warning" or "danger" in this manual. Please be sure to read the instructions given after the words carefully to prevent the possibility of personal injury or machine damage.
Page 4 4. Check whether the walking system of the machine meets the requirements, whether there is wear, cracks and other phenomena. 5. Check the cleanliness of the driving control console to ensure that there is no debris and no safety risks. Operational safety regulations 1.
Page 5 2. Before starting: .12 storage safety rod, only in the safety rod storage, the whole machine can be started. 2.2 It must be confirmed that there is no working personnel around the machine, and honking the horn to remind the people around to stand to the safe part before starting the machine. 3 .
Page 6 tire if necessary. 5. In case of injury to the operator, call the emergency number immediately and take necessary first aid measures. 6. In case of fire and other situations, you should immediately alarm and stop away from the scene and wait for rescue.
Page 7 After checking the radiator, the water injection mouth cover is tightened. If the cover is not tightened, water steam will be ejected during the engine operation. Proper ventilation of the storage battery area The area around the battery must be well ventilated. Be careful to keep the battery away from the fire source, as the battery emits flammable hydrogen during charging.
Page 8 warn! Machinery shall not be reformed without authorization Disposal of the waste materials Install the waste oil into a suitable container. Do not pour the waste oil directly into the outdoor, sewer, river or sea. Waste disposal must comply with the relevant laws and regulations. Submit waste to professional waste recycling companies for centralized disposal...
Page 9: Table Of Contents
catalogue chapter one Machine information ..............................1 Customer instructions ..............................2 safety instruction ..............................2 catalogue ..................................5 1.1 Location of safety stickers ..........................6 .21 Speciparameters of the whole machine ......................7 .31 Description of the control panel ........................8 Chapter 2: Operation .12 Main power supply to start ..........................
Page 10 Battery switch...
Page 11 Specificat performance parameter model 360L burden rating Shovel bucket m ³ 0.13 volume Maximum lift working km /h speed function M pa rated pressure Raise the time drop-out time Fold time climbing capacity working Weight...
Page 12 brand Bailitong Run through model 25T2 R 420 Gasoline engine, single- Gasoline engine, single- type cylinder air cooling cylinder air cooling engine 15HP /3600rpm 13.5HP /3600rpm output power fuel L /h ≤3.8 ≤4.2 consumption starting mode Electric start Electric start fuel tank capacity Engine oil...
Page 14: Hardware Operation
hardware operation 2.1 Main power supply to start 2.1.1. Insert the start switch knob .2.2.1 Turn the switch from the OFF position and clockwise to the ON position. .22 Start switch 2.2.1 Starting switch is a second-stage rotary switch. Insert the key into the lock slot to rotate the key to locate the start switch.
Page 15: Operating Instructions
Note: When the gasoline engine is started, the diesel engine shall be properly accelerated to start successfully 2.2 Operation instructions:...
Page 16 .2.12 Left-hand handle action control: The handle pushes in the 2 direction, the left wheel advances, the walking speed matches the handle propulsion range; the handle moves in the 4 direction, the left wheel retreats, the walking speed matches; the handle moves in the 3 direction, the lifting arm rises, the ascending speed and the handle propulsion range match;...
Page 17 .2.22. Right-hand handle action control: The handle pushes in the 2 direction, the right wheel advances, the walking speed matches the handle propulsion range; the handle moves in the 4 direction, the right wheel retreats, the walking speed matches the handle propulsion range;...
Page 18 action; .2.42 Chronograph: record the working time of the machine 2.2.5 Horn switch: reset the switch, after pressing, the vehicle horn rings, release the horn sound stops. 2.2.6 Lighting switch: self-lock switch, press, LED lighting on 2.2.7 Start key: with preheating function, position OFF, position ON, position START.
Page 19: Quick Replacement Device For The Lifting Plate
.2.82 Throttle cable: control the engine speed, counterclockwise rotation speed increase, clockwise engine speed reduction, and fast throttle function. 2.3 Quick replacement device for the lifting plate 2.3.1 Before replacing the device, pull out the quick lock pin on the lifting plate upward and rotate it by 90 degrees, and be firmly stuck on the positioning plate.
Page 20: Engine Use
2.4 Any joint The working oil port A Working oil port B With the oil return Connect different working tools, pay attention to the connection of the working oil port. For the original shell unloading oil, connect the working oil return interface. warn! Note: After connecting the device, run at small engine speed to ensure correct and normal steering and movement to prevent accidents from improper operation and operator...
Page 21 If you use ethanol gasoline, gasoline can contain up to 10% alcohol. pay attention to Do not use unapproved gasoline, such as E15 and E85. Do not mix other oils into the gasoline, or change the engine to use other fuels. Using unapproved fuel will damage the engine assembly and is not covered by the warranty.
Page 22 Store the fuel in a clean bucket beyond the rain. Once the fuel is mixed with water or dirt, it can cause an engine failure. Hold the tank for 24 hours until the water and dirt in the fuel settle at the bottom of the container.
Page 23 Synthetic 5W-30 Vanguard Synthetic 15W -50 Check the machine, the oil oil level Before checking the engine oil level Ensure that the engine remains level. Clean the oil injection port site and remove unnecessary materials. Short oil caliper (if installed) 1. Remove the oil caliper. Wipe the oil off the oil chipstick with a cloth.
Page 24: Fuel Supply
2.6. Fuel oil supply danger! Be careful of the fuel oil being on fire Make sure that the fuel specification is correct before refueling. If gasoline or similar products is misplaced, it may cause the fuel to catch fire. Always off the engine before refueling.
Page 25: Lubricating Oil Supply
2. Fill the fuel oil into the fuel tank. Considering the expansion of the fuel, never push the oil level above the lower neck of the fuel tank.3. Install the oil tank cap. start the engine Be careful not to spill the fuel out when refueling. 2.7.
Page 26 Maintenance and maintenance 3.1 Inspection (1) Regular inspection The engine performance will deteriorate due to operating conditions and operating duration. Neglect of performance and functional deterioration can lead to unexpected failures that can interfere with your work, increase fuel and lubricant consumption, increase emissions and noise, and thus shorten the life of the engine.
Page 27 If repair or repair is required, consult your agent or distributor. 3.2 Clean the air filter. pay attention to! When the filter element on the air filter is blocked by dust, the performance of the engine will be greatly affected. Therefore, a regular cleaning is required. When the engine is operating in a dusty place, the filter element should be cleaned more frequently.
Page 28 Check once every 100 run hours (1) Replace the lubricating oil and the lubricating oil filter element (for the second time and later) Replace the lubricating oil every 100 operation hours from the second time. At the same time, replace the lubricating oil filter element.(6) Replace the air filter element (optional part) The damaged filter element the suspended matter in the air into the combustion chamber, causing rapid wear of the engine and shortening the service life of the...
Page 29: Periodic Checklist
3.4, periodic checklist The first 5 hours Replace the engine oil. Every 8 hours or daily intervals Check the engine oil level. Clean the area around the silencer and controls. Clean the air inlet grille. Every 25 hours or every year Clean the air filter.
Page 30 3.5 Engine FAQs phenomenon probable cause resolvent No fuel Supplemental fuel Replace the fuel oil and repair it or Water in the fuel system more Change the fuel system Fuel pipe blockage Clean or replace Fuel filter is blocked renewal The engine does Low-temperature timing oil, the Use the prescribed oil...
Page 31 Oil leakage due to seal or seal ring renewal failure Insufficient oil replenish The oil filter is blocked cleaning Low oil pressure Oil channel blockage cleaning Different types of oil Use the specified type of engine oil Insufficient oil replenish Dust blocks the heat net and cooling cleaning blades...
