- Page 1 ROBOT VACUUM CLEANER INSTRUCTION MANUAL Please read the manual before use...
-
Page 2: Table Of Contents
Installation of Side Brush to Robot Vacuum Side Brush (Weekly cleaning is Power on & Charging recommended) Wireless Network Connection Main Wheels (Weekly cleaning is with obode App recommended) Preparations of the Water Tank Mop Assembly Environmental Requirements Sensor and Charging Contacts (Weekly... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE), Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. - Page 4 SAFETY INSTRUCTIONS Do not use without dust bin and/or filters in place. Prevent unintentional starting. Ensure the switch is in the o -position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appli- ance that have the switch on invites accidents.
- Page 5 SAFETY INSTRUCTIONS Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care. Place the cords from other appliances out of the area to be cleaned. Do not operate the vacuum in a room where an infant or child is sleeping. Do not operate the vacuum in an area where there are lit candles or fragile objects on the floor to be cleaned.
- Page 6 SAFETY INSTRUCTIONS CAUTION: Please read the instruction sheet carefully before use "IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS" and "DANGER – TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CARE- FULLY FOLLOW THESE INSTRUCTIONS". This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concern- ing use of the appliance by a person responsible for their safety.
- Page 7 SAFETY INSTRUCTIONS In the event of a leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the a ected area with copious amounts of water and seek medical advice. Do not use any charger other than that specifically provided for use with the equipment.
- Page 8 SAFETY INSTRUCTIONS Seek medical advice immediately if the battery has been swallowed. Keep batteries clean and dry. Do not leave a battery on prolonged charge when not in use. After extended periods of storage, it may be necessary to charge and discharge the batteries several times to obtain maximum performance.
-
Page 9: Fcc Compliance Statement
SAFETY INSTRUCTIONS FCC COMPLIANCE STATEMENT CAUTION: Please read the instruction sheet carefully before use This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: -this device may not cause harmful interference. -this device must accept any interference received, including interference that may cause undesired operation. -
Page 10: Technical Data
TECHNICAL DATA Product Model: A8+ Host Charging Voltage: 16.7V Host Rated Voltage: 14.4V Host Rated Power: 55W Docking Station Model: BS2111-U Docking Station Input: 120V~, 60Hz, 5A Docking Station Output: 16.7V , 1A Battery Model: BP14452C Battery Rated Voltage: 14.4V Battery Capacity: 5200mAh 74.88Wh Charging Limit Voltage: 16.8V Midea Robozone Technology Co.,Ltd... -
Page 11: In The Box
IN THE BOX Components in Package Robot Vacuum Self-Emptying Base 432.5mm 97mm Side Brush x4 Disposable Dust Bag Filter Instruction Manual Mopping Cloth... -
Page 12: Introduction To Parts Of Robot Vacuum

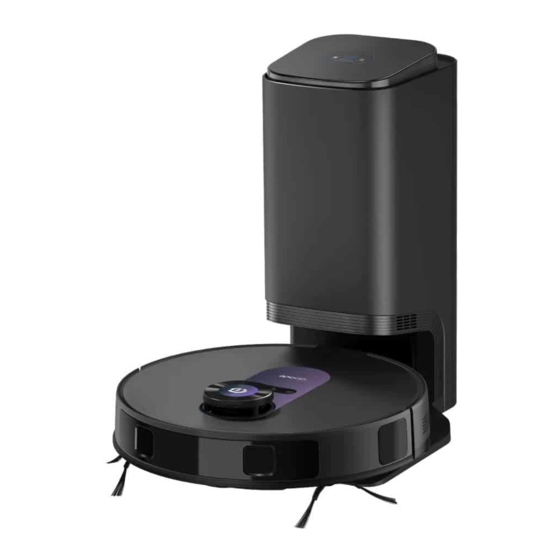

IN THE BOX Introduction to Parts of Robot Vacuum Main View Network / Spot Cleaning Button Bumper LiDAR Sensor Power Button Recharging Button Dustbin Release Button Dustbin / Release Button of Water Tank Auto-lifting mop Bottom View Cli Sensors Omni-directional Wheel Carpet Detection Sensor... -
Page 13: Introduction To Self-Emptying Base
IN THE BOX Introduction to Self-Emptying Base Main View (with lid closed) Canister Lid Self-Empty Inlet Charging Contacts Back View Power Cable Slot... -
Page 14: Preparations Before Use
PREPARATIONS BEFORE USE Installation of Self-Emptying Base Place the self-emptying base flat against the wall on a level surface. If there is any charging base for other robot vacuum cleaners in the room, please put it away before use of our self-emptying base to avoid mismatching. -
Page 15: Power On & Charging
PREPARATIONS BEFORE USE Power on & Charging Press and hold " " for 3 seconds to power on the robot vacuum. After the power indicator turns on, put the robot vacuum into the self-emptying base for charging, as shown. We recommend you charge the robot for at least 6 hours before using it for the first time. -
Page 16: Wireless Network Connection With Obode App
Ensure your phone is connected to the wireless network that you wish to operate the robot with and Bluetooth is turned on. Download App: Scan the QR code or search for “obode Life” in the Apple or Google Play Store to download the App. - Page 17 PREPARATIONS BEFORE USE Notes If your home Wi-Fi name or password is changed, you will need to re-establish connection with your robot. 1. App supports iOS 10.0 and above, Android 6.0 and above phone system versions, but pad device is not accepted; generally the phone system version can be checked through the "Settings-About Phone"...
-
Page 18: Preparations Of The Water Tank
PREPARATIONS BEFORE USE Preparations of the Water Tank When using the mopping function, press the dustbin release button to remove the dustbin. Open the tank lid, fill the water tank with cold water, and securely close the lid. Place the dustbin back into the robot. Water Inlet/Outlet Notes Do not add hot water or detergent into the tank to prevent clogging. -
Page 19: Getting Started
GETTING STARTED Tips Power on the robot vacuum and ensure that the disposable dust bag has been installed on the base. If any of the indicator lights on the self-empty base stays on or keeps flashing, see “Status Indicators of Self-Emptying Base” to check the status and follow the instructions. Start / Pause / Resume Briefly Press "... -
Page 20: Self-Emptying Function
GETTING STARTED Notes 1. The robot vacuum will enter sleep mode when it is in standby mode for more than 10 minutes. In sleep mode, press any key to wake up the robot vacuum. 2. Do not immerse the robot in water. Doing so may damage the equipment, causing short-circuit or current leakage. -
Page 21: App Guide
GETTING STARTED App Guide Settings Press to exit the current page Map album Dust collection Cleaning mode Current status of the robot Battery level Cleaned time of the robot Cleaned area of the robot Whole house cleaning Set No-Go Zone Room cleaning Zone cleaning Press to start cleaning... -
Page 22: Maintenance And Common Problems
MAINTENANCE AND COMMON PROBLEMS Dustbin / Water Tank / Filter（Clean as needed） Take out the dustbin: Press the dustbin release button as shown and take out the dustbin. Open the lid of the water tank and clean out the remaining water. Open the lid of the dustbin and take out the filter. -
Page 23: Main Brush (Weekly Cleaning Is Recommended)
MAINTENANCE AND COMMON PROBLEMS How to use the cleaning brush: ① Cut the hair entangled on the main brush with the blade. ② Brush o the hair. Blade Brush Main Brush (Weekly cleaning is recommended) Turn the main unit over. Put your hand on the notch on the upper part of the cover plate of the main brush, press down to... -
Page 24: Side Brush (Weekly Cleaning Is Recommended)
MAINTENANCE AND COMMON PROBLEMS After cleaning, press the end cover back to the main brush body. Install the main brush body into the main unit according to the direction shown in the figure. It is recommended to clean the main brush every week and replace them every 6 months. -
Page 25: Mop Assembly
MAINTENANCE AND COMMON PROBLEMS Mop Assembly Release the mop assembly and clean it. Push/Pull Slot Remove the mopping cloth from the mop holder. Wash the mopping cloth with water and dry it; then place the cleaned mopping cloth back to the mop holder and re-install the mop assembly to the robot. -
Page 26: Sensor And Charging Contacts (Weekly Cleaning Is Recommended)
MAINTENANCE AND COMMON PROBLEMS Sensor and Charging Contacts (Weekly cleaning is recommended) Gently wipe the sensor with a dry soft cloth to remove the dust on the surface Gently wipe the charging contacts with a dry soft cloth to ensure normal charging... -
Page 27: Replacement Of Disposable Dust Bag For Self-Emptying Base
MAINTENANCE AND COMMON PROBLEMS Replacement of Disposable Dust Bag for Self-Emptying Base (Monthly replacement is recommended) Take out the used disposable dust bag. Wipe the filter mesh. Install the new disposable dust bag. Close the lid of self-emptying base. -
Page 28: Common Problems
MAINTENANCE AND COMMON PROBLEMS Common Problems Actions Faults Possible Causes Place the robot vacuum 1m in The robot vacuum The robot vacuum is not in contact with the charging front of the self-emptying base cannot be recharged contacts. and press the recharging button. Place the self-emptying base on The robot vacuum The self-emptying base is... - Page 29 MAINTENANCE AND COMMON PROBLEMS Actions Faults Possible Causes Gently tap the front bumper to The bumper is stuck. remove dust. The robot vacuum moves backward There is dust accumulated on Clean the dust accumulated on the cli sensors. the surface of cli sensors. The robot vacuum has ·...
